Hardware
|
|
---|---|
Interface
|

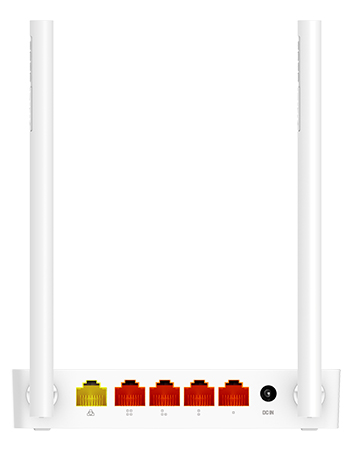

- 4 *100Mbps LAN Ports
- 1 *100Mbps WAN Port
|
Power Supply |
- 5V DC / 0.6A
|
Button |

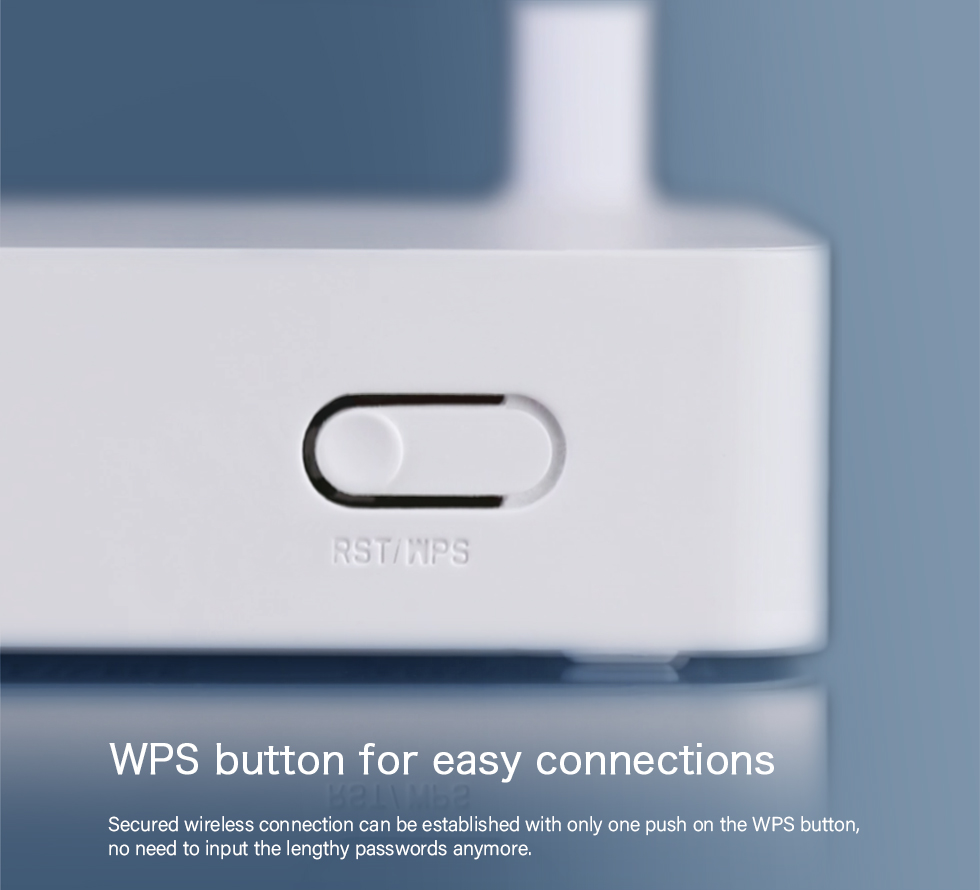

- 1 *RST/WPS Button
|
LED Indicators |
- 1* System, 1* Wi-Fi, 1* WAN, 4* LAN
|
Antenna |
- 4 * external fixed antennas (2.4G)
|
Dimensions (L x W x H)
|
- 134 x 76 x 24mm
|
Wireless
|
|
---|---|
Standards |
- IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
|
RF Frequency |
- 2.4~2.4835GHz
|
Data Rate | - 2.4GHz: 300Mbps |
EIRP | - 2.4GHz < 20Bm |
Wireless Security
|
- WPA/WPA2 Mixed
|
Reception Sensitivity
|
-11b 11M:-85dBm@8% PER
-11g 54M:-72dBm@10% PER
-11n HT20 MCS7:-68dBm@10% PER
HT40 MCS7:-65dBm@10% PER
|
Software
|
|
---|---|
Operation Mode
|
- Gateway Mode

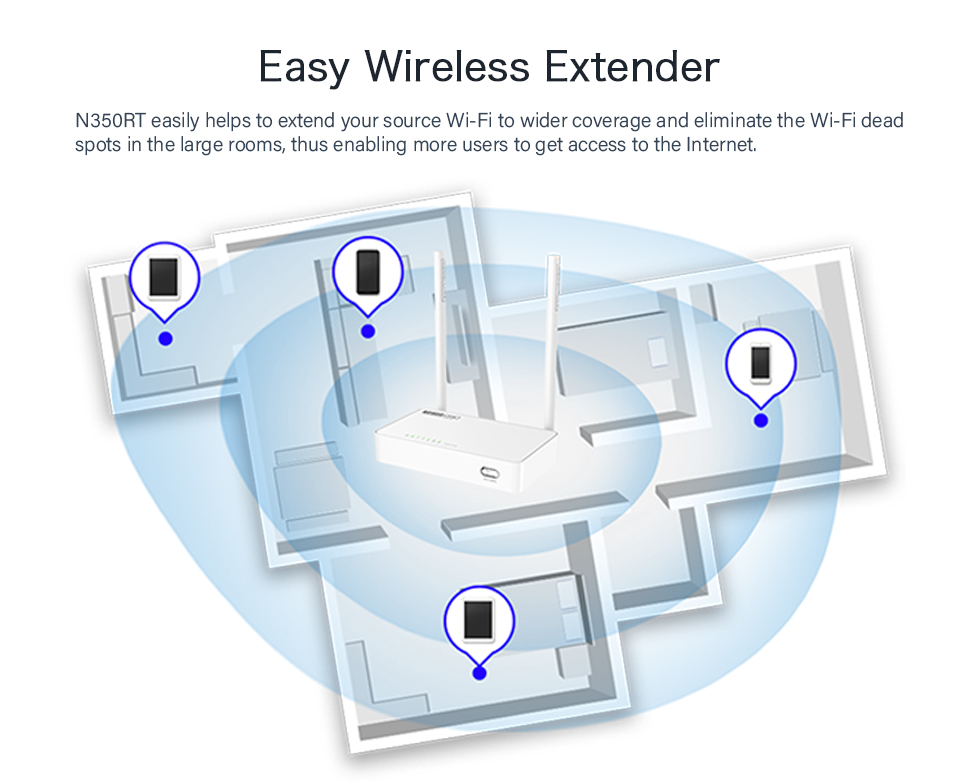

- Repeater Mode
- Bridge Mode
- WISP Mode |
Home
|
- Quick Setup
- Basic setup - Advanced setup
- QR Code
- LED - Logout
- Reboot
|
Network
|
- WAN Setting
- LAN Setting - DDNS Setting
- IPTV Setting
- IPv6 Setting |
WAN Type
|
- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
|
Wireless
|
- Basic setup
- Guest Network(Multiple SSID)
- Wireless Schedule
- Access Control - Advanced setup |
Parental Control
|
- Internet time control based on MAC |
QoS
|
- Up/Down speed control on WAN, Bandwidth control based on IP address |
Device managemen
|
- Static Route - Routing Table - IP/MAC Binding |
Security
|
- MAC Filtering
- IP/Port Filtering - URL Filtering |
NAT
|
- Virtual Server(Port Forwarding) - DMZ - VPN passthrough |
Tools
|
- Upgrade Firmware
- Time Setup - Remote management
- Password Settings
- Reboot Schedule - System Log and so on |
Others | |
---|---|
Package Contents
|

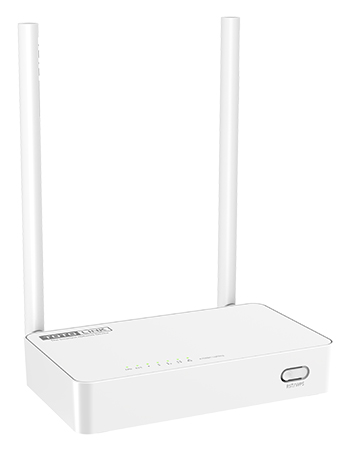

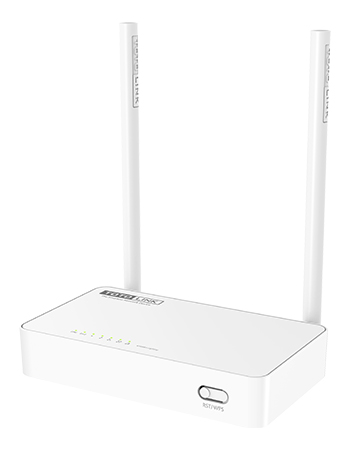

- N350RT Wireless Router *1
- Power Adapter *1
- Ethernet Cable *1
- Quick Installation Guide *1
|
Environment
|
- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
|
