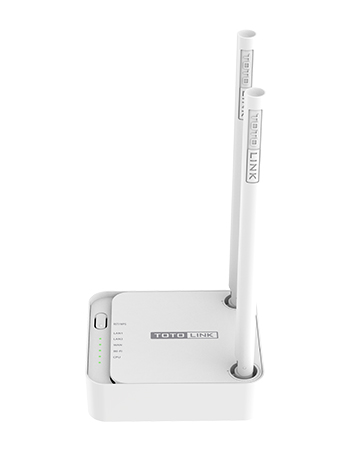

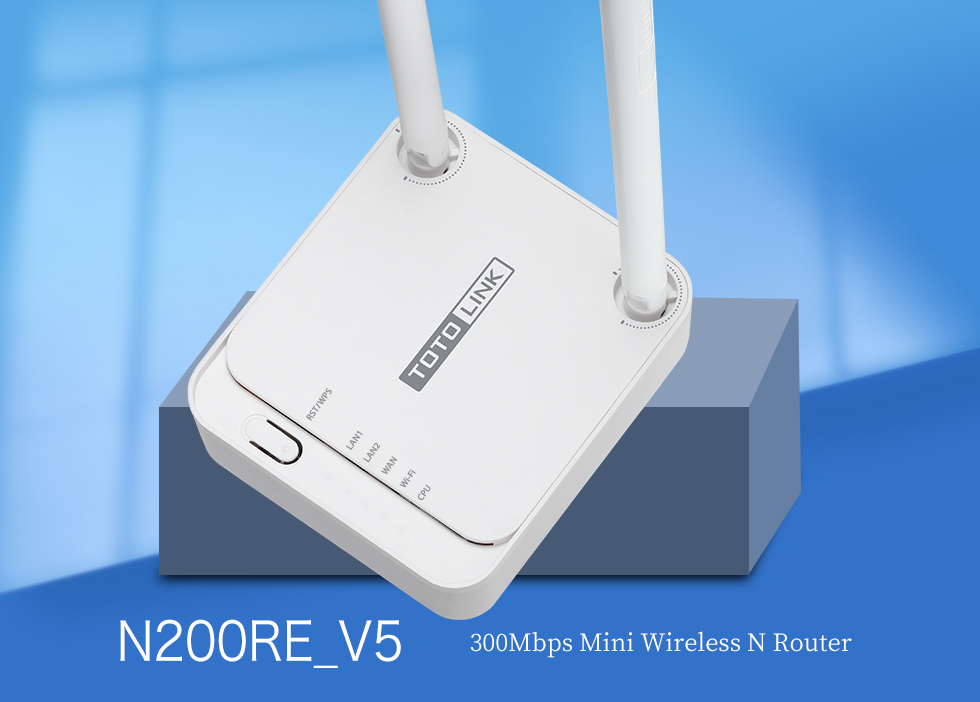

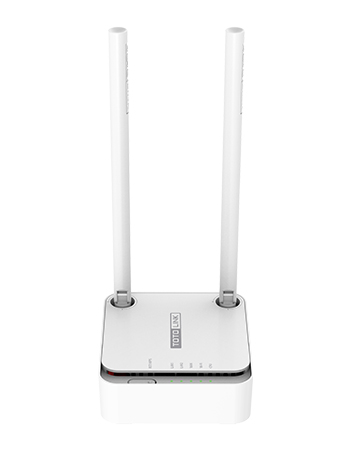

N200RE_V5

300Mbps Mini Wireless N Router

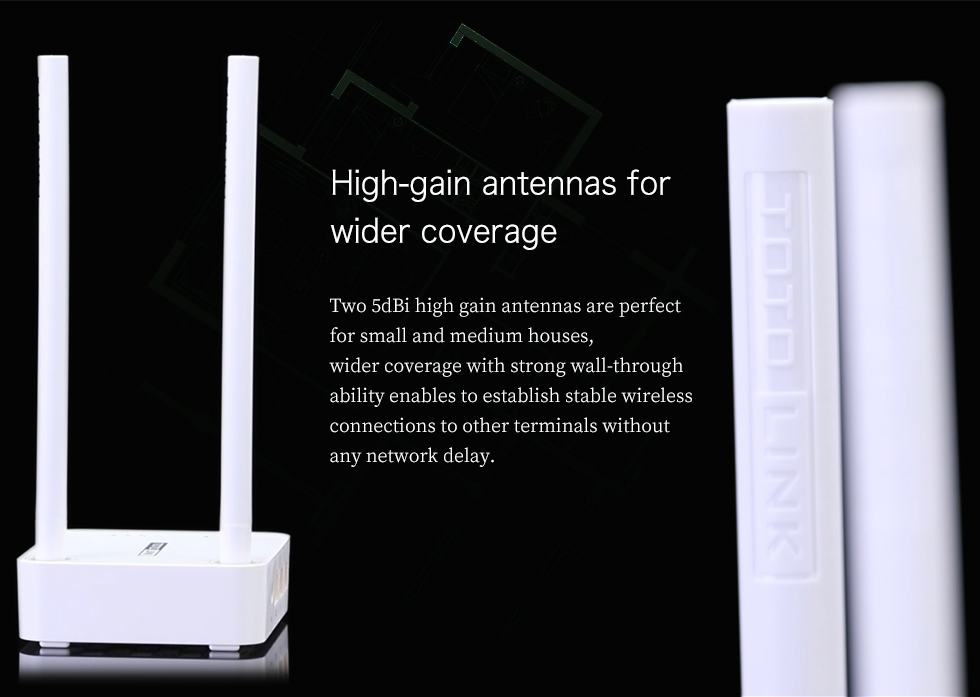

  • - High-gain antennas for wider coverage
    - WPS button for easy connections
    - IPTV helps to catch the latest teleplay
    - Multiple SSIDs for creating Guest Network
    - Parental Control for limited access
    - Easy Wireless Extender
    - APP for remote management
    - Domain access for Quick Setup
  • - Complies with the latest IEEE 802.11n standards.
    - 2.4GHz wireless speed up to 300Mbps.
    - Supports DHCP, Static IP, PPPoE Internet connection type.
    - Provides WPA/WPA2 mixed security.
    - Secured wireless connection can be established with only one push on the WPS button.
    - QoS: Bandwidth Control based on IP address.
    - IPTV function allows to enjoy online movies at home.
    -Supports IP/Port filtering, MAC filtering, URL filtering, Virtual Server and DMZ.
    - Multiple SSIDs enables to create different guest network.
    - Supports to log in the router via domain access http://itotolink.net
    -APP on phone enables remote management for TOTOLINK routers.

    Hardware

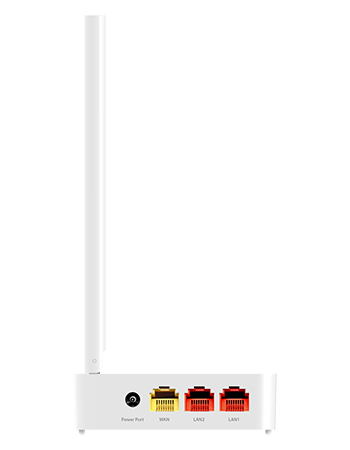

    Interface
    - 2 *100Mbps LAN Ports
    - 1 *100Mbps WAN Port
    Power Supply
    - 5V DC / 0.6A
    Button
    - 1 *RST/WPS Button
    LED Indicators
    - 1* System,
    - 1* Wi-Fi,
    - 1* WAN,
    - 2* LAN
    Antenna
    - 2 * external fixed antennas (2.4G)
    Dimensions (L x W x H)
    - 91mm *80mm *25mm
    Wireless
    Standards
    - IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
    RF Frequency
    - 2.4~2.4835GHz
    Data Rate  - 2.4GHz: 300Mbps
    EIRP  - 2.4GHz < 20Bm
    Wireless Security
    - WPA/WPA2 Mixed
    FER
    (Frame Error Ratio)

    -11b 11M:-85dBm@8% PER
    -11g 54M:-72dBm@10% PER
    -11n HT20 MCS7:-68dBm@10% PER
            HT40 MCS7:-65dBm@10% PER
    Software
    Operation Mode
    - Gateway Mode
    - Repeater Mode
    - Bridge Mode
    - WISP Mode
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - QR Code
    - LED
    - Logout
    - Reboot
    Network
    - WAN Setting
    - LAN Setting
    - DDNS Setting
    - IPTV Setting
    - IPv6 Setting
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Wireless
    - Basic setup
    - Guest Network(Multiple SSID)
    - Wireless Schedule
    - Access Control
    - Advanced setup
    Parental Control
    - Internet time control based on MAC
    QoS
    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    Device managemen
    - Static Route
    - Routing Table
    - IP/MAC Binding
    Security
    - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT
    - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    Tools

    - Upgrade Firmware
    - Time Setup
    - Remote manageme
    - Password Settings
    - Reboot Schedule
    - System Log and so on
    Others
    Package Contents
    - N200RE_V5 Wireless Router *1
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
