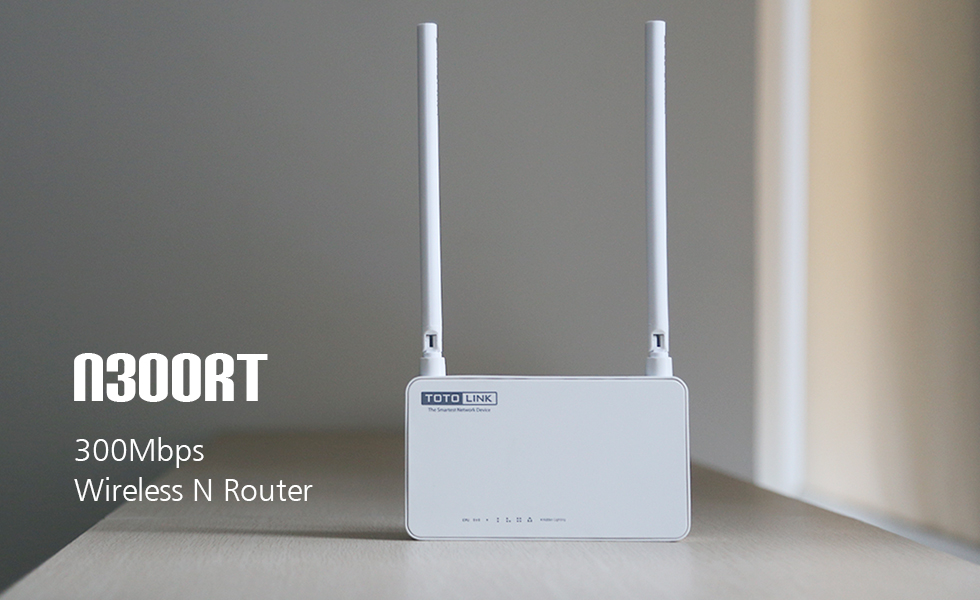

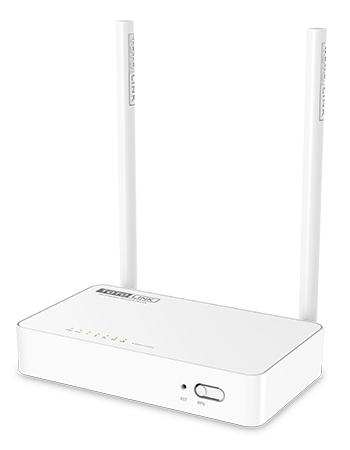

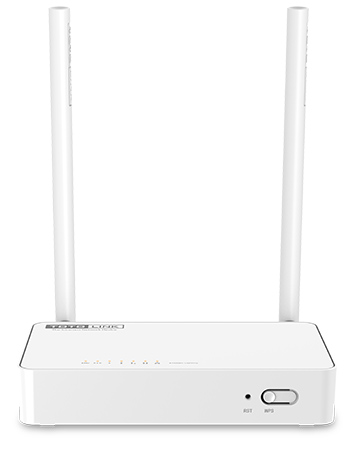

N300RT_V4

300Mbps Wireless N Router

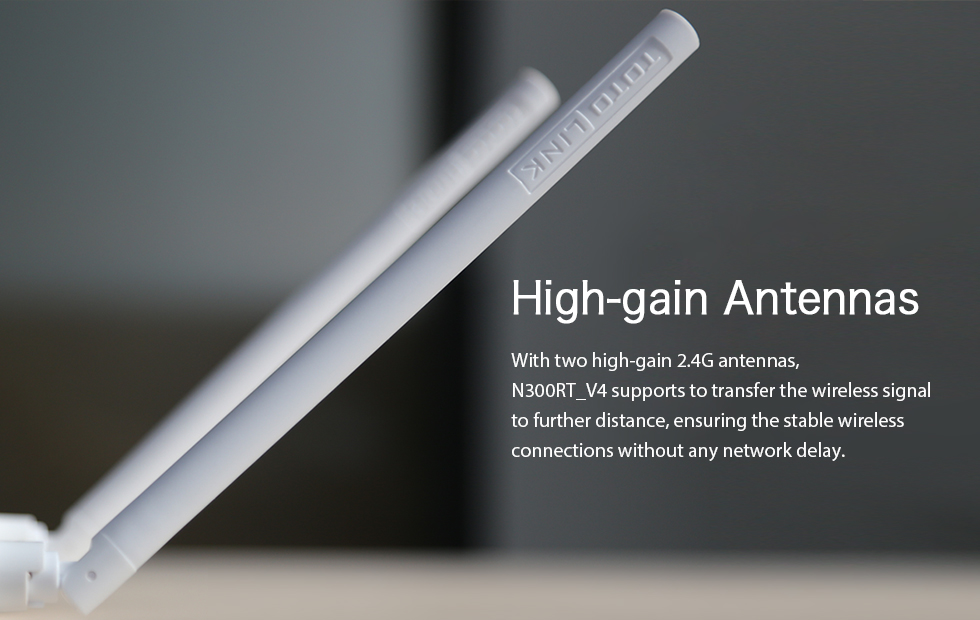

  • - High-gain Antennas

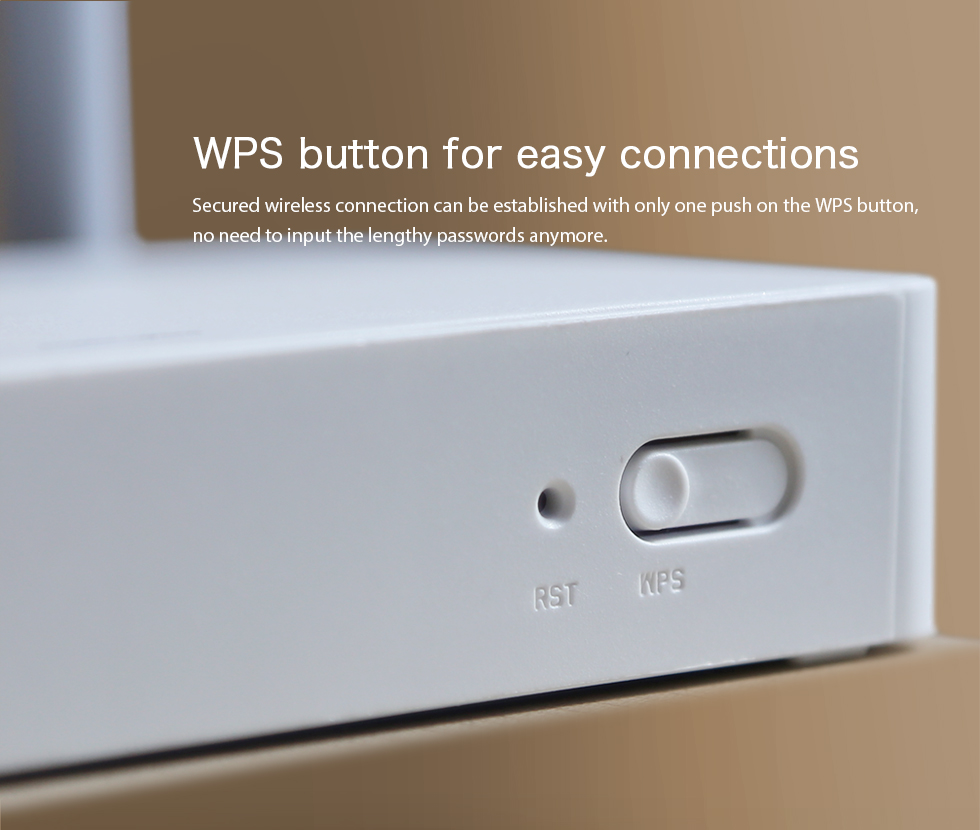

    - WPS button for easy connections
    - Support IPTV
    - Multiple SSIDs
    - Easy Setup via Smartphone UI
    - Domain Access for Setup

  • Overviews
  • Features

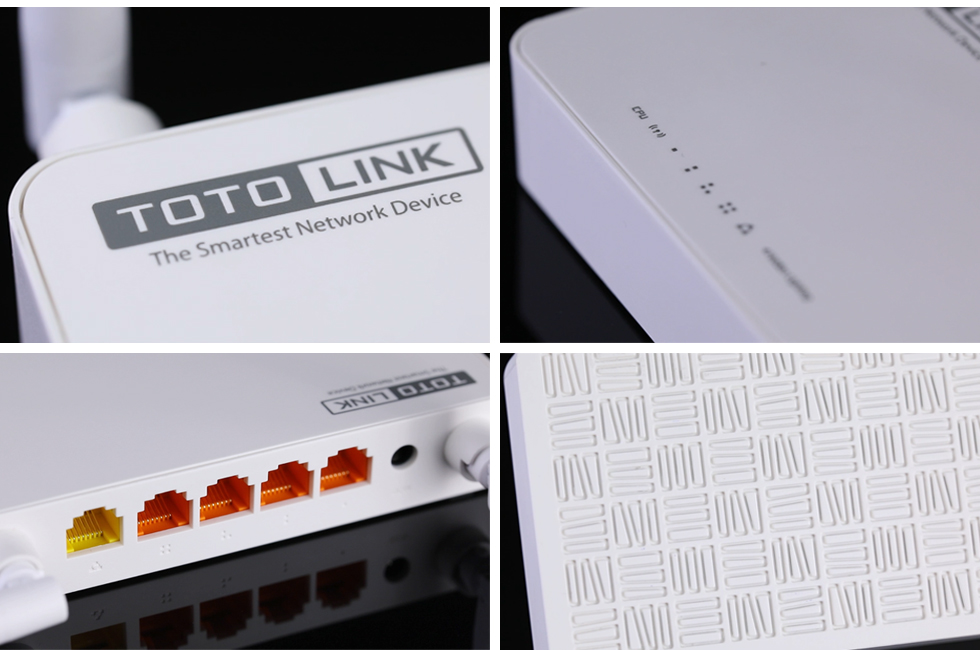

  • Design
  • Tech Specs
  • Download
  • FAQs
    •  Complies with the IEEE 802.11n standards.
     2.4GHz wireless speed up to 300Mbps.
     Supports DHCP, Static IP, PPPoE Internet connection type.
     Provides 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK.
     Connects to a secure network easily by using WPS.
     QoS: Bandwidth Control based on IP address.
     IPTV function allows to enjoy online movies at home.
     Supports IP/Port filtering, MAC filtering, URL filtering, Virtual Server and DMZ.
     Universal Repeater and WDS function for easy Wi-Fi extension.
     Multiple SSIDs function enable users to create multiple Wi-Fi networks.

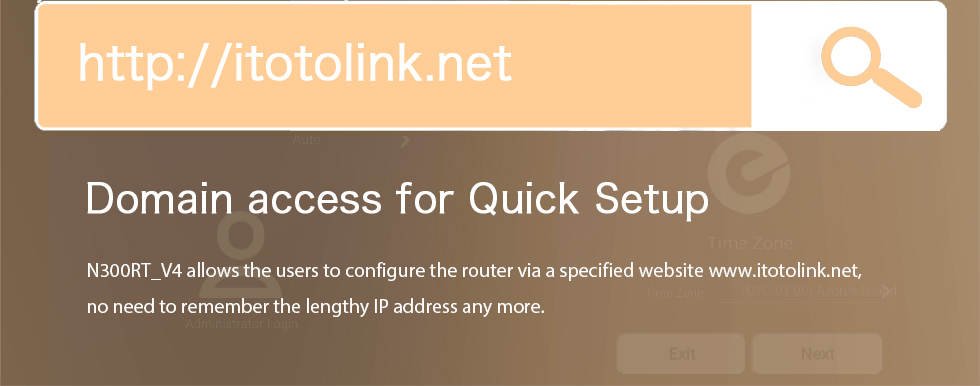

     Supports to log in the router via domain access http://itotolink.net
     Easy setup with smart Phone UI simplifies the basic settings.
    Hardware

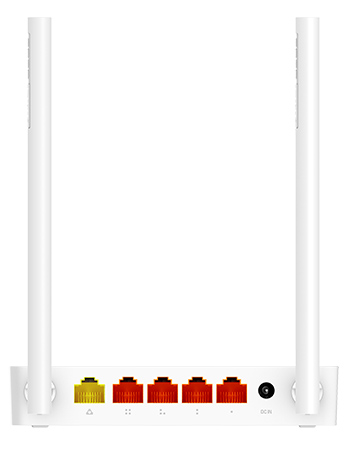

    Interface

    - 4 * 100Mbps LAN Ports

    - 1 * 100Mbps WAN Port

    Power Supply

    - 9VDC/0.5A

    Button

    - 1 * RST Button

    - 1* WPS Butto

    LED

    - 1* System,

    - 1* Wi-Fi,

    - 1* WAN,

    - 4* LAN

    Antenna

    - 2 * external fixed antennas (2.4G)

    Dimensions(L x W x H)

    - 134mm *76mm *24mm
    Wireless
    Standards

    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency

    - 2.4GHz
    Data Rate

    - 2.4GHz: Up to 300Mbps

    EIRP

    - 2.4GHz < 20dBm

    Wireless Security

    - 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK.
    Reception Sensitivity

    - 2.4G:

      11b 11M：-81dBm@8% PER

      11g 54M：-68dBm@10% PER

      11n HT20 MCS7：-65dBm@10% PER&

              HT40 MCS7：-62dBm@10% PER
    Software

    Status

    - WAN

    - Wireless

    - LAN

    -System Information

    Network

    - WAN Setting

    - LAN Setting

    - IPTV  Setting

    - DHCP&ARP Tables

    - Static Route

    - Routing Table

    Wireless

    - Basic Settings

    - Multiple SSID1

    - Multiple SSID2

    - Multiple SSID3

    - Multiple SSID4

    - Advanced Settings

    - Access Control

    - WDS Settings

    - WPS Settings

    -Wireless Schedule

    QoS

    - QoS On/Off

    - Add a rule

    - Current QoS  Rules Table
    Firewall

    - MAC Filtering

    - IP/Port Filtering

    - Virtual Server(Port Forwarding)

    - URL Filtering

    - DMZ

    System

    - Upgrade Firmware

    - Save/Reload Settings

    - Time Zone Settings

    - DDNS

    - Denial-of-Service

    - TR-069 Config

    - Password Settings

    - Reboot Schedule

    - System Log

    - Statistics

    - Run Command

    - Logout
    Others

    Package Contents

    -  N300RT_V4 Wireless Router *1

    - Power Adapter *1

    - Ethernet Cable *1

    - Quick Installation Guide *1

    Environment

    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

    - Operating Humidity: 10%~90% non-condensing

    - Storage Humidity: 5%~90% non-condensing
