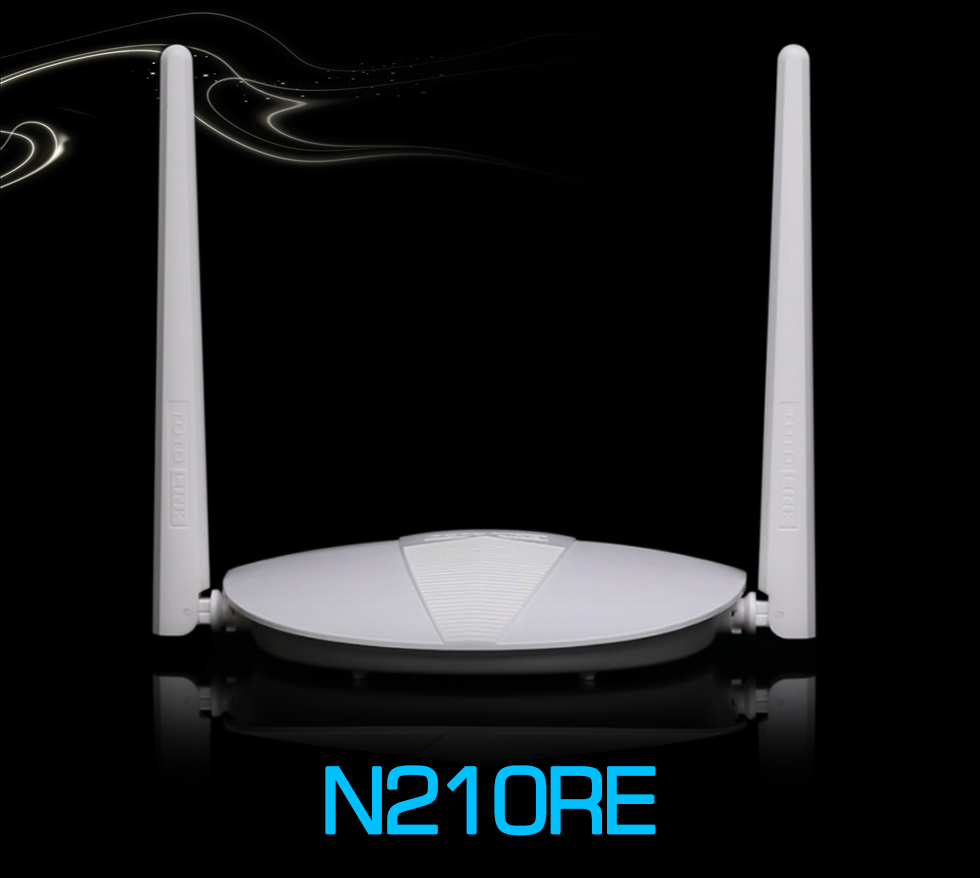

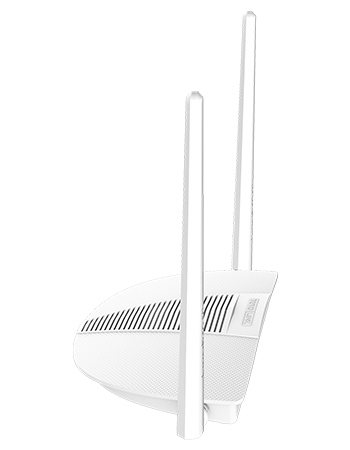

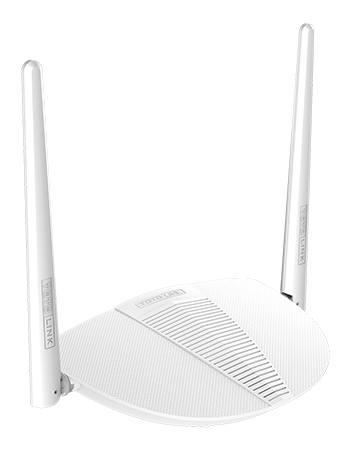

N210RE

300Mbps Wireless N Router

  • - 300Mbps Wireless Speed
    - Excellent wireless performance

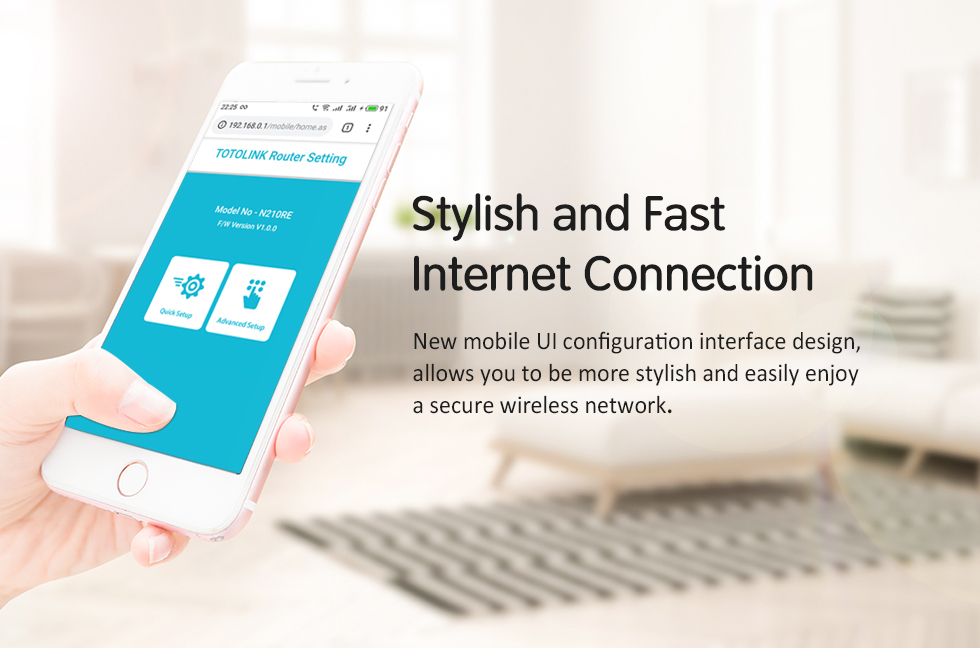

    - Stylish and Fast Internet Connection
    - Wireless Timer Switch to enjoy healthy life



  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
    - Advanced security encryptions include 64/128-bit WEP, WPA, WPA2 and WPA-Mixed help to secure wireless communications.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, Port, MAC, URL filtering and Port Forwarding.
    - QoS and WMM features gives priorities to bandwidth-intensive applications like HD streaming and gaming
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Universal repeater and WDS function for easy Wi-Fi extension.
    - Wireless timer switch to enjoy healthy life.With wireless timing functionaccording set the time  to automatically turn on or turn off the wireless network, , saving energy while allowing families to enjoy a healthy home environment.
    - Easy setup with smartphone UI and domain access simplifies the basic settings

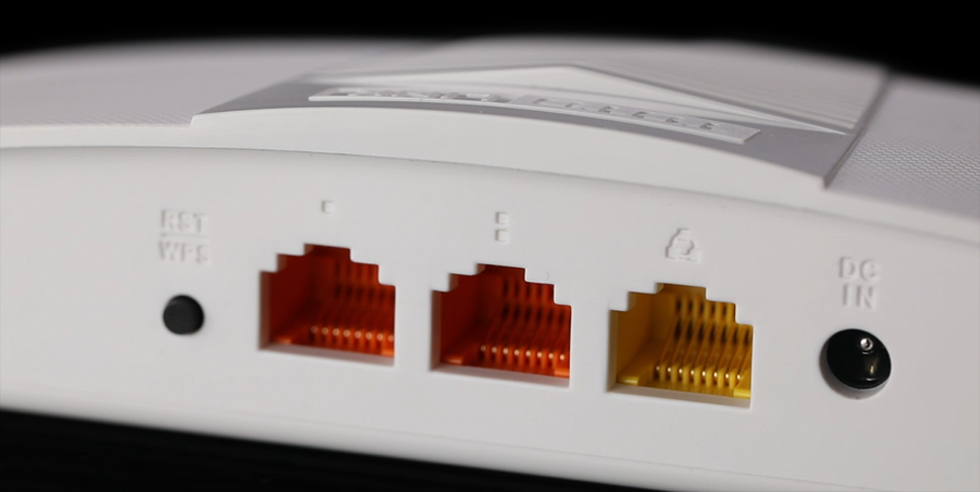

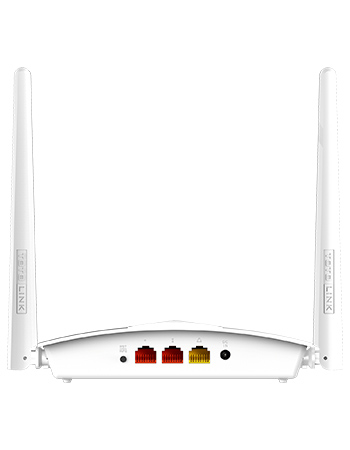

    Hardware
    Interface
    - 2 *10/100Mbps LAN Ports
    - 1 *10/100Mbps WAN Port
    Power Supply
    - 9V DC / 0.5A
    Antenna
    - 2 *5dBi fixed antennas
    Button
    - 1 *RST/WPS Button
    LED Indicator
    - 1* System
    Dimensions (L x W x H)
    - 3.6 x 3.1 x 1.0 in. ( 91 x 80 x 25 mm)
    Wireless
    Standards
    - IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
    RF Frequency
    - 2.4~2.4835GHz
    Data Rate
    - 802. 11n: Up to 300Mbps
    - 802.11g: Up to 54Mbps (dynamic)
    - 802.11b: Up to11Mbps (dynamic)
    EIRP  < 20Bm
    Wireless Security
    - 64/128-bit WEP, WPA/WPA2 and WPA-Mixed
    Reception Sensitivity

    - 270M: -61 dBm@10% PER
    - 135M: -65 dBm@10% PER
    - 54M: -68 dBm@10% PER
    - 11M: -85 dBm@8% PER
    - 6M: -88 dBm@10% PER
    - 1M: -90 dBm@8% PER
    Software
    Operation Mode
    - Router Mode
    - Repeater Mode
    - AP Mode
    - WISP Mode
    Network
    - Static DHCP Setting,
    - IPTV,
    - IPV6
    WAN Type
    - Static IP, DHCP,
    - PPPoE/Russia PPPoE,
    - PPTP/Russia PPTP,
    - L2TP/Russia L2TP
    Wireless
    Functions
    - Multiple SSID,
    - Access Control,
    - WDS,
    - WPS
    Schedule
    - Reboot Schedule,
    - Wireless Schedule
    QoS
    - QoS Setup,
    - Connect Limit Control
    Firewall

    - MAC Filtering,
    - IP/Port Filtering,
    - URL Filtering,
    - Virtual Server(Port Forwarding) ,
    - DMZ
    USB Share
    - DLNA Service,
    - FTP Server,
    - Samba Server
    System


    - Upgrade Firmware,
    - Save/Reload Settings,
    - Time Zone Settings,
    - DDNS,
    - Denial-of-Service,
    - TR-069 Config,
    - Password Settings,
    - System Log, and more
    Others
    Package Contents

    - N210RE Wireless Router *1
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
