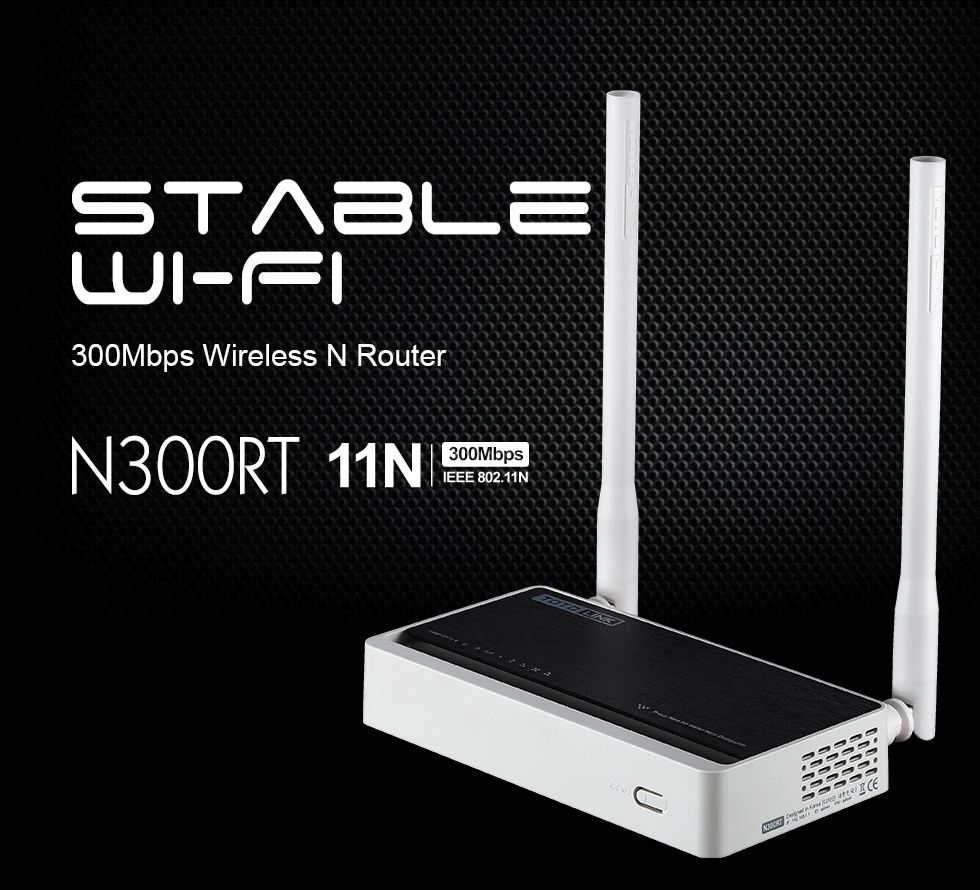

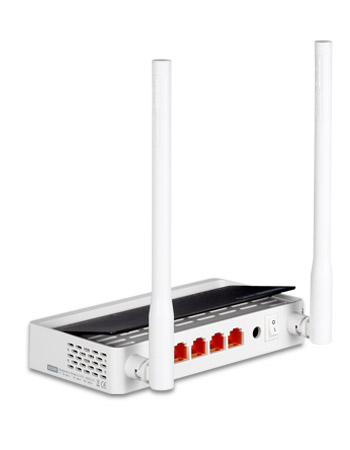

N300RT

300Mbps Wireless N Router

  • - Wireless N Speed
    - Stable Performance
    - Enjoy Your IPTV
    - Easy Setup
    - Multiple Networks Available
    - Advanced Security
    - Parental Control
    - IPv6 Ready
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.

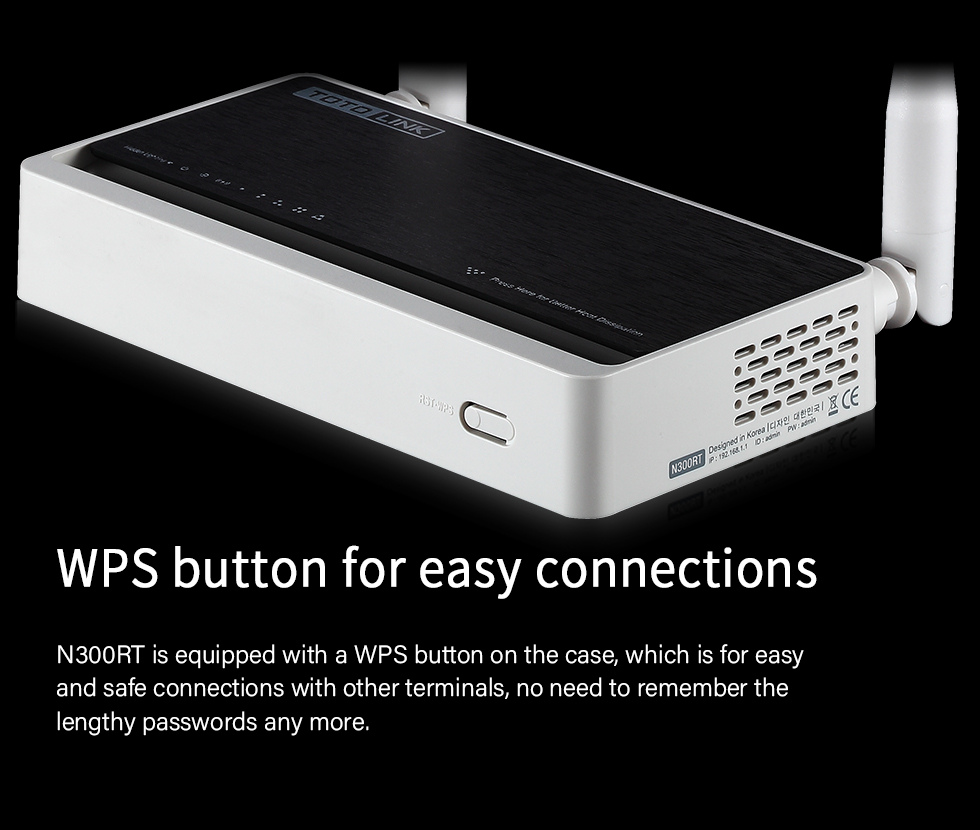

    - Connects to secure network easily and fast using WPS.
    - Supports IP, Port, MAC, URL filtering and Port Forwarding.
    - QoS: Bandwidth Control based on IP/MAC.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Supports VLAN function for IPTV and other internet services.
    - Universal repeater and WDS function for easy Wi-Fi extension.
    - Supports TR-069 protocol for remote centralized management.

    Hardware

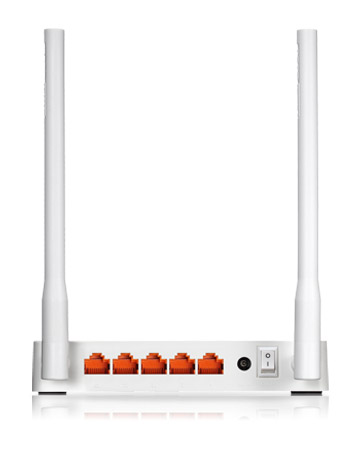

    Interface

    - 4 * 10/100Mbps LAN Ports

    - 1 * 10/100Mbps WAN Port
    Power Supply - 9VDC / 0.5A
    Button

    - 1 * RST/WPS Button

    - 1 * Power ON/OFF
    LED Indicators

    - 1 * Power

    - 1 * CPU

    - 1 * Wireless

    - 1 * WAN

    - 4 * LAN

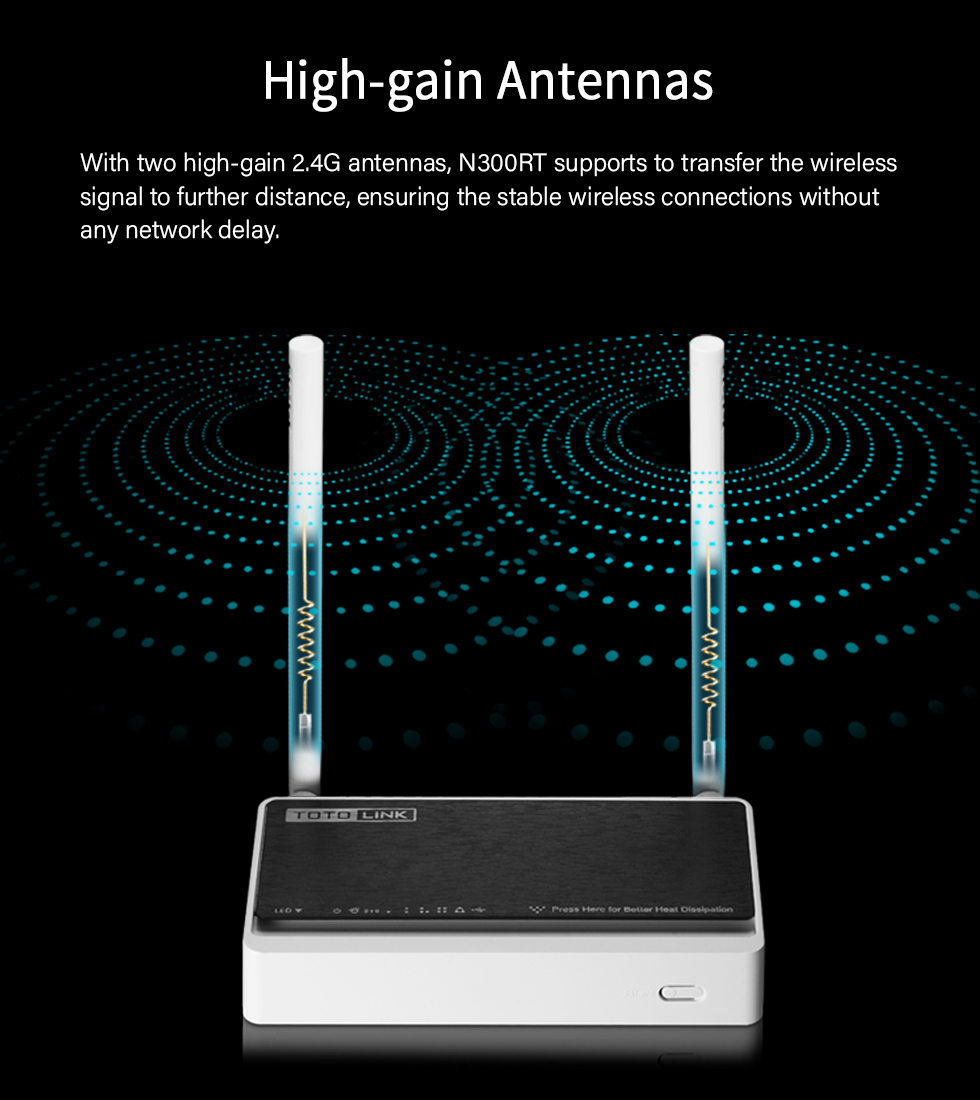

    Antenna

    - 2 * 5dBi Fixed Antennas
    Dimensions (L x W x H)

    - 147.4 X 85.2 X 28mm (not including antennas)

    Wireless
    Standards

    - IEEE 802.11b

    - IEEE 802.11g

    - IEEE 802.11n

    RF Frequency

    		 - 2.4~2.4835GHz
    Data Rate

    - 802. 11n: Up to 300Mbps

    - 802.11g: Up to 54Mbps (dynamic)

    - 802.11b: Up to 11Mbps (dynamic)

    EIRP

    - < 20dBm
    Wireless Security - 64/128-bit WEP, WPA/WPA2 and WPA-Mixed
    Reception Sensitivity

    - 270M: -61 dBm@10% PER

    - 135M: -65 dBm@10% PER

    - 54M: -68 dBm@10% PER

    - 11M: -85 dBm@8% PER

    - 6M: -88 dBm@10% PER

    - 1M: -90 dBm@8% PER

    Software

    Operation Mode

    - Router Mode

    - Repeater Mode

    - AP Mode

    - WISP Mode
    Network

    - Static DHCP Setting,

    - IPTV
    WAN Type

    - Static IP,

    - DHCP,

    - PPPoE/Russia PPPoE,

    - PPTP/Russia PPTP,

    - L2TP/Russia L2TP

    Wireless Functions

    - Multiple SSID,

    - Access Control,

    - WDS,

    - WPS

    Schedule

    - Reboot Schedule

    - Wireless Schedule

    QoS

    - QoS Setup,

    - Connect Limit Control

    Firewall

    - MAC Filtering,

    - IP/Port Filtering,

    - URL Filtering,

    - Virtual Server(Port Forwarding) ,

    - DMZ

    System

    - Upgrade Firmware,

    - Save/Reload Settings,

    - Time Zone Settings,

    - DDNS,

    - Denial-of-Service,

    - TR-069 Config,

    - Password Settings,

    - System Log, and more
    Others
    Package Contents

    - N300RT Wireless Router *1

    - Power Adapter *1

    - Ethernet Cable *1

    - Quick Installation Guide *1
    Environment

    - Operating Temperature: 0℃~40℃ (32 ℉~104℉)

    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

    - Operating Humidity: 10%~90% non-condensing

    - Storage Humidity: 5%~90% non-condensing
