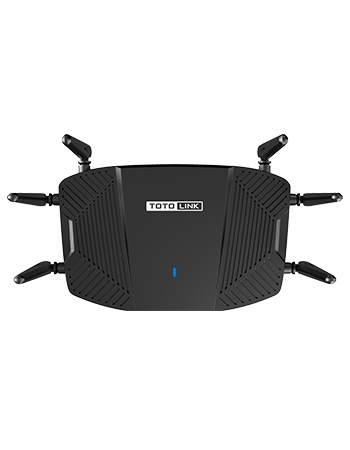

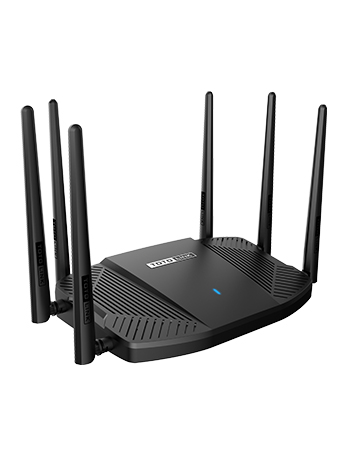

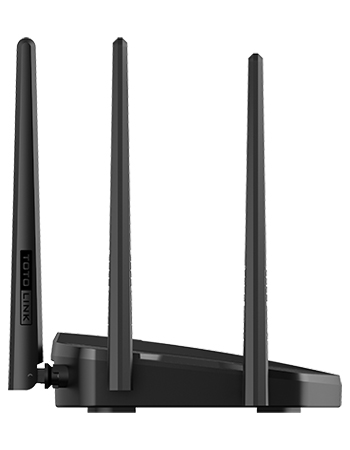

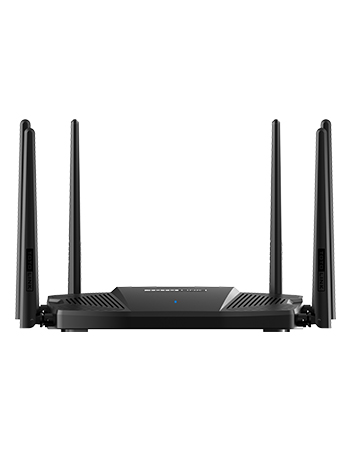

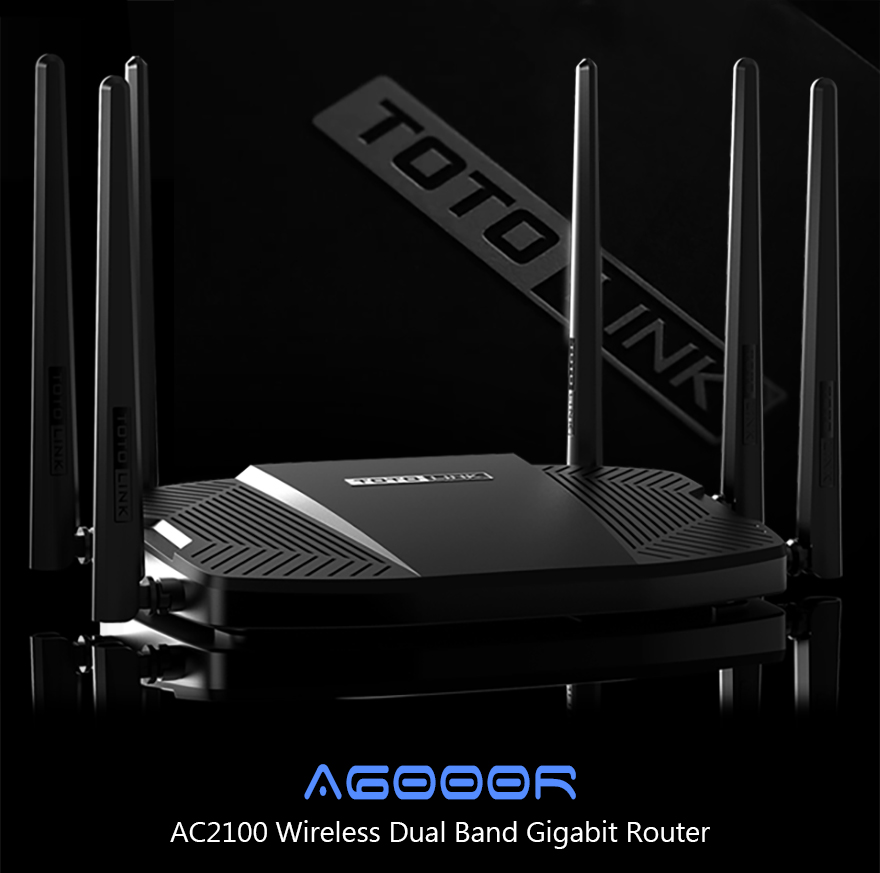

A6000R

AC2100 Wireless Dual Band Gigabit Router

- 2033Mbps Super-fast Speed Wi-Fi

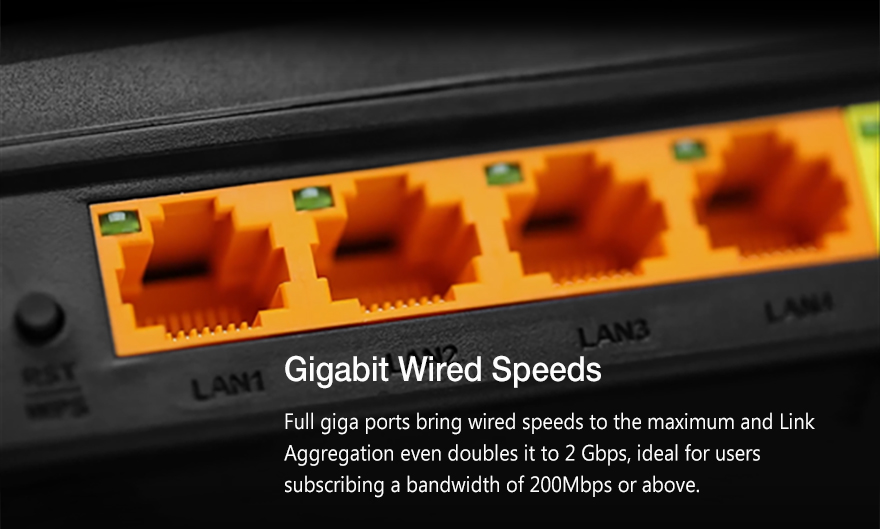

- Gigabit Wired Speeds

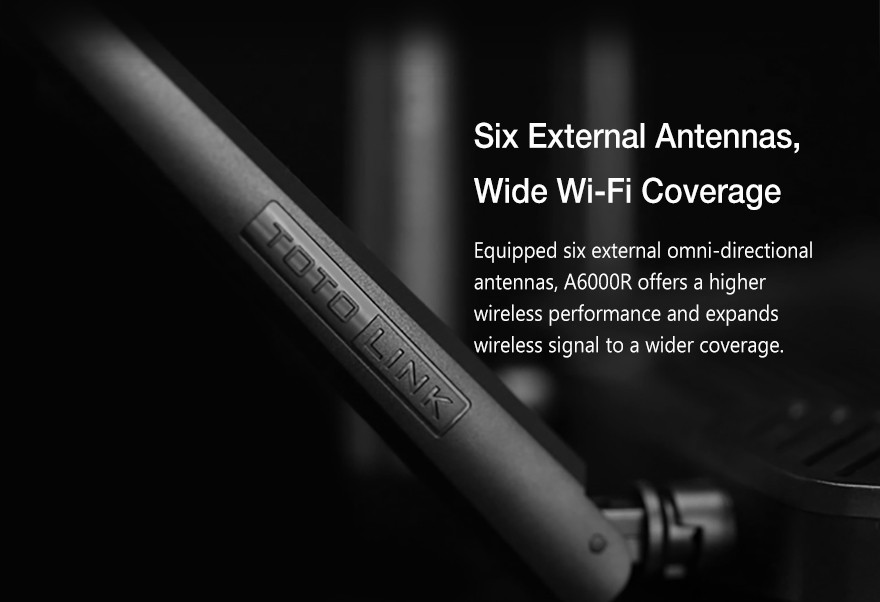

- Six External Antennas, Wide Wi-Fi Coverage
- Built-in Dual-Core CPU, High Wi-Fi Transmission Performance
- Phone UI and TOTOLINK Router APP

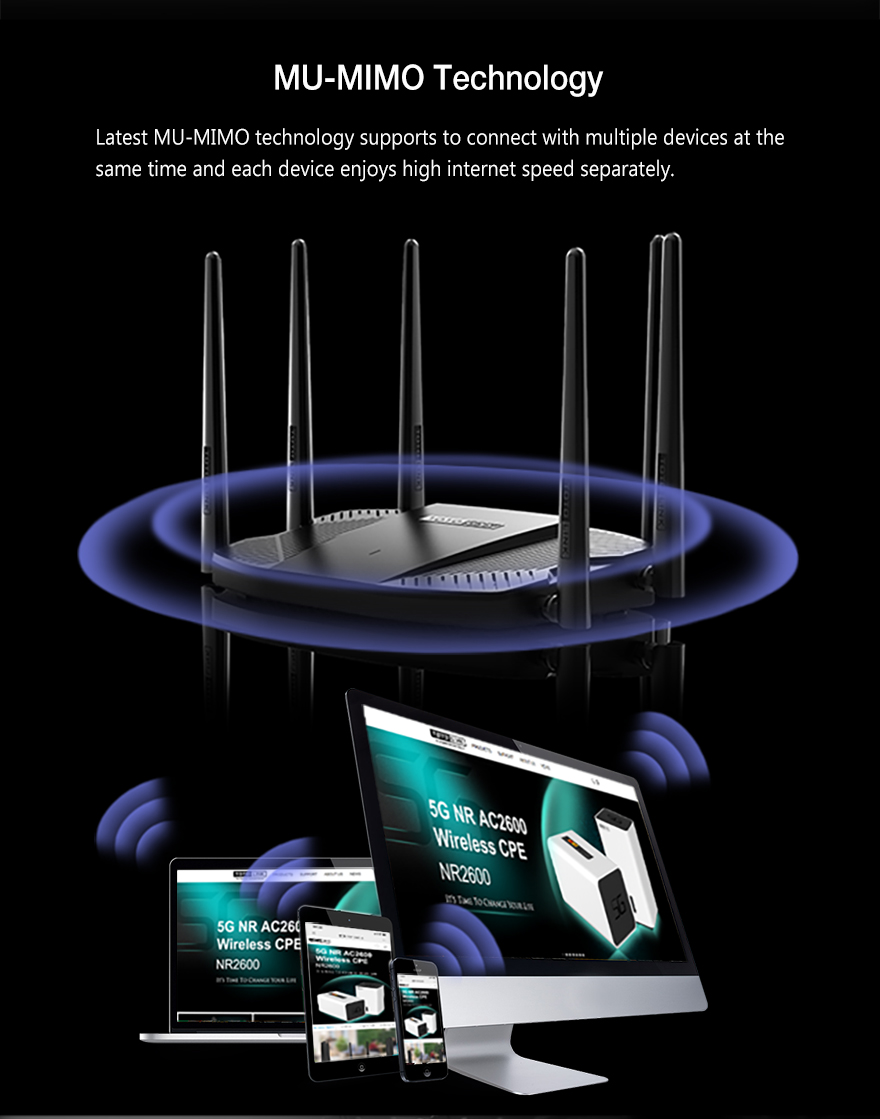

- MU-MIMO Technology
- Smoother Performance

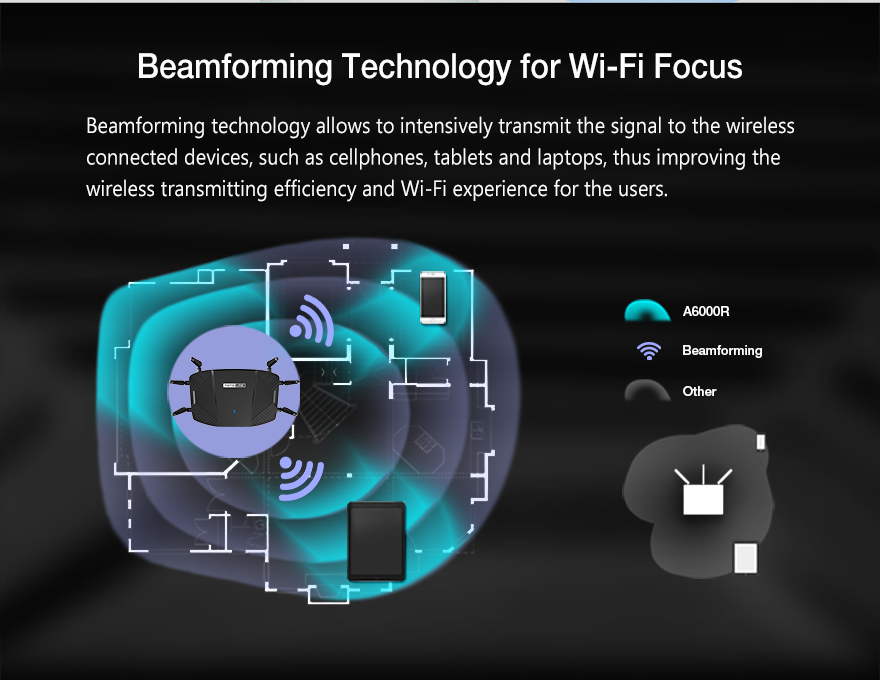

- Beamforming Technology for Wi-Fi Focus

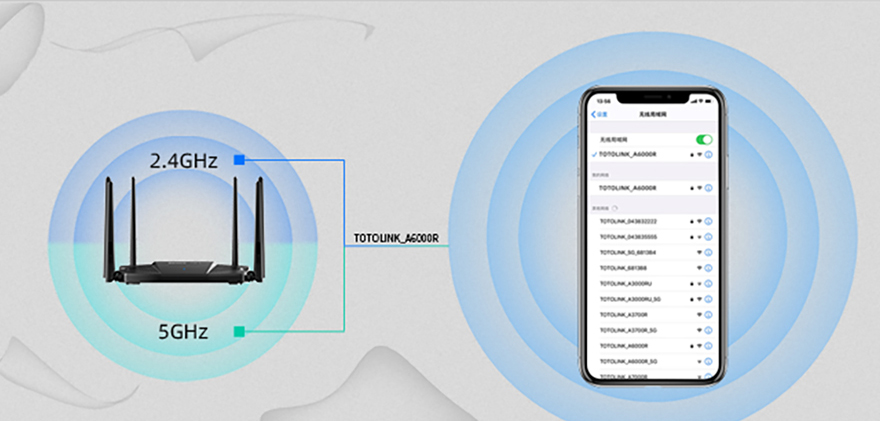

Band Steering

Band Steering function enable the router transmits two band signals by the same SSID. According to the real-time Internet rate of the terminal,
it can choose the band with higher speed and less interference for users intelligently. It have features that steers wireless devices(dual-band capable)
to connect to the faster 5GHz Wi-Fi and it can reduce congestion of 2.4GHz Wi-Fi for those devices who support 2.4GHz only.
Therefore, Band Steering not only gives full play to the advantage of multi-band but also improves the user's experience.

HARDWARE FEATURES

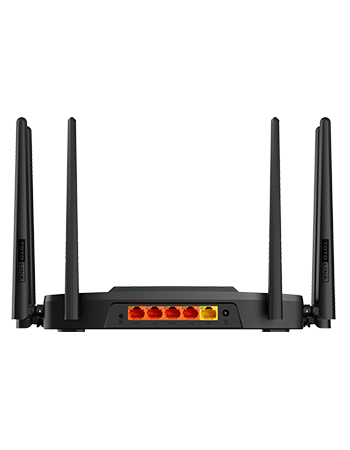

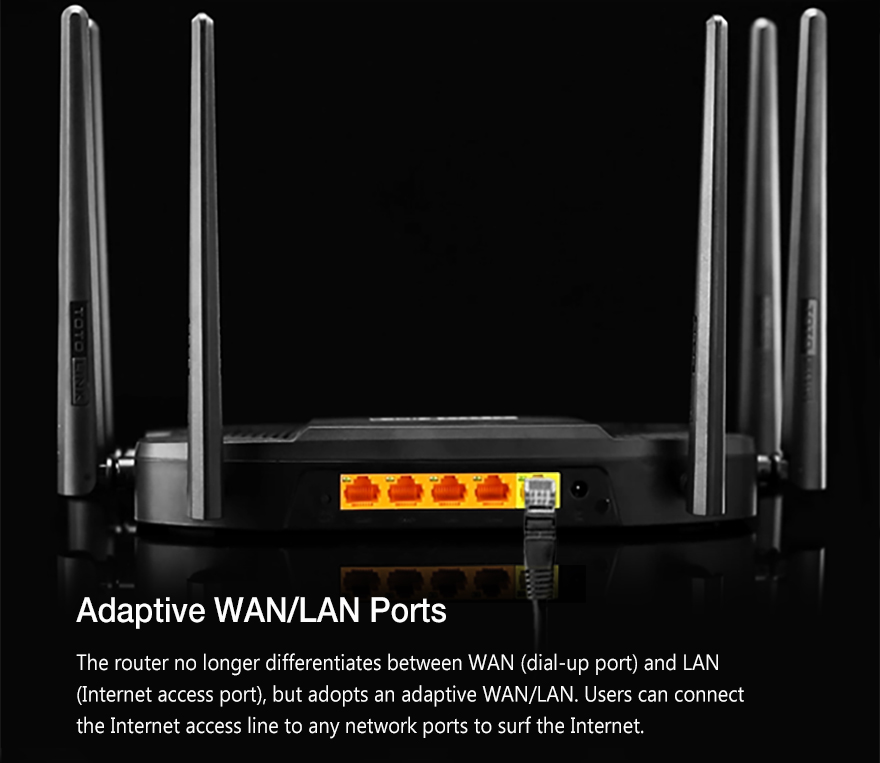

Interface	- 4 1000Mbps LAN Ports - 1 1000Mbps WAN Port
Power Supply	- 12 VDC / 1 A
Button	- 1 *RST/WPS Button
LED Indicators	- 1 SYS 1 WAN 4 *LAN
Antenna	- 2 * 5dBi detachable antennas (2.4GHz), - 4 * 5dBi detachable antennas (5GHz)
Dimensions (L x W x H)	- 120X180 X256mm

WIRELESS FEATURES
Standards	- IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n,
RF Frequency	- 2.4GHz/5GHz
Data Rate	- 2.4GHz: 300Mbps
	- 5GHz: 1733Mbps
EIRP	- 2.4GHz < 20Bm
	- 5GHz < 20dBm
Wireless Security	- 64/128-bit WEP, WPA and WPA2
Reception Sensitivity	- 2.4G:11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER - 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER

SOFTWARE FEATURES
Operation Mode	- Router Mode - Repeater Mode - AP Mode - WISP Mode
Home	- Easy setup - Basic setup - Advanced setup - QR Code - LED - Logout - Reboot
Network	- WAN Setting - LAN Setting - IPTV Setting - DHCP&ARP Tables - Static Route - Routing Table - IPv6 Network - DDNS
WAN Type	- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
Wireless	- Basic Settings - Advanced Settings - Access Contro - WDS Settings - WPS Settings - Wireless Schedule - Guest Network(Multiple SSID)
Parental Control	- Internet time control based on MAC - URL Restrictions
QoS	- Up/Down speed control on WAN, Bandwidth control based on IP address
Firewall	- MAC Filtering - IP/Port Filtering - URL Filtering
NAT Mapping	- Virtual Server(Port Forwarding) - DMZ - VPN passthrough
System	- Upgrade Firmware - Time Zone Settings - TR-069 Config - Password Settings - Reboot Schedule - System Log and so on

Others
Package Contents	- A6000R Wireless Router 1 - Power Adapter 1 - Ethernet Cable 1 - Quick Installation Guide 1
Environment	- Operating Temperature: 0℃~50℃ (32 ℉~122℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 5%~95% non-condensing - Storage Humidity: 5%~90% non-condensing

A6000R

AC2100 Wireless Dual Band Gigabit Router

- Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.

- 2033Mbps in total on dual band, 1733Mbps on 5GHz and 300Mbps on 2.4GHz

- MU-MIMO serves multiple devices at once, reducing wait time and increasing Wi-Fi throughput.

- Beamforming technology delivers highly efficient wireless connection.

- Full gigabit ports offers a larger capability for data streaming via cable connection.

- Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.

- Provides 64/128-bit WEP, WPA, and WPA2 encryption.

- QoS function allows to change the bandwidth for different terminals via IP address.

- Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.

- Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.

- Smart UI and Phone APP design is easy for the users to finish the basic configuration with their cellphones.
