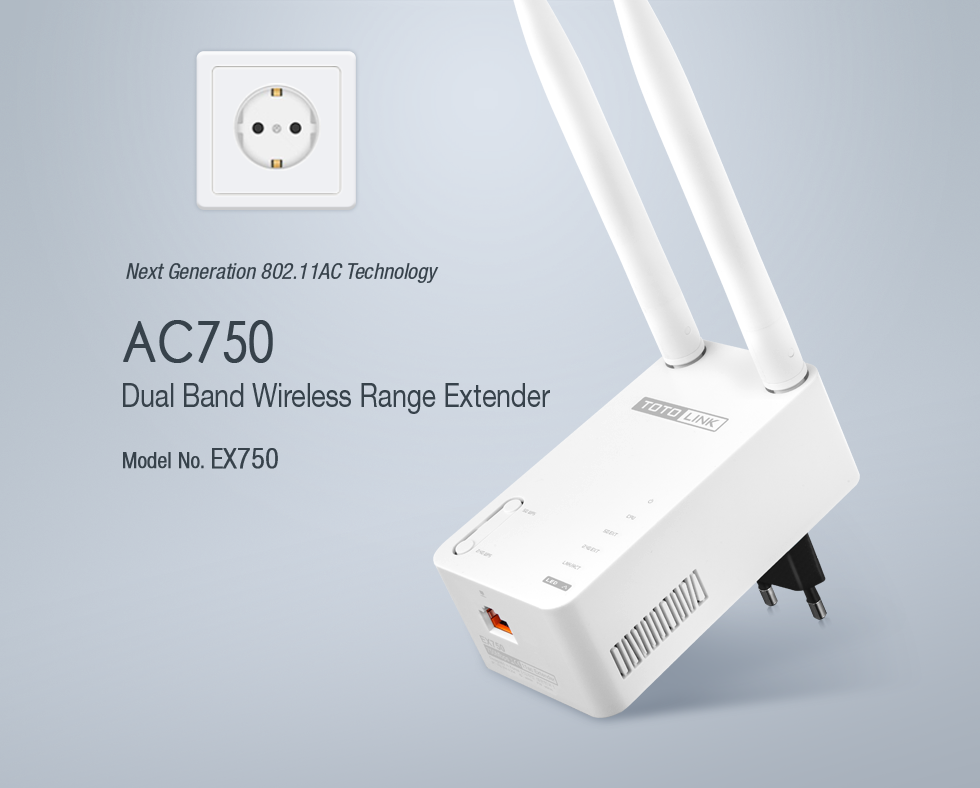

EX750

AC750 Dual Band Wireless Range Extender

  • - Top WiFi Technology 11AC

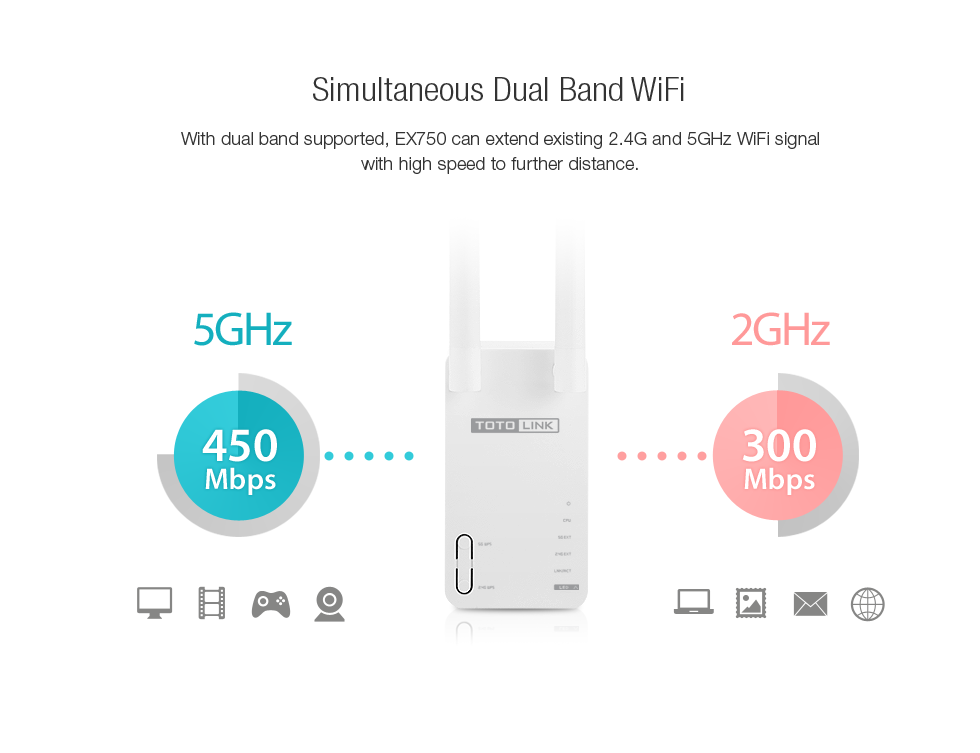

    - Dual Band Concurrent

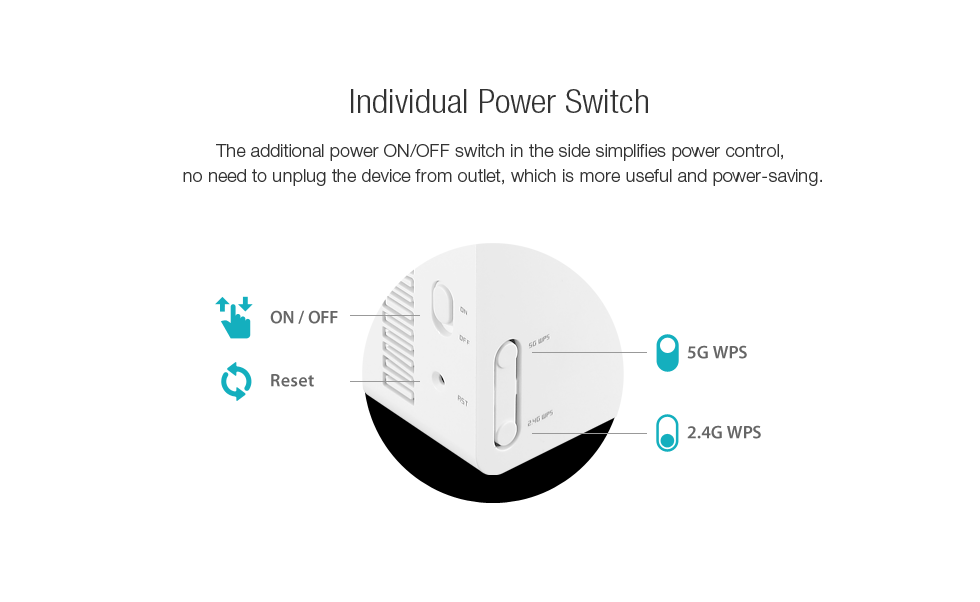

    - Individual Power Switch
    - Individual Power Switch
    - Portable Design
    - Advanced Security

  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

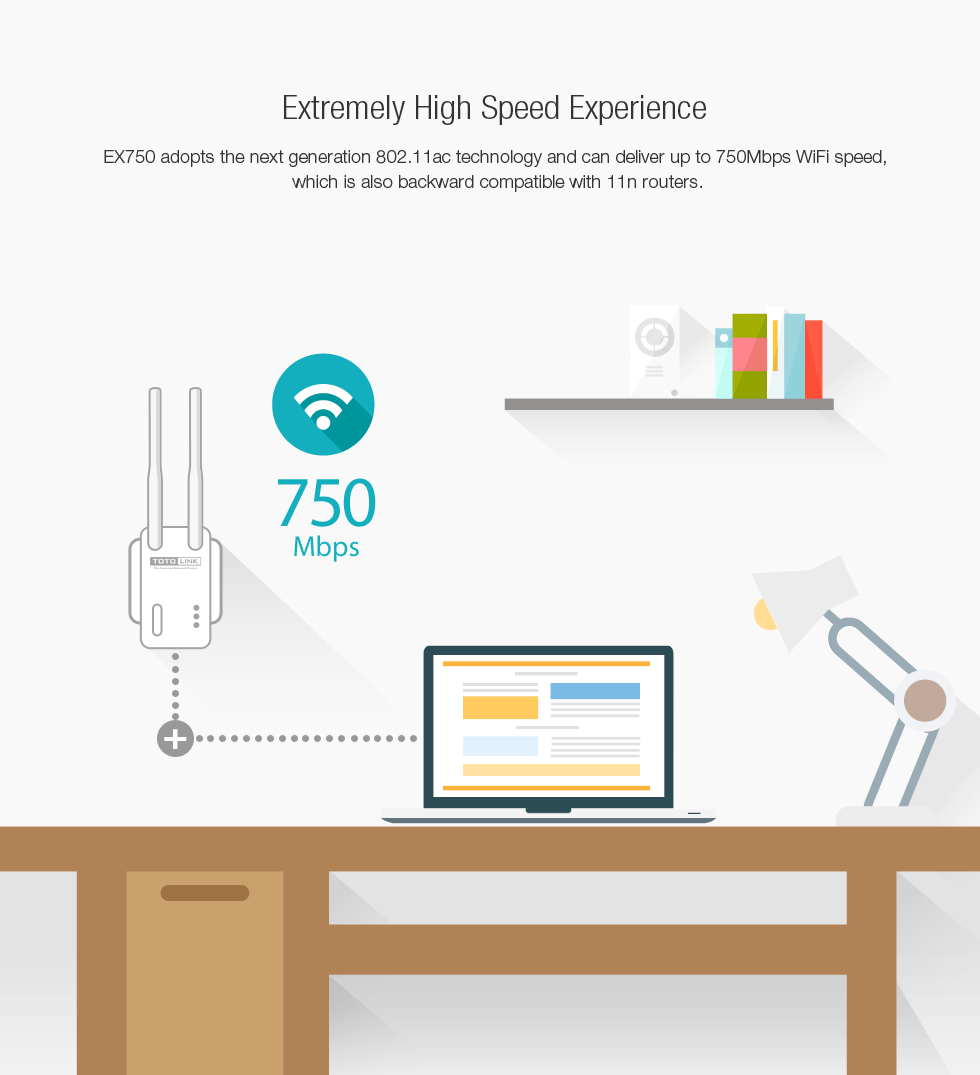

    • - Complies with 802.11ac/a/b/g/n standards.
    - Delivers up to 300Mbps on 2.4G band or 433Mbps on 5G band.

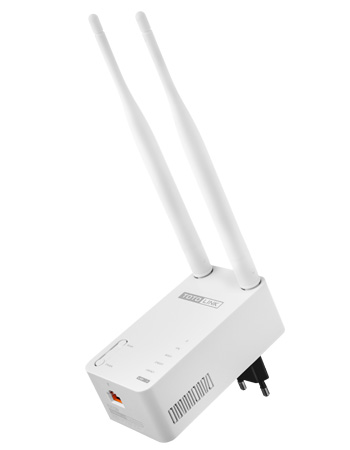

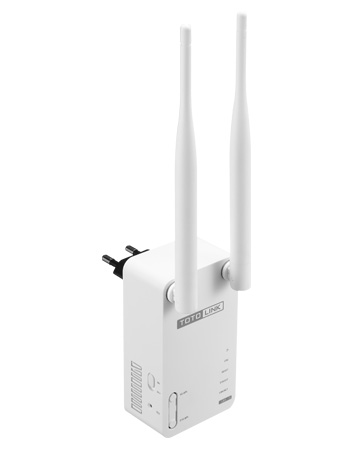

    - Two external antennas enhance the throughput’s stability.

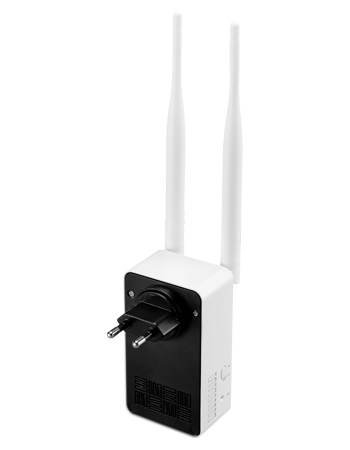

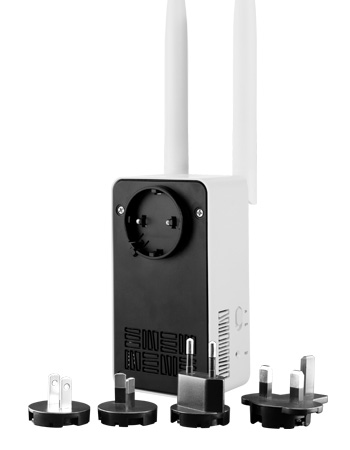

    - Wall-plug and foldable design, with replaceable plugs .

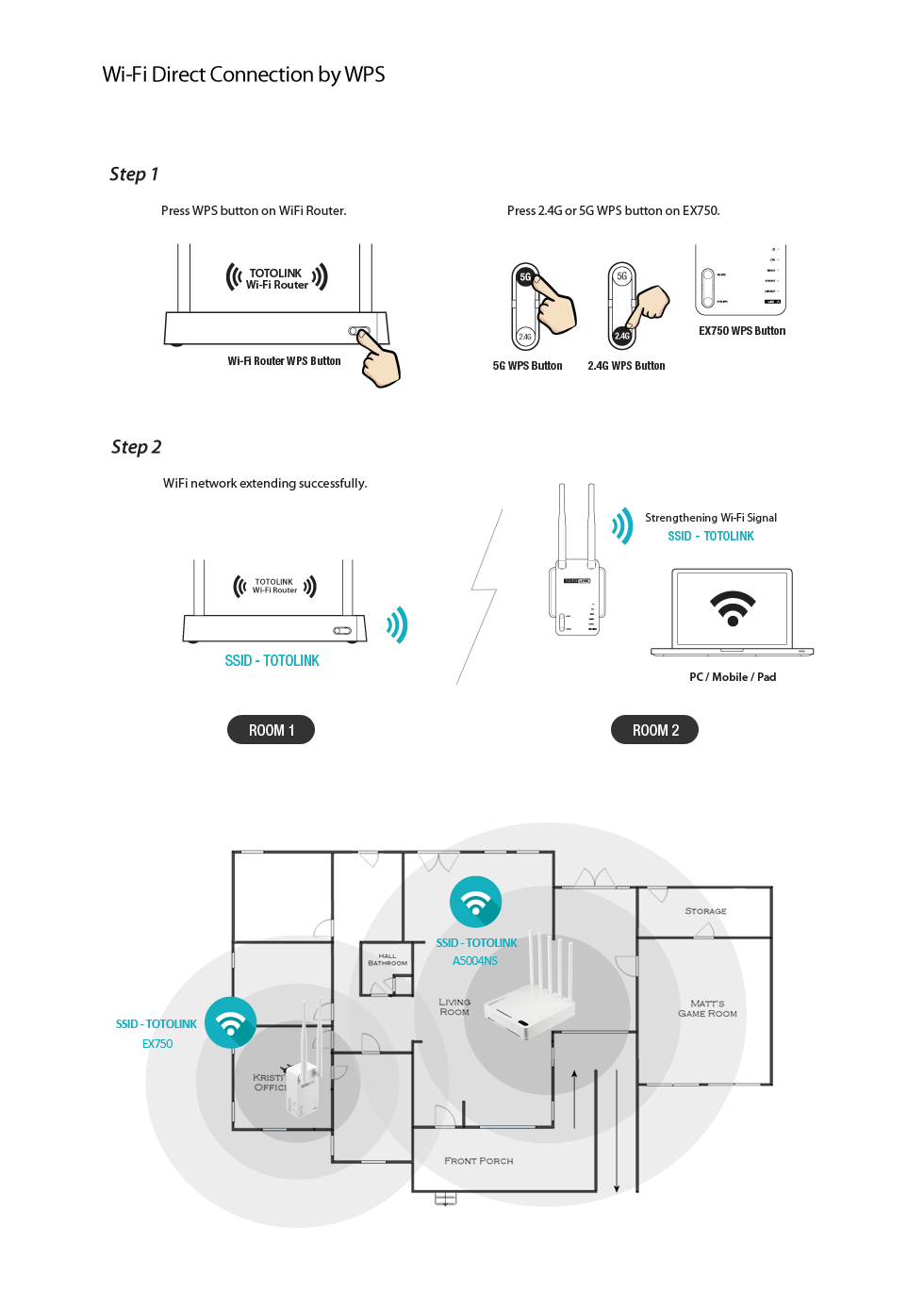

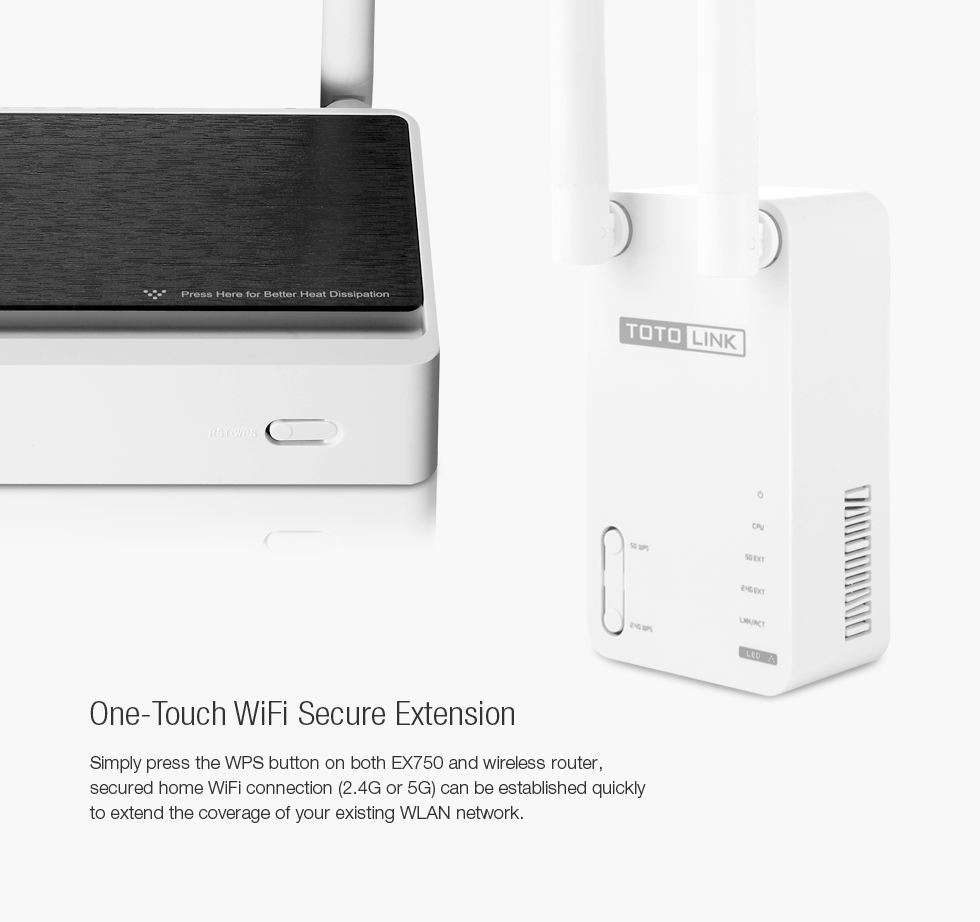

    - Supports WPS (Wi-Fi Protected Setup) with one-click button.
    - ON/OFF button is easy for power controlling.
    - One Ethernet port for connecting wired devices to wireless network.
    - Energy saving and environmental protection.
    HARDWARE FEATURES
    Plug Type  EU, UK, US
    Interface  1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port
    Power Supply  AC 100V~240V
    Button  1 *5G WPS , 1*2.4G WPS, 1 *Power ON/OFF Slide Switch, 1*RST
    LED Indicators  1 *Power, 1 *CPU, 1*LINK/ACT, 1 *5G EXT, 1*2.4G EXT
    Antenna  2 *5dBi External Antennas
    Dimensions (W x D x H)  2.4 x 4.2 x 1.7 in. (60.4 x 107.4 x 43mm)
    WIRELESS FEATURES
    Standards  IEEE802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4GHz/5GHz
    Data Rate  2.4GHz: 300Mbps
      5GHz: 433Mbps
    EIRP  2.4GHz < 20dBm
      5GHz < 23dBm
    Reception Sensitivity  2.4G: 11b:<-79dbm；11g：<-68dbm；11n:HT20<-65dbm HT40：<-61dbm
      5G: 11a:<-68dbm；11ac: HT20<-65dbm HT40：<-61dbm HT80：<-51dbm
    Others  -
    Package Contents  EX750 Wireless Extender *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
