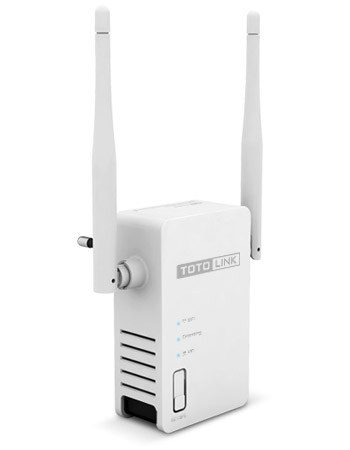

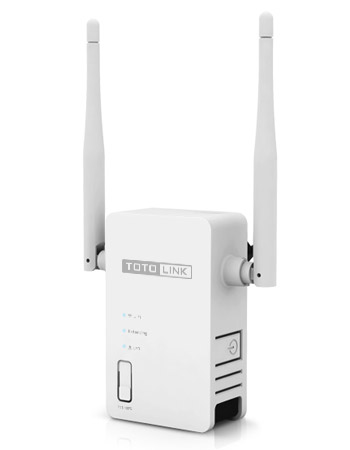

EX300

300Mbps Wireless N Range Extender

  • - 300Mbps Wi-Fi Speed
    - Flexible Wall-Plug Design
    - One-touch Wireless Secure Extension - Individual Power Switch
    - Advanced Security
    - Wireless Adapter Working Mode


  • EX300 is a 2.4G wireless range extender which is designed to expand your existing wireless network signals and coverage. Users can extend their wireless network simply by pressing the WPS button on device and router in two minutes. So that more wireless devices are able to access Internet simultaneously, such as iPads, iPods, Notebooks, Smart Phones, Game Consoles and TV. With two antennas, EX300 ensures high transfer rate with stable signal. Generally, it can effectively meet users’ demands for wireless Internet access on hard-to-reach areas.





    300Mbps Wi-Fi Speed
    EX300 supports advanced 802.11n standard and backwards compatible with 802.11b/g, it provides 300Mbps wireless data transmission rate with reliable Wi-Fi connection.


    Flexible Wall-Plug Design

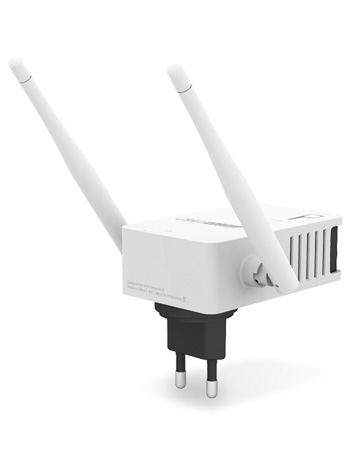

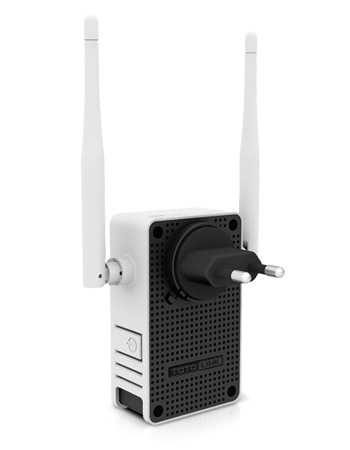

    With wall-plugging design and compact size, EX300 provides replaceable plug types to help you save space and is applicable for global countries.


    One-touch Wireless Secure Extension
    Simply press the WPS button on both EX300 and wireless router, secure home Wi-Fi connection can be established quickly to extend the coverage of your existing wireless network.


    Individual Power Switch
     The additional power ON/OFF switch in the side simplifies power control, no need to unplug the device from outlet, which is more useful and power-saving.


    Advanced Security
    The easy WPS connection always adopts the most advanced WPA/WPA2 (TKIP/AES) encryption to secure your wireless extension. users needn’t worry about being occupied by unauthorized users.


    Wireless Adapter Working Mode

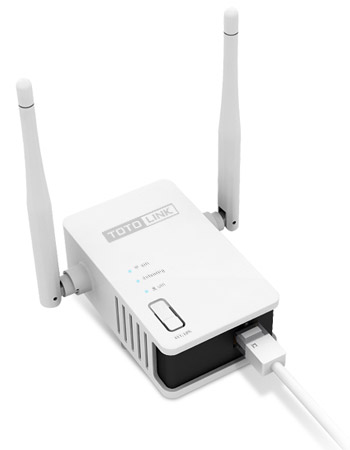

     EX300 provides one Ethernet port to connect with your wired devices, such as Internet TV, Blue-ray players, working as a wireless adapter.

    - Complies with IEEE 802.11n /g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Two external antennas enhance the throughput’s stability.
    - Changeable plug types for global use and space-saving.
    - Portable and compact stylish design.
    - Allows more users to share one account to access Internet.
    - WPS push button for easy Wi-Fi network extension.
    - Power ON/OFF button is easy for power controlling.
    - Energy saving and environmental protection.
    HARDWARE FEATURES
    Interface  1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port
    Power Supply  AC 100V~240V
    Button  1 * RST/WPS Button, 1 *Power ON/OFF
    LED Indicators  1 * Wi-Fi, 1 * Extending, 1 * LAN
    Antenna  2 *4dBi External Antennas

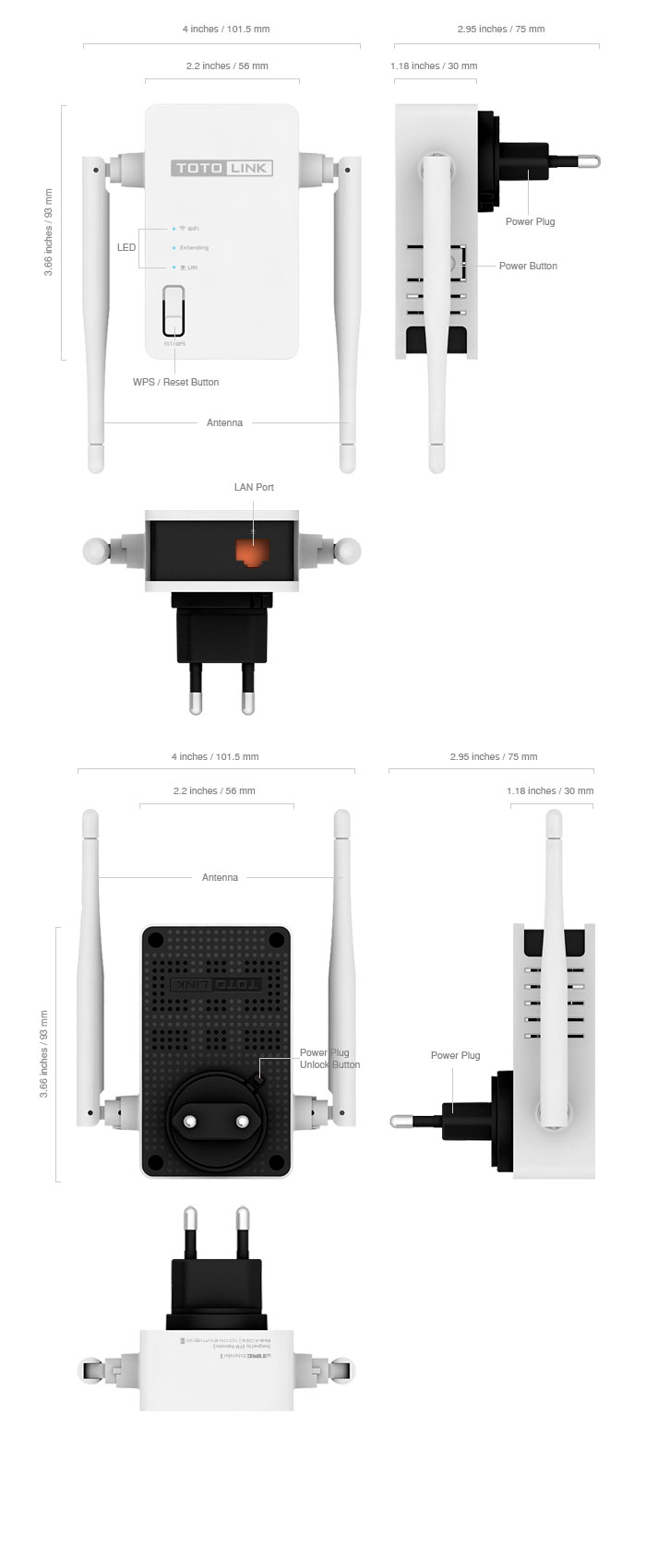

    Dimensions (W x D x H)  2.2 x 3.7 x 1.4 in. (56 x 93 x 35.8mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802. 11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Others
    Package Contents  EX300 Wireless Extender *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
