A3002R_V4

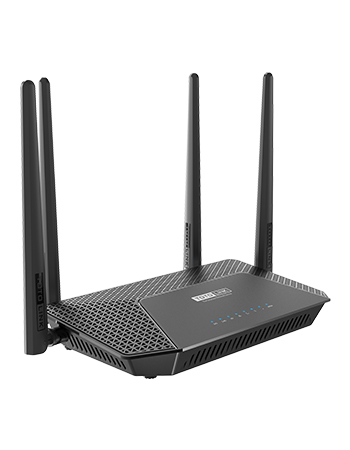

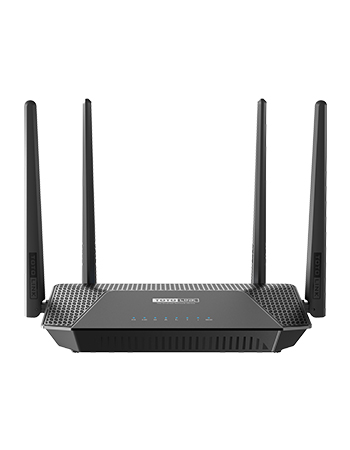

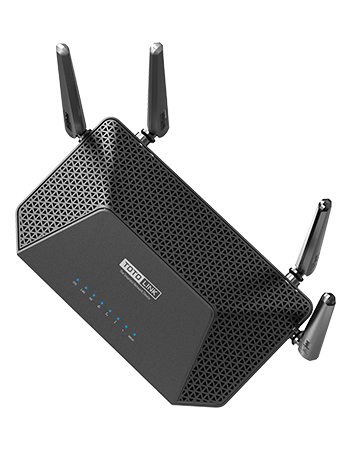

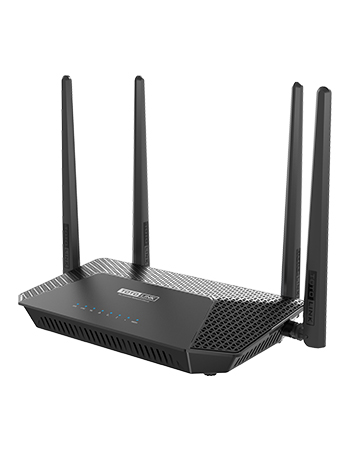

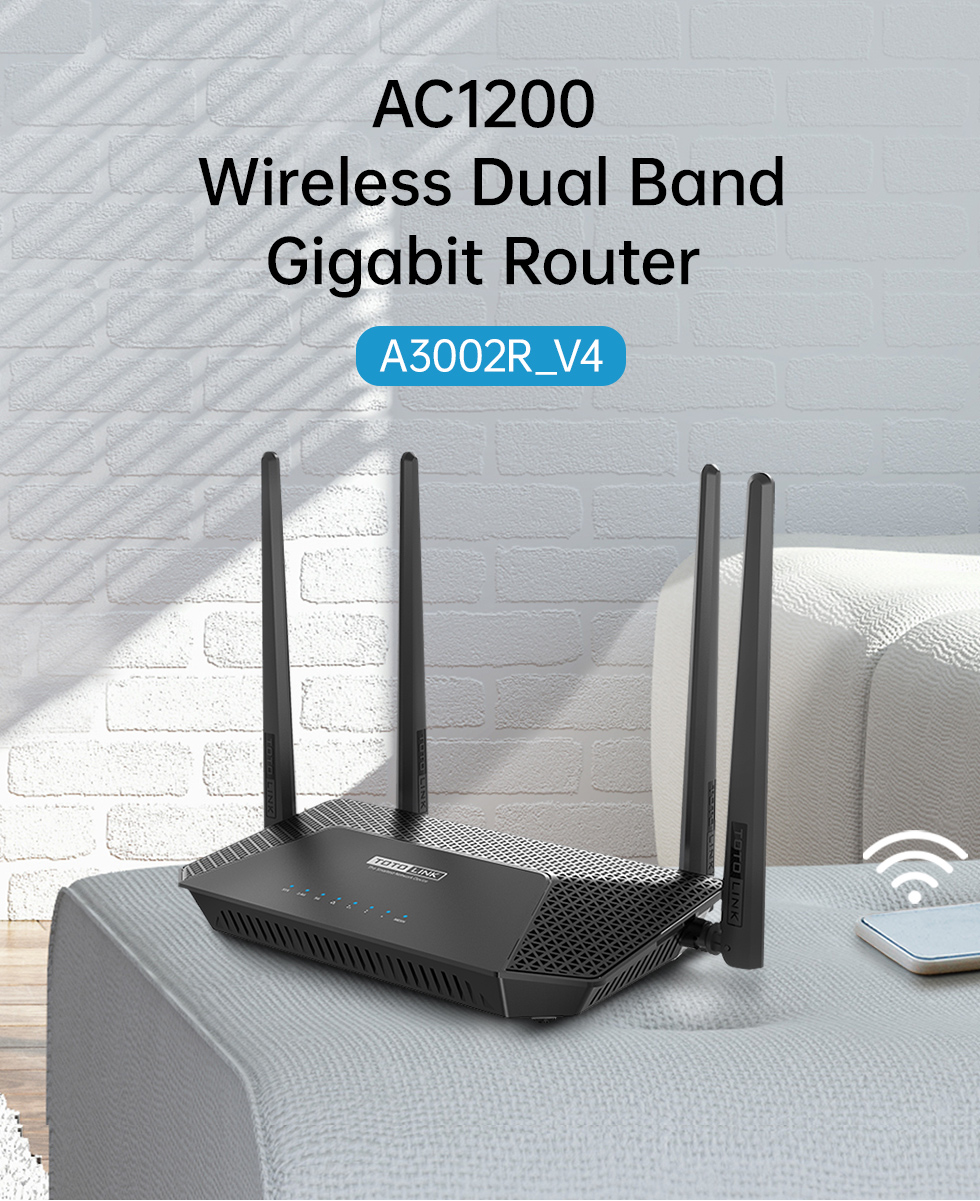

AC1200 Wireless Dual Band Gigabit Router

  • - 1167Mbps Super-fast Speed Wi-Fi

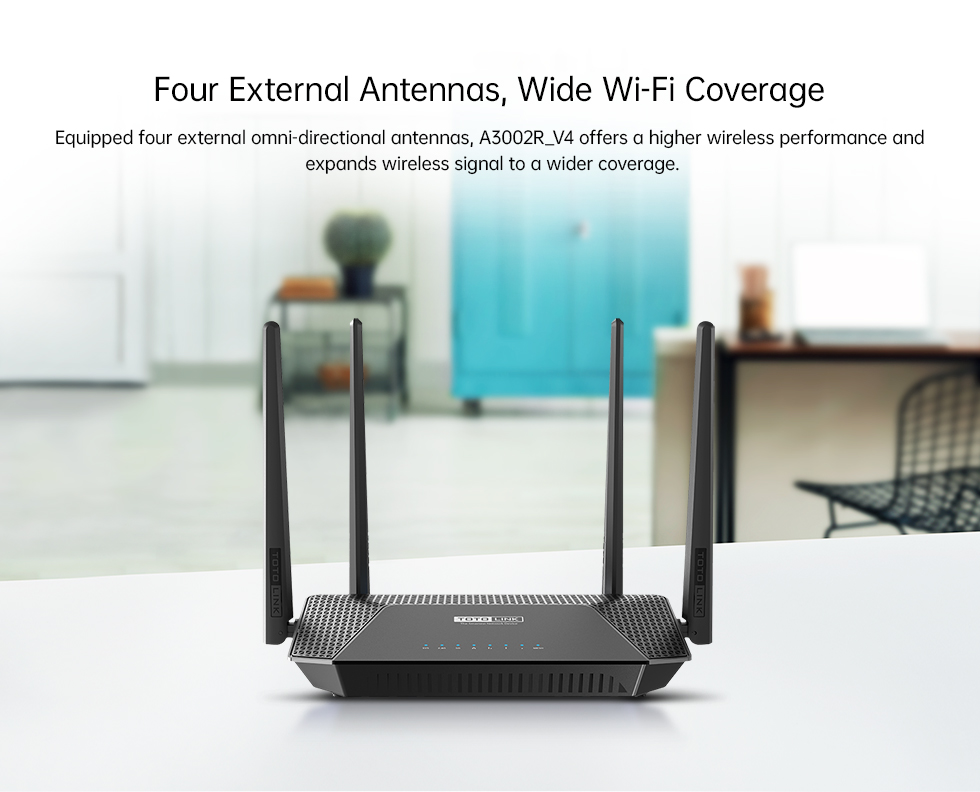

    - Four External Antennas, Wide Wi-Fi Coverage
    - Gigabit WAN and LAN Ports
    - Easy Mesh, Seamless roaming throughout the house
    - Built-in 1GHz CPU, High Wi-Fi Transmission Performance
    - MU-MIMO Technology
    - Beamforming Technology for Wi-Fi Focus
    - TR069 for Better Management
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    •  - Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard. - 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz

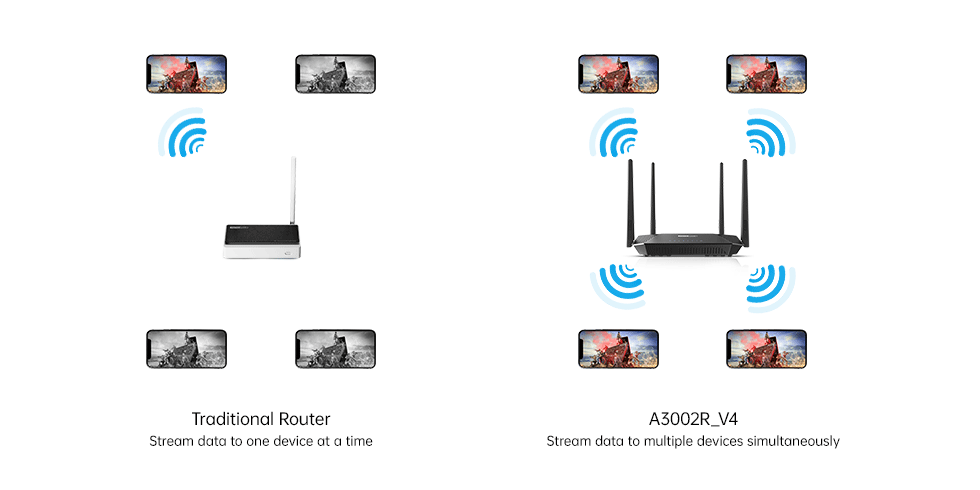

    - MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.

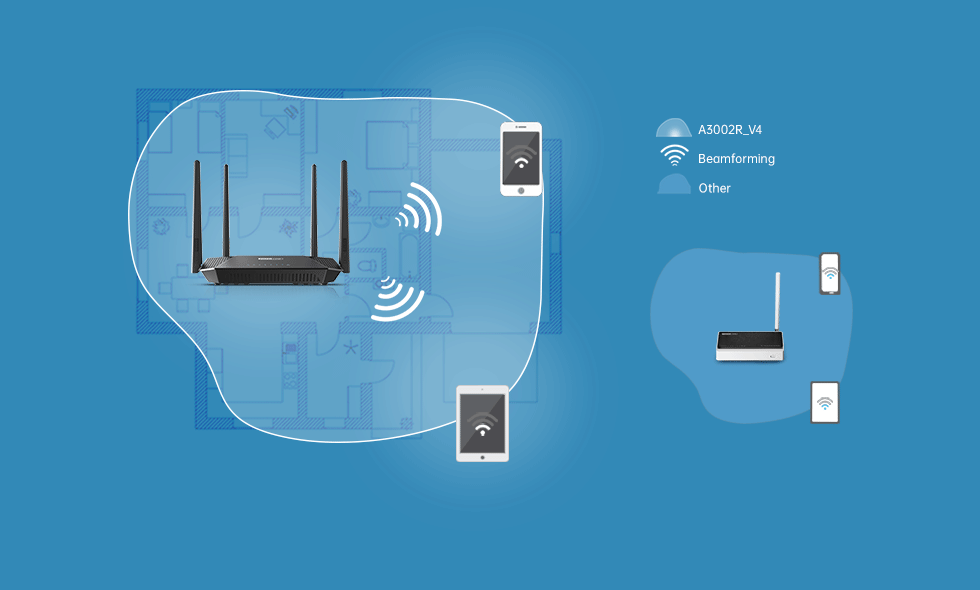

    - Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.
    - Full gigabit ports offers a larger capability for data streaming via cable connection.
    - Band Steering for full playing to the advantage of multi-band and improving the user's experience.
    -  Adaptive WAN/LAN Ports for no need to differentiate between WAN and LAN port.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
    - Provides WPA/WPA2 mixed security.
    - QoS function allows to change the bandwidth for different terminals via IP address.
    - Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
    - Guest network allows to create different SSIDs for different groups, better for Internet access management.

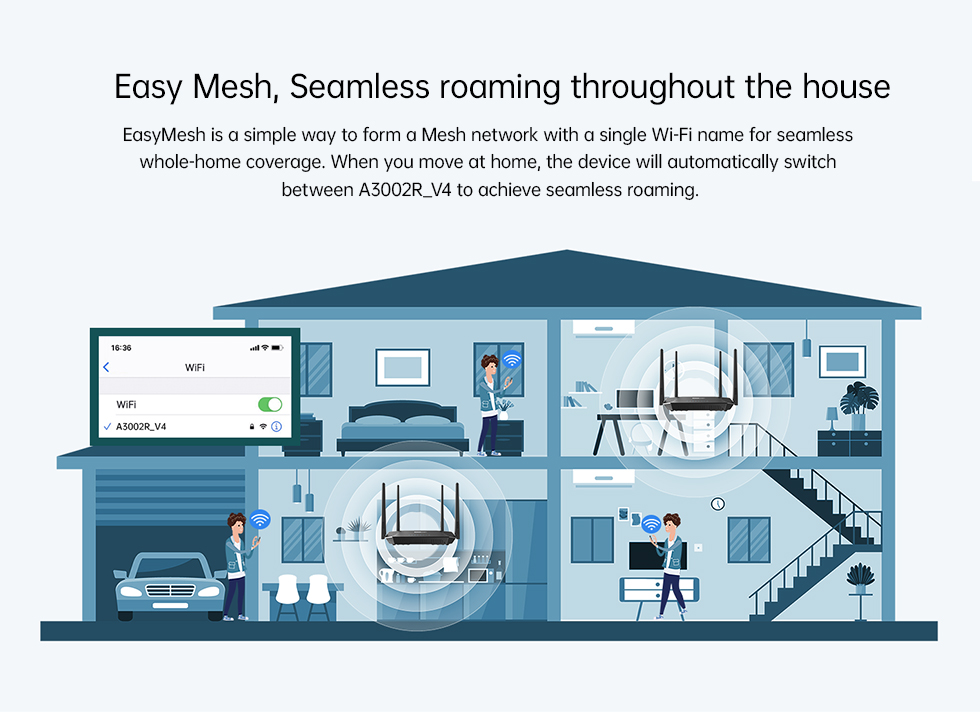

    - Easy Mesh function for easy Wi-Fi extension and seamless roaming.

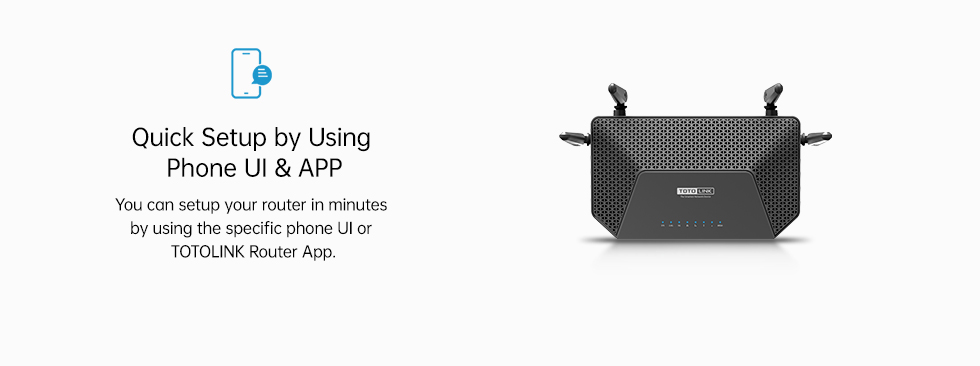

    - Easy setup and management with phone UI and TOTOLINK Router APP.

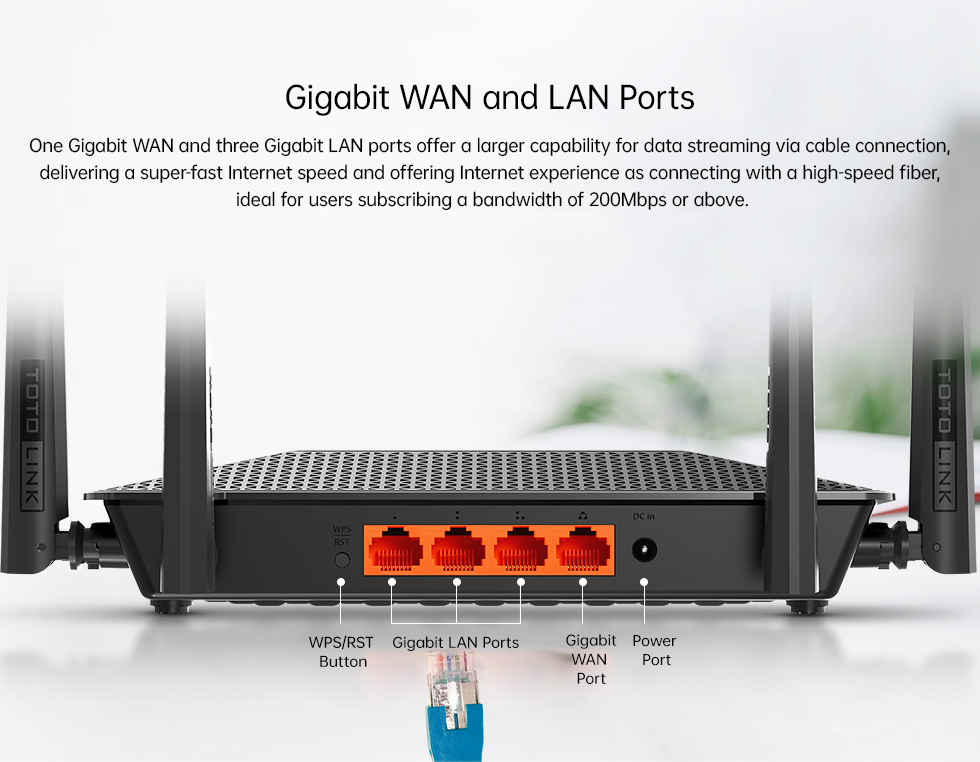

    Hardware

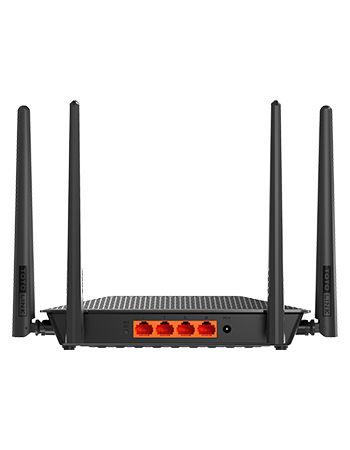

    Interface
    - 3 *1000Mbps Adaptive LAN Ports
    - 1  *1000Mbps Adaptive WAN Port
    Power Supply
    - 9VDC/0.8A
    Button
    - 1 *RST/WPS Button
    LED  Indicators
    - 1 *SYS, 1 *2.4G, 1 *5G, 1 *WAN,  3 *LAN , 1 *MESH Blue
    Antenna
    		 - 2 * 2.4GHz fixed antennas(5dBi),
    - 2 * 5GHz fixed antennas(5dBi),
    Dimensions (L x W x H)
    - 206*121*41mm（excluding antennas）
    Wireless
    Standards
    - IEEE 802.11ac
    - IEEE 802.11a
    - IEEE 802.11b
    - IEEE 802.11g
    - IEEE 802.11n
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps

    - 5GHz: Up to 867Mbps
    EIRP
    - 2.4GHz < 20dBm

    - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity  - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                     HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
             11n HT20 MCS7：-65dBm@10% PER
                  HT40 MCS7：-62dBm@10% PER
              11ac VHT80 MCS9：-51dBm@10% PER

    Software
    Operation Mode

    - Gateway Mode
    - Repeater Mode
    Status
    - WAN
    - Wireless
    - LAN
    - System Information
    Network
    - WAN Setting
    - LAN Setting
    - IPTV  Setting
    - DHCP&ARP Tables
    - Static Route
    - Routing Table
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    IPv6 Protocol
    - DHCP/Static IP/PPPoE
    Wireless

    - Basic Settings
    - Guest network
    - Schedule
    - Access Control
    - Advanced
    QoS
    - Up/Down speed control on WAN, Bandwidth control based on IP address
    Firewall

    		 - MAC Filtering
    - IP/Port Filtering
    - Virtual Server(Port Forwarding)
    - URL Filtering
    - DMZ
    System
    - Upgrade Firmware
    - Save/Reload Settings
    - Time Zone Settings
    - DDNS
    - Denial-of-Service
    - TR-069 Config
    - Password Settings
    - Reboot Schedule
    - System Log
    - Statistics
    - Run Command
    - Logou

    Others
    Package Contents

    - A3002R_V4 Wireless Router * 1
    - Power Adapter * 1
    - Ethernet Cable * 1
    - Quick Installation Guide * 1
    Environment

    - Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
