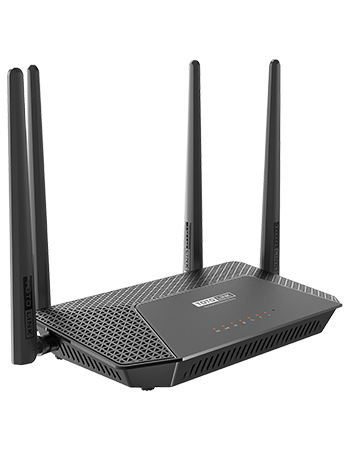

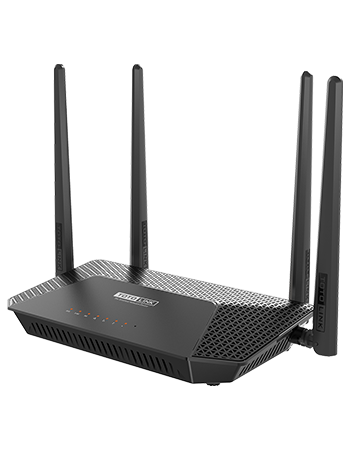

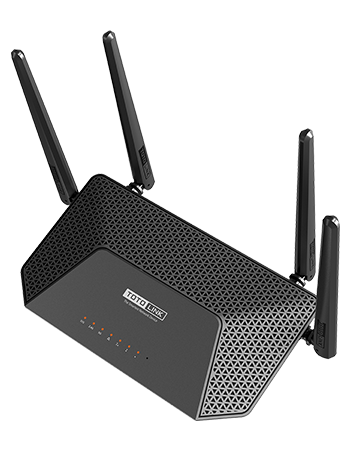

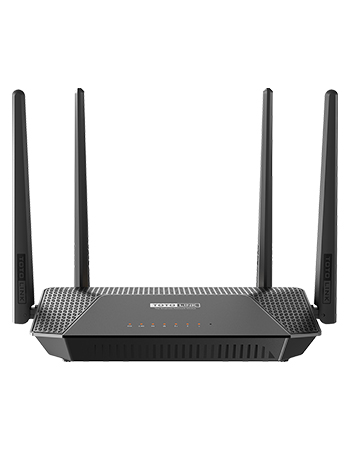

A3300R

AC1200 Wireless Dual Band Gigabit Router

  • - 1167Mbps Super-fast Speed Wi-Fi

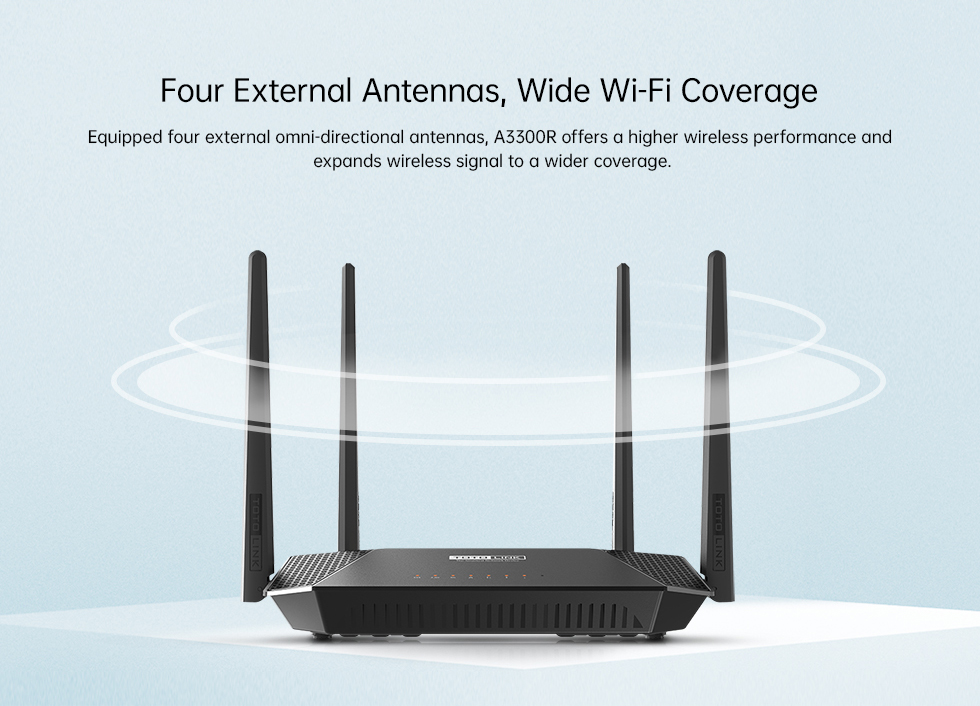

    - Four External Antennas, Wide Wi-Fi Coverage
    - Gigabit WAN and LAN Ports
    - 1GHz Dual-Core CPU for Powerful Processing
    - Beamforming Technology for Wi-Fi Focus

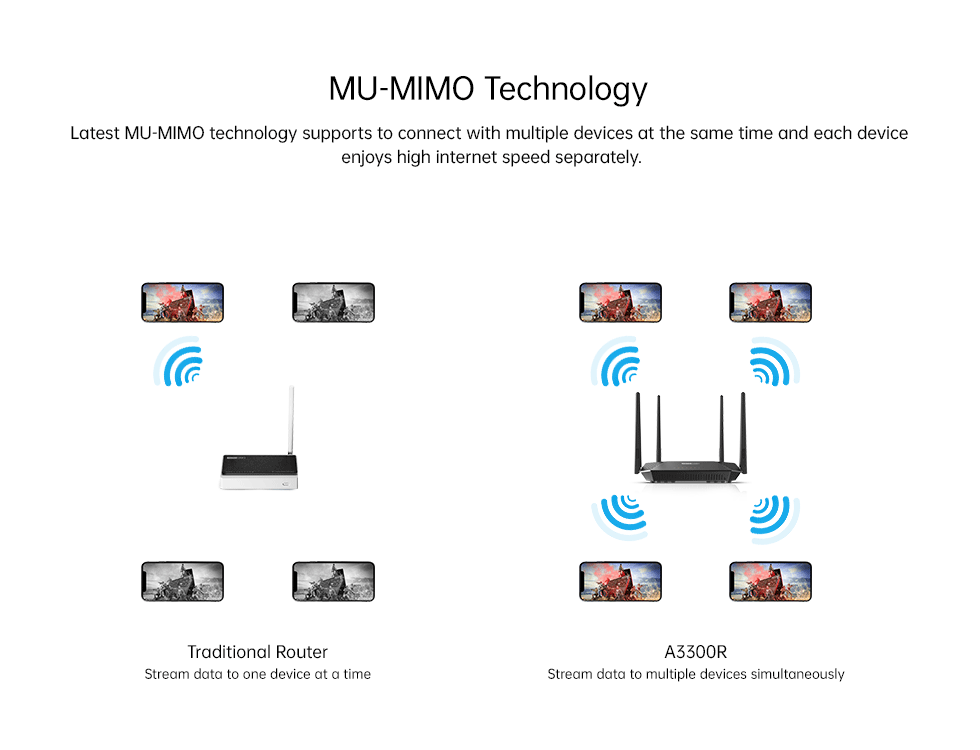

    - MU-MIMO Technology
    - Quick Setup by Using Phone UI & APP

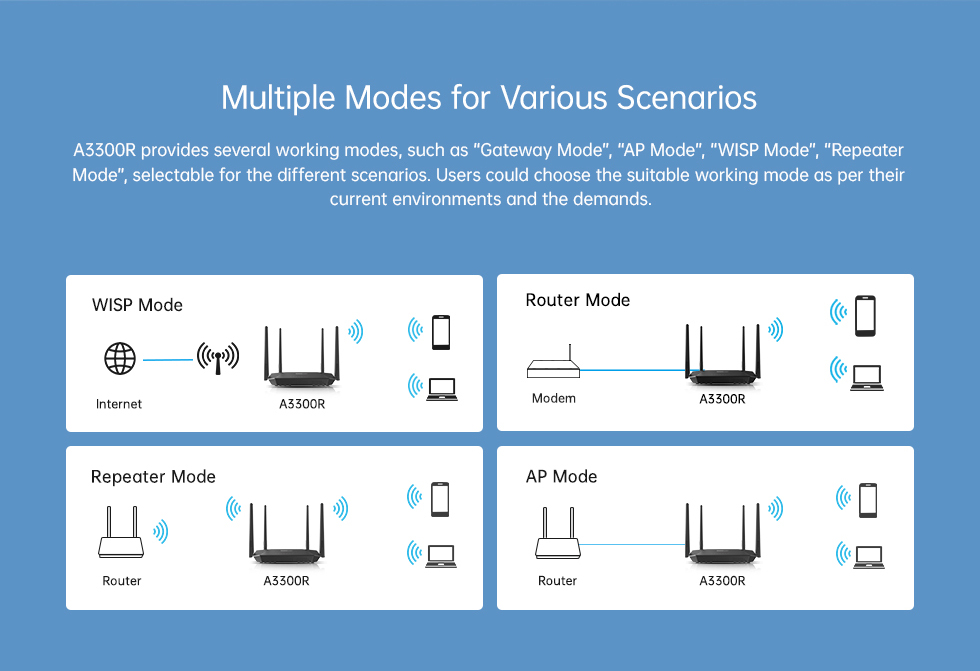

    - Multiple Modes for Various Scenarios
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.
    - 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
    - 1GHz Dual-Core CPU for Powerful Processing
    - MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.

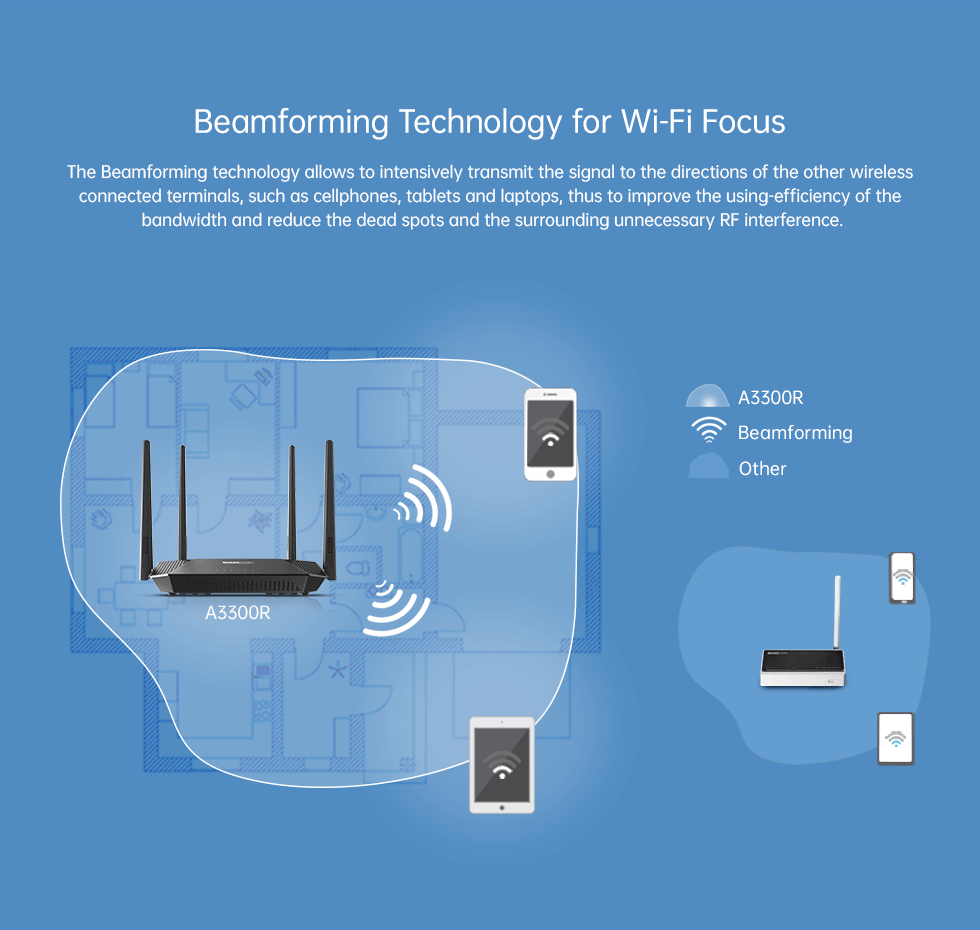

    - Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.

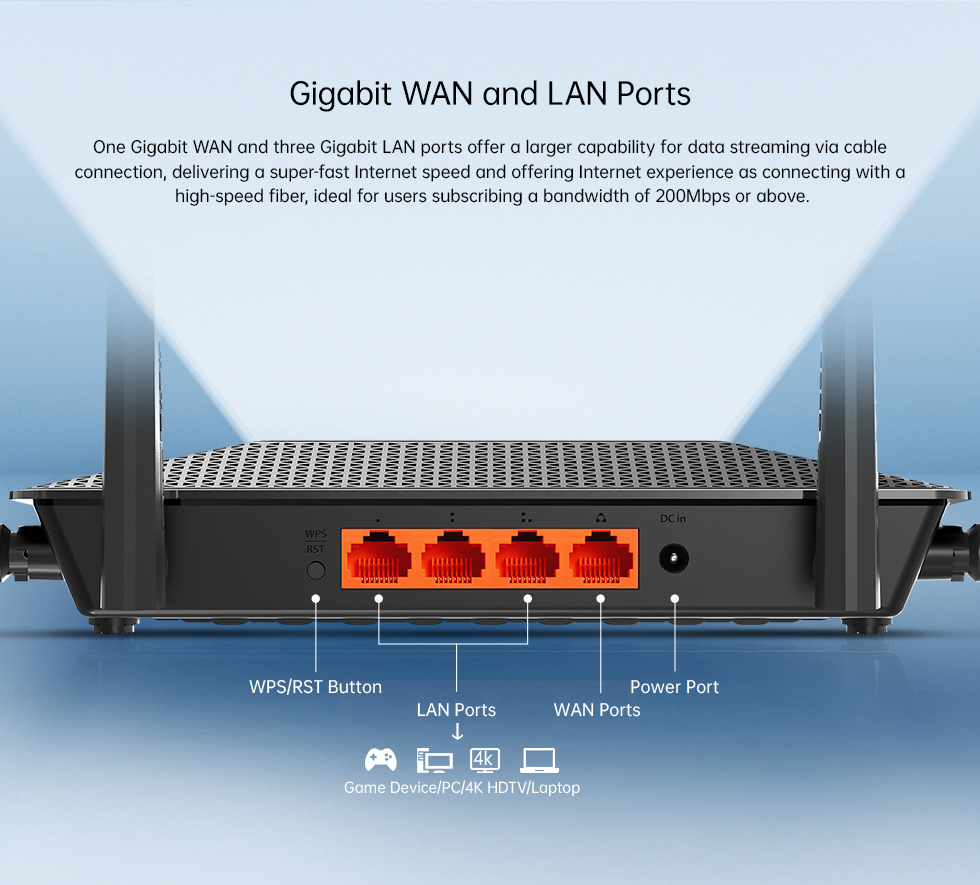

    - Full gigabit ports offers a larger capability for data streaming via cable connection.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
    - Provides WPA/WPA2 mixed security.
    - QoS function allows to change the bandwidth for different terminals via IP address.
    - Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
    - Guest network allows to create different SSIDs for different groups, better for Internet access management.
    - Easy setup and management with phone UI and TOTOLINK Router APP.

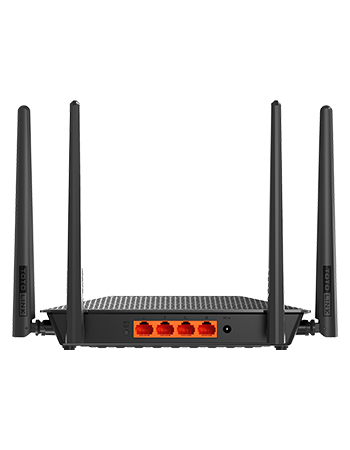

    Hardware
    Interface
    - 3 *1000Mbps Adaptive LAN Ports
    - 1  *1000Mbps Adaptive WAN Port
    Power Supply
    - 12VDC / 1 A
    Button
    		 - 1 * RST/WPS Button
    LED  Indicators
    		 - 1 * SYS,
    - 1 * 2.4G,
    - 1 * 5G,
    - 1 * WAN,
    - 3 * LAN
    Antenna
    		 - 2 * 2.4GHz fixed antennas(5dBi),
    - 2 * 5GHz fixed antennas(5dBi),
    Dimensions (L x W x H)
    - 206 x 121 x 41mm（excluding antennas）
    Wireless
    Standards
    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps

    - 5GHz: Up to 867Mbps
    EIRP
    - 2.4GHz < 20dBm

    - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                      HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER
    Software
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - Operation Mode
    Basic
    - Internet Settings
    - Wireless Settings
    - Parental Control
    - Guest Network Settings
    - Smart QoS
    Network
    - Internet Setup
    - LAN Setup
    - DDNS
    - IPTV
    - IPv6
    - IP/MAC Binding
    Network


    - Internet Setup
    - LAN Setup
    - DDNS
    - IPTV
    - IPv6
    - IP/MAC Binding
    Wireless
    - Wireless Setup
    - Guest Network
    - Schedule
    - Access Control
    - Advanced
    Parental controls
    		 - Internet time control based on MAC
    QoS

    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    NAT


    - Virtual Server
    - DMZ
    - VPN Passthrough
    Service
    - Remote
    - UPnP
    - Schedule
    Tools
    - Change Password
    -Time Setup
    - System
    - Upgrade
    - Diagnosis
    - Route Tracking
    - TR-069 Config
    - System Log and so on
    Operation Mode
    - Gateway mode
    - Bridge mode
    - Repeater mode
    - WISP mode
    Other Function
    - Multi-language automatic adaptation
    - Domain Access
    - LED Control
    - Logout
    - Reboot


    Hardware
    Interface
    - 3 *1000Mbps Adaptive LAN Ports
    - 1  *1000Mbps Adaptive WAN Port
    Power Supply
    - 12VDC / 1 A
    Button
    		 - 1 * RST/WPS Button
    LED  Indicators
    		 - 1 * SYS,
    - 1 * 2.4G,
    - 1 * 5G,
    - 1 * WAN,
    - 3 * LAN
    Antenna
    		 - 2 * 2.4GHz fixed antennas(5dBi),
    - 2 * 5GHz fixed antennas(5dBi),
    Dimensions (L x W x H)
    - 21*12*4CM（excluding antennas）
    Wireless
    Standards
    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps

    - 5GHz: Up to 867Mbps
    EIRP
    - 2.4GHz < 20dBm

    - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                      HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER
    Software
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - Operation Mode
    Basic
    - Internet Settings
    - Wireless Settings
    - Parental Control
    - Guest Network Settings
    - Smart QoS
    Network
    - Internet Setup
    - LAN Setup
    - DDNS
    - IPTV
    - IPv6
    - IP/MAC Binding
    Network


    - Internet Setup
    - LAN Setup
    - DDNS
    - IPTV
    - IPv6
    - IP/MAC Binding
    Wireless
    - Wireless Setup
    - Guest Network
    - Schedule
    - Access Control
    - Advanced
    Parental controls
    		 - Internet time control based on MAC
    QoS

    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    NAT


    - Virtual Server
    - DMZ
    - VPN Passthrough
    Service
    - Remote
    - UPnP
    - Schedule
    Tools
    - Change Password
    -Time Setup
    - System
    - Upgrade
    - Diagnosis
    - Route Tracking
    - TR-069 Config
    - System Log and so on
    Operation Mode
    - Gateway mode
    - Bridge mode
    - Repeater mode
    - WISP mode
    Other Function
    - Multi-language automatic adaptation
    - Domain Access
    - LED Control
    - Logout
    - Reboot

    Others
    Package Contents
    - A3300R Wireless Router *1
    - Power Adapter *1
    - RJ45 Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
