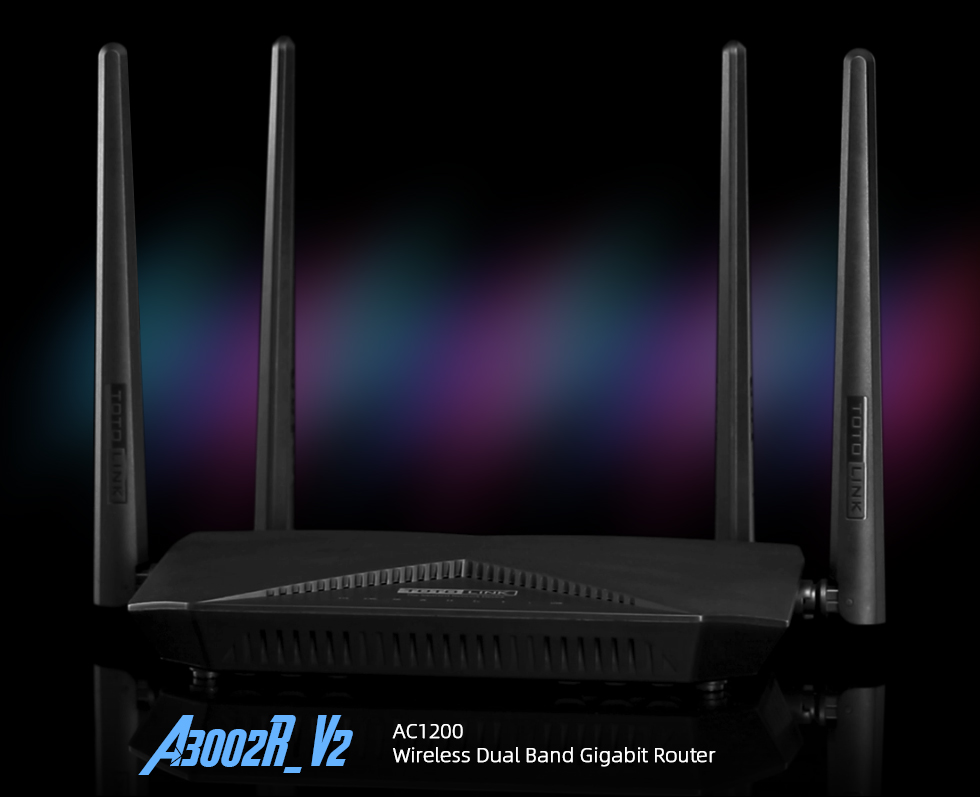

A3002R_V2

AC1200 Wireless Dual Band Gigabit Router

  • - 1167Mbps Super-fast Speed Wi-Fi

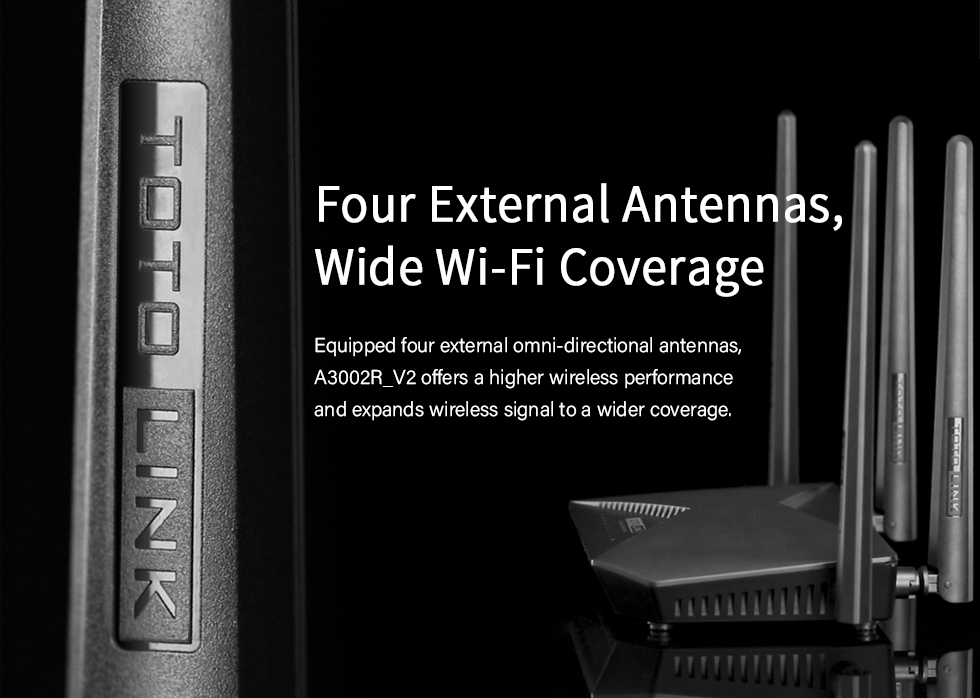

    - Four External Antennas, Wide Wi-Fi Coverage
    - Band Steering
    - Adaptive WAN/LAN Ports
    - Beamforming Technology for Wi-Fi Focus

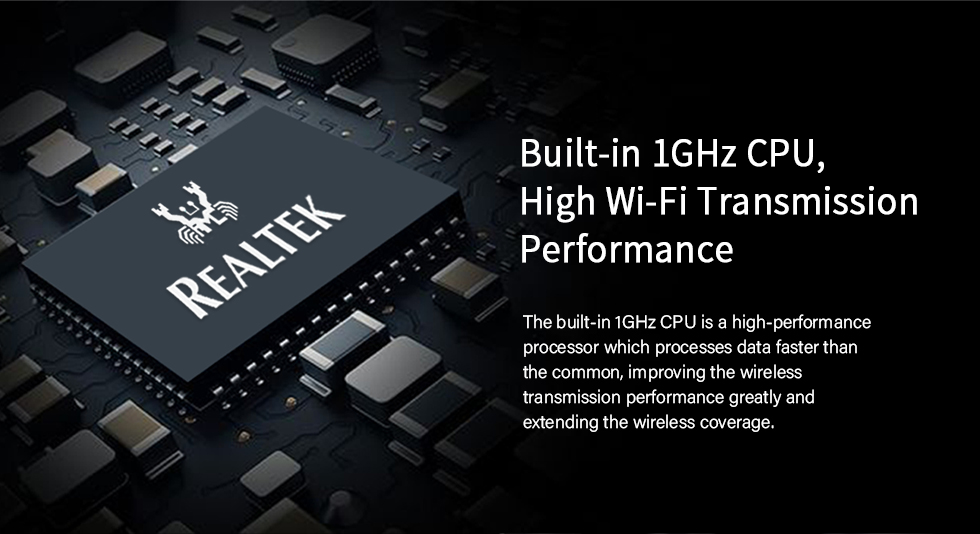

    - Built-in 1GHz CPU, High Wi-Fi Transmission Performance
    - MU-MIMO Technology
    - TOTOLINK Router APP
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard.
    - 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
    - MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.

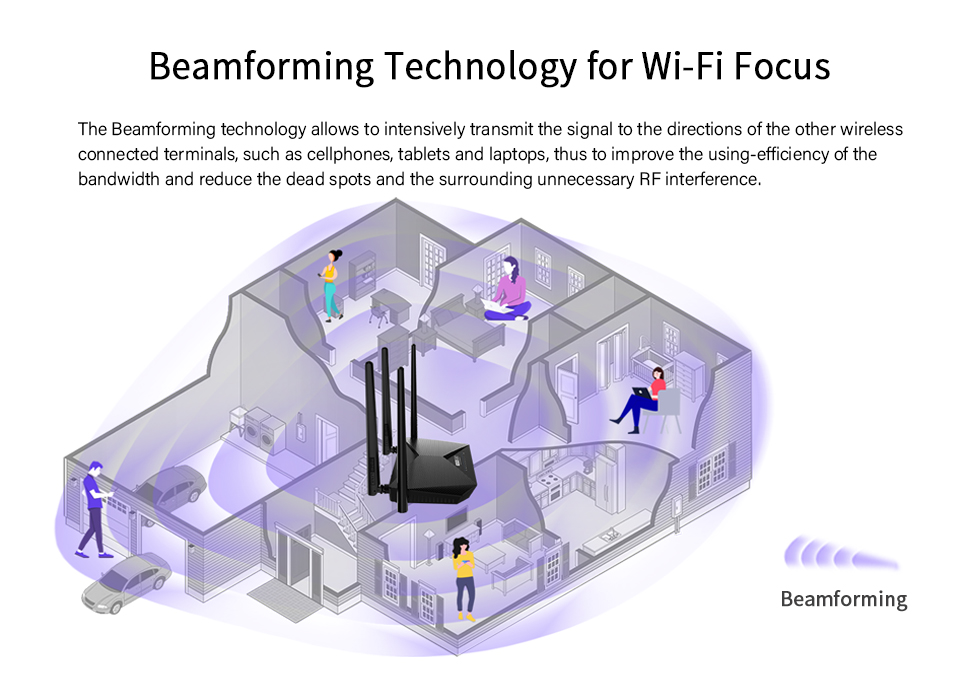

    - Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.

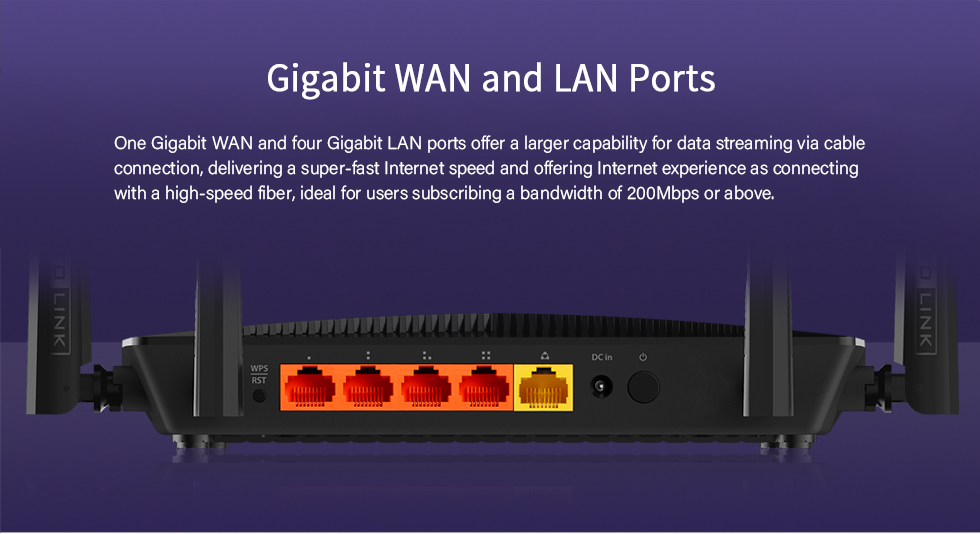

    - Full gigabit ports offers a larger capability for data streaming via cable connection.

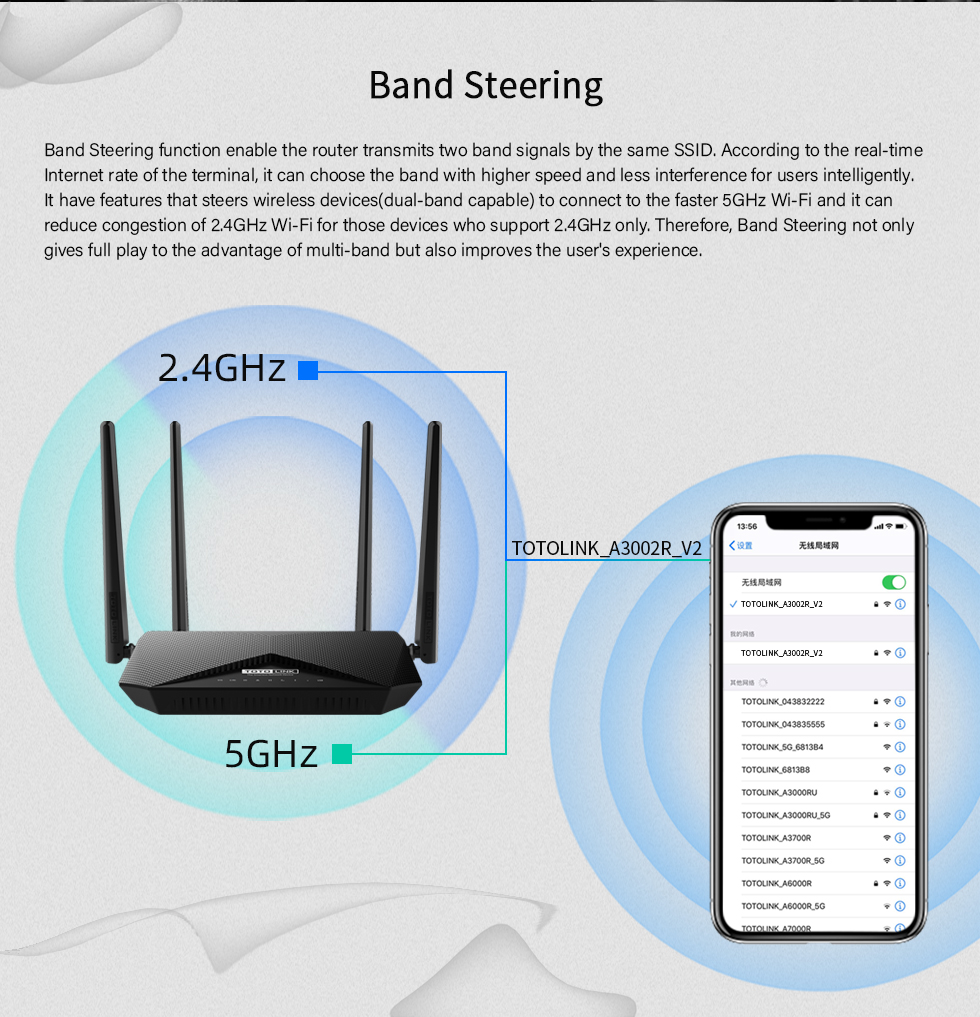

    - Band Steering for full playing to the advantage of multi-band and improving the user's experience.

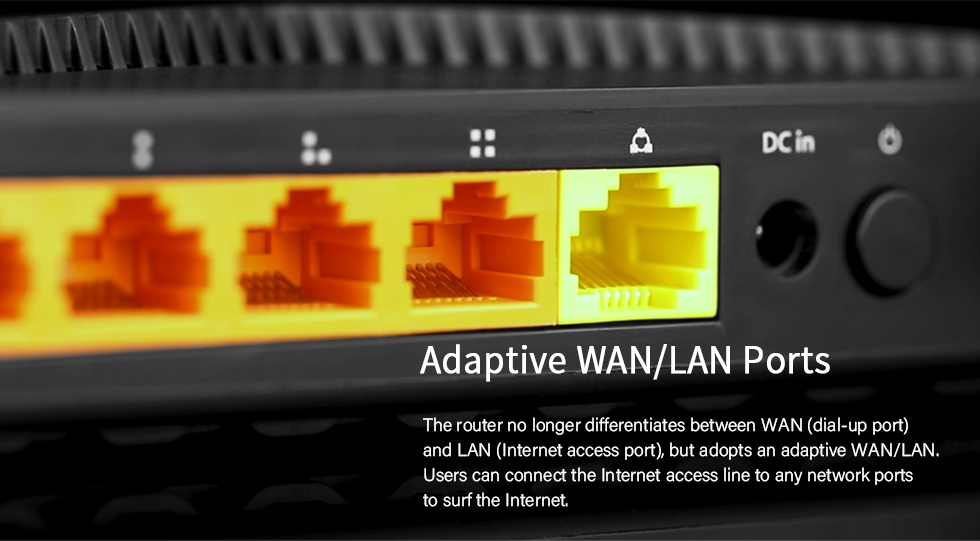

    - Adaptive WAN/LAN Ports for no need to differentiate between WAN and LAN port.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
    - Provides 64/128-bit WPA/WPA2 Mixed encryption.
    - QoS function allows to change the bandwidth for different terminals via IP address.
    - Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
    - Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.
    - Phone UI and TOTOLINK Router APP help to greatly  simplify the configuration process within one minute.
    Hardware
    Interface
    - 4 *1000Mbps Adaptive LAN Ports
    - 1  *1000Mbps Adaptive WAN Port
    Power Supply
    - 9VDC/0.8A
    Button
    		 - 1 *RST/WPS Button
    LED  Indicators
    - 1 *SYS,
    - 1 *2.4G,
    - 1 *5G,
    - 1 *WAN,
    - 4 *LAN
    Antenna
    		 - 2 * 2.4GHz fixed antennas(5dBi),
    - 2 * 5GHz fixed antennas(5dBi),
    Dimensions (L x W x H)
    - 21*12*4CM（excluding antennas）
    Wireless
    Standards
    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps

    - 5GHz: Up to 867Mbps
    EIRP
    - 2.4GHz < 20dBm

    - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                      HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER

    Software

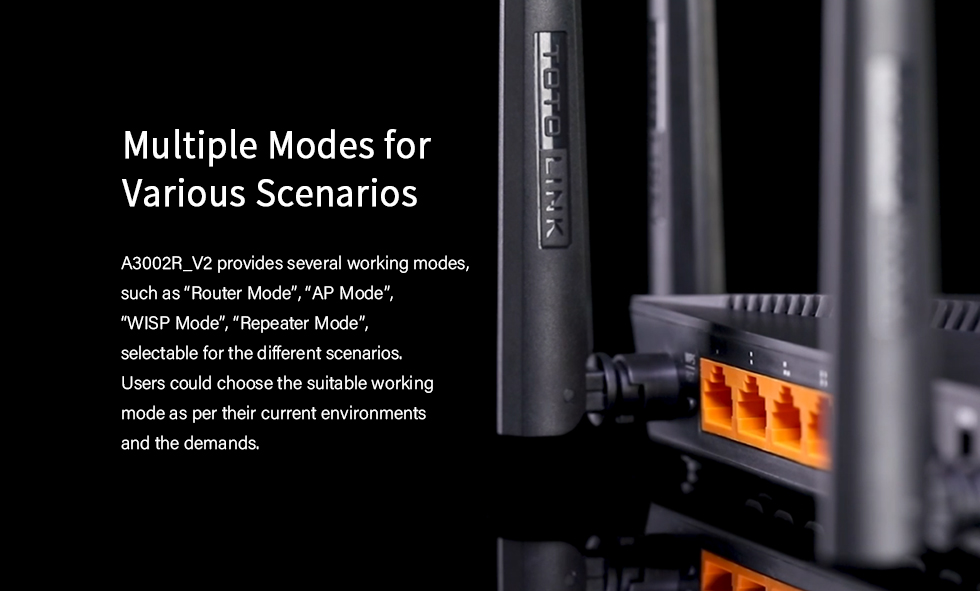

    Operation Mode

    - Gateway Mode
    - Repeater Mode
    - AP Mode
    - WISP Mode
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Home
    - Easy setup
    - Basic setup
    - Advanced setup
    - QR Code
    - LED
    - Logout
    - Reboot
    Network


    - WAN Setting
    - LAN Setting
    - IPTV  Setting
    - DHCP&ARP Tables
    - Static Route
    - Routing Table
    - IPv6 Network
    - DDNS
    Wireless
    - Basic Settings
    - Advanced Settings
    - Access Control
    - Wireless Schedule
    - Guest Network(Multiple SSID)
    - Band Steering
    Parental controls

    - Internet time control based on MAC
    - URL Restrictions
    QoS

    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    Firewall


    		 - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    System
    - Upgrade Firmware
    - Save/Reload Settings
    - Time Zone Settings
    - TR-069 Config
    - Password Settings
    - Reboot Schedule
    - System Log and so on

    Others
    Package Contents

    - A3002R_V2 Wireless Router * 1
    - Power Adapter * 1
    - Ethernet Cable * 1
    - Quick Installation Guide * 1
    Environment

    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
