A702R_V3

AC1200 Wireless Dual Band Router

  • - 1167Mbps Super Speed Wi-Fi

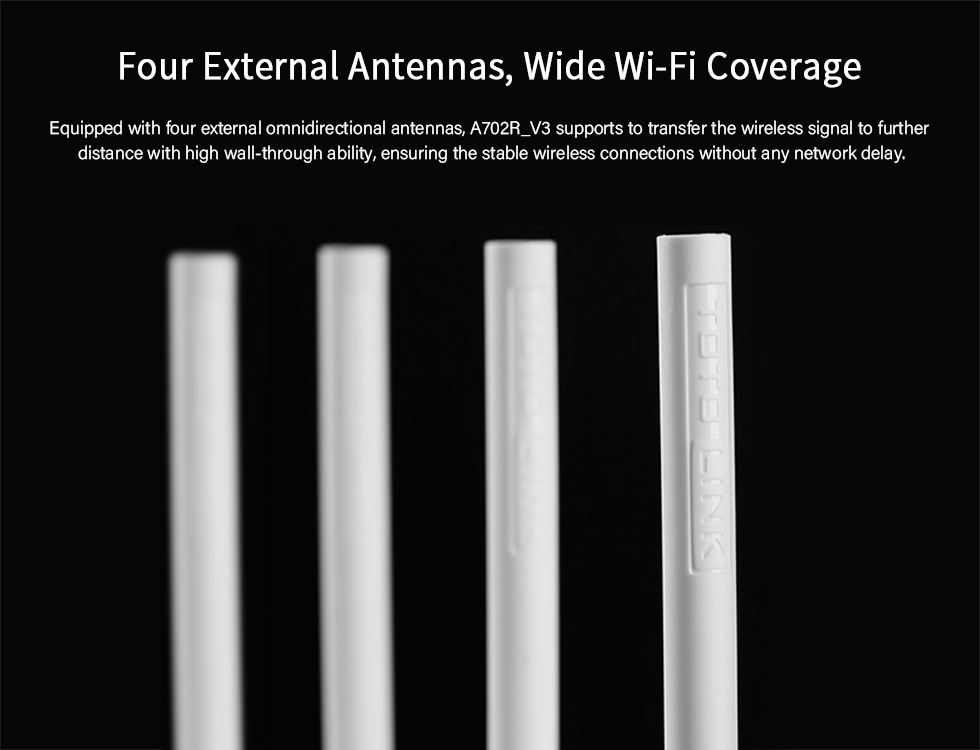

    - Four External Antennas, Wide Wi-Fi Coverage
    - Beamforming Technology for Wi-Fi Focus
    - Band Steering
    - Adaptive WAN/LAN Ports
    - Key for Security Lock Function
    - IPTV Function
    - Phone UI and TOTOLINK Router APP
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the latest IEEE 802.11ac standards.
    - 1167Mbps on simultaneous dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
    - Four External Antennas provides a Wider Wi-Fi Coverage.

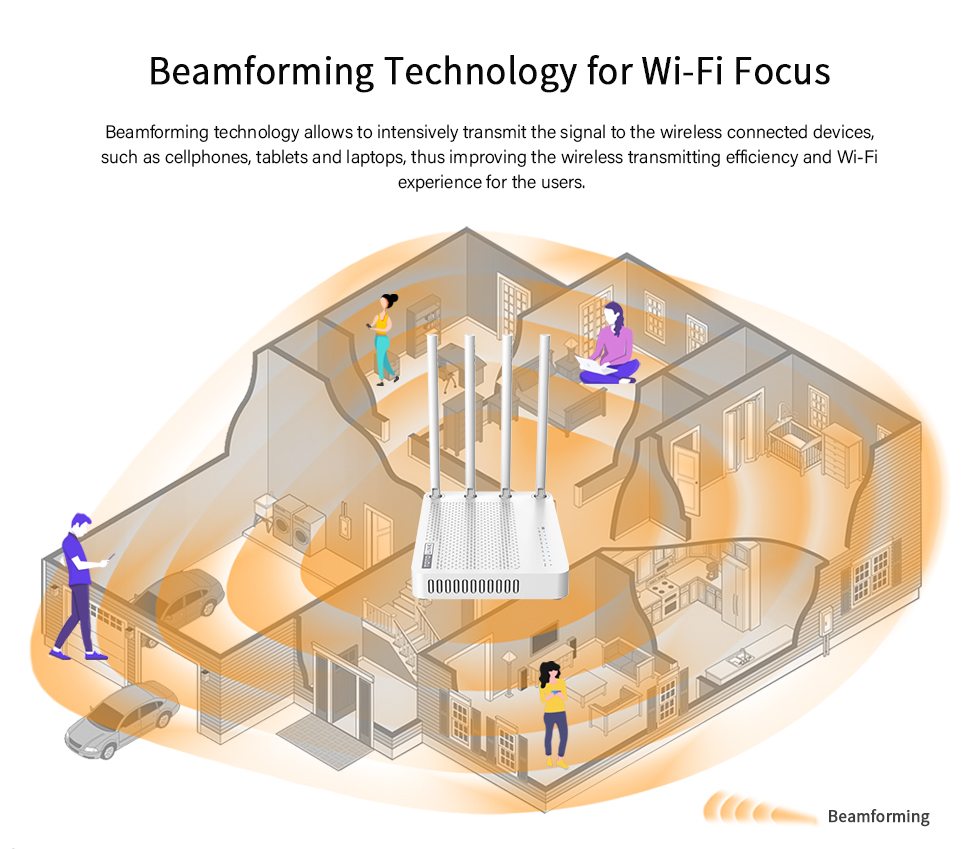

    - Beamforming technology allows to intensively transmit the signal to the wireless connected devices,
       improving the wireless transmitting efficiency and Wi-Fi experience.

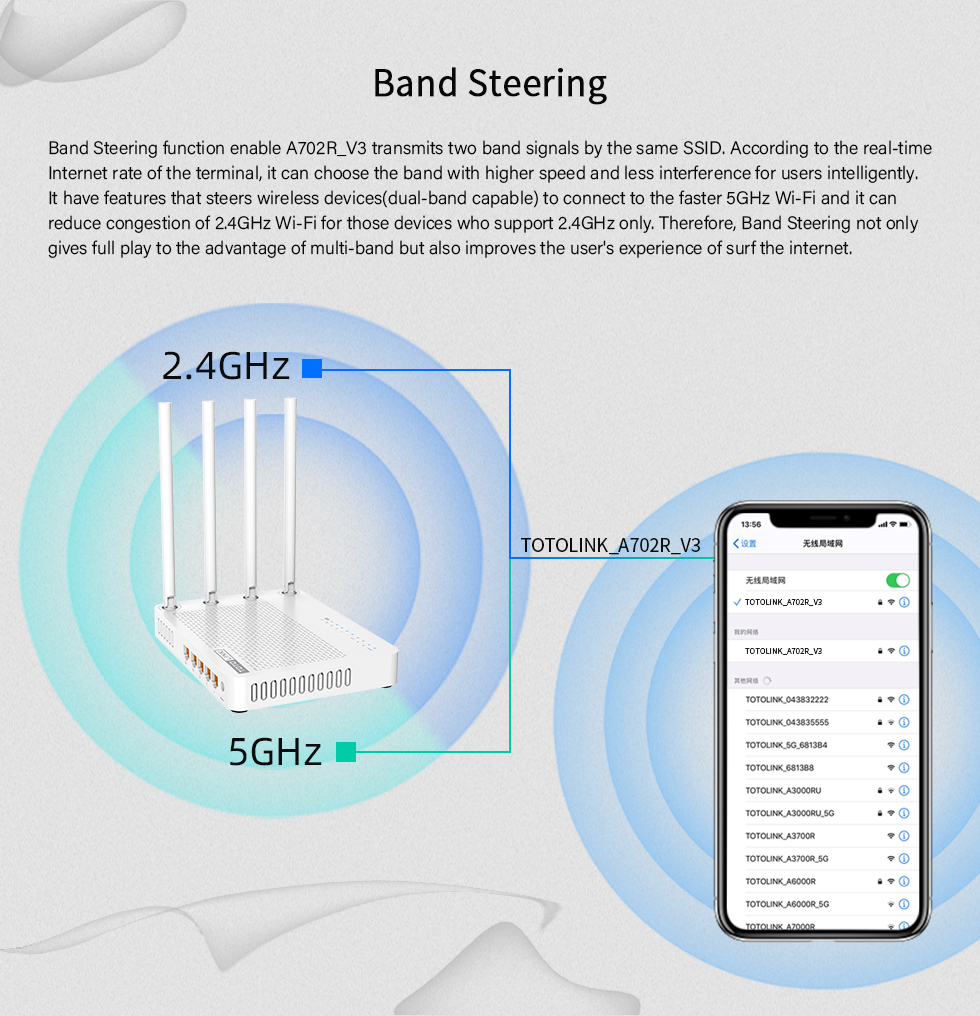

    - Band Steering for full playing to the advantage of multi-band and improving the user's experience.

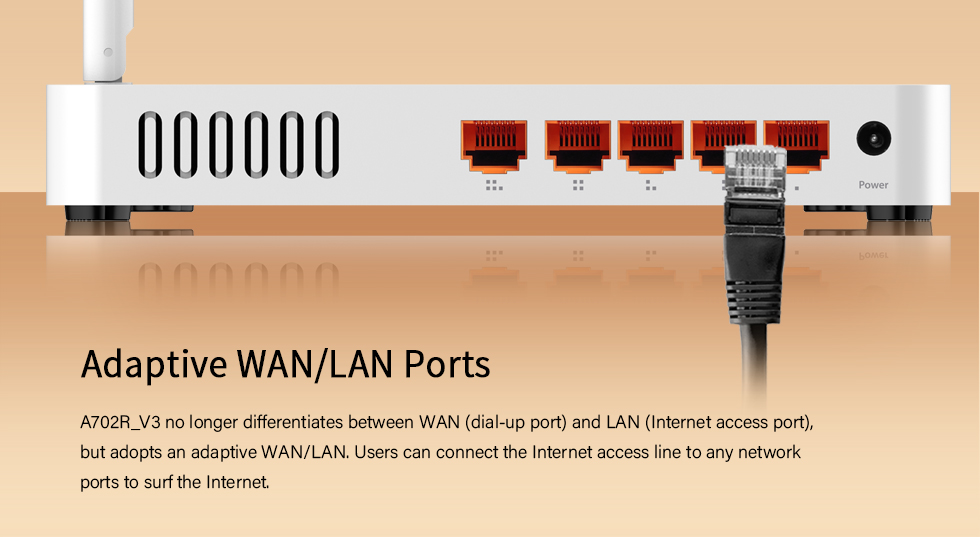

    - Adaptive WAN/LAN Ports for no need to differentiate between WAN and LAN port.
    - Supports DHCP, Static IP, PPPoE connection mode.
    - Provides 64/128-bit WPA/WPA2 Mixed encryption.
    - Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
    - Multiple SSIDs are convenient for Internet access management.
    - Smart UI design and TOTOLINK Router APP are easy for the users to finish the basic configuration on their cellphones.
    - IPTV function allows to enjoy online movies at home conveniently.

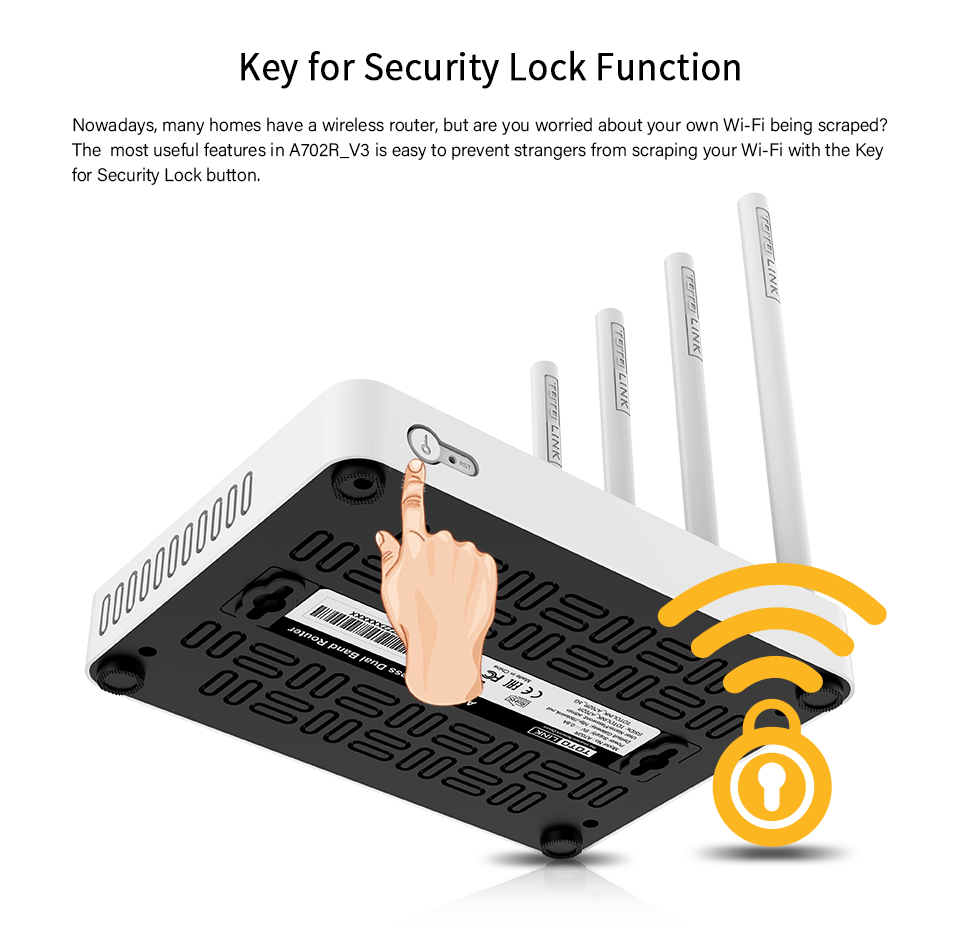

    - Key for Security Lock Function is easy to prevent strangers from scraping your Wi-Fi
    - Auto-identied WAN/LAN Ports support all Ethernet port to work as WAN port without worrying the WAN port to be broken.
    Hardware
    Interface
    - 5*100Mbps Auto-identied WAN/LAN Port
    Power Supply
    - 9VDC/0.8A
    Button
    - 1*RST Button
    - 1*Key for Security Lock Button

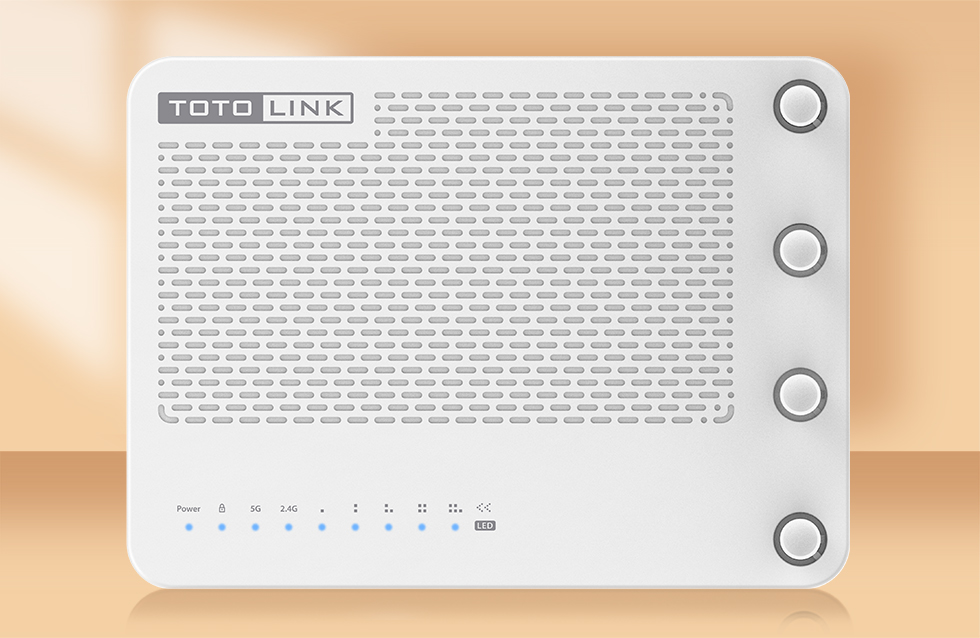

    LED  Indicators
    - 1*Power,
    - 1*Key for Security Lock,
    - 1*5G,
    - 1*2.4G,
    - 5*WAN/LAN
    Antenna
    		 - 2*2.4GHz fixed antennas(5dBi),
    - 2*5GHz fixed antennas(5dBi),
    - White color
    Dimensions (L x W x H)
    - 174 X 128 X 26mm (not including antennas)
    Wireless
    Standards
    - IEEE 802.11ac,
    - IEEE 802.11n,
    - IEEE 802.11g,
    - IEEE 802.11b,
    - IEEE 802.11a
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps
    - 5GHz: Up to 867Mbps
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                      HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER

    Software
    Operation Mode

    - Gateway Mode
    - Repeater Mode
    - AP Mode
    - WISP Mode
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Home
    - Easy setup
    - Basic setup
    - Advanced setup
    - QR Code
    - LED
    - Logout
    - Reboot
    Network
    - WAN Setting
    - LAN Setting
    - IPTV  Setting
    - DHCP&ARP Tables
    - Static Route
    - Routing Table
    - IPv6 Network
    - DDNS
    Wireless
    - Basic Settings
    - Advanced Settings
    - Access Control
    - Wireless Schedule
    - Guest Network(Multiple SSID)
    - Band Steering
    Parental controls

    - Internet time control based on MAC
    - URL Restrictions
    QoS

    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    Firewall


    		 - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT Mapping

    - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    WiFi Safety Lock

    - Root WiFi Lock
    - Guest WiFi Lock
    System
    - Upgrade Firmware
    - Save/Reload Settings
    - Time Zone Settings
    - TR-069 Config
    - Password Settings
    - Reboot Schedule
    - System Log and so on

    Others
    Package Contents

    - A702R_V3 Wireless Router * 1
    - Power Adapter * 1
    - Ethernet Cable * 1
    - Quick Installation Guide * 1
    Environment

    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
