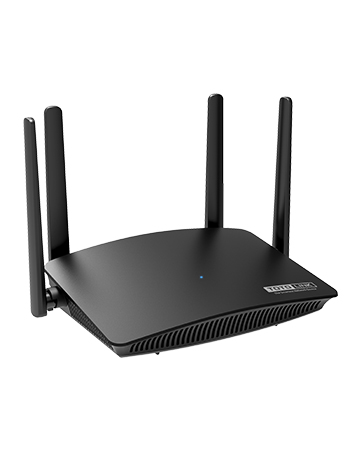

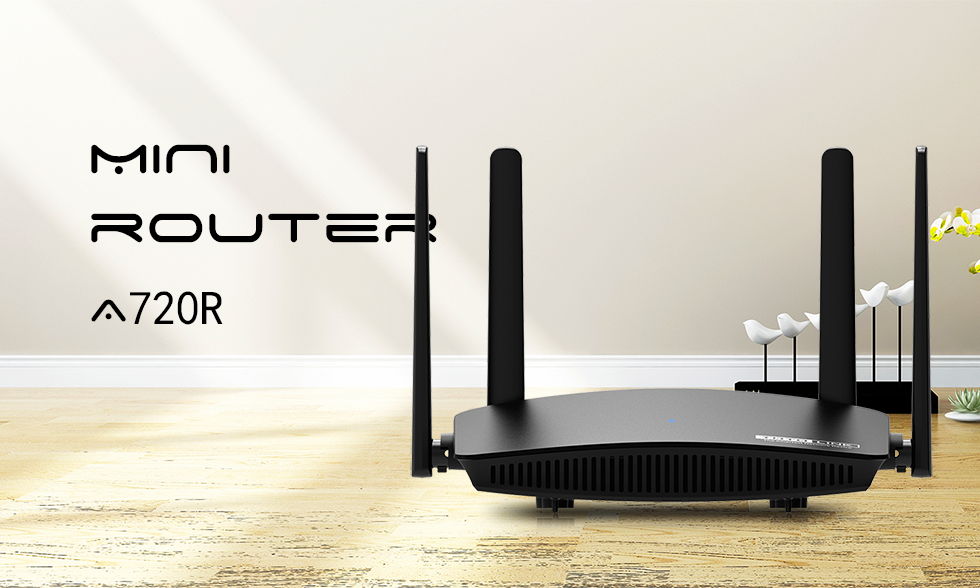

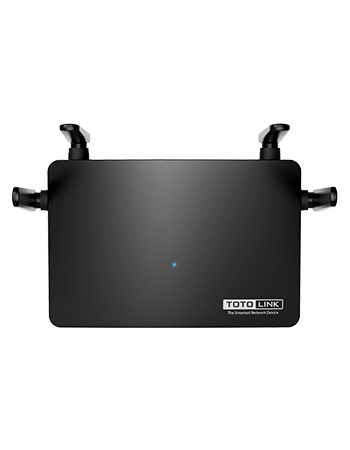

A720R

AC1200 Wireless Dual Band Router

  • - 1167Mbps Super Speed Wi-Fi
    - Four External Antennas, Wide Wi-Fi Coverage
    - Easy Parental Control

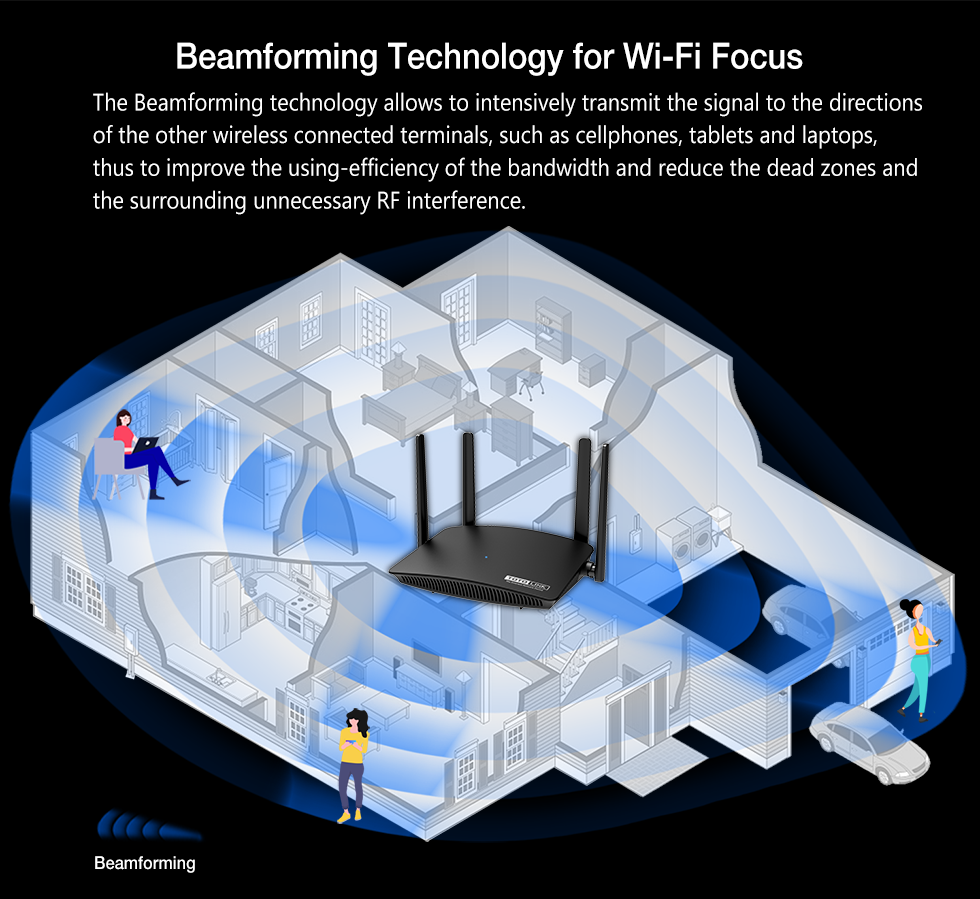

    - Beamforming Technology for Wi-Fi Focus

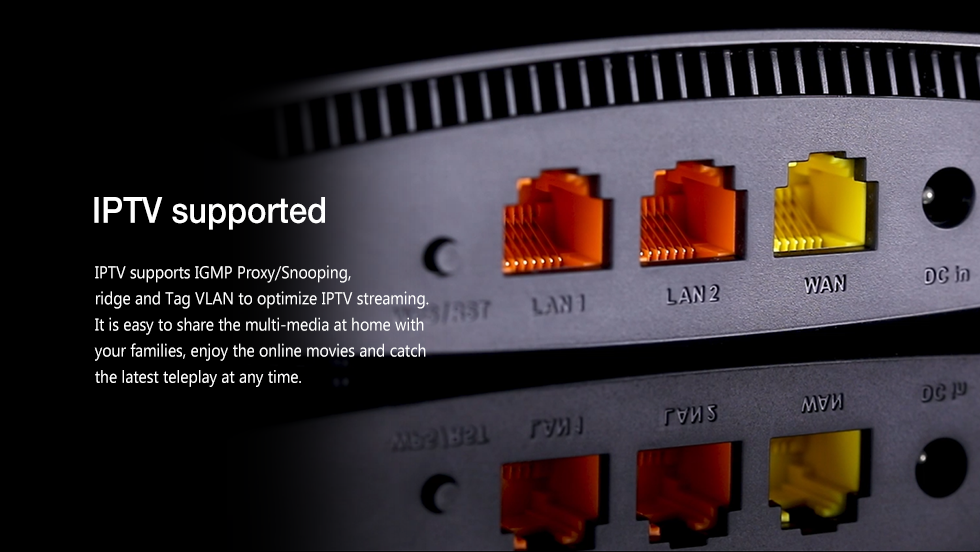

    - IPTV supported

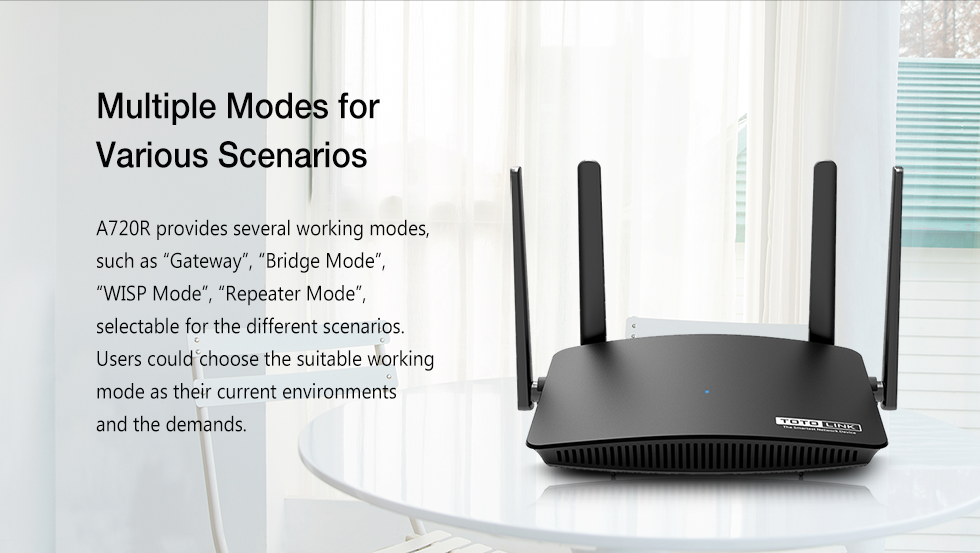

    - Multiple Modes for Various Scenarios
    - Easy Setup on the totolink router APP
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Comply with the IEEE 802.11ac Wave 2 Wi-Fi standard.
    - 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
    - Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.
    - Fast WAN/LAN ports offers a stable capability for data streaming via cable connection.
    - Support DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
    - Support IPv6, the next generation of internet protocol, helping you to future-proof your network.
    - Provides WPA/WPA2 mixed security.
    - QoS function allows to change the bandwidth for different terminals via IP address.
    - IPTV function allows to enjoy online movies at home.
    - Support IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
    - Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.
    - Smart UI design or totolink router APP is easy for the users to finish the basic configuration with their cellphones.

    HARDWARE FEATURES

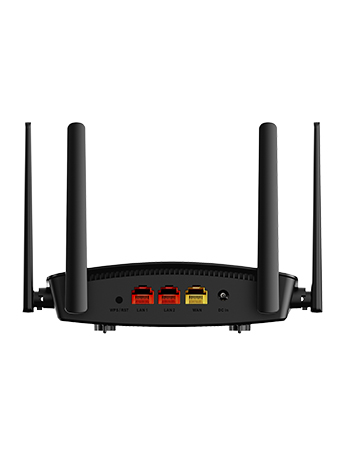

    Interface
    - 2 *100Mbps LAN Ports
    - 1 *100Mbps WAN Port
    Power Supply
    - 9V DC / 0.8A
    Button
    - 1 *RST/WPS Button
    LED Indicators
    - 1 *SYS
    Antenna
    - 2 * 5dBi detachable  dual band antennas
    Dimensions (L x W x H)
    - 142X95 X41mm
    WIRELESS FEATURES
    Standards
    - IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n, IEEE 802.11s
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate  - 2.4GHz: 300Mbps
      - 5GHz: 867Mbps
    EIRP  - 2.4GHz < 20Bm
      - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity

    		 - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                     HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
           11n HT20 MCS7：-65dBm@10% PER
                  HT40 MCS7：-62dBm@10% PER
           11ac VHT80 MCS9：-51dBm@10% PER
    SOFTWARE FEATURES
    Operation Mode
    - Gateway Mode
    - Repeater Mode
    - AP Mode
    - WISP Mode
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - QR Code
    - LED
    - Logout
    - Reboot
    Network
    - WAN Setting
    - LAN Setting
    - DDNS Setting
    - IPTV Setting
    - IPv6 Setting
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Wireless
    - Basic setup
    - Guest Network(Multiple SSID)
    - Wireless Schedule
    - Access Control
    - Advanced setup
    Parental Control
    		 - QoS, DDNS, DoS, WMM,etc.
    QoS
    		 - Up/Down speed control on WAN, Bandwidth control based on IP address
    Device managemen
    		 - Static Route
    - Routing Table
    - IP/MAC Binding
    Security
    - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT
    		 - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    Tools

    - Upgrade Firmware
    - Time Setup
    - Remote manageme
    - Password Settings
    - Reboot Schedule
    - System Log and so on
    Others
    Package Contents

    - A720R Wireless Router *1
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~50℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
