- Complies with the 5th generation IEEE 802.11ac Wi-Fi standard.
- Simultaneous 867Mbps on 5GHz and 300Mbps on 2.4GHz for a total of 1167Mbps.
- Middle power design on both bands is perfect for long-distance wireless transmission.
- MU-MIMO technology allows to transfer data to multiple devices at the same time.

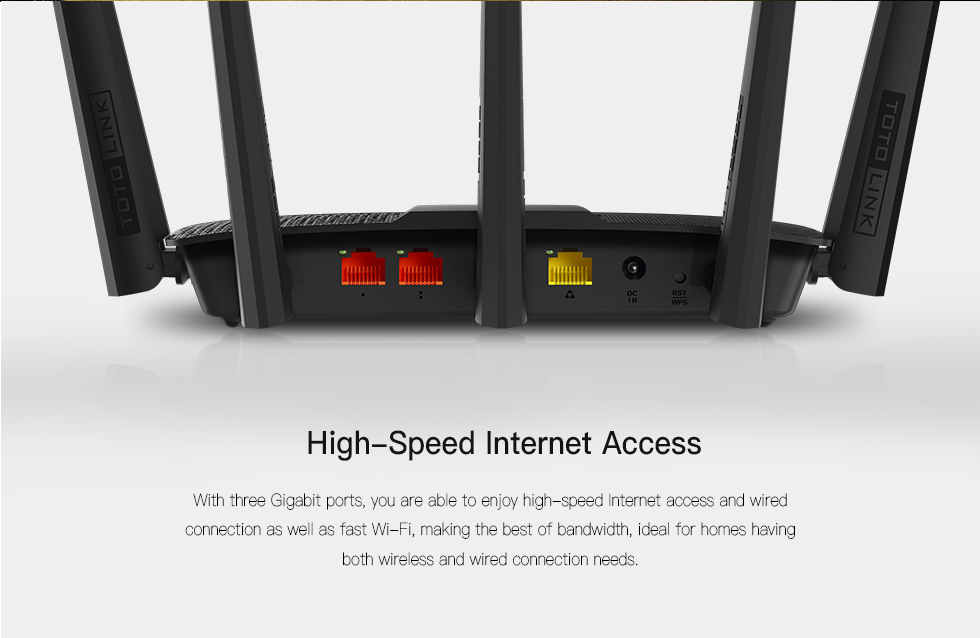

- Three Gigabit ports ensure high-speed Internet access and wired speed.
- Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
- Provides 64/128-bit WEP, WPA, and WPA2.
- Connects to a secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP address.
- Supports IP filtering, MAC filtering, URL filtering and Port Forwarding.
- Universal Repeater and WDS function for easy Wi-Fi extension.
- Multi-SSID function enables users to create multiple Wi-Fi networks.
- Easy setup with auto-popup simplifies the basic settings.
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 * 1000Mbps LAN Ports |
| 1 * 1000Mbps WAN Port | |
| Power Supply | 9 VDC / 0.8 A |
| Button | 1 * RST/WPS Button |
| LED Indicator | 1 * SYSTEM |

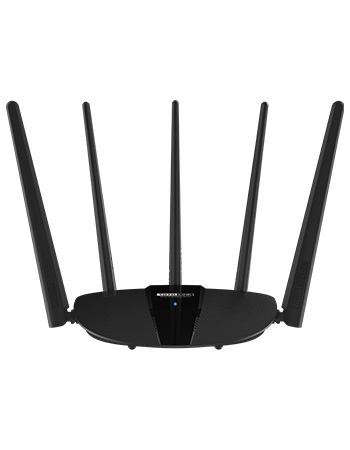

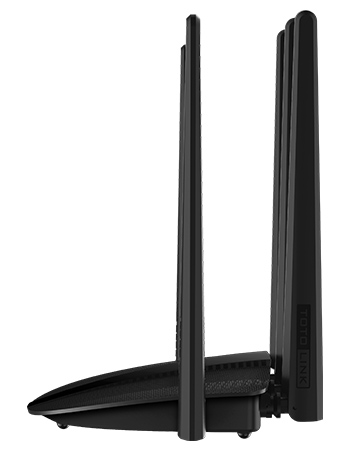

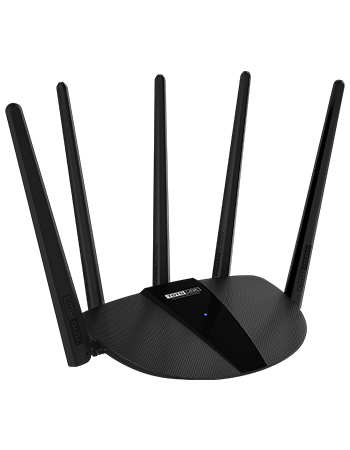

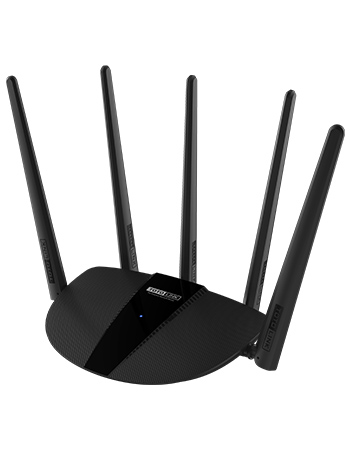

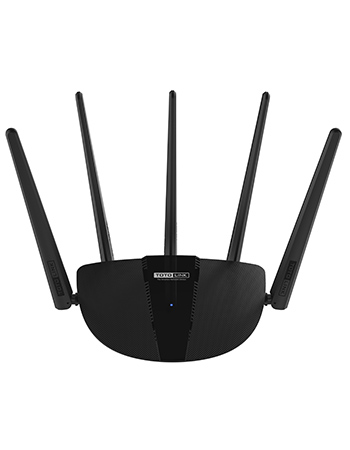

| Antenna | 3 * 5dBi fixed antennas (2.4G), 2 * 5dBi fixed antennas (5G) |
| Dimensions (L x W x H) | 190mm x 131mm x 36mm |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| EIRP | 2.4GHz < 20dBm |
| 5GHz < 15dBm | |
| Wireless Security | 64/128-bit WEP, WPA, and WPA2 |
| Reception Sensitivity | 2.4G:11b 11M：-81dBm@8% PER |
| 11g 54M：-68dBm@10% PER | |
| 11n HT20 MCS7：-65dBm@10% PER | |
| HT40 MCS7：-62dBm@10% PER | |
| 5G: 11a 54M：-68dBm@10% PER | |
| 11n HT20 MCS7：-65dBm@10% PER | |
| HT40 MCS7：-62dBm@10% PER | |
| 11ac VHT80 MCS9：-51dBm@10% PER | |
| SOFTWARE FEATURES | |
|---|---|
| Operation Mode | Wireless ISP Client Router |
| Repeater (Range Extender) | |
| Router | |
| Bridge with AP | |
| WAN Type | DHCP/Static IP/PPPoE/PPTP/L2TP |
| Wireless Functions | Multiple SSIDs, MAC Authentication, Universal Repeater, WDS, WPS |
| Schedule | Reboot Schedule, Wireless Schedule |
| Firewall | MAC Filtering, IP Filtering, Port Filtering, URL Filtering |
| Port Forwarding, DMZ | |
| Management | QoS, DDNS, DoS, WMM, Access Control, and more. |
| Others | - |
| Package Contents | A3100R Wireless Router * 1 |
| Power Adapter * 1 | |
| Ethernet Cable * 1 | |
| Quick Installation Guide * 1 | |
| Environment | Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
