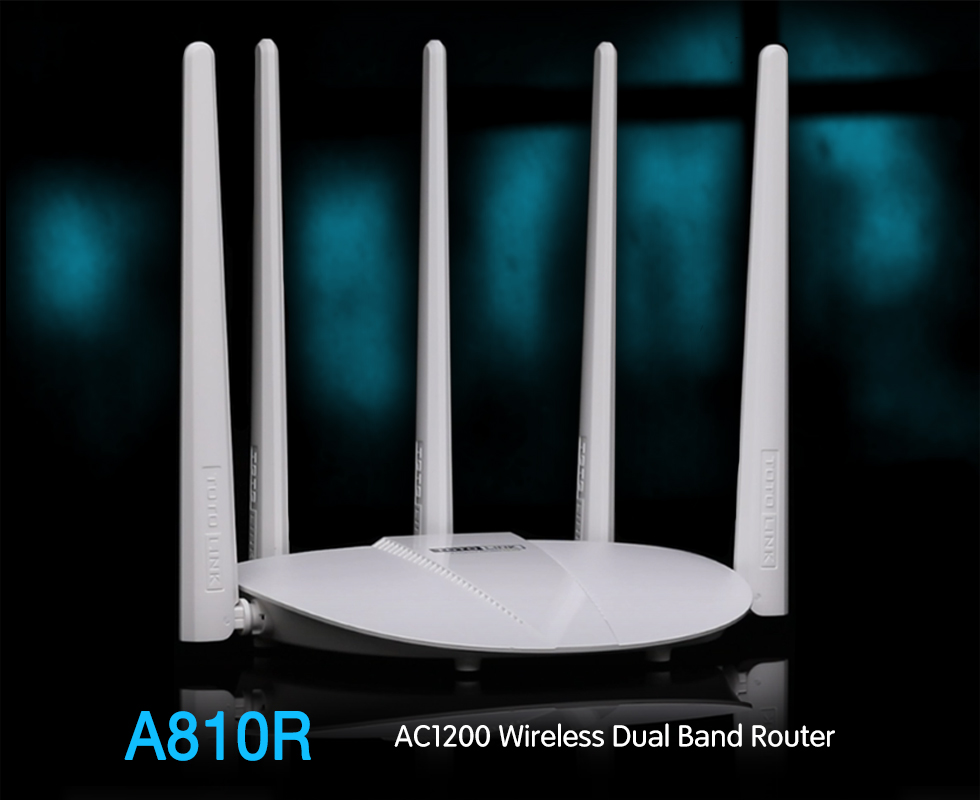

A810R

AC1200 Wireless Dual Band Router

  • - 1.2Gbps Fast Wi-Fi Speed
    - Simultaneous Dual Band
    - Wide Wi-Fi Coverage
    - Multiple Wireless Networks for Access Control
    - Parental Control
    - Easy Setup

  • Overviews
  • Features

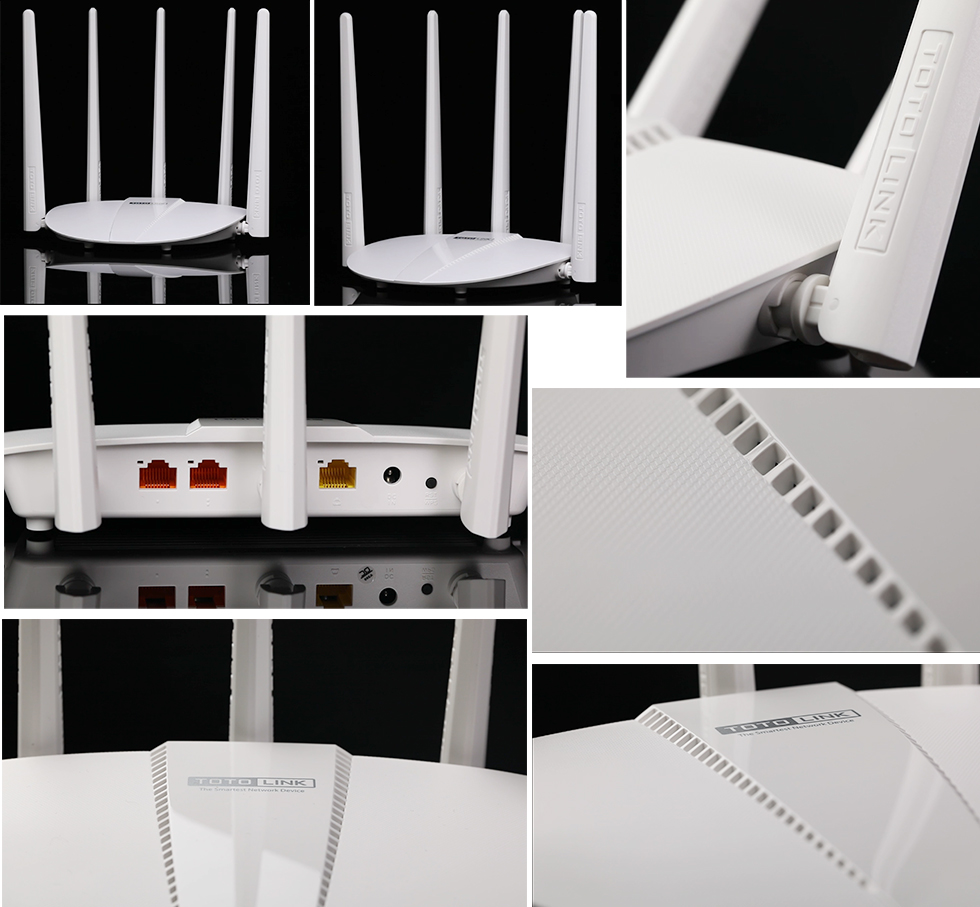

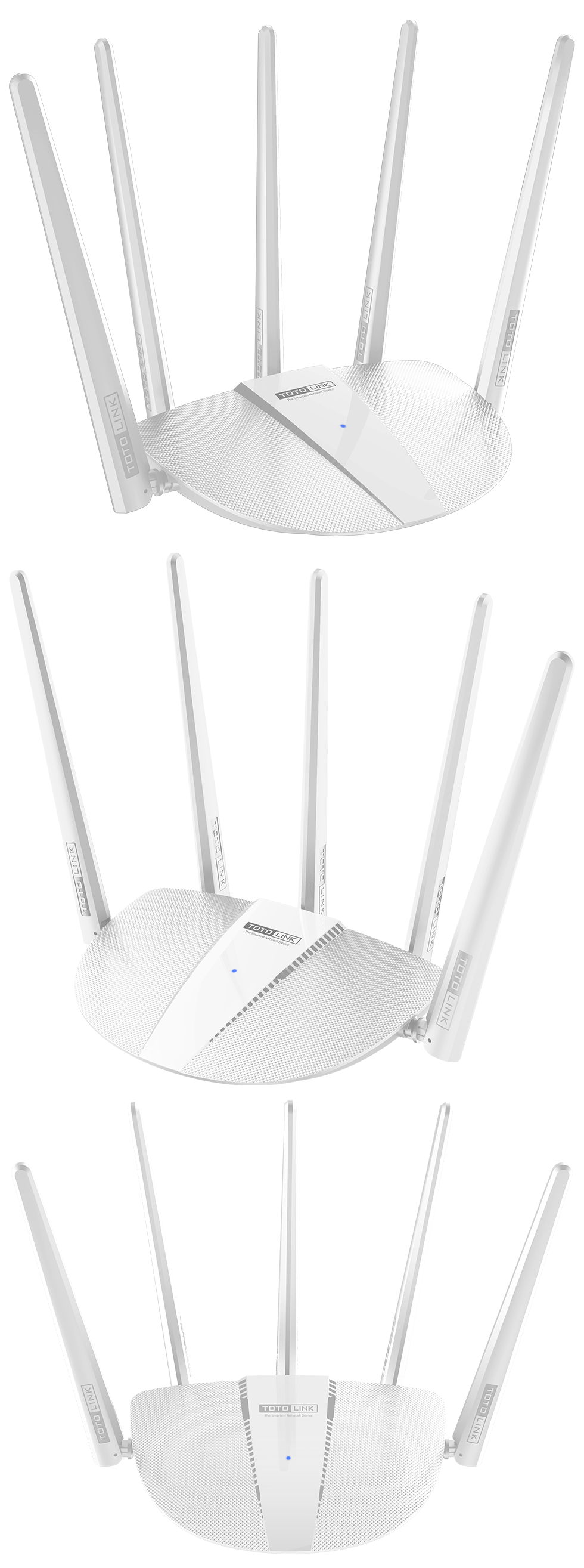

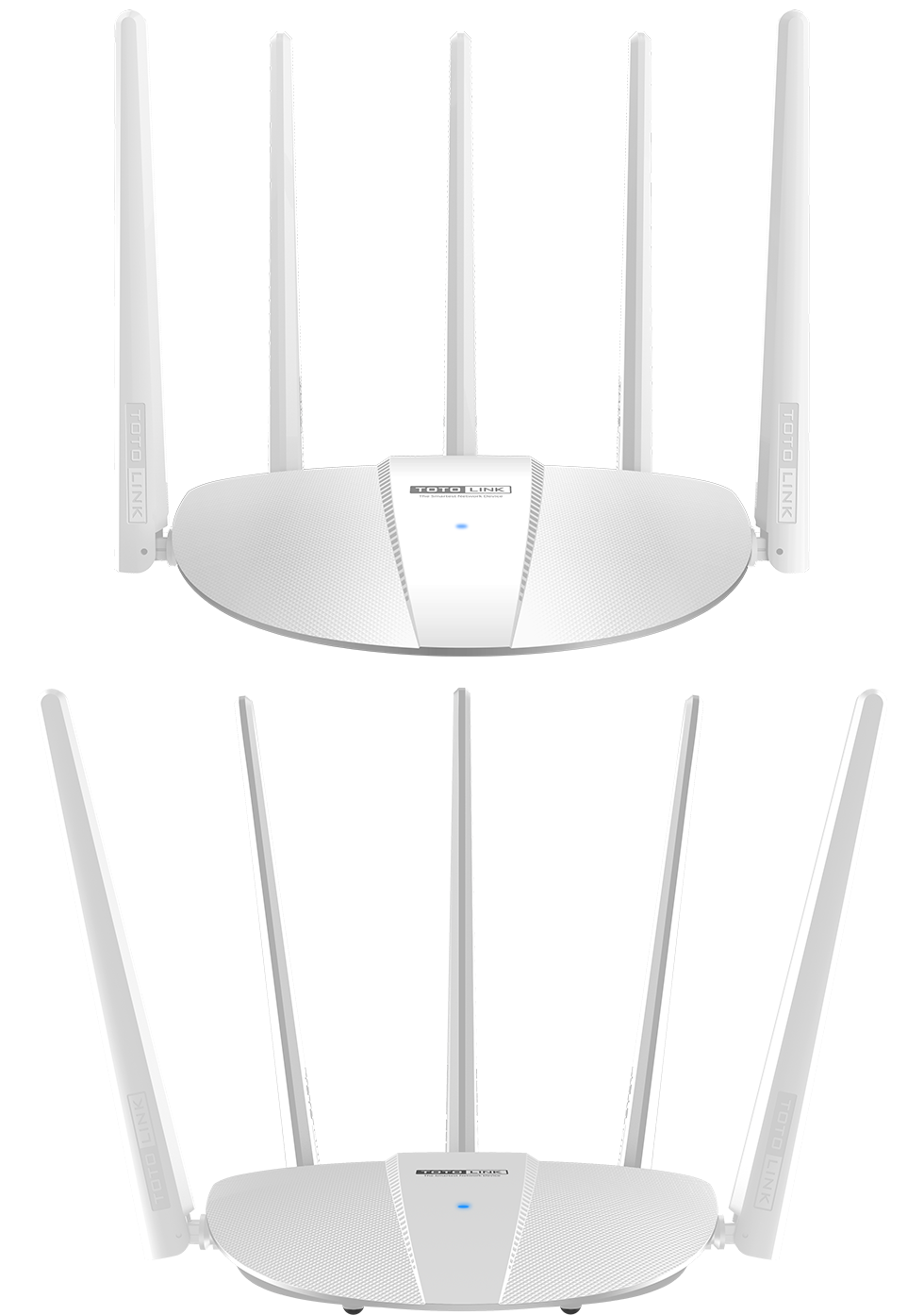

  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies with the 5th generation IEEE 802.11ac Wi-Fi standard.

    - Simultaneous 867Mbps on 5GHz and 300Mbps on 2.4GHz for a total of 1167Mbps.

    - Middle power design on both bands is perfect for long-distance wireless transmission.

    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.

    - Provides 64/128-bit WEP, WPA, and WPA2.

    - Connects to a secure network easily and fast using WPS.

    - QoS: Bandwidth Control based on IP address.

    - Supports IP filtering, MAC filtering, URL filtering and Port Forwarding.

    - Universal Repeater and WDS function for easy Wi-Fi extension.

    - Multi-SSID function enables users to create multiple Wi-Fi networks.

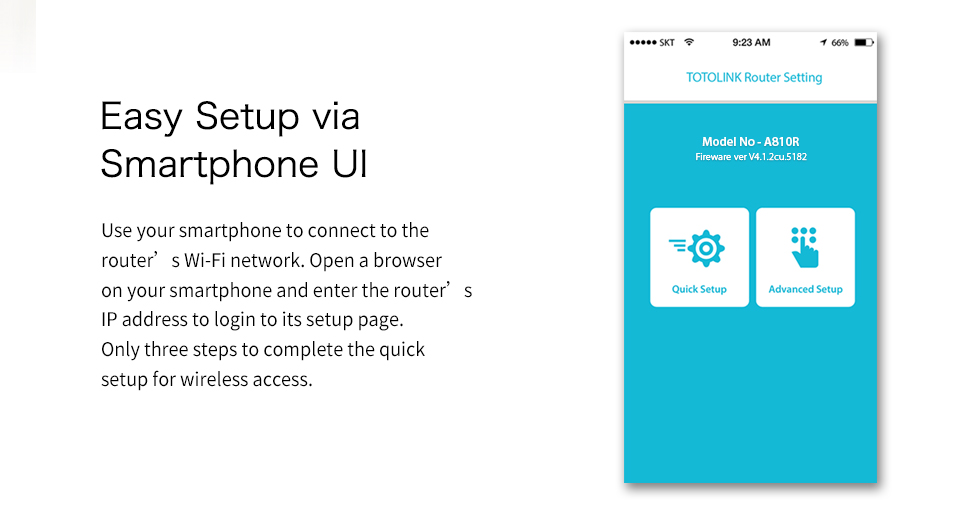

    - Easy setup with auto-popup simplifies the basic settings.


    HARDWARE FEATURES

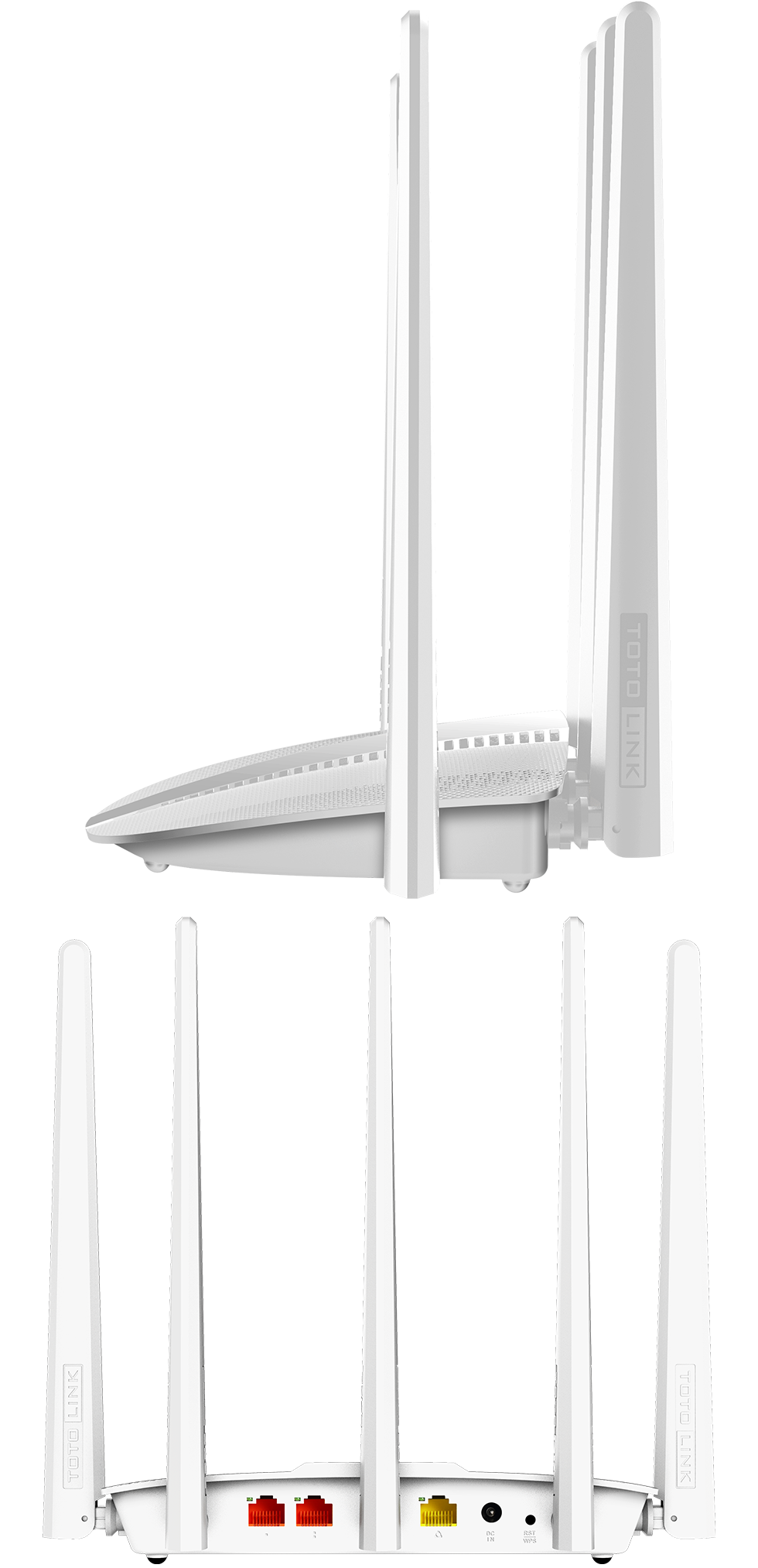

    Interface  2 * 100Mbps LAN Ports
      1 * 100Mbps WAN Port
    Power Supply  9 VDC / 0.8 A
    Button  1 *RST/WPS Button
    LED Indicator  1 * SYSTEM

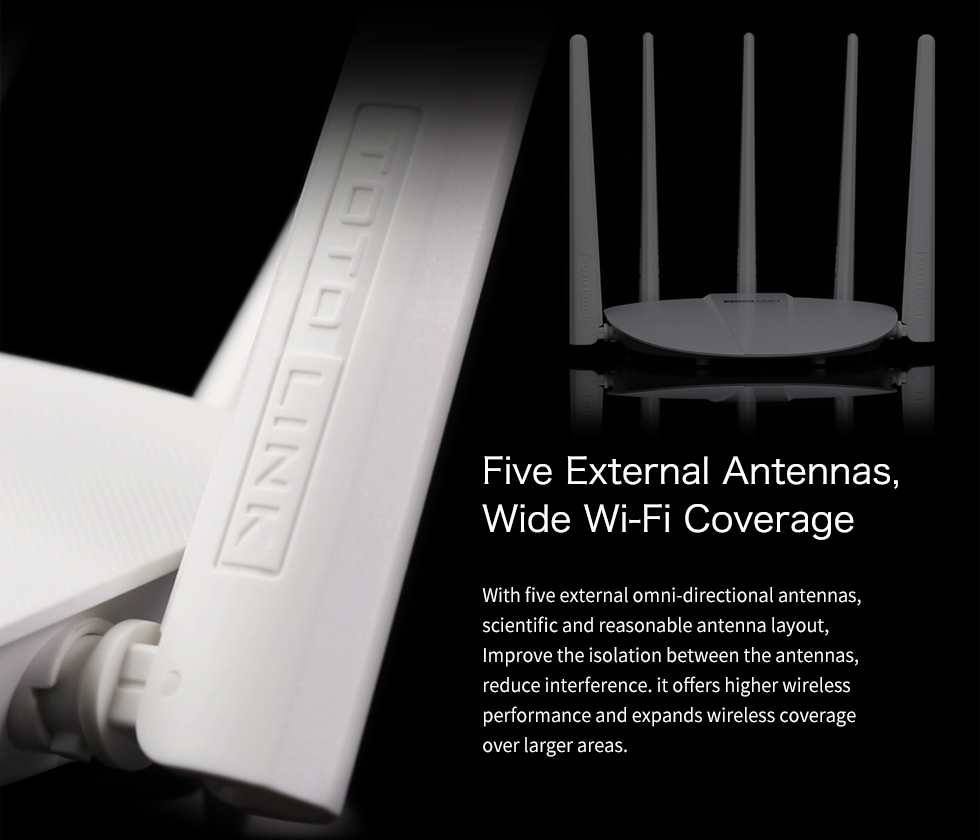

    Antenna  3 * 5dBi fixed antennas (2.4G), 2 * 5dBi fixed antennas (5G)
    Dimensions (L x W x H)  190mm x 131mm x 36mm
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    RF Frequency  2.4GHz/5GHz
    Data Rate  2.4GHz: Up to 300Mbps
      5GHz: Up to 867Mbps
    EIRP  2.4GHz < 20dBm
      5GHz < 15dBm
    Wireless Security  64/128-bit WEP, WPA, and WPA2
    Reception Sensitivity  - 2.4G:11b 11M：-81dBm@8% PER
      11g 54M：-68dBm@10% PER
      11n HT20 MCS7：-65dBm@10% PER
      HT40 MCS7：-62dBm@10% PER
      - 5G: 11a 54M：-68dBm@10% PER
      11n HT20 MCS7：-65dBm@10% PER
      HT40 MCS7：-62dBm@10% PER
      11ac VHT80 MCS9：-51dBm@10% PER
    SOFTWARE FEATURES

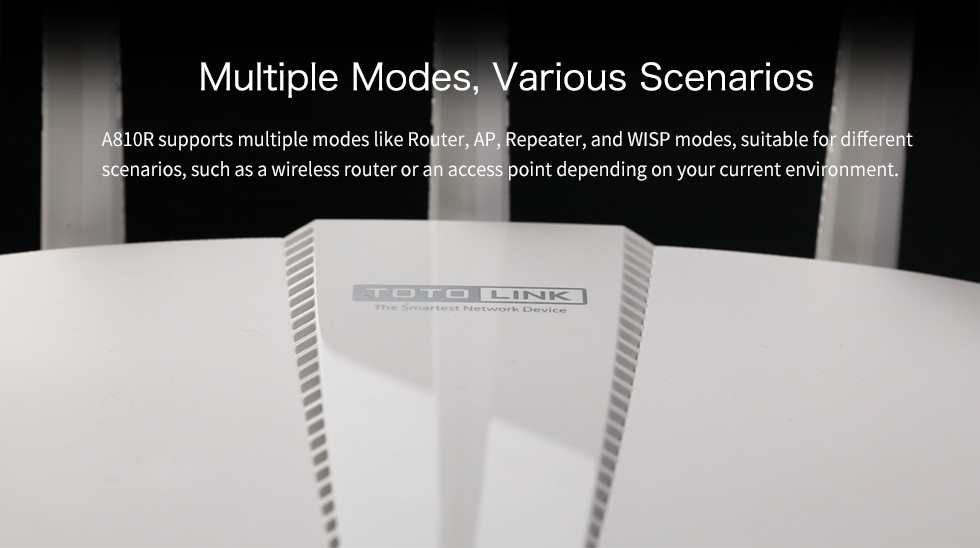

    Operation Mode  Wireless ISP Client Router
      Repeater (Range Extender)
      Router
      [Window Title]
    WAN Type  DHCP/Static IP/PPPoE/PPTP/L2TP
    Wireless Functions  Multiple SSIDs, MAC Authentication, Universal Repeater, WDS, WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
    Management  QoS, DDNS, DoS, WMM, Access Control, and more.
    Others  -
    Package Contents  A810R Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
