- Complies with the next generation IEEE 802.11ac Wi-Fi standard.

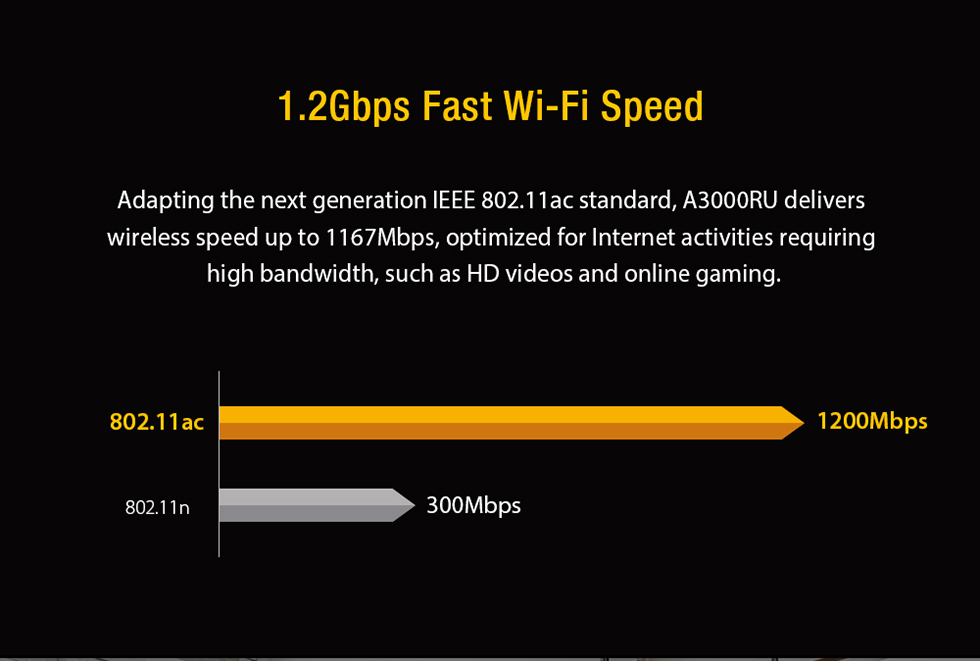

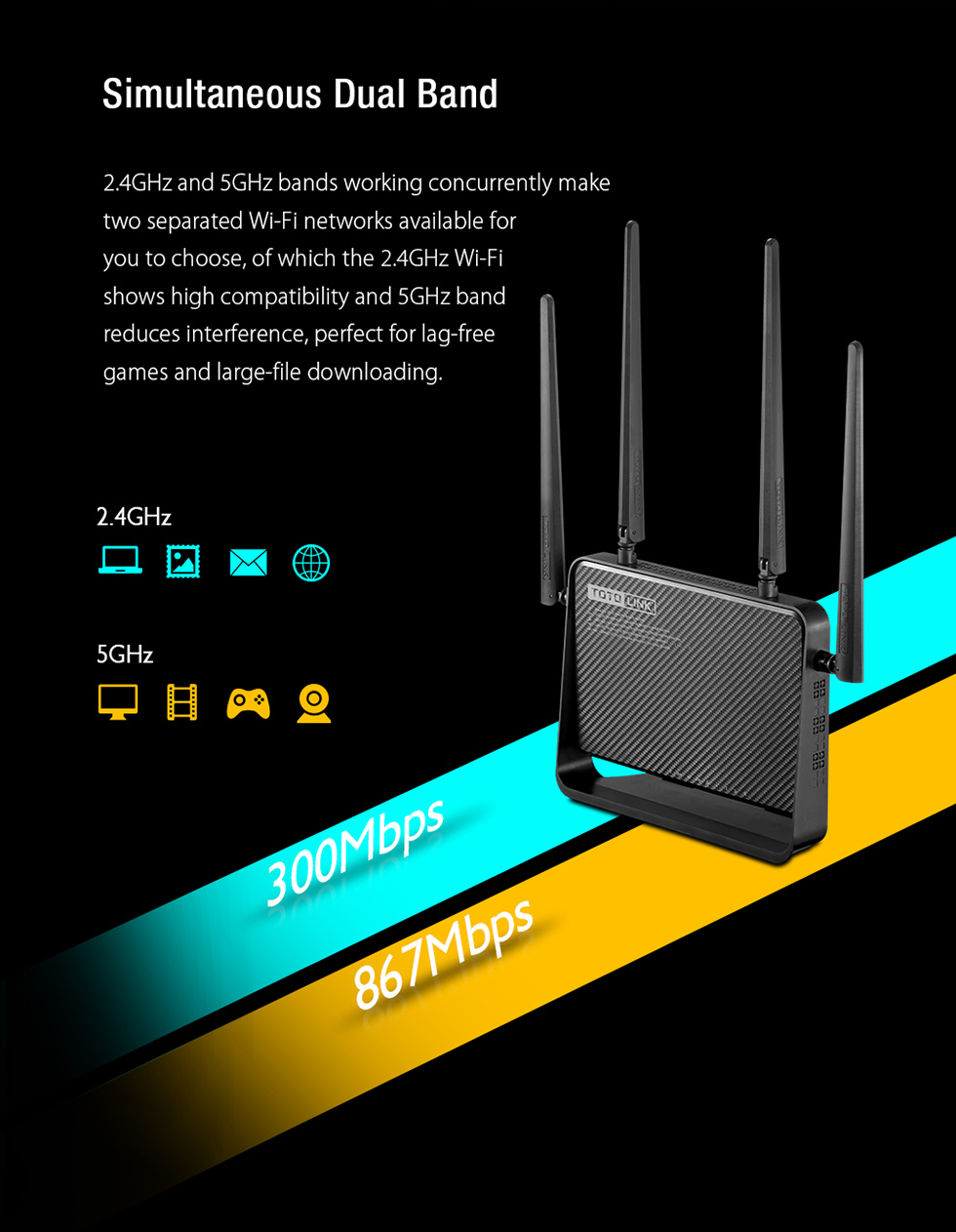

- 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
- Middle power design on both bands is perfect for long distance wireless transmission.

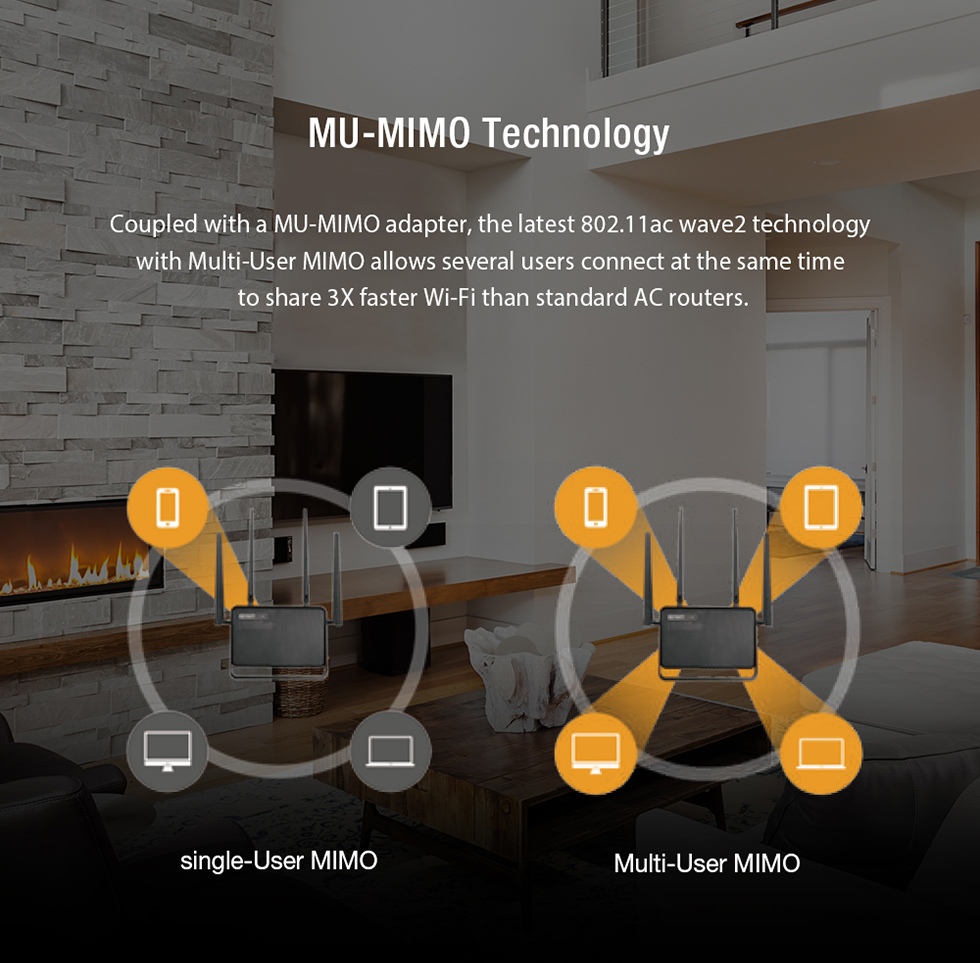

- MU-MIMO technology allows data transfer to multiple devices at the same time.

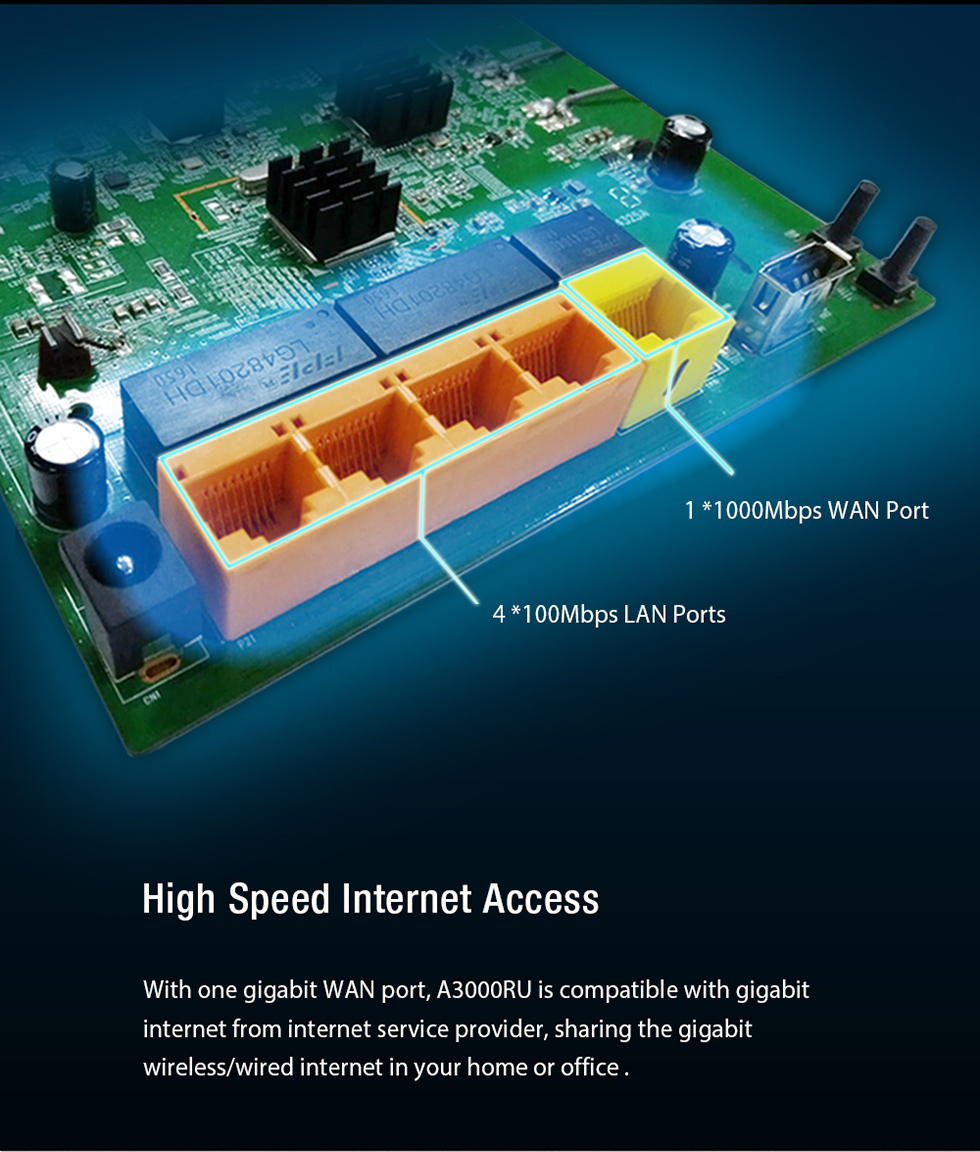

- Five gigabit ports ensure high speed Internet access and wired speed.
- Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP address.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal Repeater and WDS function for easy Wi-Fi extension

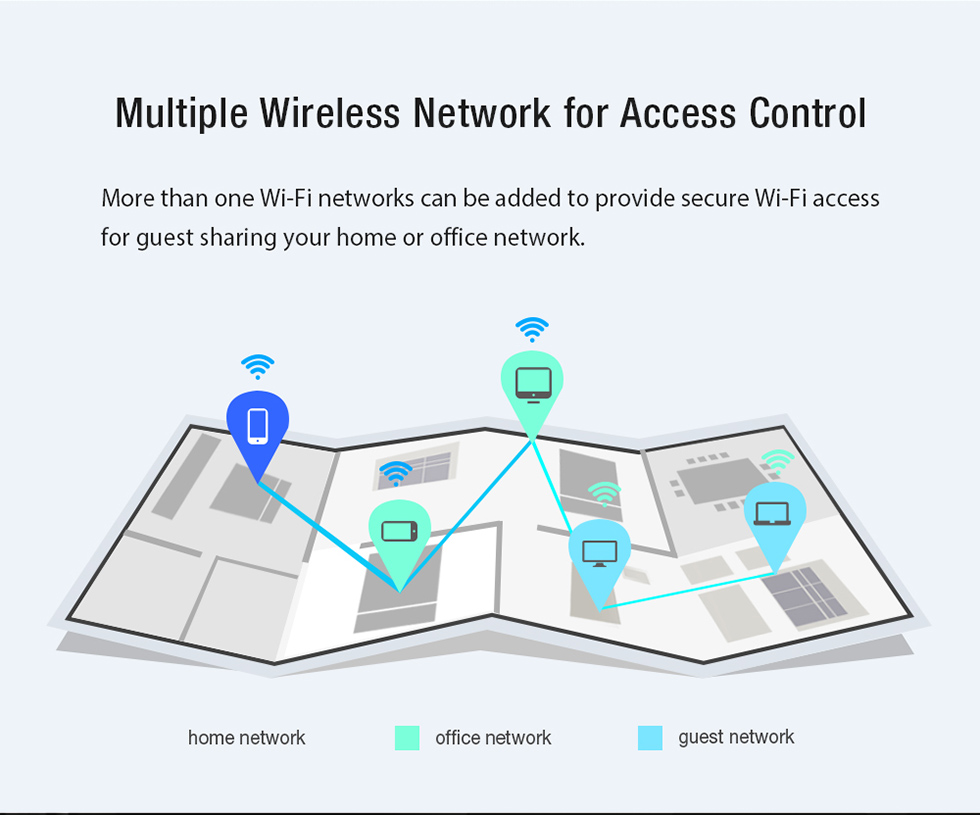

- Multi-SSID function enables users to create multiple Wi-Fi networks.

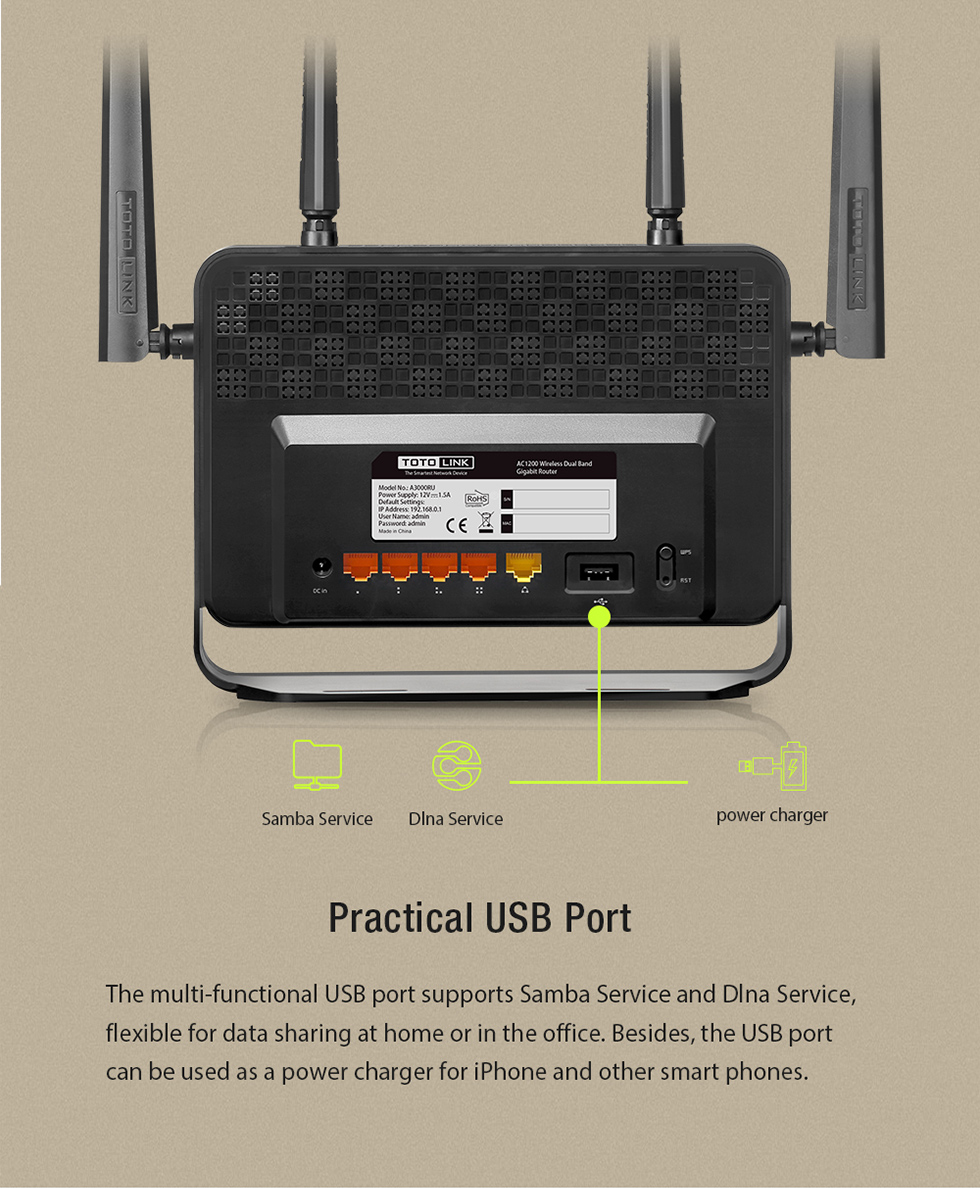

- one USB port supports Samba Service and Dlna Service.
- Easy setup with auto popup window simplifies the basic settings.
| HARDWARE FEATURES | |
|---|---|

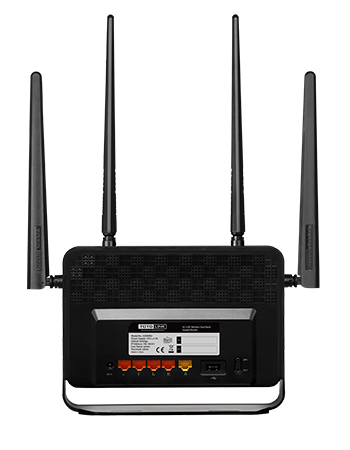

| Interface | 4 *1000Mbps LAN Ports |
| 1 *1000Mbps WAN Port | |
| 1 * USB2.0 Port | |
| Power Supply | 12V DC / 1.5A |
| Button | 1 *RST Button |
| 1*WPS Button | |
| LED Indicators | 1 *CPU, 1 *USB, 1 *5G Wireless, 1 *2.4G Wireless, 4 *LAN, 1 *WAN |
| Antenna | 2 *5dBi fixed antennas (2.4G),2 *5dBi fixed antennas (5G) |
| Dimensions (L x W x H) | 8.2 x 6.2 x 2.6 in.( 210 x 160 x 66mm) |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| EIRP | 2.4GHz < 22dBm |
| 5GHz < 20dBm | |
| Wireless Security | 64/128-bit WEP, WPA, WPA2 and WPA-Mixed |
| 2.4G: 11b 11M: 20±1.5dBm | |
| 11g 54M: 17±1.5dBm | |
| 11n HT20: 16±1.5dBm HT40: 16±1.5dBm | |
| 5G: 11a 54M: 18±2dBm | |
| 11n HT20 MCS7: 17±2dBm HT40 MCS7: 17±2dBm | |
| 11ac VHT80 MCS9: 16±2dBm | |
| SOFTWARE FEATURES | |
|---|---|
| Operation Mode | Wireless ISP Client Router |
| Repeater(Range Extender) | |
| Router | |
| Bridge with AP | |
| WAN Type | DHCP/Static IP/PPPoE/PPTP/L2TP |
| Wireless Functions | Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
| Schedule | Reboot Schedule, Wireless Schedule |
| Firewall | MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ |
| USB | Samba Service and Dlna Service |
| Management | QoS, DDNS, DoS, WMM, Access Control, etc. |
| - | - |
| Others | - |
| Package Contents | A3000RU Wireless Router *1 |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| Environment | Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
