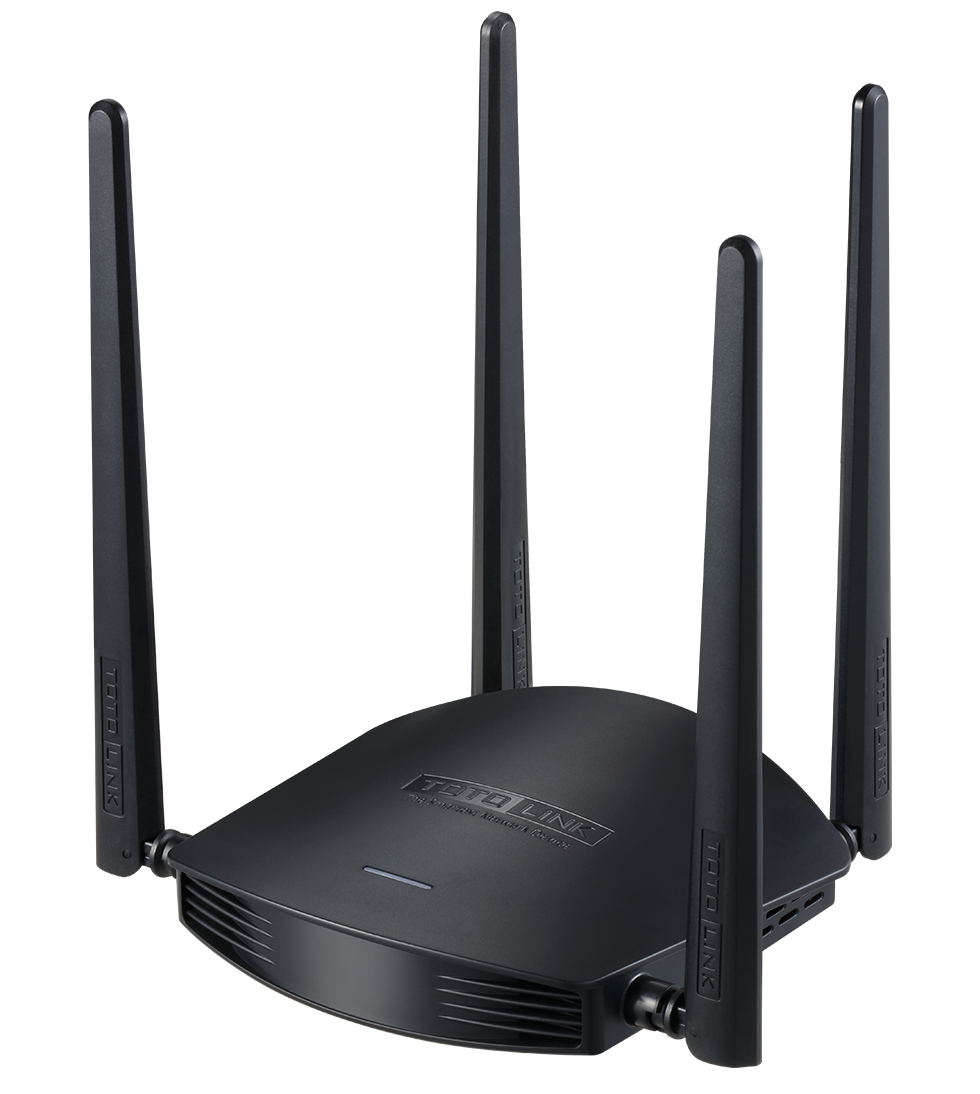

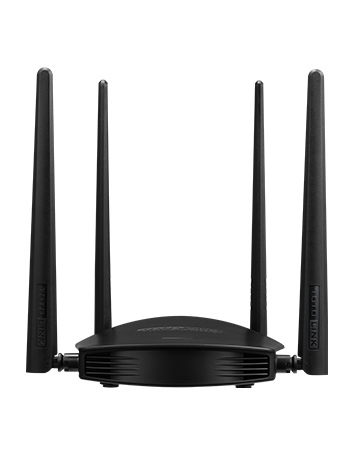

A800R

AC1200 Wireless Dual Band Router

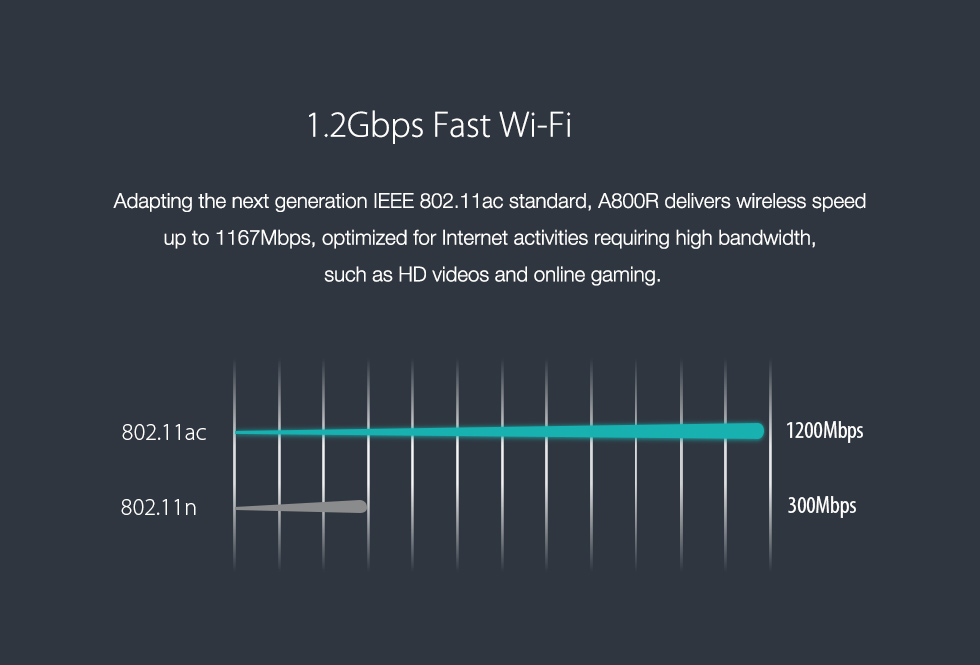

  • - 1.2Gbps Fast Wi-Fi
    - MU-MIMO Technology
    - Simultaneous Dual Band
    - Easy Setup by Smart Phone
    - 1GHz CPU for Powerful Performance

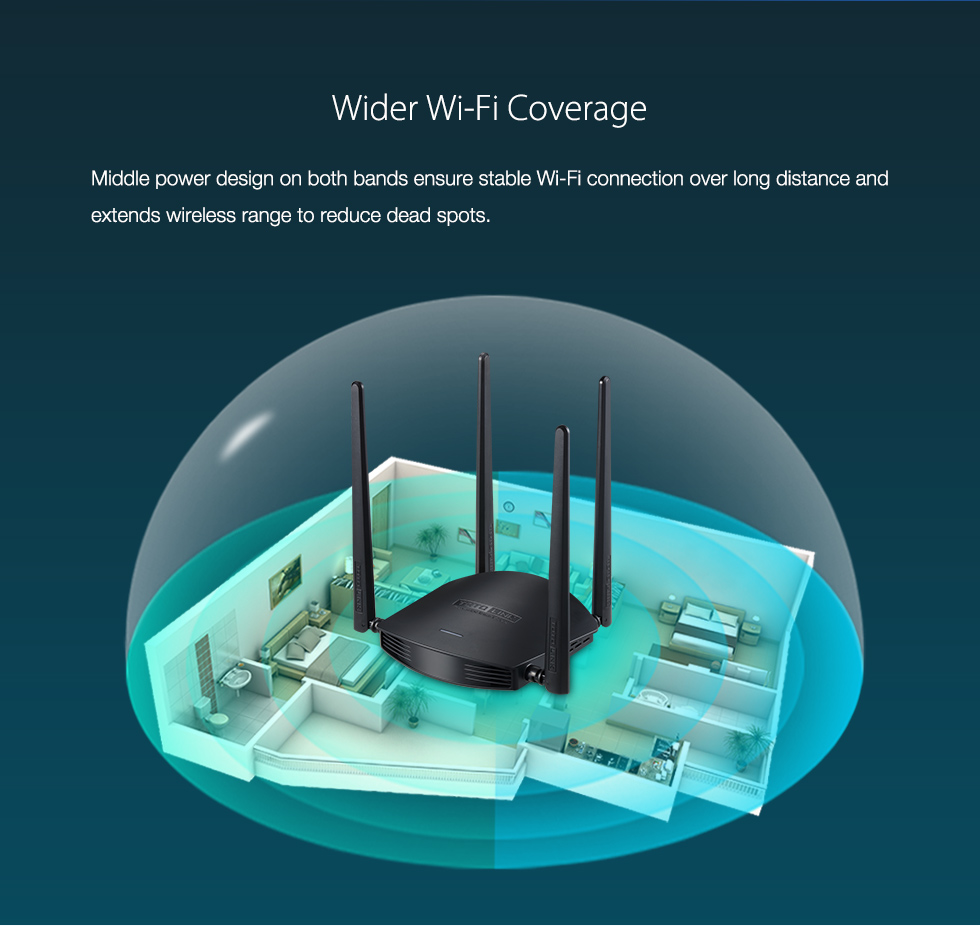

    - Wider Wi-Fi Coverage

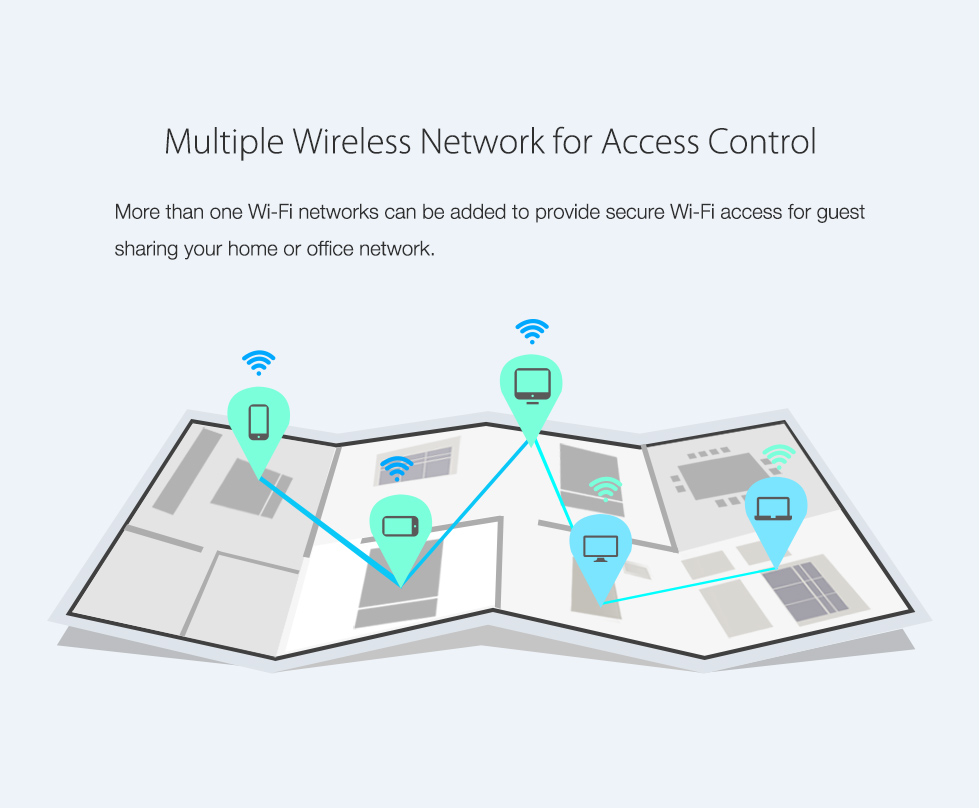

    - Multiple Wireless Network for Access Control
    - Parental Control
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies with the next generation IEEE 802.11ac Wi-Fi standard.
    - 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
    - Middle power design on both bands is perfect for long distance wireless transmission.

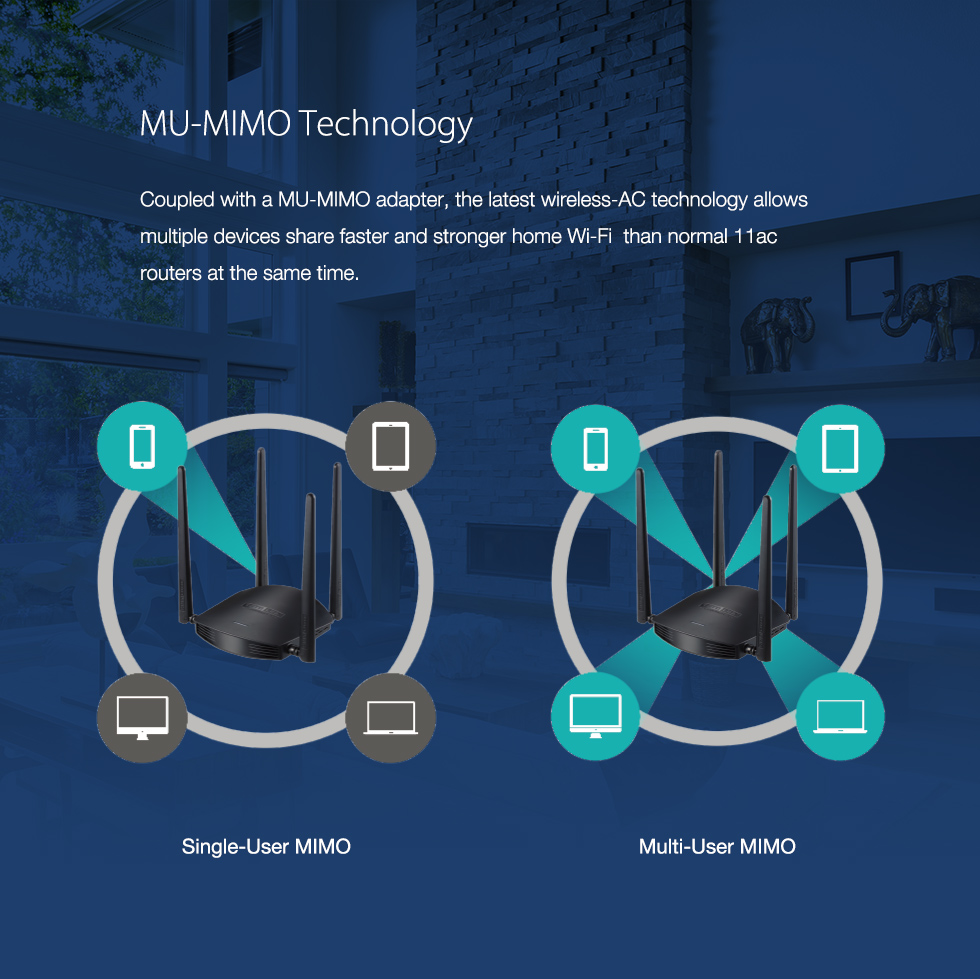

    - MU-MIMO technology allows data transfer to multiple devices at the same time.
    - 1GHz CPU improves Wi-Fi transfer efficiency.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - QoS: Bandwidth Control based on IP.
    - Supports IP, MAC, URL filtering and Port Forwarding.
    - Universal Repeater and WDS function for easy Wi-Fi extension.
    - Multi-SSID function enables users to create multiple Wi-Fi networks.
    - One-page Easy Setup simplifies the basic settings.
    HARDWARE FEATURES

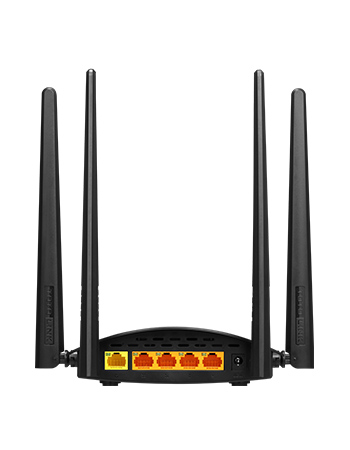

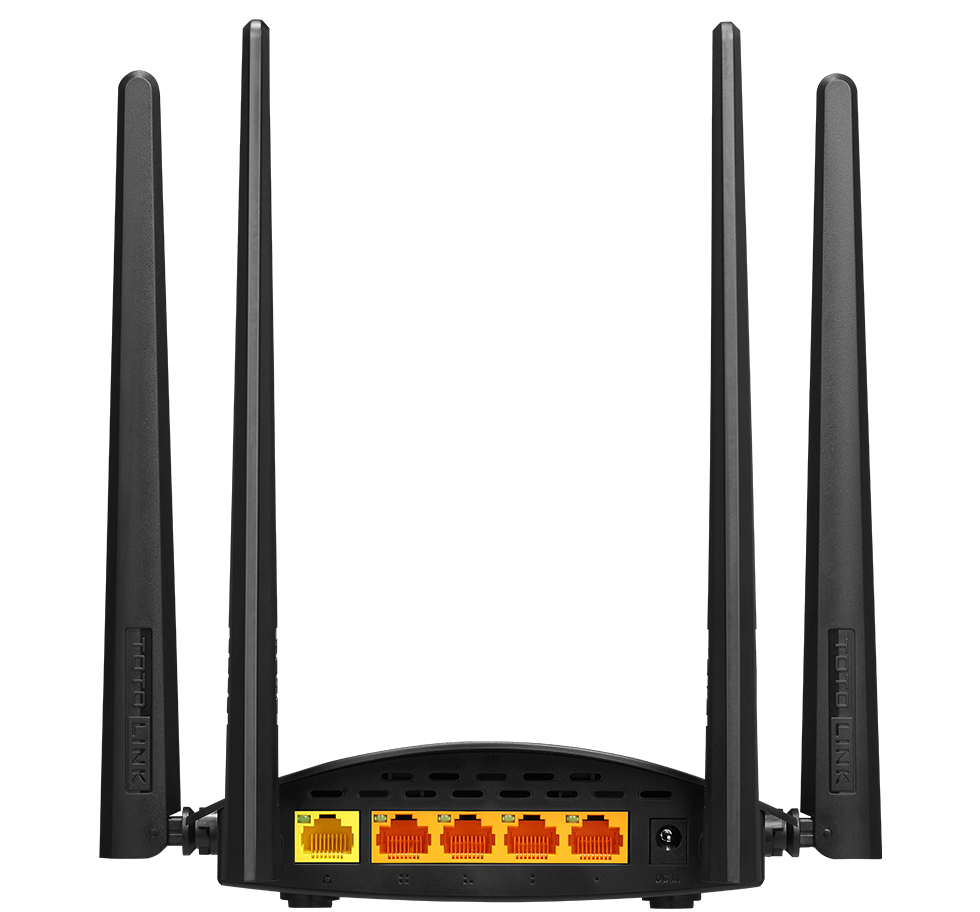

    Interface  4 *100Mbps LAN Ports
      1 *100Mbps WAN Port
    Power Supply  9V DC / 0.8A
    Button  1 *RST/WPS Button
    LED Indicators  1 *Status, 4 *LAN, 1 *WAN
    Antenna  4 *5dBi fixed antennas
    Dimensions (L x W x H)  6.7 x 5.4 x 1.6 in. (170.2 x 138.0 x 40.6 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
    RF Frequency  2.4GHz/5GHz
    Data Rate  2.4GHz: Up to 300Mbps
      5GHz: Up to 867Mbps
    EIRP  2.4GHz < 22dBm
      5GHz < 20dBm
    Wireless Security  64/128-bit WEP, WPA, WPA2 and WPA-Mixed
    Reception Sensitivity  2.4G: 11b 11M: 20±1.5dBm
      11g 54M: 17±1.5dBm
      11n HT20: 16±1.5dBm HT40: 16±1.5dBm
      5G: 11a 54M: 18±2dBm
      11n HT20 MCS7: 17±2dBm HT40 MCS7: 17±2dBm
      11ac VHT80 MCS9: 16±2dBm
    SOFTWARE FEATURES
    Operation Mode  Wireless ISP Client Router
      Repeater(Range Extender)
      Router
      Bridge with AP
    WAN Type  DHCP/Static IP/PPPoE/PPTP/L2TP
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS,WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
    Management  QoS, DDNS, DoS, WMM, Access Control, etc.
    -  -
    Others  -
    Package Contents  A800R Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
