- Complies with 802.11ac/a/b/g/n standards.

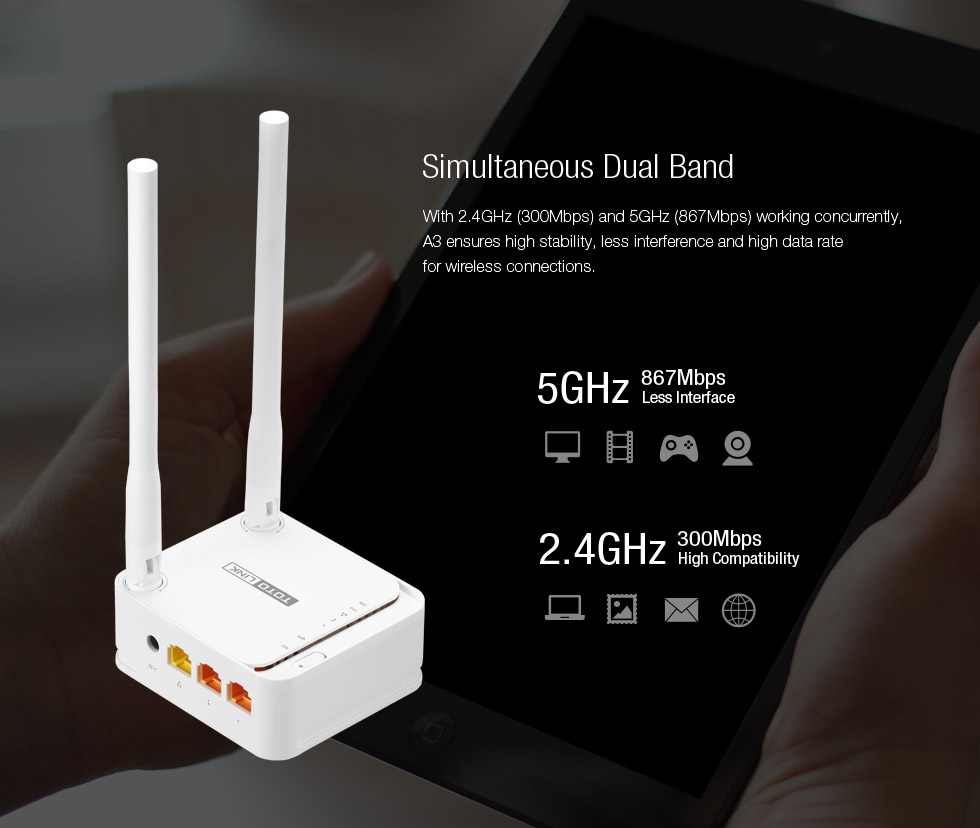

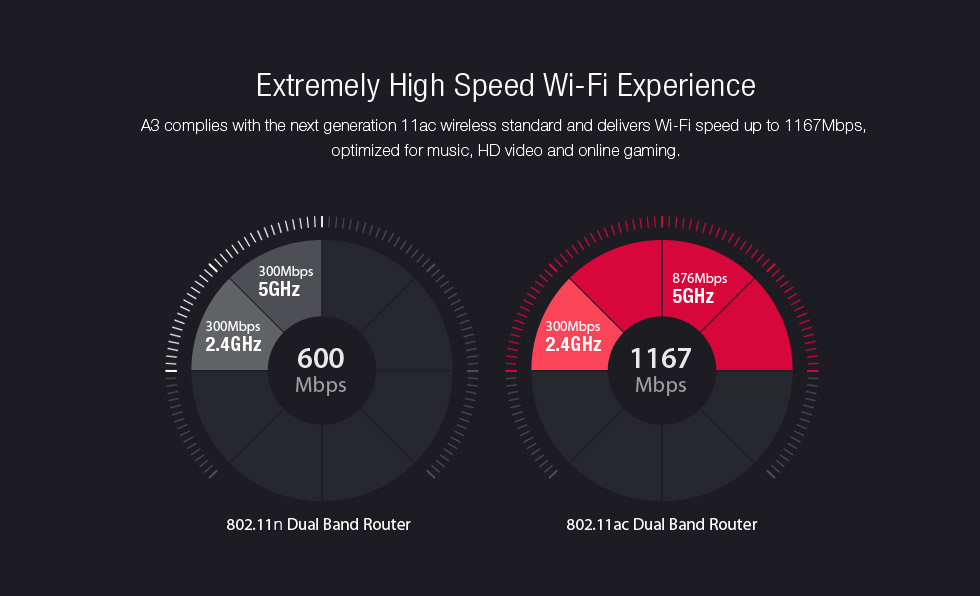

- 300Mbps on 2.4GHz and 867Mbps on 5GHz band simultaneously.
- Two fixed high gain antennas with advanced MIMO technology.
- Supports PPPoE, DHCP and Static IP broadband functions.
- Provides 64/128-bit WEP, WPA / WPA2 and WPAPSK / WPA2PSK security
- Connects to secure network easily and fast using WPS.
- Supports IP, Port, MAC, URL filtering and Port Forwarding.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Universal repeater and WDS function for easy Wi-Fi extension.

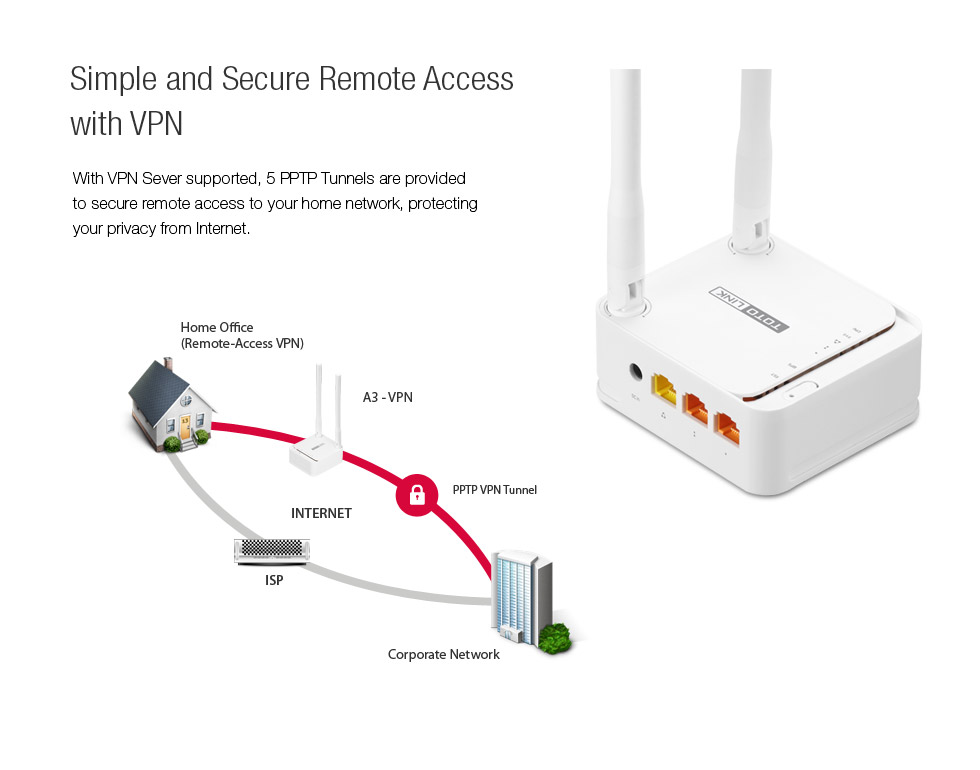

- The VPN server can not only protect the privacy of your information, but also simplify network management.
| HARDWARE FEATURES | |
|---|---|

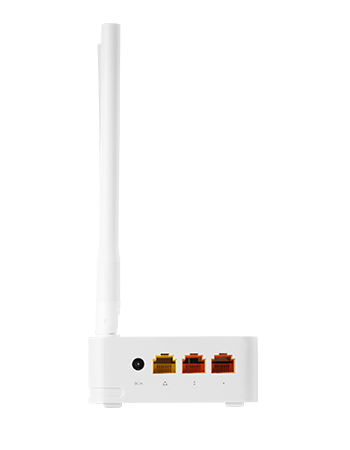

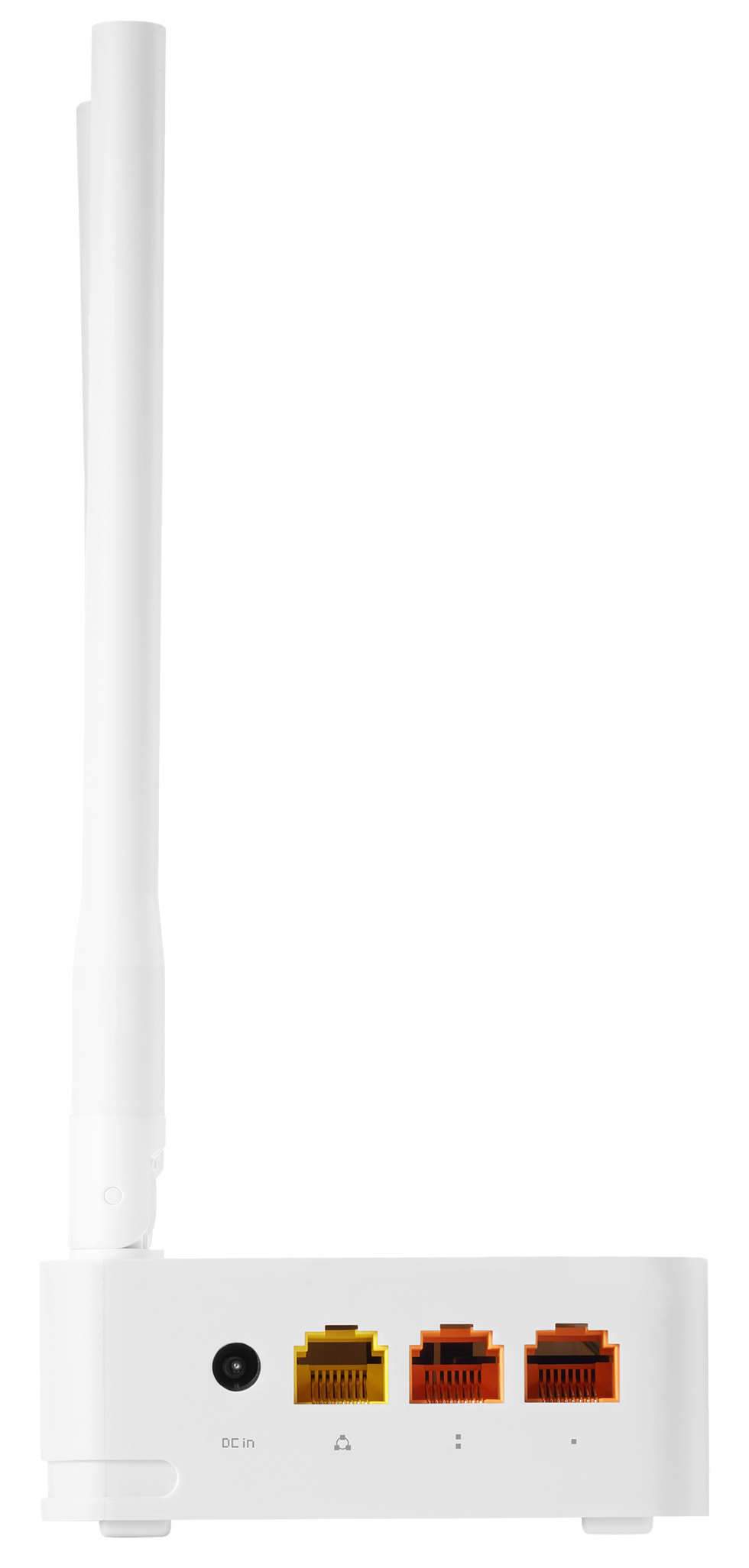

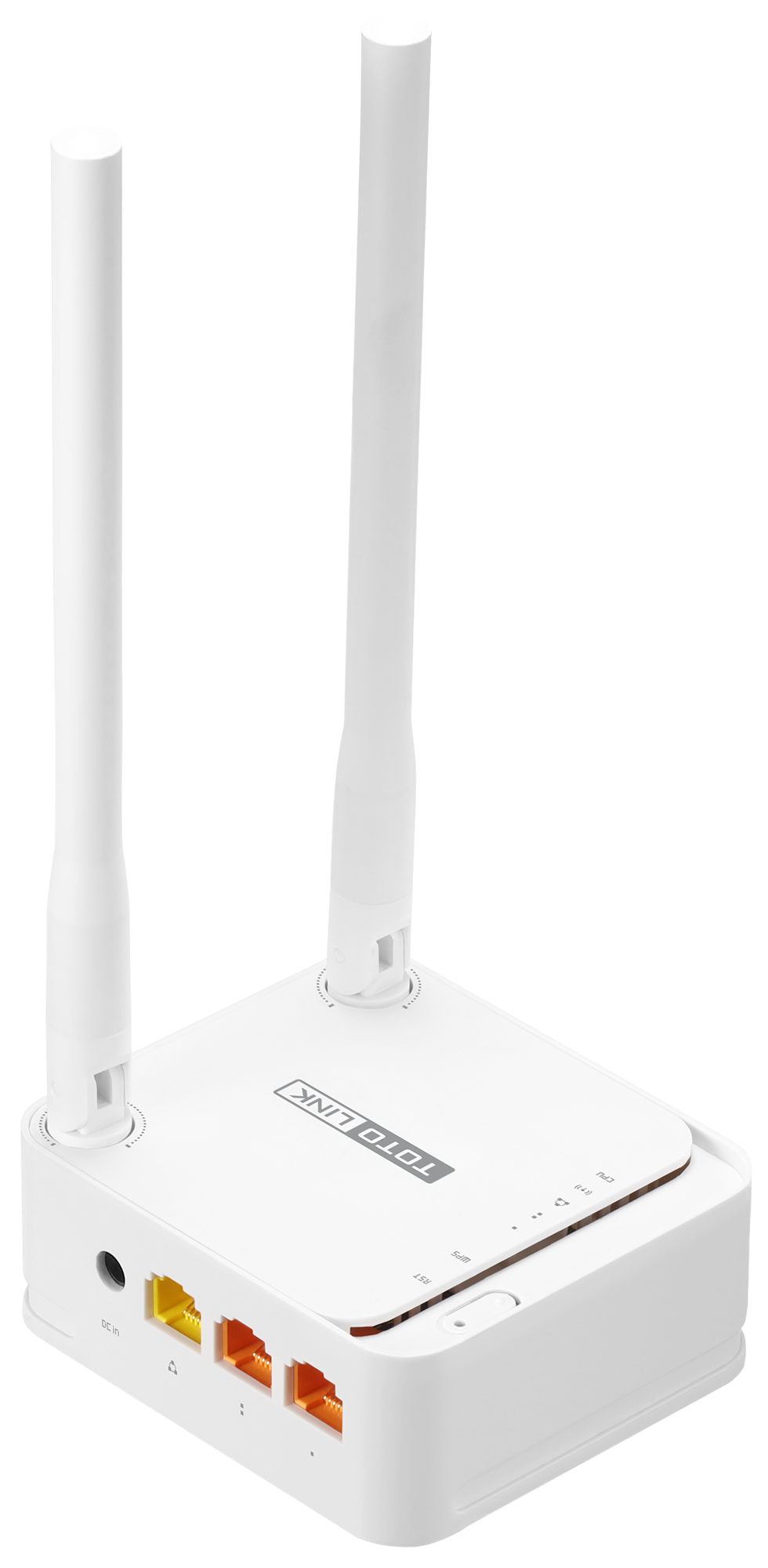

| Interface | 2 *10/100Mbps LAN Ports |
| 1 *10/100Mbps WAN Port | |
| Power Supply | 9V DC/0.8A |
| Antenna | 2 *5dBi fixed antennas |
| Button | 1 *RST Button |
| 1 *WPS Button | |
| LED Indicators | 1 *CPU, 1 *Wireless, 1 *WAN, 2 *LAN |

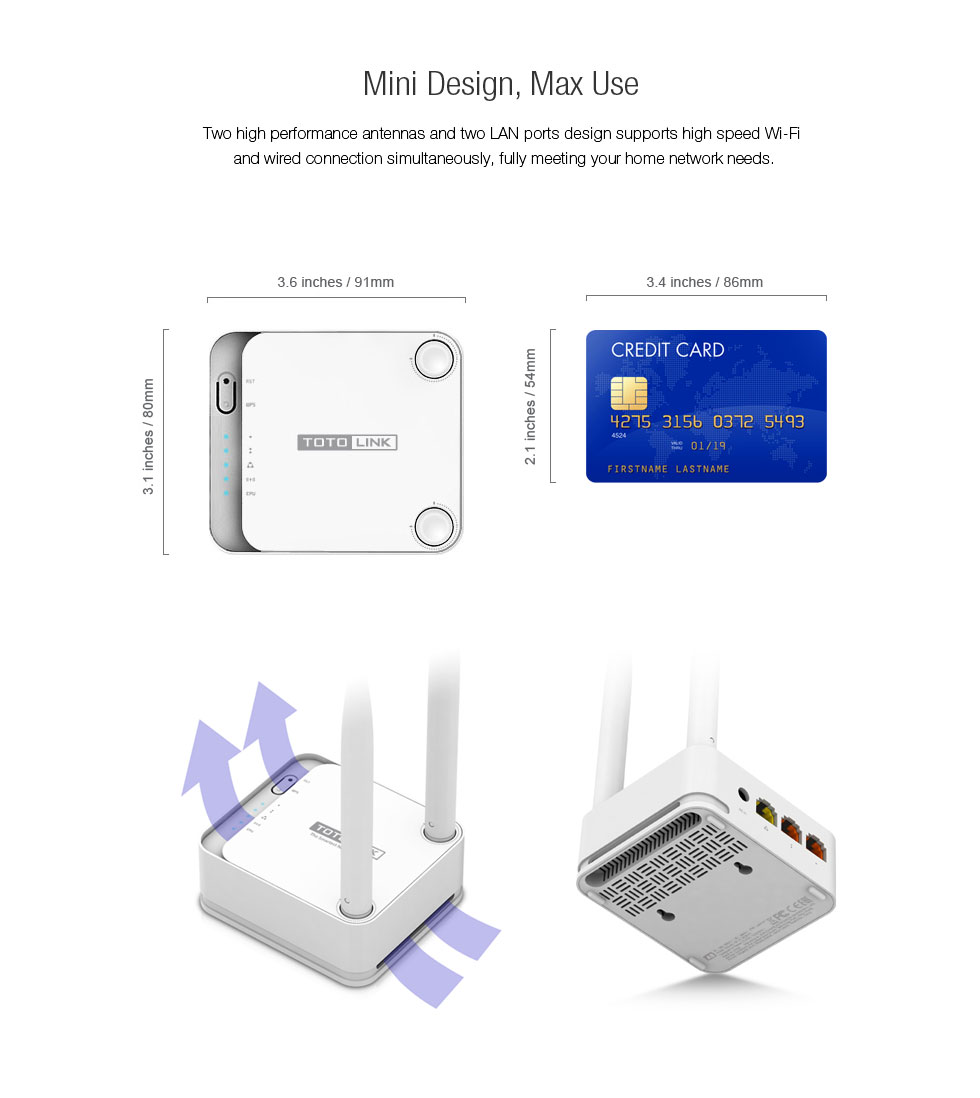

| Dimensions(L x W x H) | 3.6 x 3.1 x 1.4 in. ( 91 x 80 x 35 mm) |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| EIRP | < 20dBm |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Reception Sensitivity | 2.4G: 11b: <-79dbm； |
| 11g: <-68dbm； | |
| 11n: HT20<-65dbm HT40: <-61dbm | |
| 5G: 11a:<-68dbm； | |
| 11ac: HT20<-65dbm HT40: <-61dbm HT80: <-51dbm | |
| SOFTWARE FEATURES | |
|---|---|
| WAN Type | PPPoE/DHCP/Static IP |
| Wireless Functions | Multiple SSID, Wireless Bridge, MAC Authentication, WDS, WPS, Wireless Scheduler |
| NAT / Routing | Port Forwarding, DMZ/Twin IP, Port Trigger |
| Firewall | Internet Access Control: IP/MAC Address filtering |
| Net Detector | |
| Utility | VPN, DDNS, WOL, Host Scan, IPTV |
| Traffic | QoS, Connection Control |
| System | System Log, Admin Setup, Firmware Upgrade, System Time, |
| Config, Backup and Restore | |
| - | - |
| Others | - |
| Package Contents | A3 Wireless Router *1 |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
