- Complies with IEEE 802.11ac/a/b/g/n standards.

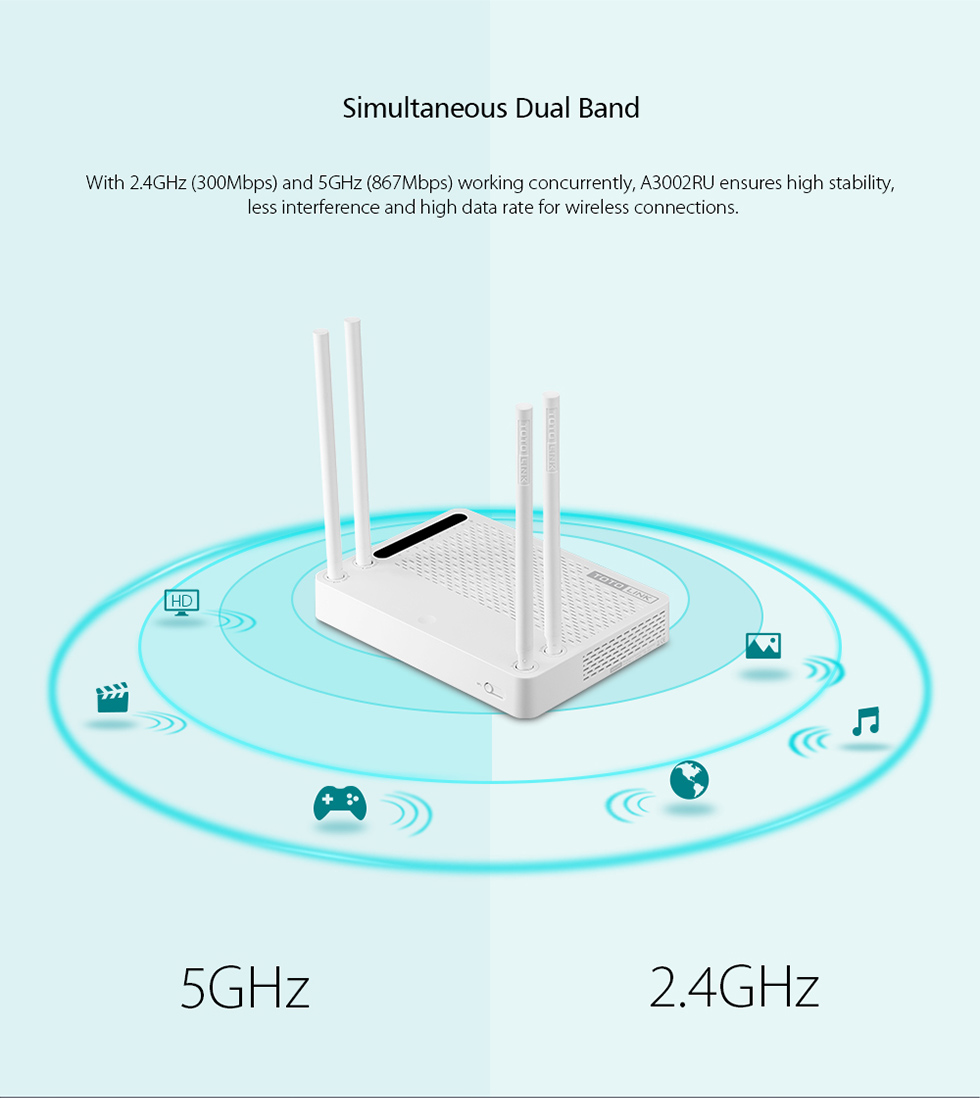

- Delivers 300Mbps data rate on 2.4GHz and 867Mbps on 5GHz simultaneously.
- Advanced MIMO technology ensure greater range and stable connection.
- Supports DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 security.
- Connects to secure network easily and fast using WPS.

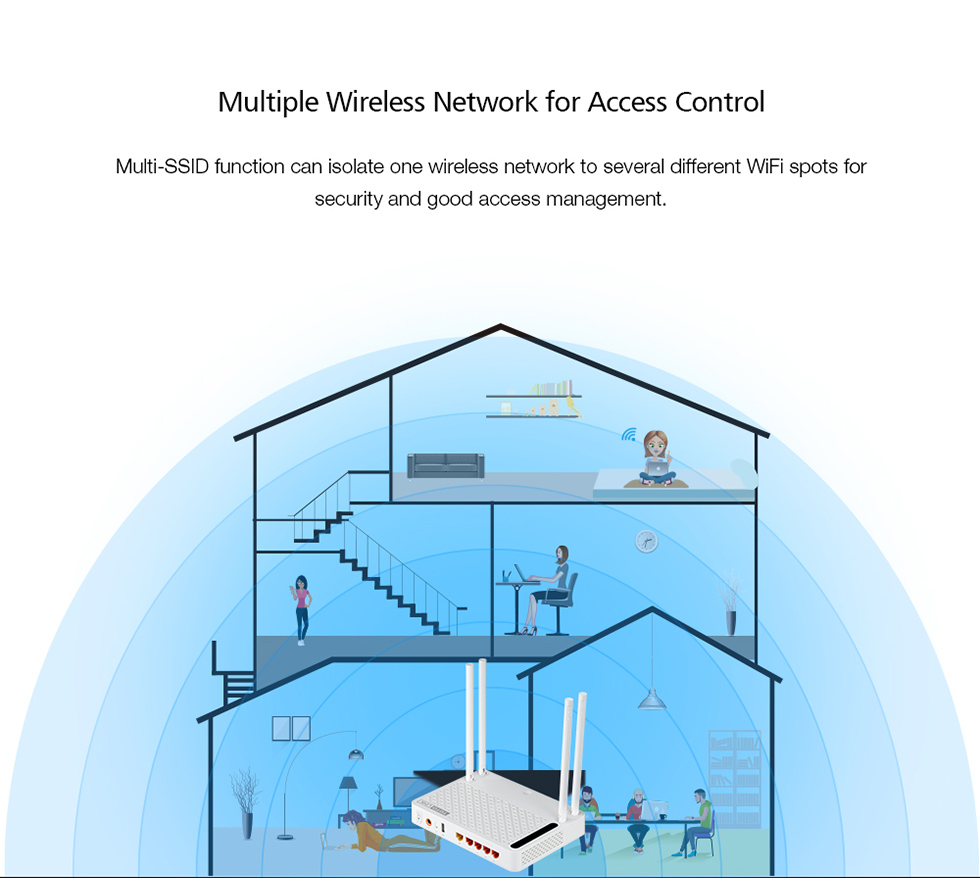

- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Supports VLAN function for IPTV and other internet services.
- Universal repeater and WDS function for easy Wi-Fi extension.
- Supports TR-069 protocol for remote centralized management.
- Supports IP, Port, MAC, URL filtering and Port Forwarding.
- QoS: Bandwidth Control based on IP/MAC.
- The USB 2.0 port supports FTP Service, Samba Service and DLNA Service.
- Easy setup simplifies the basic settings of the router.

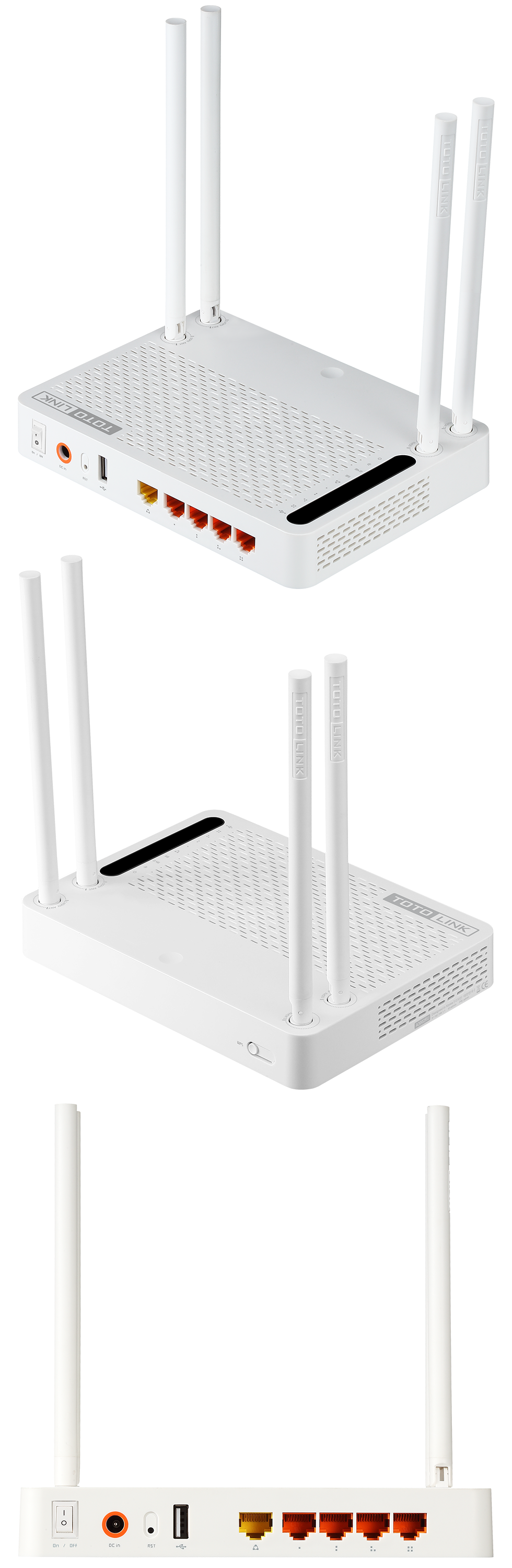

| HARDWARE FEATURES | |
|---|---|

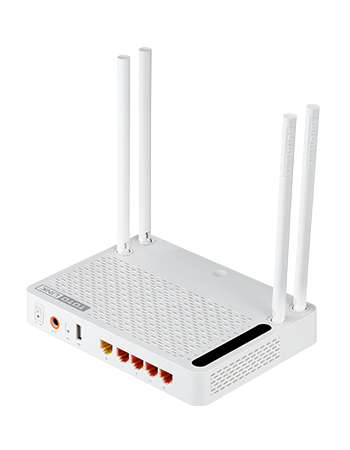

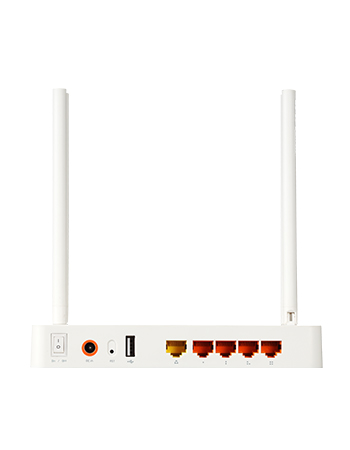

| Interface | 4 *1000Mbps LAN Ports |
| 1 *1000Mbps WAN Port | |
| 1 *USB 2.0 Port | |
| Power Supply | 12V DC / 2A |

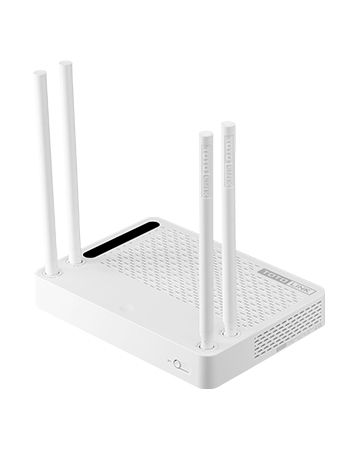

| Antenna | 2 *5dBi Fixed Antennas (2.4G),2 *5dBi Fixed Antenna (5G) |
| Button | 1 *RST Button, 1* WPS Button, 1* Power On/Off Button |
| LED Indicators | 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1*USB |
| Dimensions (L x W x H) | 7.2 x 5.3 x 1.0 in. ( 182.3 x 133.8 x 25.9mm) |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| EIRP | 2.4GHz: < 20dBm |
| 5GHz: < 23dBm | |
| Wireless Security | 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 |
| Reception Sensitivity (2.4GHz) | 11b: <-81dbm |
| 11g：<-70dbm | |
| 11n: HT20<-65dbm HT40: <-61dbm | |
| Reception Sensitivity (5GHz) | 11a: <-68dbm； |
| 11ac: HT20<-65dbm HT40：<-61dbm HT80：<-51dbm | |
| SOFTWARE FEATURES | |
|---|---|
| Operation Mode | Wireless ISP Client Router |
| Wireless Client | |
| Repeater(Range Extender) | |
| Router | |
| Bridge with AP | |
| Client | |
| Network | DHCP/Static IP/PPPoE(Dual access)/PPTP(Dual access) /L2TP |
| VLAN | |
| IPv6 Network | WAN Setting, LAN Setting, RADVD for IPv6, IPv6 Tunnel to IPv4 |
| Wireless Functions(2.4GHz & 5GHz) | Multiple APs, WDS, WPS, Access Control |
| Schedule | Reboot Schedule, Wireless Schedule |
| Firewall | SPI Firewall, MAC Filtering, IP Filtering, Port Filtering, URL |
| USB Share | DLNA Service, FTP Server, Samba Server |
| Management | QoS, TR-069 config, DDNS, DoS, SNMP, Notice Setting |
| Package Contents | A3002RU Wireless Router *1 |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
