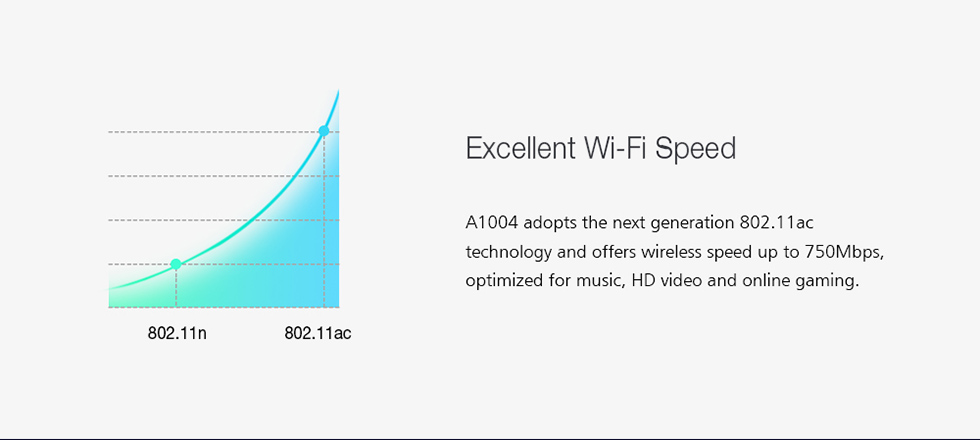

- Complies with 802.11ac/a/b/g/n standards.
- 300Mbps on 2.4GHz and 433Mbps on 5GHz band simultaneously.

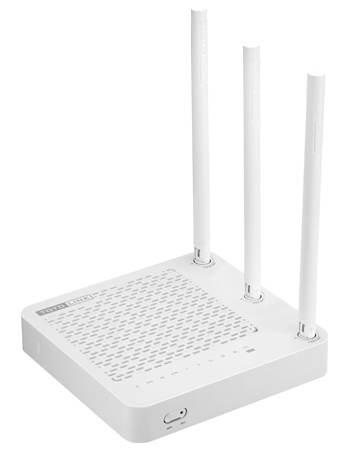

- Three fixed high gain antennas with advanced MIMO technology.
- Supports PPPoE, DHCP and Static IP broadband functions.

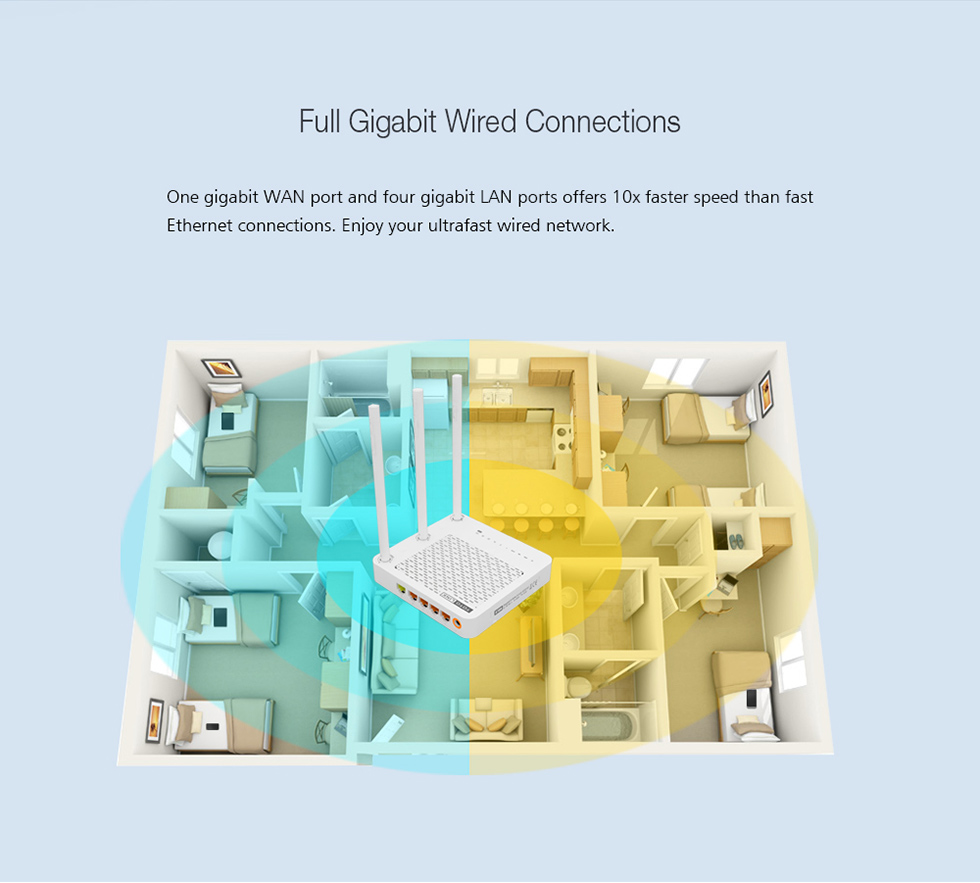

- Five Gigabit Ethernet Ports ensure ultrafast data transmission rate.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal repeater and WDS function for easy Wi-Fi extension.
- The VPN server can not only protect the privacy of your information, but also simplify network management.

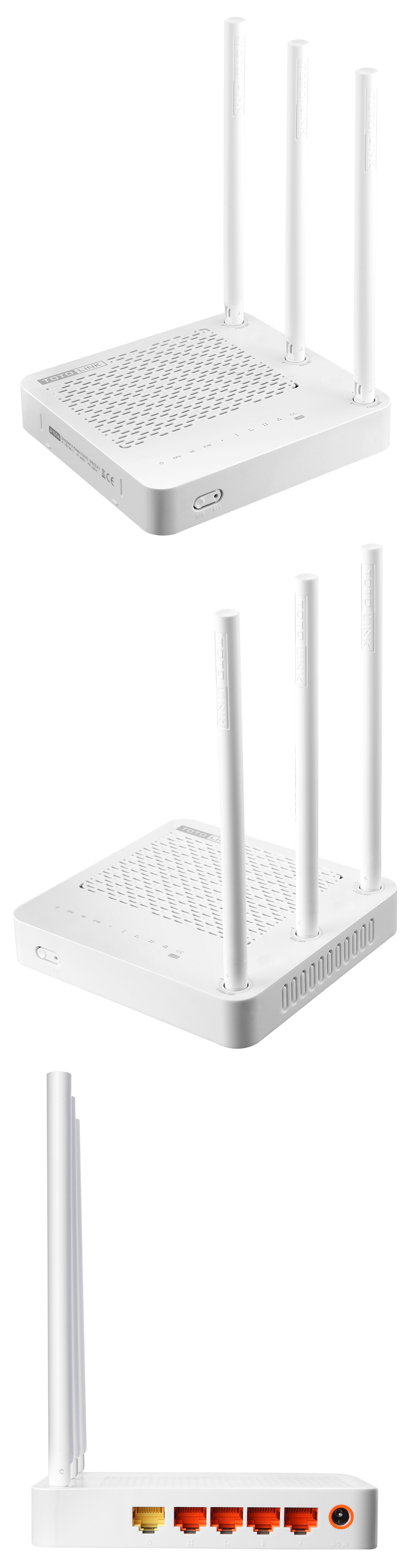

| HARDWARE FEATURES | |
|---|---|
| Interface | 4 *1000Mbps LAN Ports |
| 1 *1000Mbps WAN Port | |
| Power Supply | 9V DC/0.8A |
| Antenna | 2 *5dBi fixed antennas(2.4GHz ), 1 *5dBi fixed antennas(5GHz ) |
| Button | 1 * RST/WPS Button |
| LED Indicators | 1 *Power, 1 *CPU, 1 *2.4G, 1 *5G, 1 *WAN, 4 *LAN |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| RF Frequency | 2.4~2.4835GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 433Mbps | |
| EIRP | 2.4GHz < 20dBm |
| 5GHz < 23dBm | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Reception Sensitivity - 2.4GHz | 11b 11M: - 85 dBm |
| 11g 54M: - 72 dBm | |
| 11n HT20 MCS7: - 69 dBm / HT40 MCS7: - 66 dBm | |
| Reception Sensitivity - 5GHz | 11a 54M: - 70 dBm |
| 11ac HT80 MCS7: - 53 dBm | |
| 11n HT20 MCS7: - 67 dBm / HT40 MCS7: - 64 dBm | |
| SOFTWARE FEATURES | |
|---|---|
| Network | Internet Setup: PPPoE/DHCP/Static IP |
| LAN/DHCP Setup: DHCP Server/DHCP Static Lease | |
| Wireless(2.4GHz & 5GHz) | Multiple BSS |
| Multibridge(Repeater): Wireless Bridge/Wireless WAN | |
| MAC Authentication | |
| WDS | |
| WPS | |
| NAT/Routing | Port Forwarding |
| DMZ/Twin IP | |
| Port Trigger | |
| Routing Table | |
| Firewall | Internet Access Control: IP/MAC Address filtering |
| Net Detector | |
| Remote/Internal access list | |
| Utility | VPN Server, DDNS, WOL, Host Scan |
| Traffic | QoS Setup |
| Connection Control | |
| Wired Port Setup | |
| Management | System Log |
| Administrator Setup | |
| Firmware Upgrade | |
| System Time | |
| Configuration backup/restore | |
| Others | 1. Package Contents |
| A1004 Wireless Router *1 | |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| 2. Environment | |
| Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) | |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
