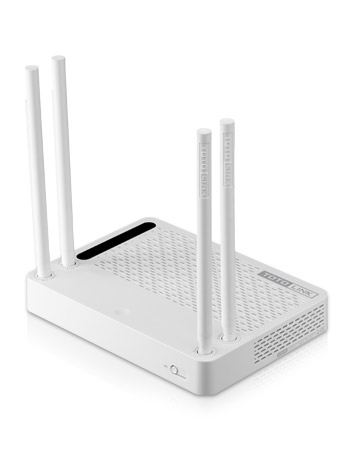

A2004NS

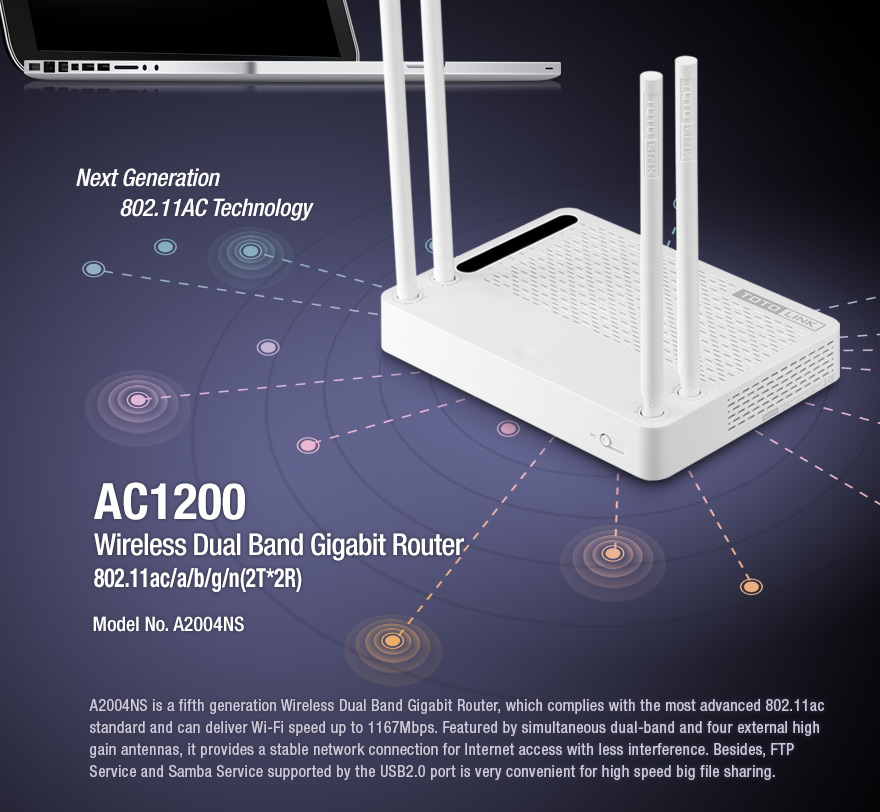

AC1200 Wireless Dual Band Gigabit Router

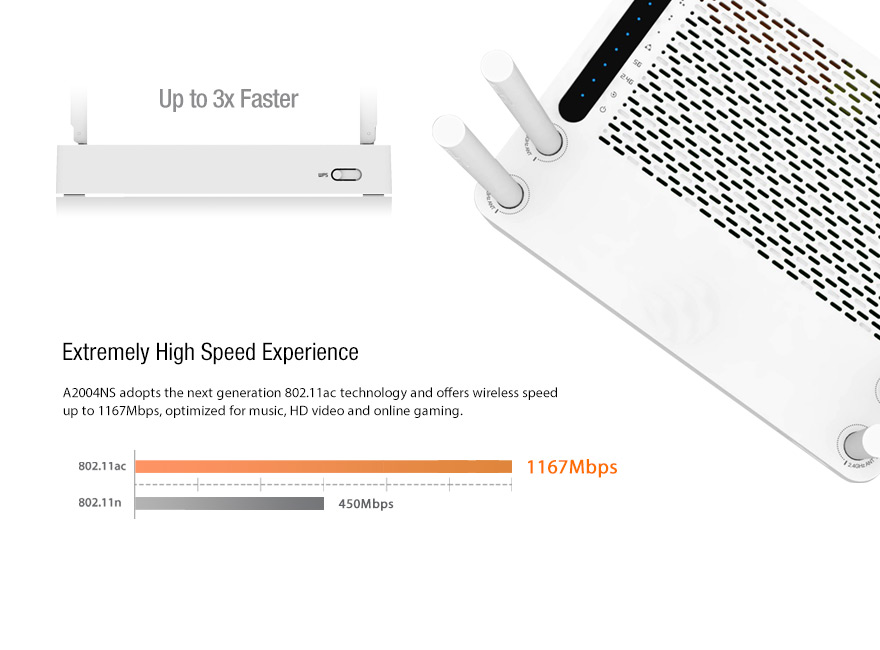

  • - Extremely High Speed Experience
    - Simultaneous Dual Band

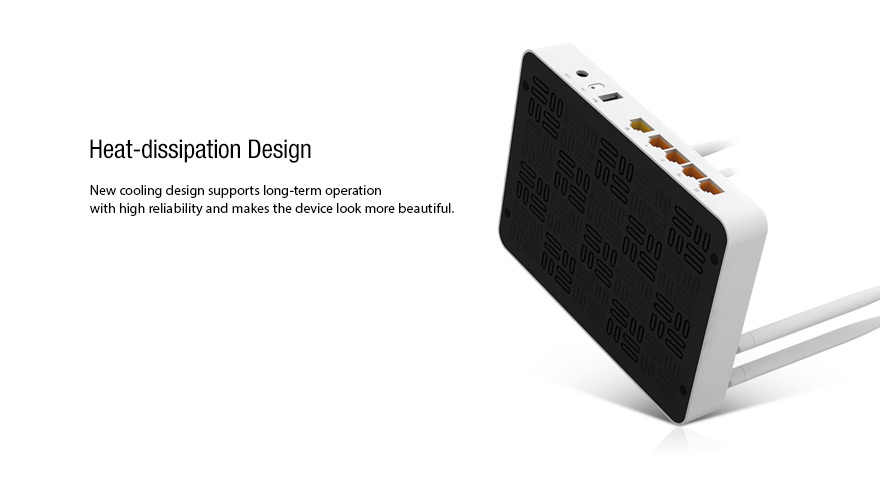

    - Heat-dissipation Design

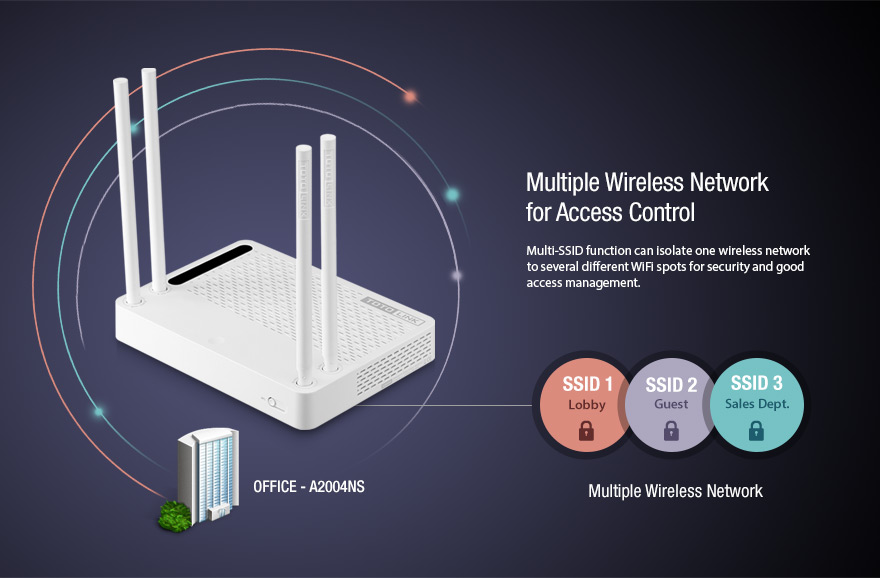

    - Multiple Wireless Network for Access Control

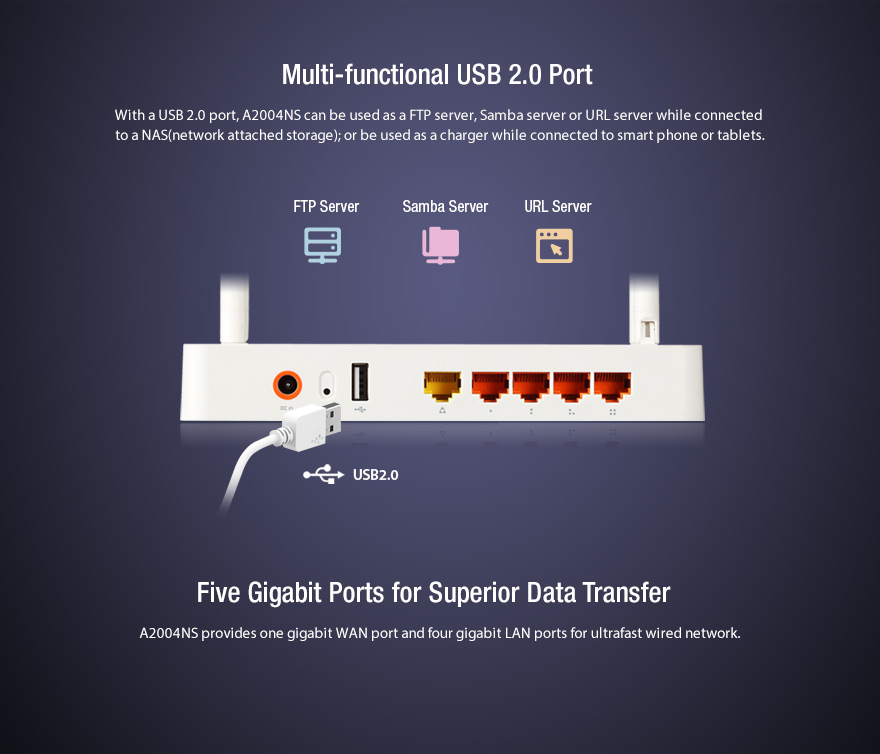

    - Multi-functional USB 2.0 Port

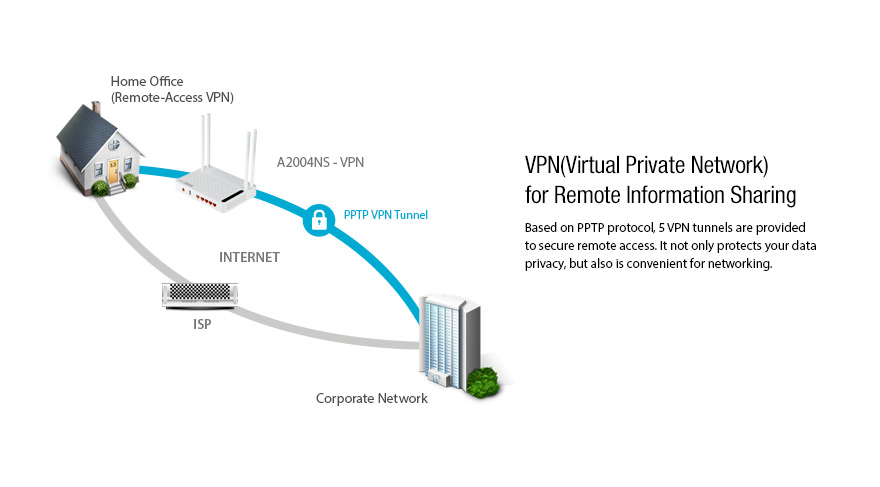

    - VPN(Virtual Private Network) for Remote Information Sharing
    - Five Gigabit Ports for Superior Data Transfer

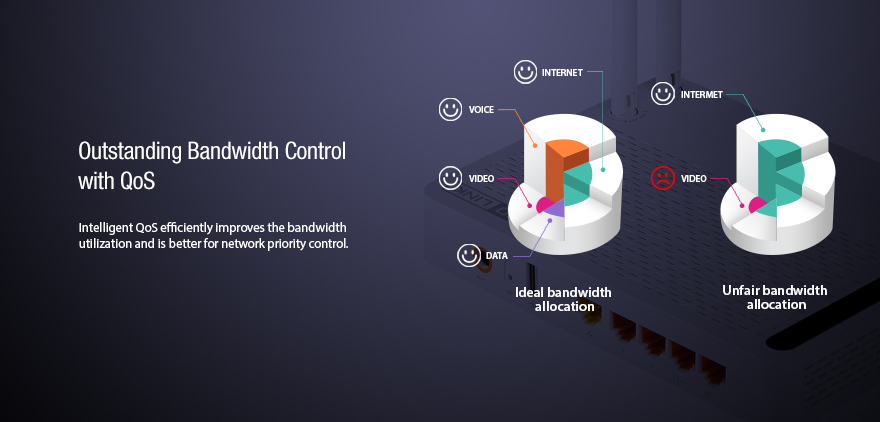

    - Outstanding Bandwidth Control with QoS
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs


    • - Complies with 802.11ac/a/b/g/n standards.

    - Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps.

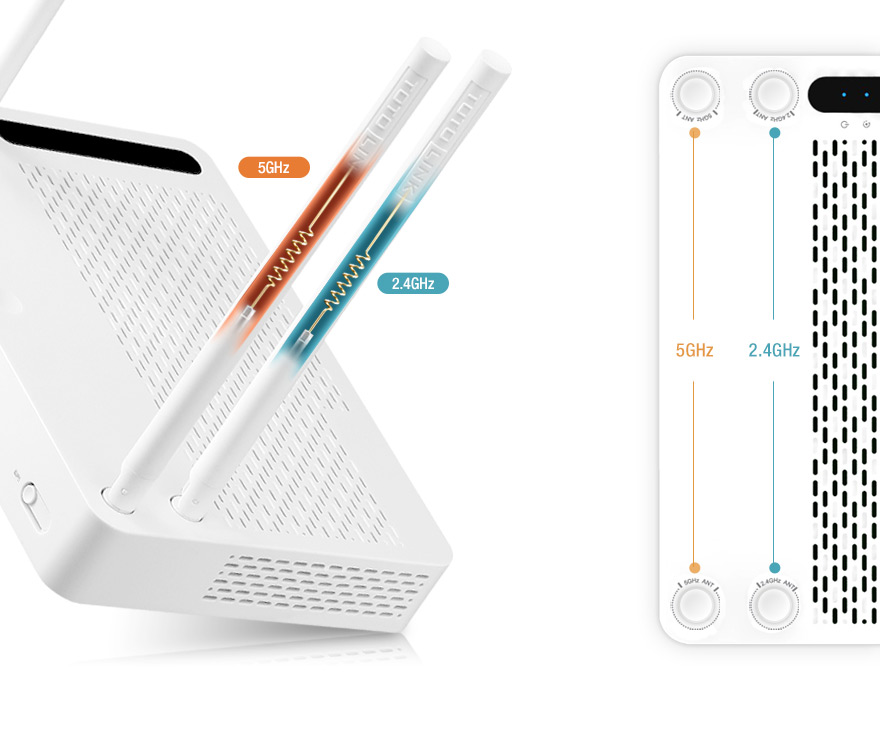

    - Equipped with four high gain antennas.
    - Adopts advanced MIMO technology.

    - Supports PPPoE, DHCP and Static IP broadband functions.

    - Provides five Gigabit Ethernet Ports.
    - Provides Multiple SSID and QoS function.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, MAC, URL filtering and Port Forwarding.
    - Supports universal repeater and WDS function.
    - Provides a multi-functional USB2.0 port.
    - The VPN server can not only protect the privacy of your information, but also simplify network management.
    HARDWARE FEATURES
    Interface  4 *10/100/1000Mbps LAN Ports
      1 *10/100/1000Mbps WAN Port
      1 *USB 2.0 Port
    Power Supply  12V DC/2A
    Button  1 *WPS Button
      1 *RST Button
    LED Indicators  1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1*USB
    Antenna  2 *5dBi Fixed Antennas(2.4GHz ), 2 *5dBi Fixed Antennas(5GHz )
    Dimensions (L x W x H)  7.2 x 5.3 x 1.0 in. ( 182.3 x 133.8 x 25.9 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency  2.4GHz/5GHz
    Data Rate  2.4GHz: Up to 300Mbps
      5GHz: Up to 867Mbps
    EIRP  2.4GHz < 20dBm
      5GHz < 20dBm
    Channels  2.4GHz: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
      5GHz: 36~165
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity - 2.4G:   11b: <-79dbm；
      11g: <-68dbm；
      11n: HT20<-65dbm HT40: <-61dbm
    - 5G:   11a:<-68dbm；
      11ac: HT20<-65dbm HT40: <-61dbm HT80: <-51dbm
    SOFTWARE FEATURES
    WAN Type  PPPoE/DHCP/Static IP
    Wireless Functions  Multiple SSID, Wireless Bridge, MAC Authentication,
      WDS, WPS,Wireless Scheduler
    NAT / Routing  Port Forwarding, DMZ/Twin IP, Port Trigger
    Firewall  Internet Access Control: IP/MAC Address filtering
      Net Detector
    Utility  VPN, DDNS, WOL, Host Scan, IPTV
    Traffic  QoS, Connection Control
    System  System Log, Admin Setup, Firmware Upgrade,
      System Time, Config Backup and Restore
    USB Storage  FTP Service
      Samba Service
      URL Service
    Package Contents  A2004NS Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
