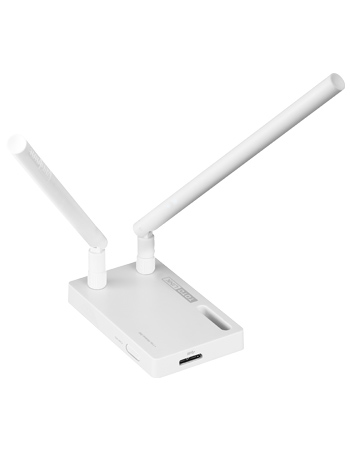

A2000UA

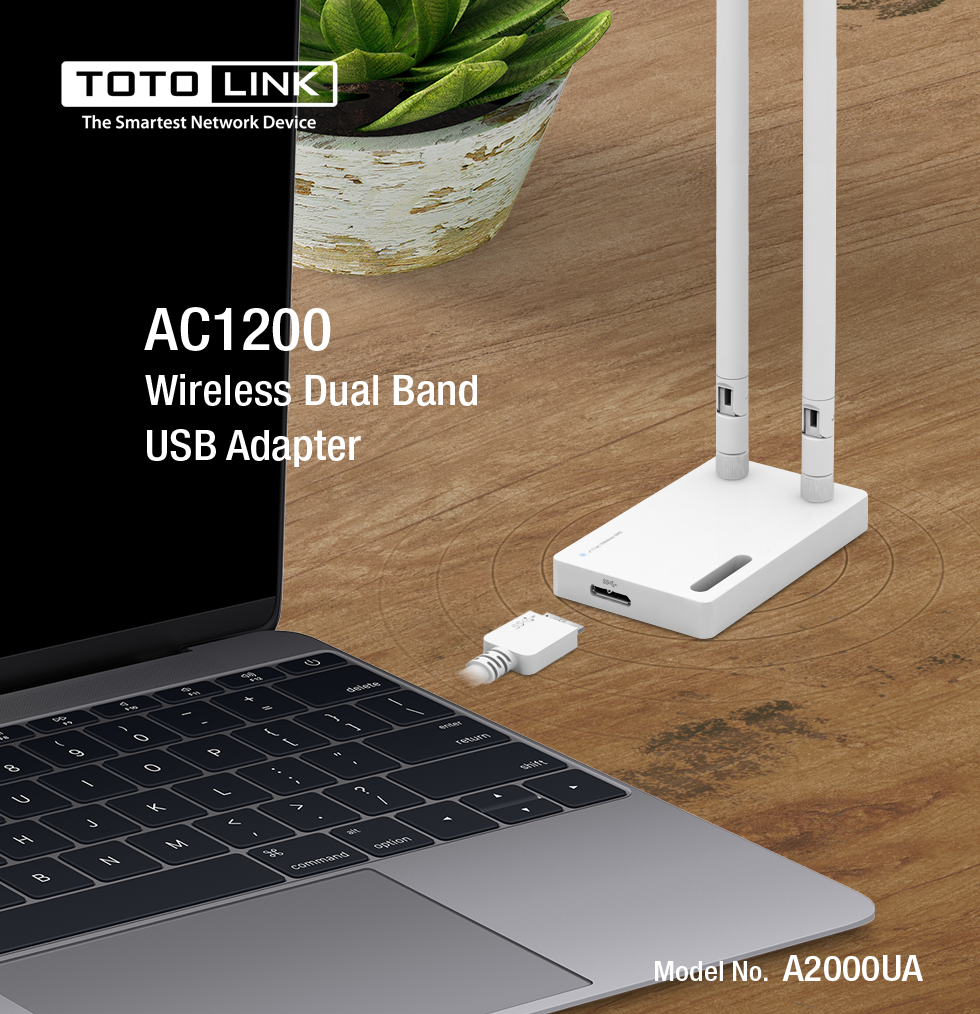

AC1200 Wireless Dual Band USB Adapter

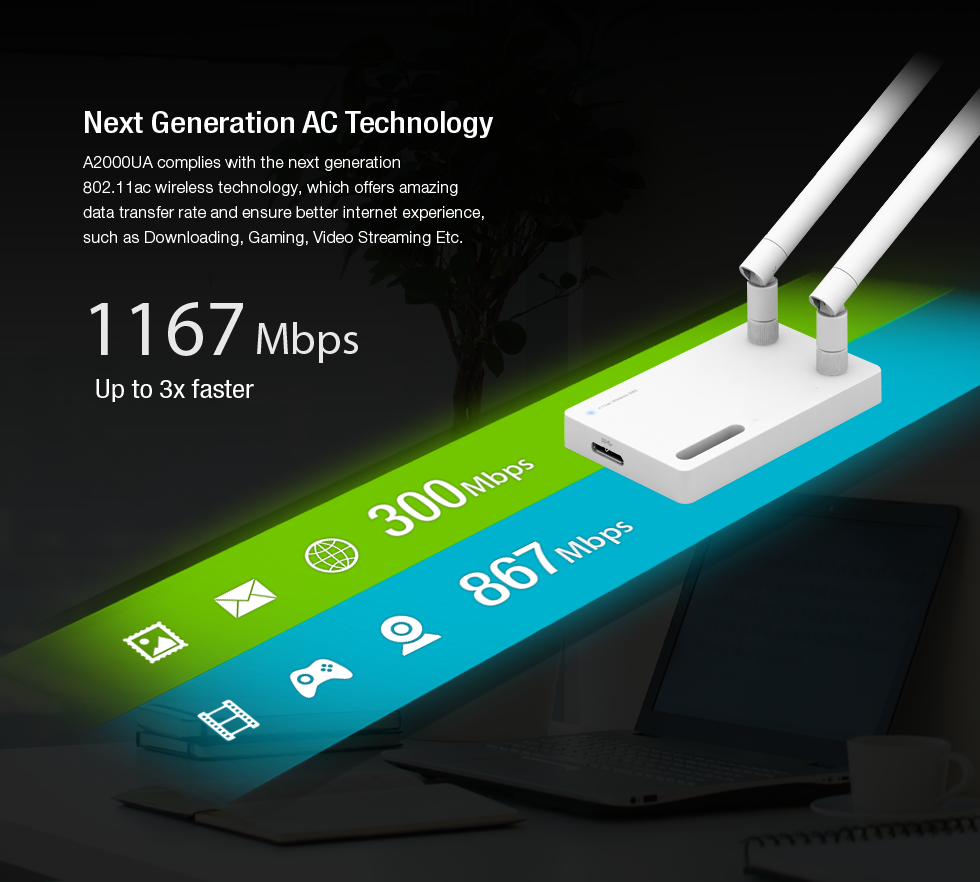

  • - Next Generation 11AC Wi-Fi
    - MU-MIMO Technology

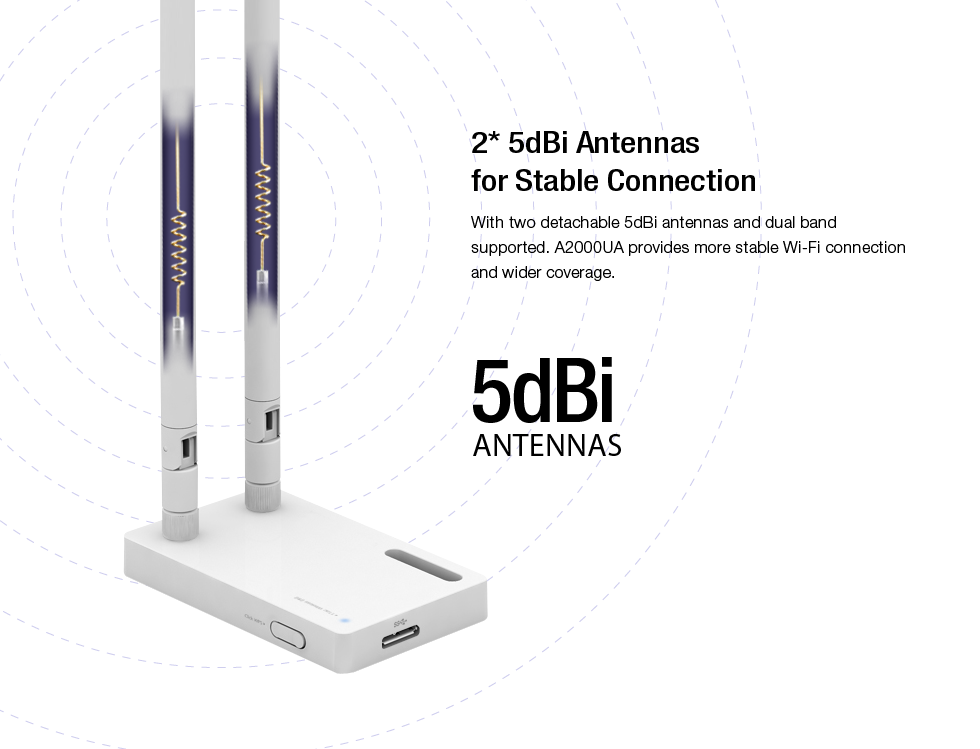

    - 2* 5dBi Antennas for Stable Connection

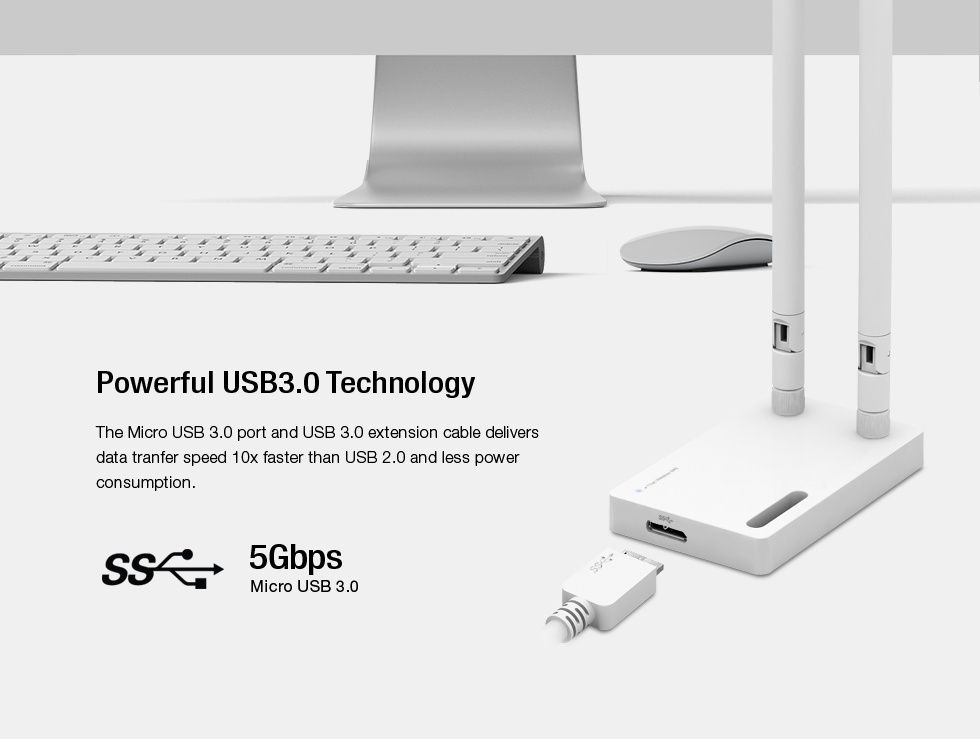

    - Powerful USB3.0 Technology

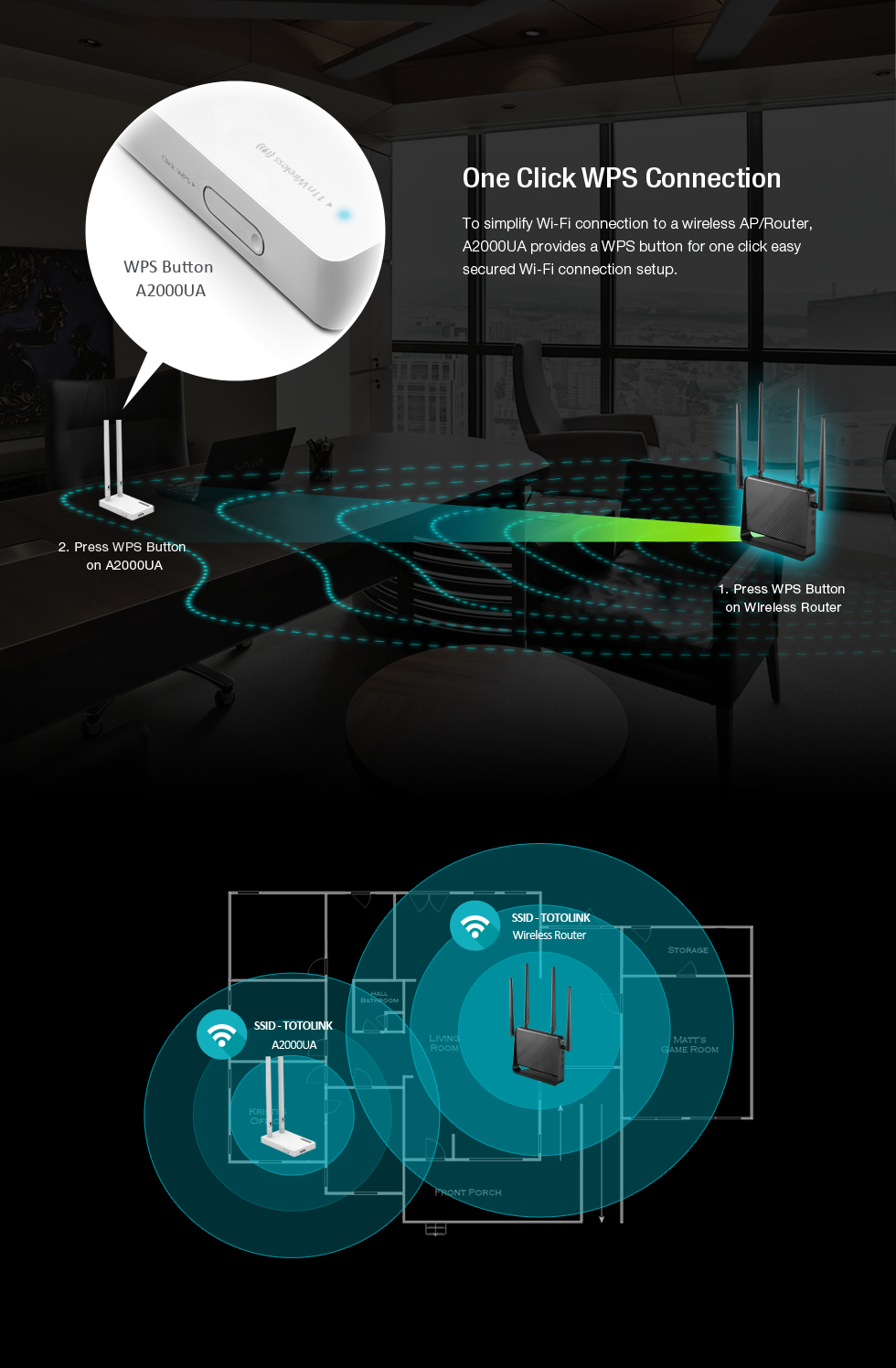

    - One Click WPS Connection


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11ac/a/b/g/n standards.
    - Up to 1167Mbps data rate for Wi-Fi network.
    - MU-MIMO technology upgrades your PC/Laptop to enjoy faster Wi-Fi.
    - Operates on either 2.4GHz or 5GHz band.
    - Supports 5G band with less contention interference, more stable and better performance.
    - Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption.
    - Provides Micro USB3.0 interface with USB extension cable.
    - Works with all existing network infrastructures.
    - Supports Windows 10/8/7/ XP/Vista (32/64-bit).
    - Easy to install and configure.
    Hardware
    Interface
    - Micro 10 Pin USB 3.0
    LED  Indicator
    - 1 * Wireless
    Button
    - 1 *WPS Button
    Dimensions(L*W *H)
    - 90 x 55 x 12mm (not including antennas)
    Antenna  - 2 *5dBi detachable antennas
    Wireless
    Standards
    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n,
    - IEEE 802.11s
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate  - 2.4GHz: 300Mbps
    - 5GHz: 867Mbps
    EIRP

    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity

    - 2.4G:11b 11M：-81dBm@8% PER
             11g 54M：-68dBm@10% PER
             11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                  HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER
    Others
    Package Contents

    - A2000UA Wireless Adapter *1
    - 5dBi antenna *2
    - Resource CD *1
    - USB Cable *1
    - Quick Installation Guide *1
    System Requirement
    - Windows 10 (32/64bits),
    - Windows 8 (32/64bits),
    - Windows 7 (32/64bits),
    - Windows XP (32/64bits)
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
