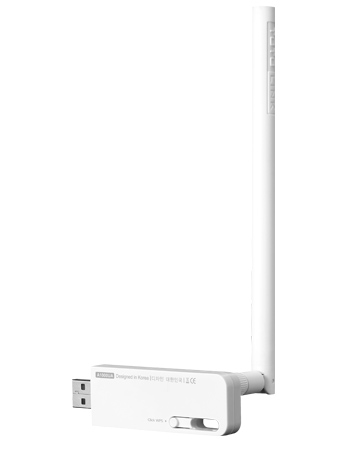

A1000UA

AC600 Wireless Dual Band USB Adapter

  • - Next Generation AC Technology
    - One Click WPS Connection

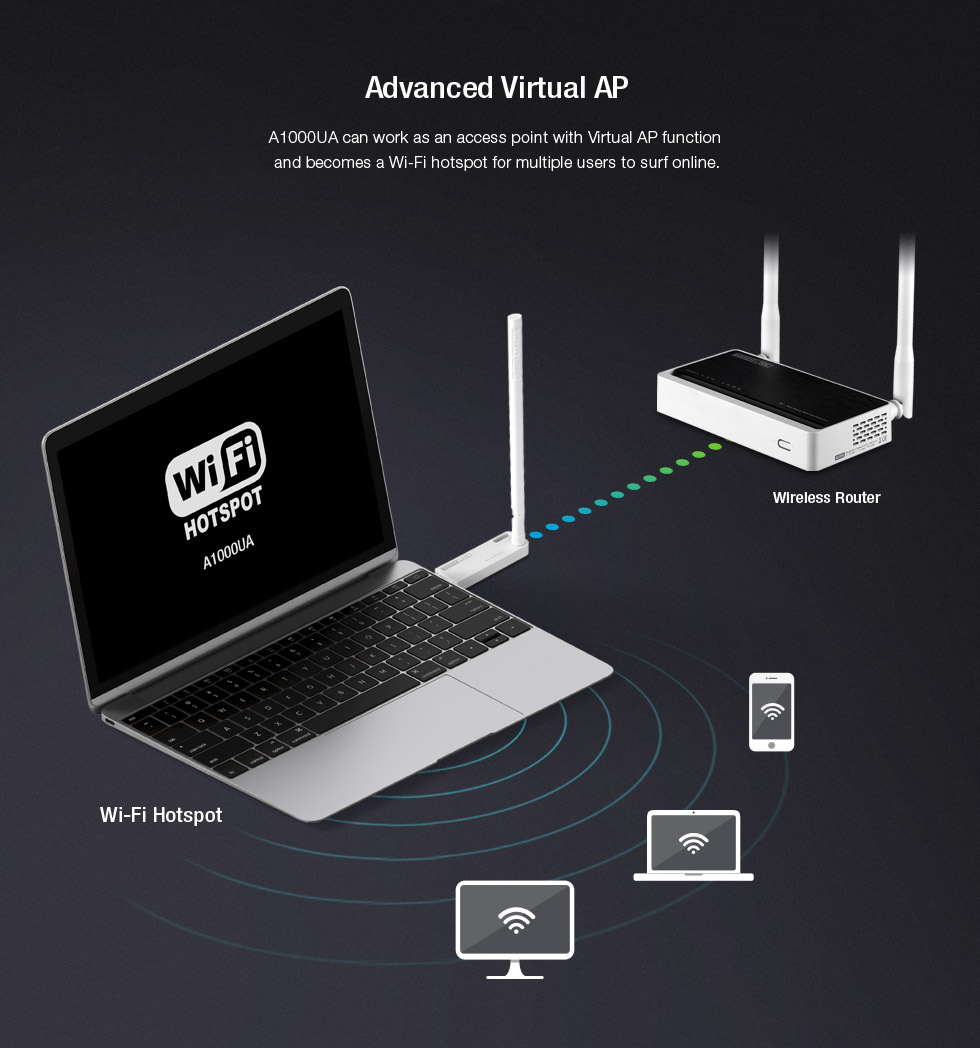

    - Advanced Virtual AP




  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11ac/n/b/g/a standards.
    - Up to 583Mbps data rate for Wi-Fi network.
    - Operates on either 2.4GHz or 5GHz band.
    - Supports 5G band with less contention interference, more stable and better performance.
    - Provides 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption.
    - Supports infrastructure and Ad-Hoc network modes.
    - Supports Windows 10/8/7/ XP/Vista (32/64-bit) and Mac OS.
    - Easy to install and configure.
    Hardware
    Interface  - USB 2.0
    LED Indicator  - 1 * Wireless
    Button   - 1 * WPS Button
    Antenna  - 1 * 5dBi Detachable Antenna
    Dimensions(L x W x H)
    - 85.8 x 25.2 x 10mm (not including antennas)
    Wireless
    Standards  - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency  - 2.4GHz/5GHz
    Data Rate
    - 2.4G: Up to 150Mbps
    - 5G: Up to 433Mbps
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Reception Sensitivity
    - 2.4G:11b 11M：-80dBm@8% PER
             11g 54M：-65dBm@10% PER
             11n HT20 MCS7：-63dBm@10% PER
                   HT40 MCS7：-61dBm@10% PER

    - 5G: 11a 54M：-65dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                  HT40 MCS7：-61dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER

    Others
    Package Contents
    - A1000UA Wireless Adapter *1
    - 5dBi antenna *1
    - Resource CD *1
    - 1.5m USB 2.0 extension cable with cradle *1
    - Quick Installation Guide *1
    System Requirement
    - Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP (32/64bits)
    - Mac OS X 10.3~10.6
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
