- Complies with IEEE 802.11ac/a/b/g/n standards.
- Up to 633Mbps data rate for Wi-Fi network.
- MU-MIMO technology upgrades your PC/Laptop to enjoy faster Wi-Fi.
- Operates on either 2.4GHz or 5GHz band.
- Supports 5G band with less contention interference, more stable and better performance.
- Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption.
- Universal USB2.0 interface for high compatibility.
- Supports Windows 10/8/7/ XP/Vista (32/64-bit).
- Easy to install and configure.
|
Hardware
|
|
|---|---|
| Interface | - USB 2.0 |
| LED Indicator | - 1 *Wireless |
| Dimensions(L x W x H) | - 58mm x 18mm x 18mm |

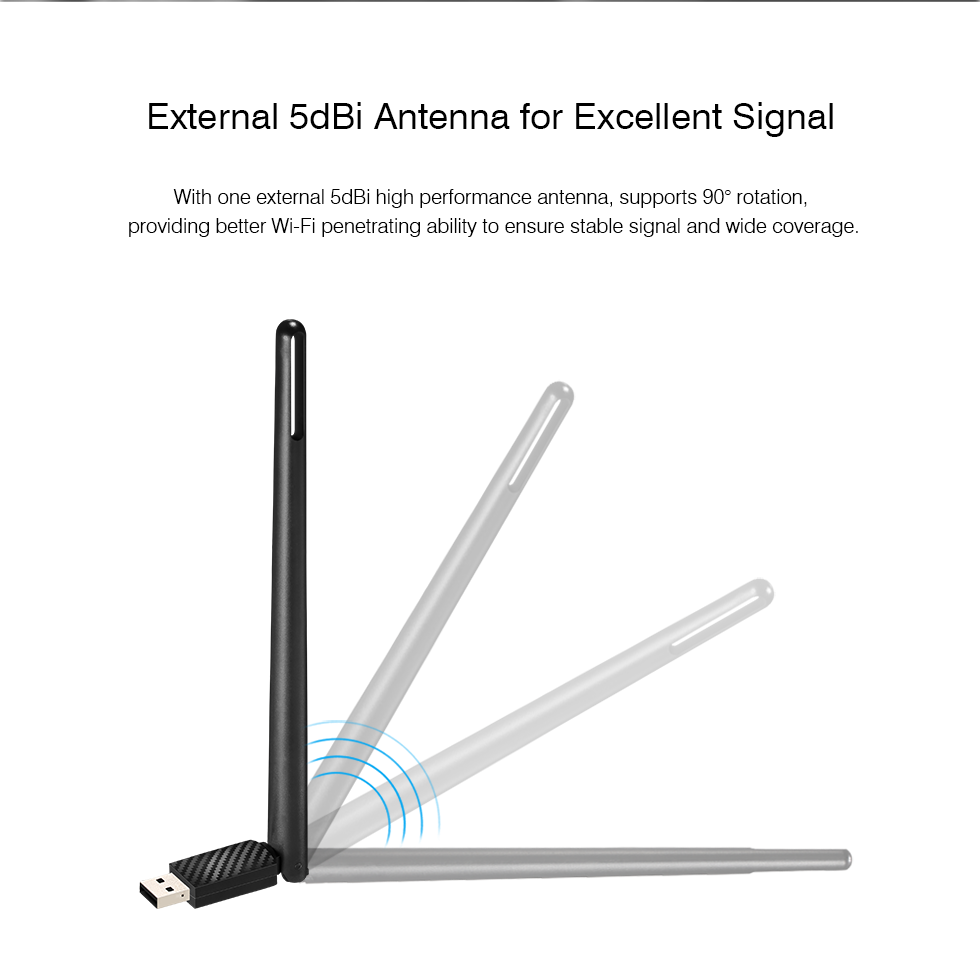

| Antenna | - 1 *5dBi fixed antenna |
|
Wireless
|
|
|---|---|
| Standards |
- IEEE 802.11ac, - IEEE 802.11a, - IEEE 802.11b, - IEEE 802.11g, - IEEE 802.11n |
| RF Frequency | - 2.4GHz/5GHz |
| Data Rate |
- 2.4G: Up to 200Mbps - 5G: Up to 433Mbps |
| EIRP |
- 2.4GHz < 20dBm
- 5GHz < 20dBm
|
| Wireless Security | - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Reception Sensitivity |
- 2.4G:11b 11M：-81dBm@8% PER
11g 54M：-68dBm@10% PER
11n HT20 MCS7：-65dBm@10% PER
HT40 MCS7：-62dBm@10% PER
- 5G: 11a 54M：-68dBm@10% PER
11n HT20 MCS7：-65dBm@10% PER
HT40 MCS7：-62dBm@10% PER
11ac VHT80 MCS9：-51dBm@10% PER
|
|
Others
|
|
|---|---|
| Package Contents |
- A650UA Wireless Adapter *1
- Quick Installation Guide *1
|
| System Requirement |
- Windows 10 (32/64bits), - Windows 8 (32/64bits), - Windows 7 (32/64bits), - Windows XP (32/64bits) |
| Environment |
- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
|
