A new generation—Wi-Fi 6
Wi-Fi 6 (IEEE802.11ax) takes your Wi-Fi to the next level with massive increases in speed and total capacity,
while being backwards compatible with IEEE802.11a/b/g/n/ac Wi-Fi standards.
X900USM is equipped with the latest wireless technology, Wi-Fi 6, which enables faster speeds,
greater capacity and reduced network congestion.

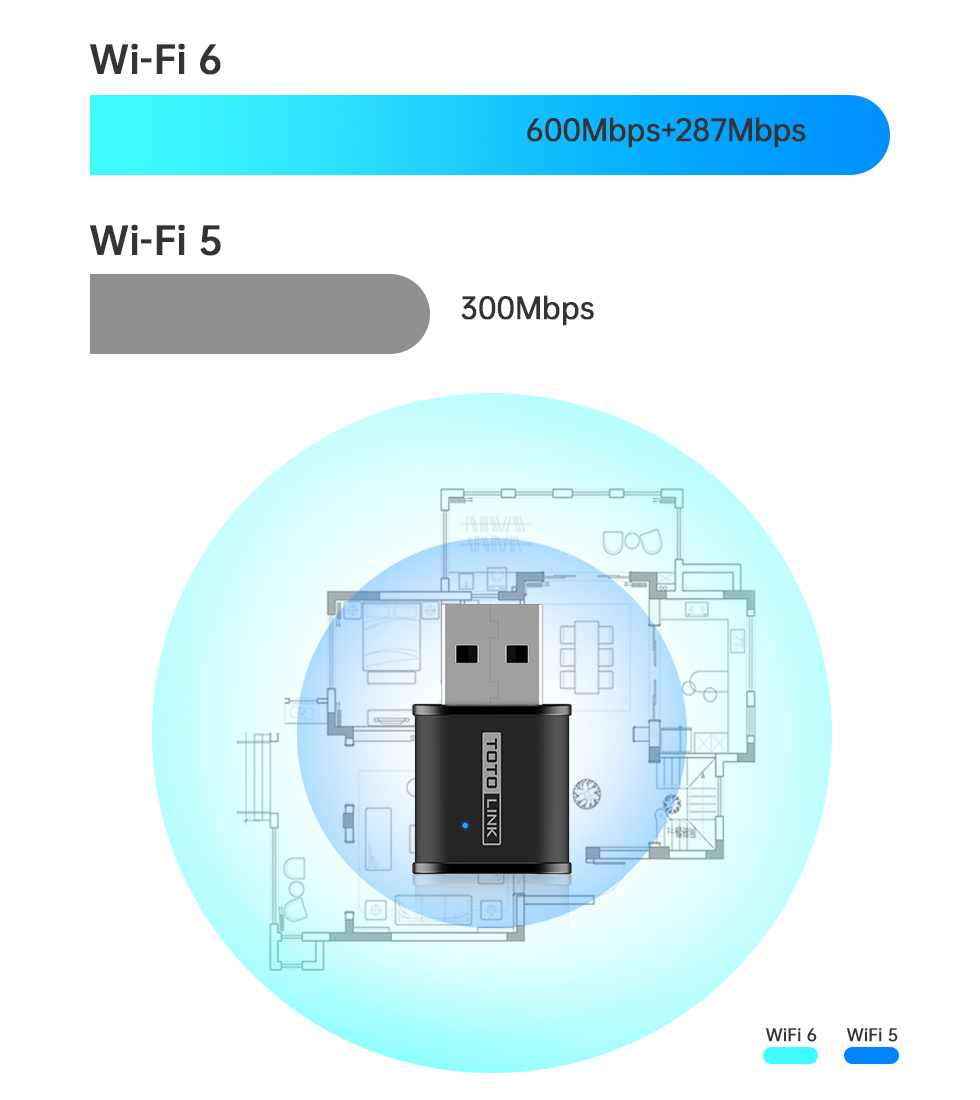

900Mbps Ultra-Fast Wi-Fi Speed
The X900USM offers Wi-Fi speeds of up to 600Mbps on 5GHz and up to 287Mbps on 2.4GHz.
Wi-Fi speeds are significantly improved and every app feels smoother.
Perfect for 4K streaming, immersive AR/VR gaming, and blazing-fast downloads.
OFDMA More Device, Less Congestion
OFDMA technology can easily handle dozens of devices streaming and gaming at the same time.
OFDMA greatly increases capacity by 4 times to enable simultaneoustransmission to more devices.
Besides, it enables different devices to share one transmission stream so as to increase efficiency and reduce latency.

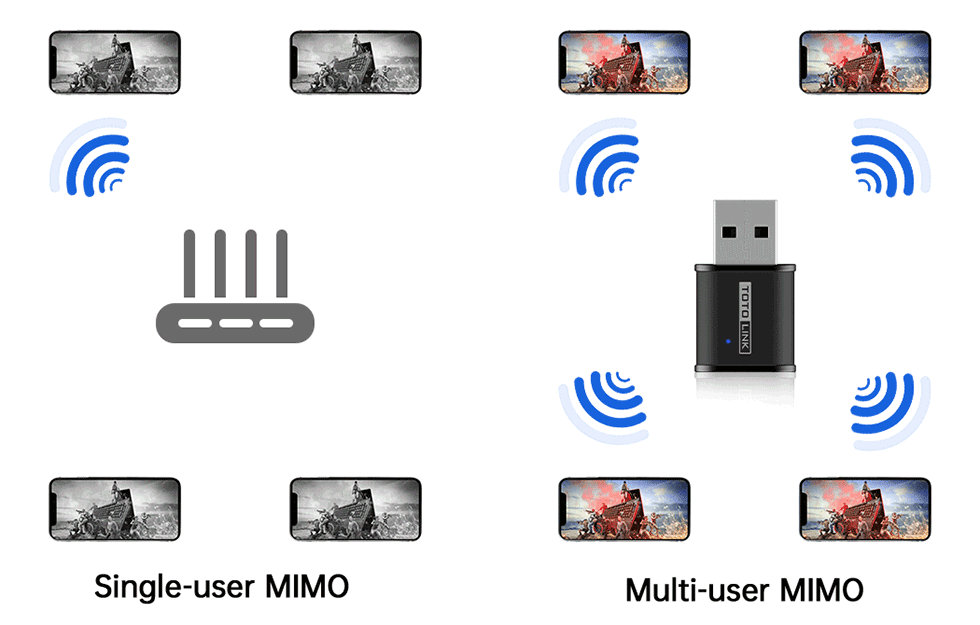

MU-MIMO, highly efficient wireless connection
With MU-MIMO technology, X900USM can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.

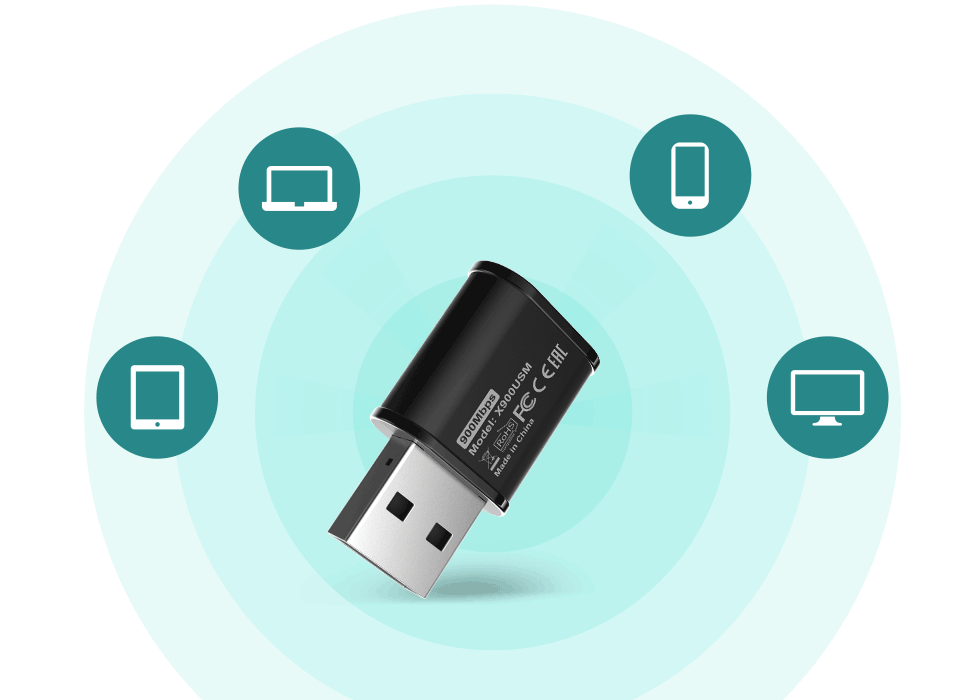

Built-in Antennas
With built-in omni-directional antennas, X900USM supports to receive wireless signals from 360° direction.
Meanwhile, comparing with the external antenna, it is more portable for the users, especially convenient for the travelers.
Highly Secure WPA3
Protect your personal data with the latest WPA3 encryption, The latest encryption technology
eliminates brute-force attacks and provides better security.

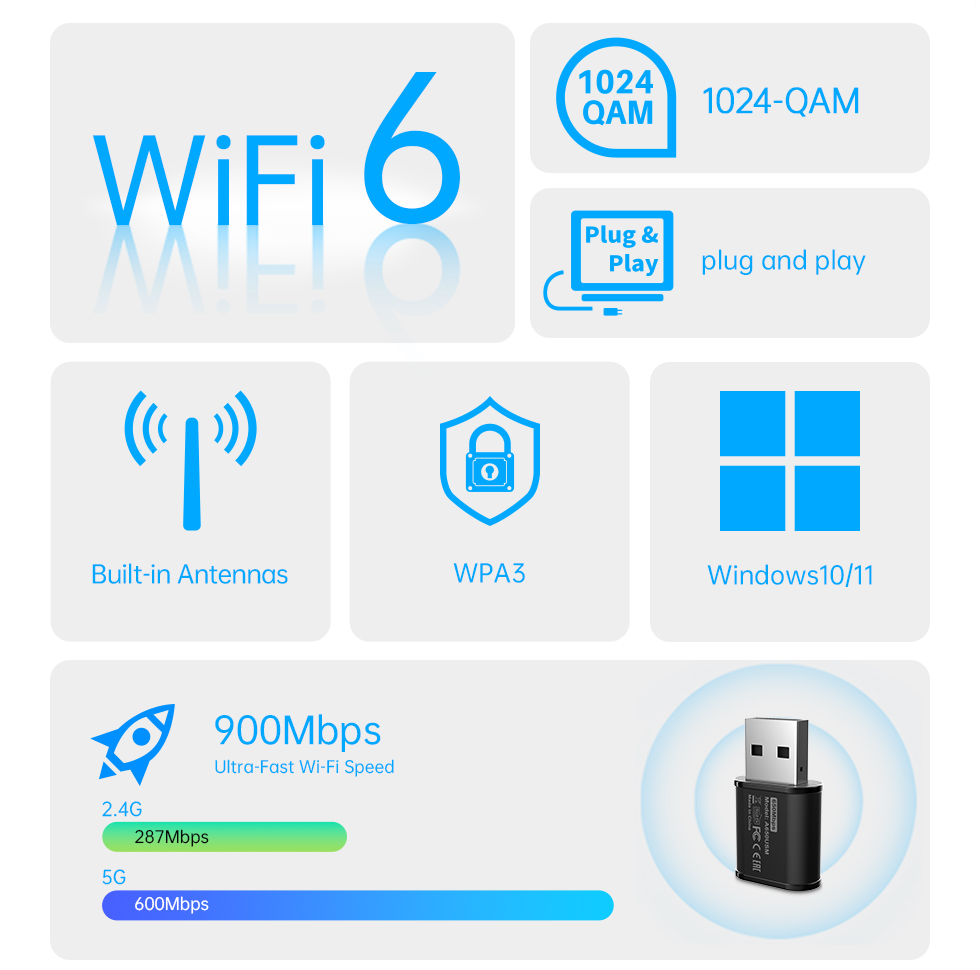

Easy to Use
No driver needed for the device installation on Windows 10/11 , simply plug and play, suitable for everyone across the world.
- Comply with Wi-Fi 6（IEEE 802.11ax） standards.
- Up to total 900Mbps wireless speed on simultaneous 2.4GHz(286Mbps) , 5GHz(600Mbps)
- External omni-directional antenna improves the wireless reception sensitivity.
- 1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.
- TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
- Support 64/128-bit WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK encryption standards.
- Easy to install and configure.
- Supports Windows 10 /11 , Linux.
|
Hardware
|
|
Interface/Button |
- 1*USB2.0
|
|

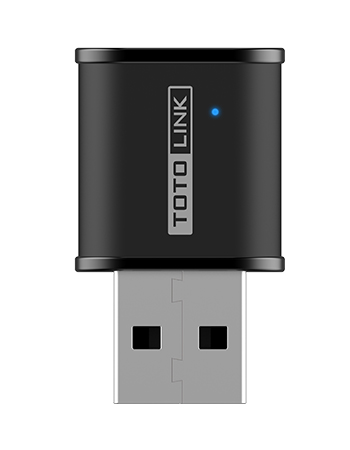

LED Indicator
|
- 1*Wireless (ACT) Blue
|
|
Antenna
|
- 1*External dual-band antenna (not removable)
|
|
Dimensions(L x W x H) |
- 33 x 20 x 10mm
|
|
Wireless
|
|
Standards |
- IEEE 802.11ax,
- IEEE 802.11ac,
- IEEE 802.11n,
- IEEE 802.11g,
- IEEE 802.11b,
- IEEE 802.11a
|
|
RF Frequency |
- 2.4~2.4835 GHz，5.18~5.825GHz
|
|
Data Rate |
- 2.4 GHz: Up to 287 Mbps
- 5 GHz: Up to 600 Mbps |
|
ERIP |
-< 20dBm
|
|
Wireless Security |
- 64/128-bit WEP, WPA/WPA2,WPA3, WPA-PSK/WPA2-PSK (TKIP/AES) |
|
Reception Sensitivity |
- 2.4G：11b 11M：-81 dBm@8% PER
11g 54M：-68 dBm@10% PER
11n HT20 MCS7：-65dBm@10% PER
HT40 MCS7：-62dBm@10% PER
11ax HE-SU40 MCS11：-48dBm@10% PER
- 5G： 11a 54M：-68dBm@10% PER
11n HT20 MCS7：-65dBm@10% PER
HT40 MCS7：-62dBm@10% PER
11ac VHT80 MCS9：-51dBm@10% PER
11ax HE-SU40 MCS11：-48dBm@10% PER
HE-SU80 MCS11：-45dBm@10% PER |
|
Others |
|
Package Contents
|
- X900USM USB adapter*1
- Quick IInstallation Guide *1 |
|
System Requirement
|
- Supports Windows 10/11 (32/64bits), Linux.
|
|
Environment
|
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing |
