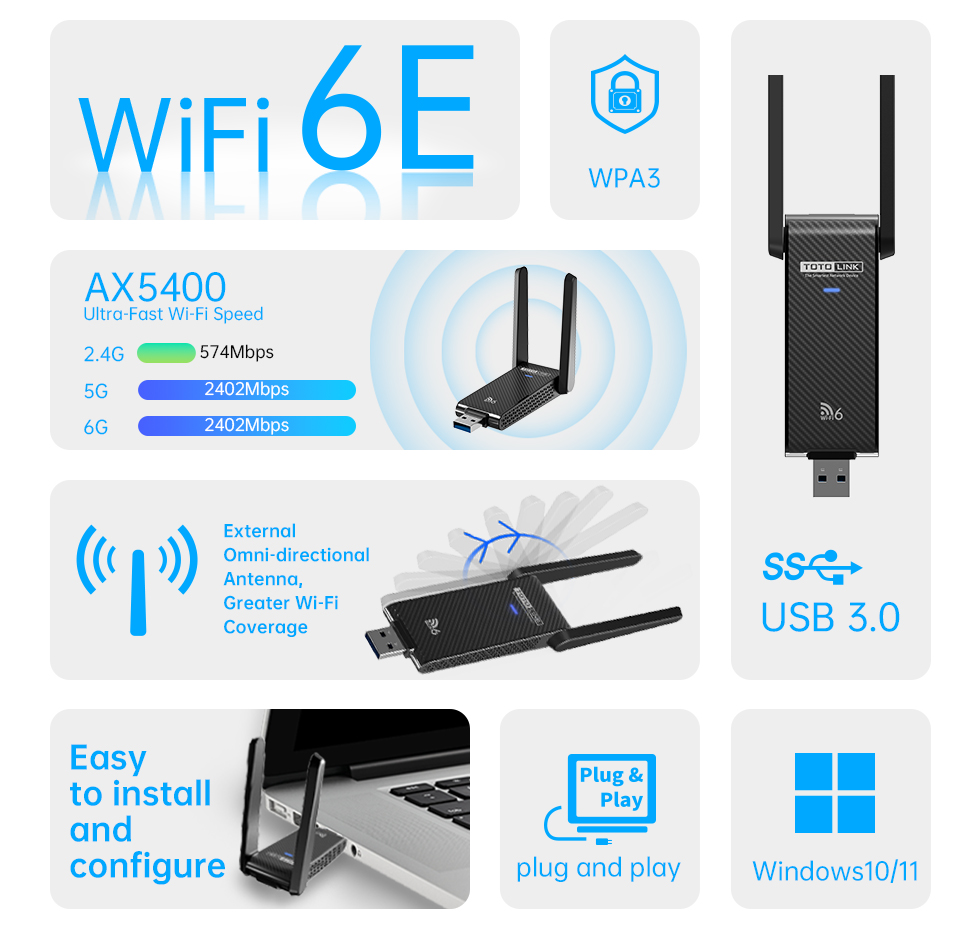

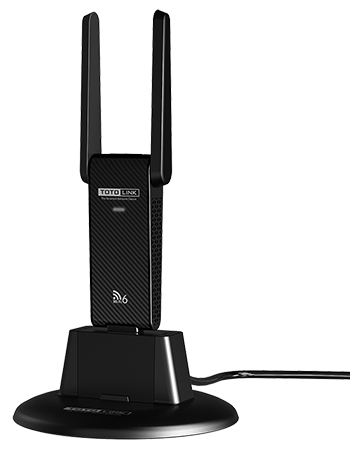

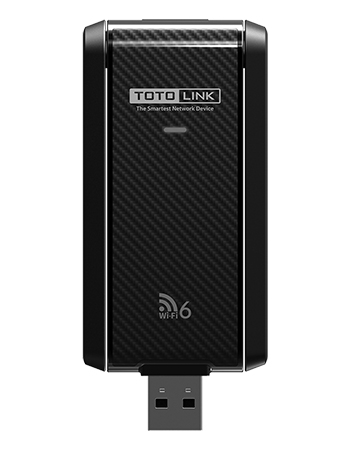

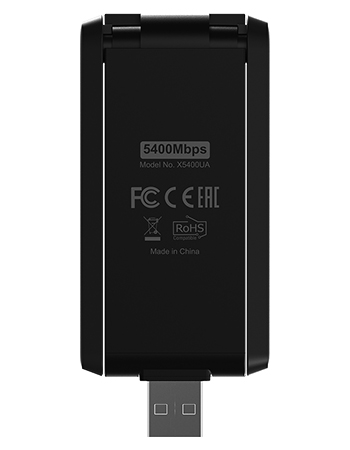

AX5400 Wi-Fi 6E Tri-band USB Adapter

  • - WiFi 6E: A Freer and Faster Future
    - 5400Mbps Ultra-Fast Wi-Fi Speed
    - 160MHz high bandwidth
    - OFDMA More Device, Less Congestion
    - MU-MIMO, highly efficient wireless connection
    - External Omni-directional Antenna, Greater Wi-Fi Coverage
    - Super Speed USB 3.0 Port
    - Easy to Use

    WiFi 6E: A Freer and Faster Future

    WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and
    older devices.This means a congestion-free frequency that offers more bandwidth,faster speed,
    and lower latency.

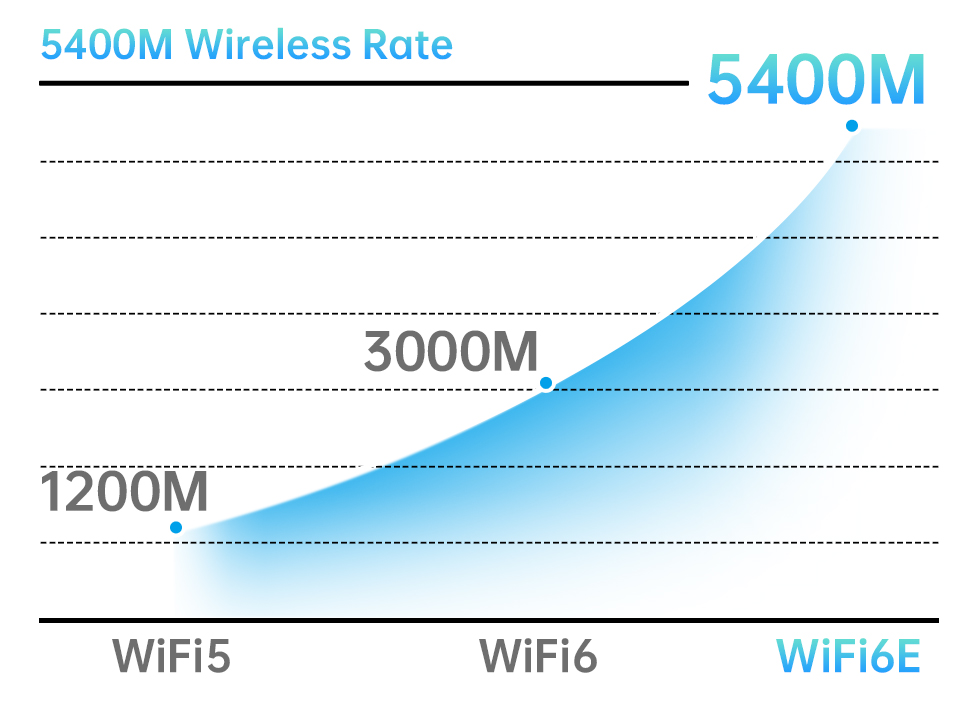

    5400Mbps Ultra-Fast Wi-Fi Speed

    X5400UA white delivers Wi-Fi speeds of up to 2402Mbps on 5GHz, 2402Mbps on 6GHz and 574Mbps on the 2.4GHz,and for a total of 5400Mbps.Every application feels more fluid with drastically improved Wi-Fi speeds.Perfect for 4K streaming, immersive AR/VR gaming, and blazing-fast downloads.

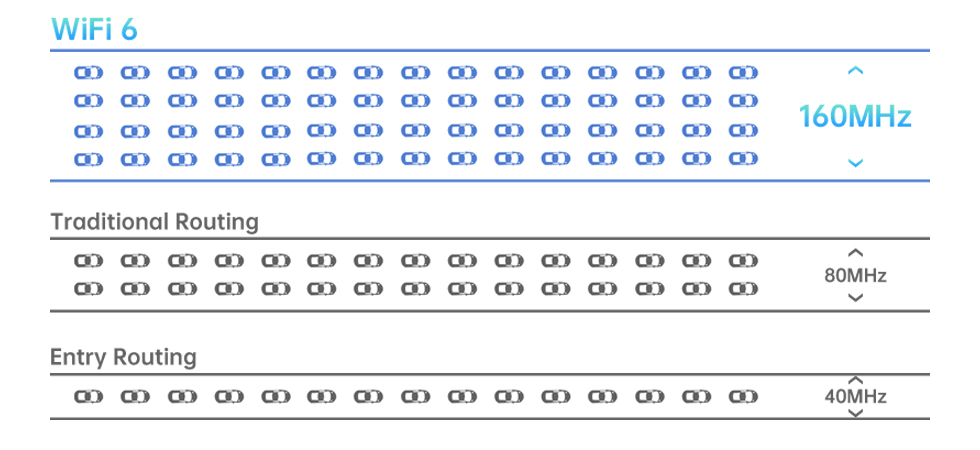

    160MHz high bandwidth

    Compared with the 80MHz frequencyband, the bandwidth is doubled andthe speed is doubled,
    which meets the high-speed connection requirementsof multi-device line devices.

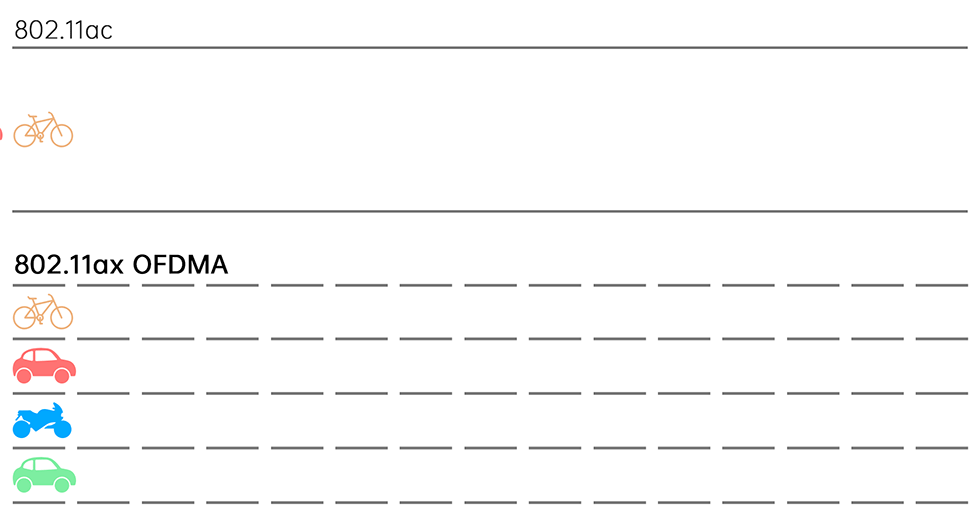

    OFDMA More Device, Less Congestion

    OFDMA technology can easily handle dozens of devices streaming and gaming at the same time.
    OFDMA greatly increases capacity by 4 times to enable simultaneous transmission to more devices.
    Besides, it enables different devices to share one transmission stream so as to increase efficiency
    and reduce latency.

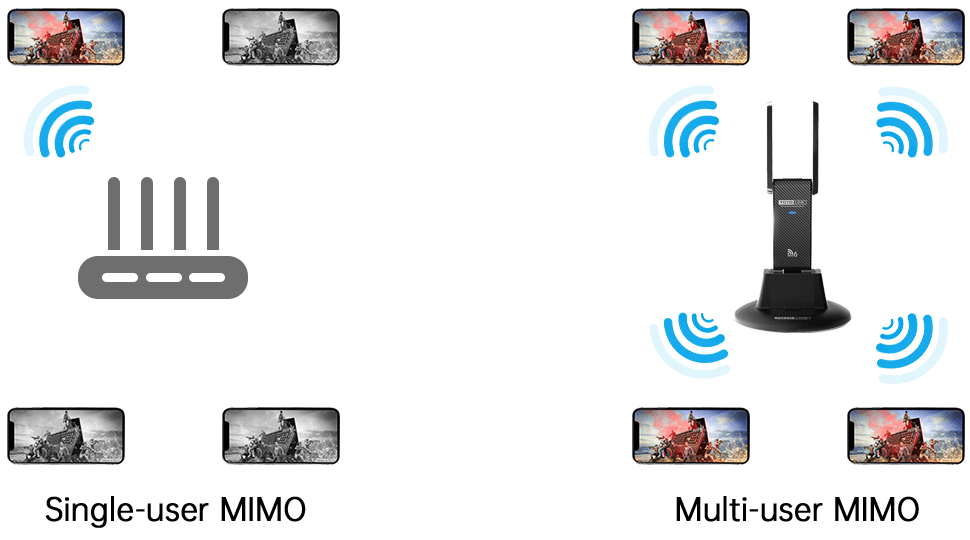

    MU-MIMO, highly efficient wireless connection

    With MU-MIMO technology, X5400UA can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.

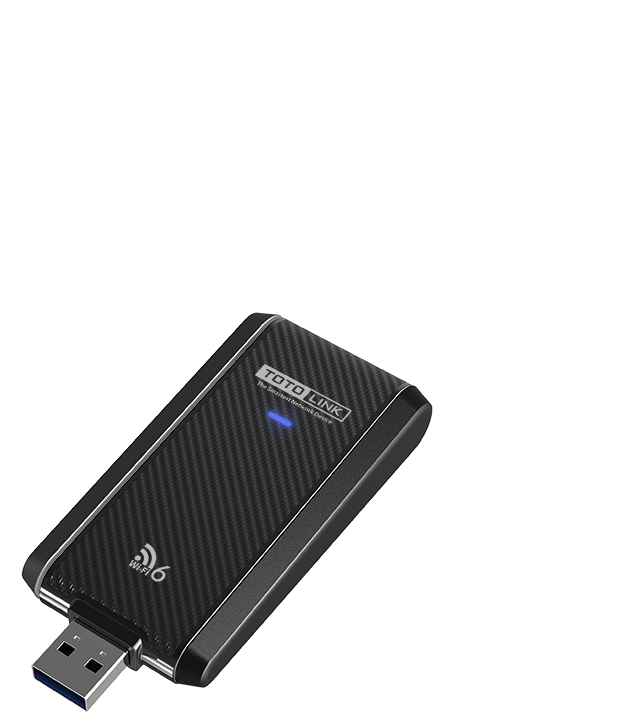

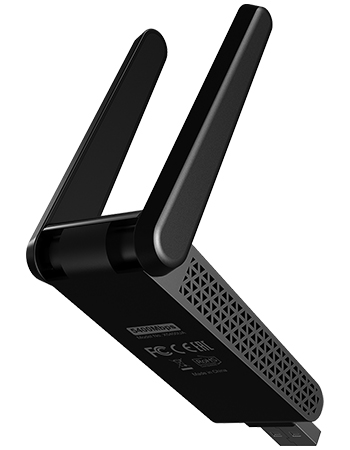

    External Omni-directional Antenna, Greater Wi-Fi Coverage

    Equipped with external omni-directional antennas, X5400UA offers a higher wireless performance and expands wireless signal to a wider coverage.

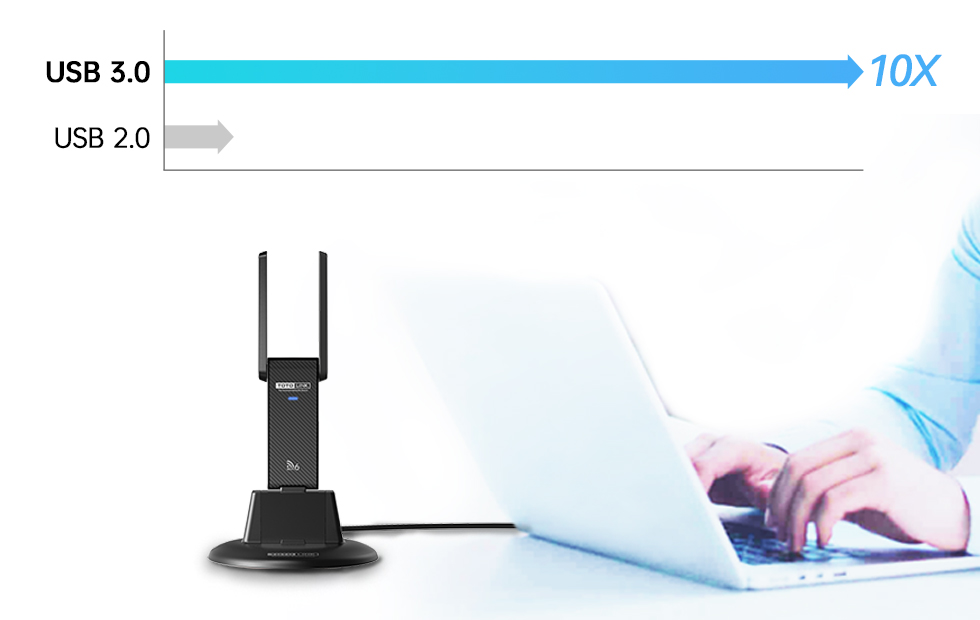

    Super Speed USB 3.0 Port

    Providing blazing-fast data transfers of up to 4.8Gbps with USB3.0 port.USB3.0 transfers data up to 10x faster
    than USB2.0 and is also backwards compatible with USB2.0. Combined with 802.11ax Wi-Fi,USB3.0 makes
    X5400UA ideal for HD streaming, online gaming and large file downloads.

    Easy to Use

    No driver needed for the device installation on Windows 10/11 (32/64bits),
    simply plug and play, suitable for everyone across the world.

    - Comply with Wi-Fi 6E(IEEE 802.11ax) standards.
    - Up to total 5400Mbps wireless speed on simultaneous 2.4GHz(574Mbps) , 5GHz(2402Mbps) and 6GHz(2402Mbps)
    - USB3.0 enables super-fast data transmission, up to 10x faster transfer speeds than USB 2.0.
    - External omni-directional antenna improves the wireless reception sensitivity.
    - 1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.
    - TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
    - Support 64/128-bit WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK encryption standards.
    - Easy to install and configure.
    - Supports Windows 10/11 (32/64bits), Linux.

    - RTL8832CU
    - 1*USB3.0
    LED  Indicator
    - 1*Wireless (ACT) Blue
    - 2*External Antennas (non-detachable)

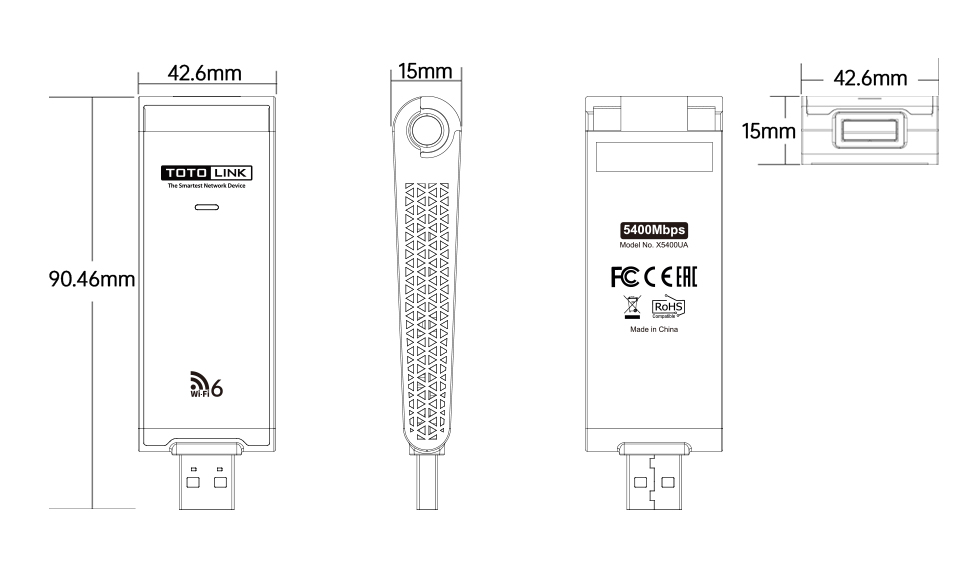

    Dimensions(L x W x H)
    - 90.46 x 42.6 x 15mm
    - IEEE 802.11ax,
    - IEEE 802.11ac,
    - IEEE 802.11n,
    - IEEE 802.11g,
    - IEEE 802.11b,
    - IEEE 802.11a
    RF Frequency
    - 2.4~2.4835 GHz,5.18~5.825GHz,5.925GHz~7125GHz
    Data Rate
    - 6 GHz: Up to 2402 Mbps
    - 5 GHz: Up to 2402 Mbps
    - 2.4 GHz: Up to 574 Mbps
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2,WPA3 and WPA-PSK/WPA2-PSK
    Package Contents
    - X5400UA USB adapter*1
    - Quick Installation Guide *1
    System Requirement
    - Supports Windows 10/11 (32/64bits), Linux.
    - Operating Temperature:  0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
