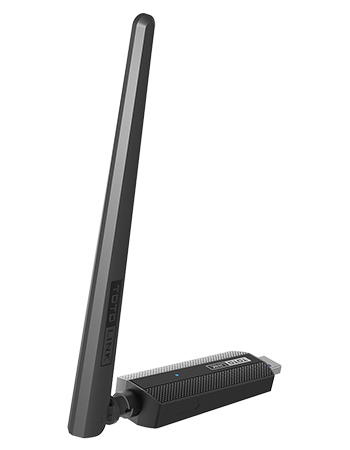

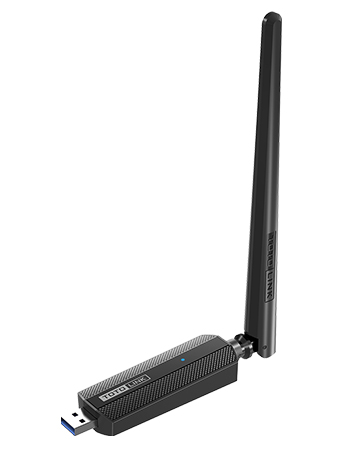

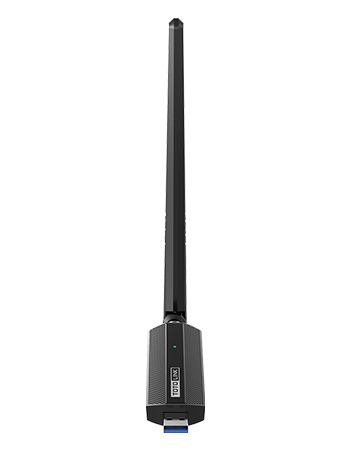

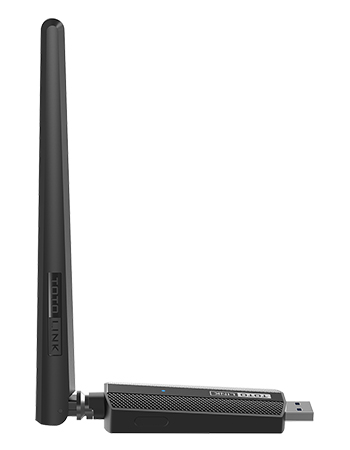

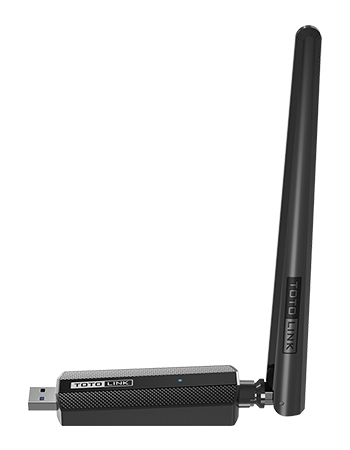

X6100UA

AX1800 Wireless Dual Band USB Adapter

- 1774.5Mbps Ultra-Fast Wi-Fi Speed
- OFDMA More Device, Less Congestion
- MU-MIMO, highly efficient wireless connection
- External Omni-directional Antenna, Greater Wi-Fi Coverage
- Super Speed USB 3.0 Port

- Comply with IEEE 802.11a/b/g/n/ac/ax standards.

- Up to total 1775Mbps wireless speed on simultaneous 2.4GHz(573.5Mbps) and 5GHz(1201Mbps)

- USB3.0 enables super-fast data transmission, up to 10x faster transfer speeds than USB 2.0.

- External omni-directional antenna improves the wireless reception sensitivity.

- Built-in FEM (PA + LNA) module, creates stronger signal and wider signal receiving range.

- 1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.

- TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.

- Support 64/128-bit WEP, WPA,WPA2,WPA3, WPA-PSK, WPA2-PSK encryption standards.

- Easy to install and configure.

- Supports Windows 10/11 (32/64bits).

Hardware
Chipset	- RTL8832AU
Interface	- 1*USB3.0
LED Indicator	- 1*Wireless (ACT) Blue
Antenna	- 1 External dual-band antennas - 1 Internal dual-band antennas
Dimensions(L x W x H)	- 100 x 30 x 18mm(USB case)+130 x 15 x 16mm(antenna)

Wireless
Standards	- IEEE 802.11ax, - IEEE 802.11ac, - IEEE 802.11n, - IEEE 802.11g, - IEEE 802.11b, - IEEE 802.11a
RF Frequency	- 2.4GHz/5GHz
Data Rate	- 5 GHz: Up to 1201 Mbps - 2.4 GHz: Up to 573.5 Mbps
Wireless Security	- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), WPA3

Others
Package Contents	- X6100UA USB Wireless Adapter1 - Quick Installation Guide 1
System Requirement	- Supports Windows 10/11 (32/64bits).
Environment	- Operating Temperature: 0℃~50℃ (32 ℉~122℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 5%~95% non-condensing - Storage Humidity: 5%~95% non-condensing
