- Complies with 802.11ac/a/b/g/n standards.

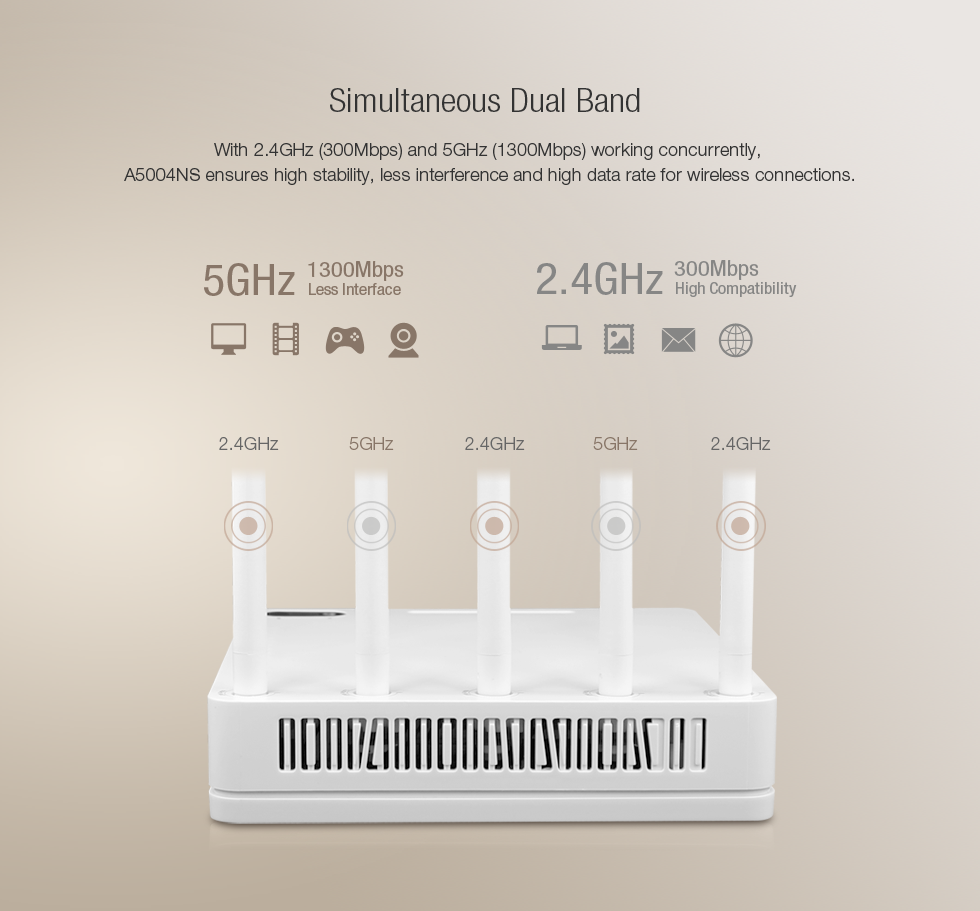

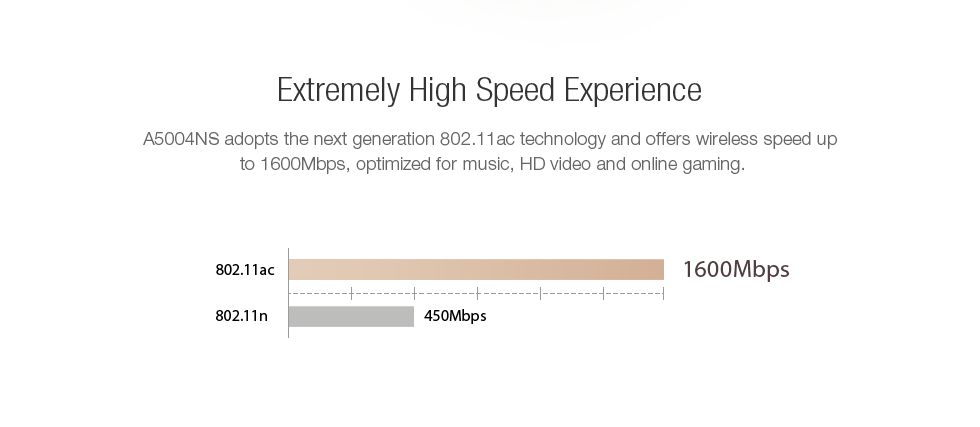

- 300Mbps on 2.4GHz and 1.3Gbps on 5GHz band simultaneously.
- Five fixed high gain antennas with advanced MIMO technology.
- Supports PPPoE, DHCP and Static IP broadband functions.
- Five Gigabit Ethernet Ports ensure ultrafast data transmission rate.

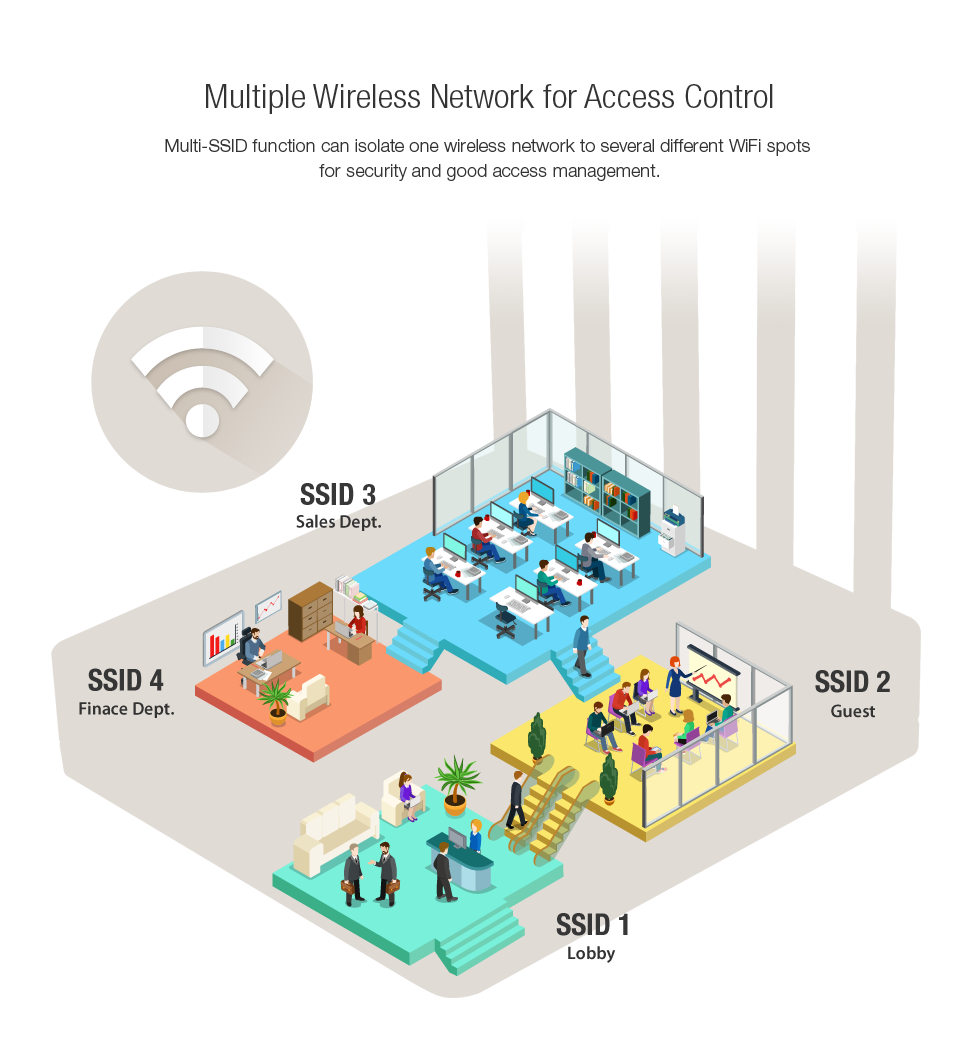

- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal repeater and WDS function for easy WiFi extension.
- One USB3.0 port supports FTP Service, Samba Service,Torrent, URL Service, Media Server and USB Tethering.

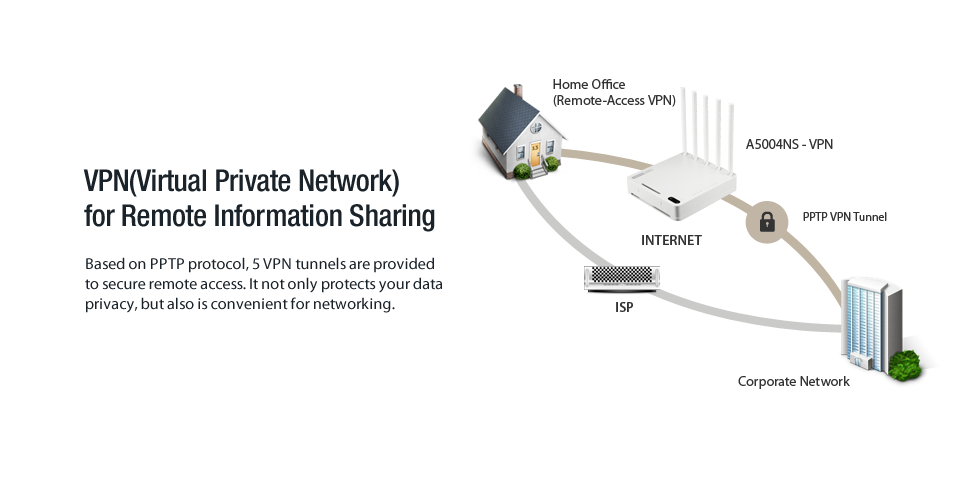

- The VPN server can not only protect the privacy of your information, but also simplify network management.

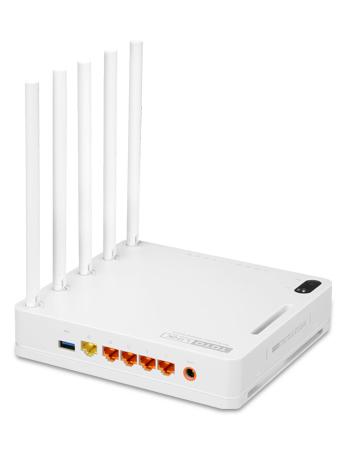

| HARDWARE FEATURES | |
|---|---|
| Interface | 4 *10/100/1000Mbps LAN Ports |
| 1 *10/100/1000Mbps WAN Port | |
| 1 *USB3.0 Port | |
| Power Supply | 12V DC/2A |
| Button | 1 *WPS Button |
| 1 *RST Button | |
| LED Indicators | 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1 *USB3.0 |
| Antenna | 2 *5dBi fixed antennas(2.4GHz ) |
| 3 *5dBi fixed antennas(5GHz ) | |
| Dimensions (L x W x H) | 6.9 x 6.5 x 1.4 in. ( 174.5 x 165 x 36 mm ) |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 1.3Gbps | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| EIRP | 2.4GHz < 20dBm |
| 5GHz < 23dBm | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Reception Sensitivity - 2.4G | 11b: <-79dbm； |
| 11g: <-68dbm； | |
| 11n: HT20<-65dbm HT40: <-61dbm | |
| Reception Sensitivity - 5G | 11a:<-68dbm； |
| 11ac: HT20<-65dbm HT40: <-61dbm HT80: <-51dbm | |
| SOFTWARE FEATURES | |
|---|---|
| WAN Type | PPPoE/DHCP/Static IP |
| Wireless Functions | Multiple SSID, Wireless Bridge, MAC Authentication, |
| WDS, WPS, Wireless Scheduler | |
| NAT / Routing | Port Forwarding, DMZ/Twin IP, Port Trigger |
| Firewall | Internet Access Control: IP/MAC Address filtering |
| Net Detector | |
| Utility | VPN, DDNS, WOL, Host Scan, IPTV |

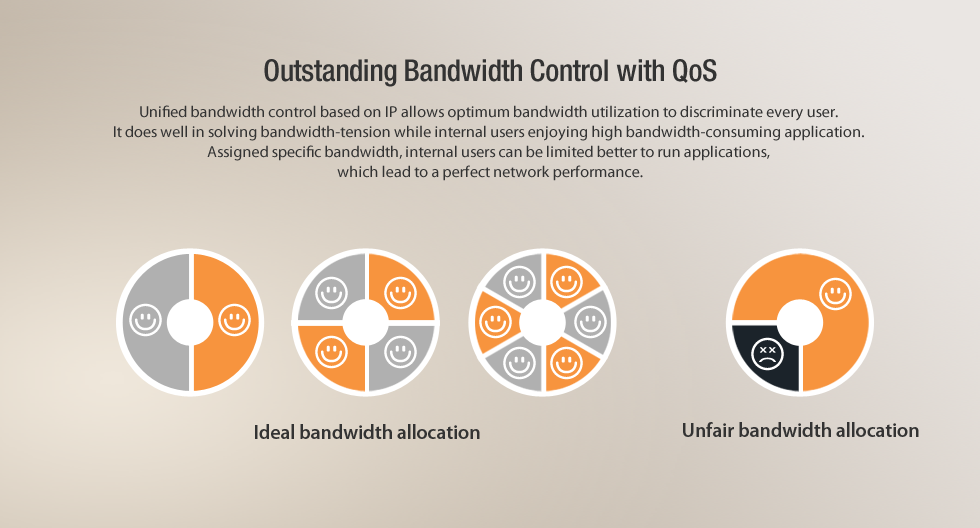

| Traffic | QoS, Connection Control |
| System | System Log, Admin Setup, Firmware Upgrade, System Time, |
| Config Backup and Restore | |
| USB Storage | FTP Service |
| Windows File Sharing(Samba) | |
| Torrent | |
| Media Server | |
| URL Service | |
| USB Tethering | |
| Package Contents | A5004NS Wireless Router *1 |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Install Guide *1 | |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
