X6000R

AX3000 Wireless Dual Band Gigabit Wi-Fi 6 Router

  • - The Next Generation --- Wi-Fi 6.
    - 3000Mbps Ultra-Fast Wi-Fi Speed.

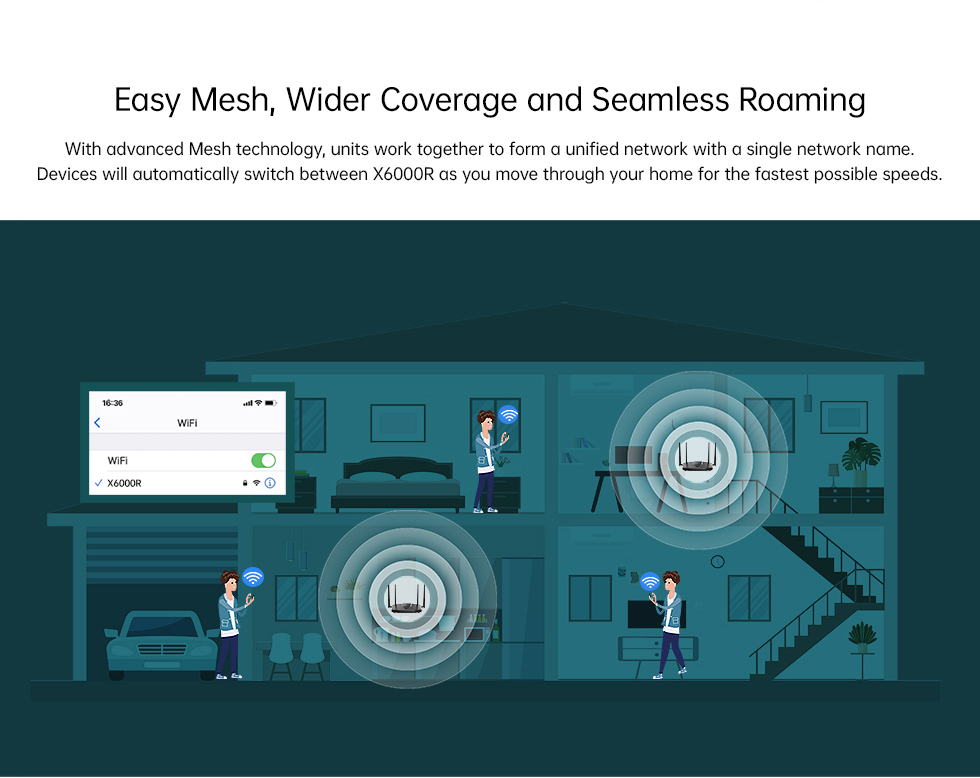

    - Easy Mesh, Wider Coverage and Seamless Roaming.
    - 1.3GHz Dual-Core CPU for Powerful Processing.
    - OFDMA More Device, Less Congestion.
    - Full Gigabit WAN and LAN Ports.
    - Xtra Range Technology, Wide Wi-Fi Coverage.
    - MU- MIMO for Smooth Wi-Fi on All Your Devices.
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the next generation Wi-Fi 6 (IEEE 802.11ax) standard.
    - Simultaneous 2404Mbps on 5GHz and 574Mbps on 2.4GHz for a total of 3000Mbps.
    - 1.3GHz Dual-Core CPU perform outstanding ability in data-processing without any delay.
    - OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
    - TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
    - MU-MIMO technology allows to transfer data to multiple devices at the same time.
    - 2.4GHz 2T2R, 5GHz 3T3R multiple antennas design.
    - Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.
    - Full gigabit ports offer larger capability for data forwarding via cable connection.
    - Supports DHCP, Static IP, PPPoE PPTP and L2TP broadband functions.
    - Supports WPA3 wireless security protocols to ensure network security.
    - Support VPN server, Universal Repeater, Guest network, Smart QoS, Wi-Fi Scheduler.
    - Parental Control on the router lets you easily manage content and time online on any connected device.
    - Easy Mesh function for easy Wi-Fi extension and seamless roaming.
    - Easy setup and management with phone UI and TOTOLINK Router APP.

    Hardware
    Interface

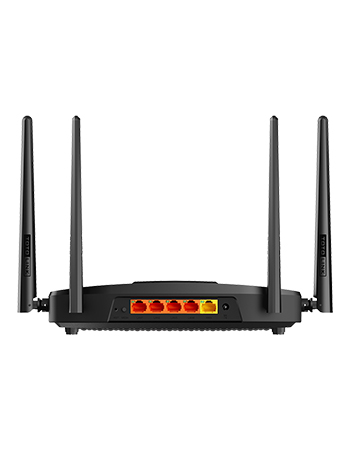

    - 1 * 1000Mbps WAN Port
    - 4 * 1000Mbps LAN Port
    Power Supply
    - 12VDC/1A
    Antenna

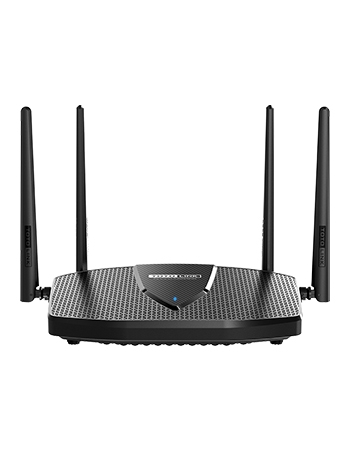

    - 4* external detachable antennas
    (1*Dual band antenna + 1* 2.4G antennas+2*5G antenna)
    Button
    - 1 * RST Button, 1 * MESH Button
    LED
    - 1 * SYSTEM  LED
    - 1* WAN LED
    - 4* LAN LED
    Dimensions (L x W x H)
    - 241.0 x 147.0 x 48.5mm
    Wireless
    Standards
    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
    - IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4~2.4835GHz
    - 5.18~5.825GHz
    Data Rate
    - 2.4GHz:  Up to 574Mbps
    - 5GHz:  Up to 2402Mbps
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - WPA2/WPA Mixed
    - WPA3
    Reception Sensitivity
    - 2.4G: 11b 11M：-85dBm@8% PER
               11g 54M：-72dBm@10% PER
               11n HT20 MCS7：-68dBm@10% PER
               11n HT40 MCS7：-65dBm@10% PER
               11ax HT20 MCS11：-68dBm@10% PER
               11ax HT40 MCS11：-65dBm@10% PER
    - 5G: 11a 54M：-72dBm@10% PER
            11n HT20 MCS7：-68dBm@10% PER
            11n HT40 MCS7：-65dBm@10% PER
            11ac VHT80 MCS9：-55dBm@10% PER
            11ax HE80 MCS11：-51dBm@10% PER
            11ax HE160 MCS11：-46dBm@10% PER
    Software
    Home

    - Quick Setup
    - Basic setup
    - Advanced setup
    - QR Code
    - LED
    - Logout
    - Reboot
    Network

    - WAN Setting
    - LAN Setting
    - DDNS Setting
    - IPTV Setting
    - IPv6 Setting
    WAN Type
    -  Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Wireless

    - Basic setup
    - Guest Network(Multiple SSID)
    - Wireless Schedule
    - Access Control
    - Advanced setup
    Parental Control
    - Internet time control based on MAC
    QoS
    - Up/Down speed control on WAN, Bandwidth control based on IP address
    Device management
    - Static Route
    - Routing Table
    - IP/MAC Binding
    Security

    - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT

    - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    VPN Sever

    - L2TP VPN
    - Account Management
    Tools

    - Upgrade Firmware
    - Time Setup
    - Remote management
    - UPnP
    - Password Settings
    - Reboot Schedule
    - Ping Diagnosis
    - Route Tracking
    - TR-069 Config
    - System Log and so on

    Others
    Package Contents

    - X6000R Wireless Router *1
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
