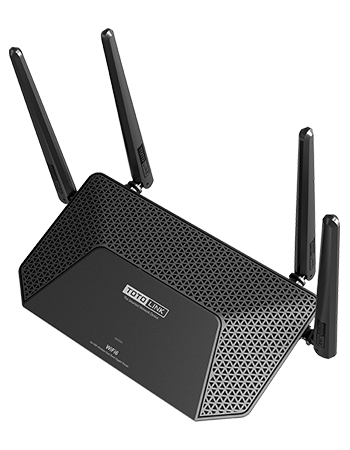

X2000R

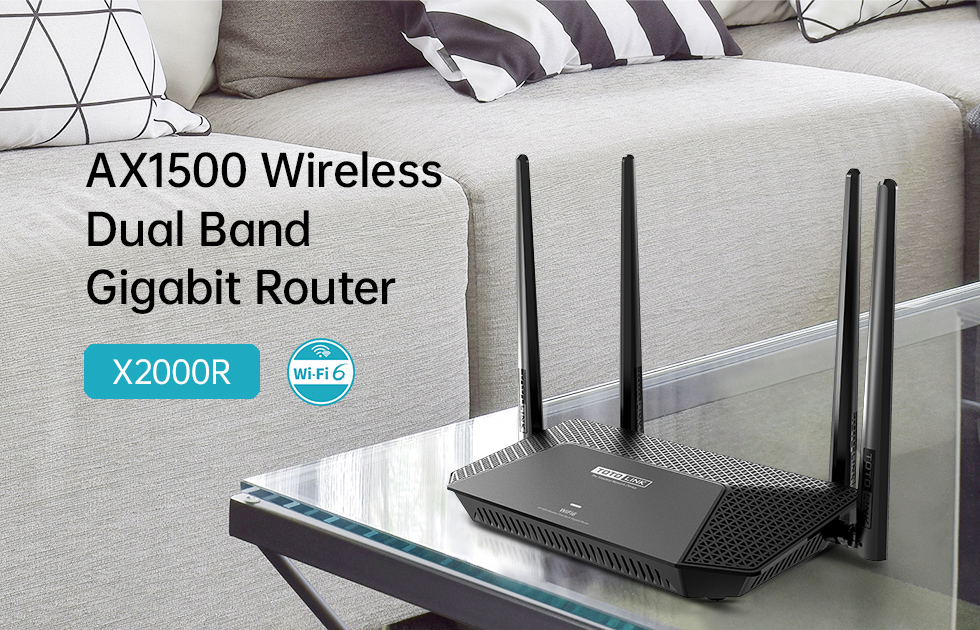

AX1500 Wireless Dual Band Gigabit Wi-Fi 6 Router

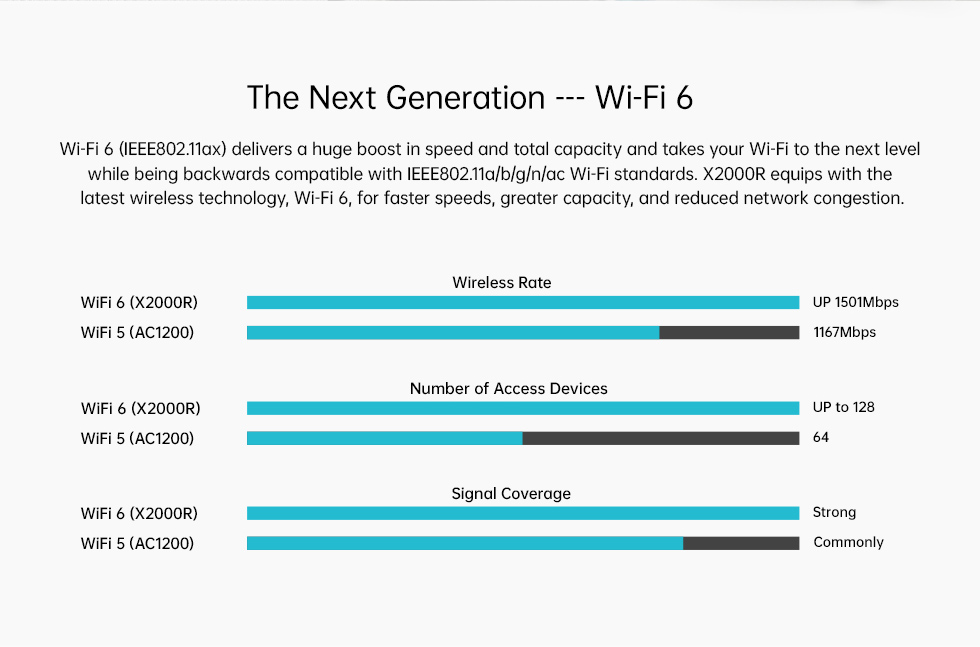

  • - The Next Generation --- Wi-Fi 6
    - 1501Mbps Ultra-Fast Wi-Fi Speed

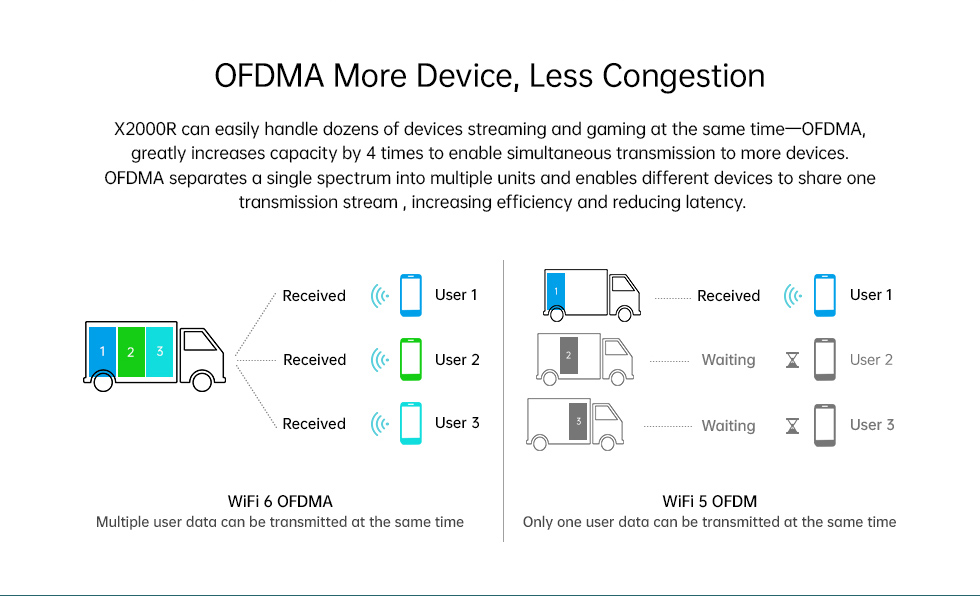

    - OFDMA More Device, Less Congestion

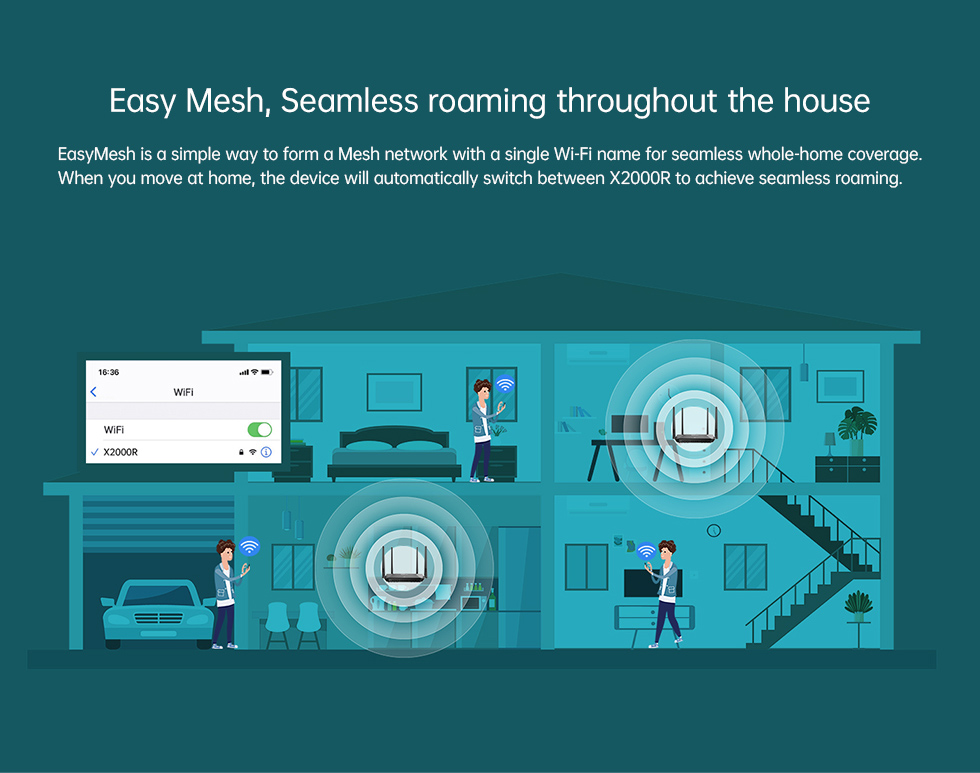

    - Easy Mesh, Seamless roaming throughout the house

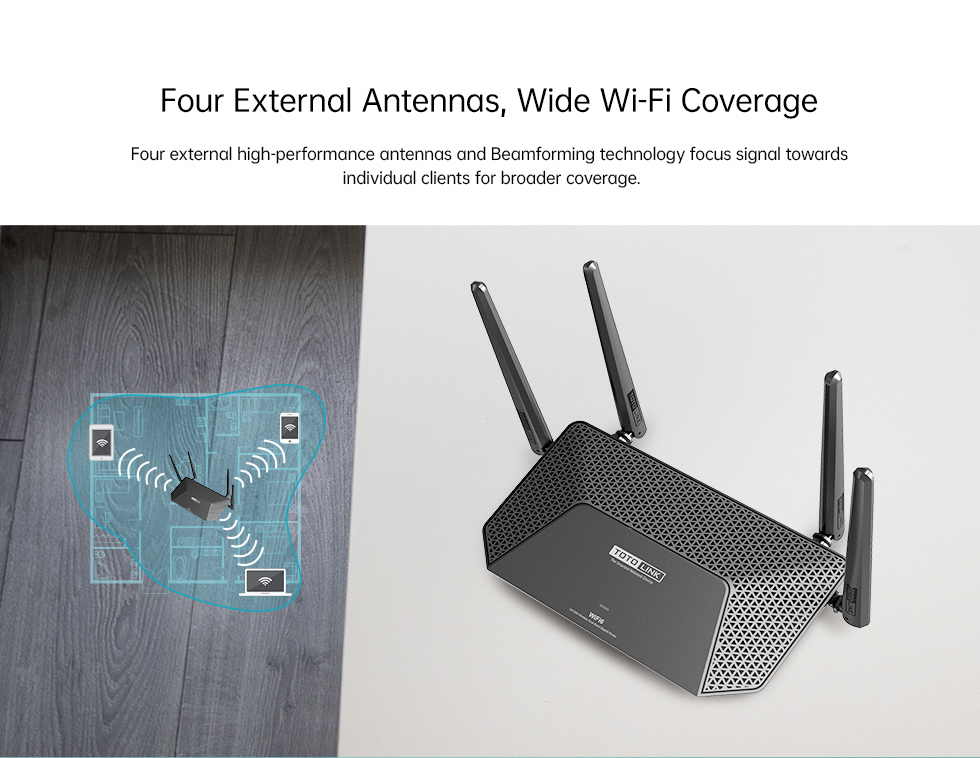

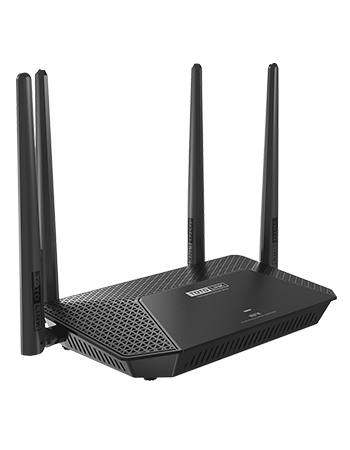

    - Four External Antennas, Wide Wi-Fi Coverage
    - Adaptive WAN/LAN Ports
    - MU-MIMO Technology
    - Band Steering
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the next generation Wi-Fi 6 (IEEE 802.11ax) standard.
    - Simultaneous 1201Mbps on 5GHz and 300Mbps on 2.4GHz for a total of 1501Mbps.

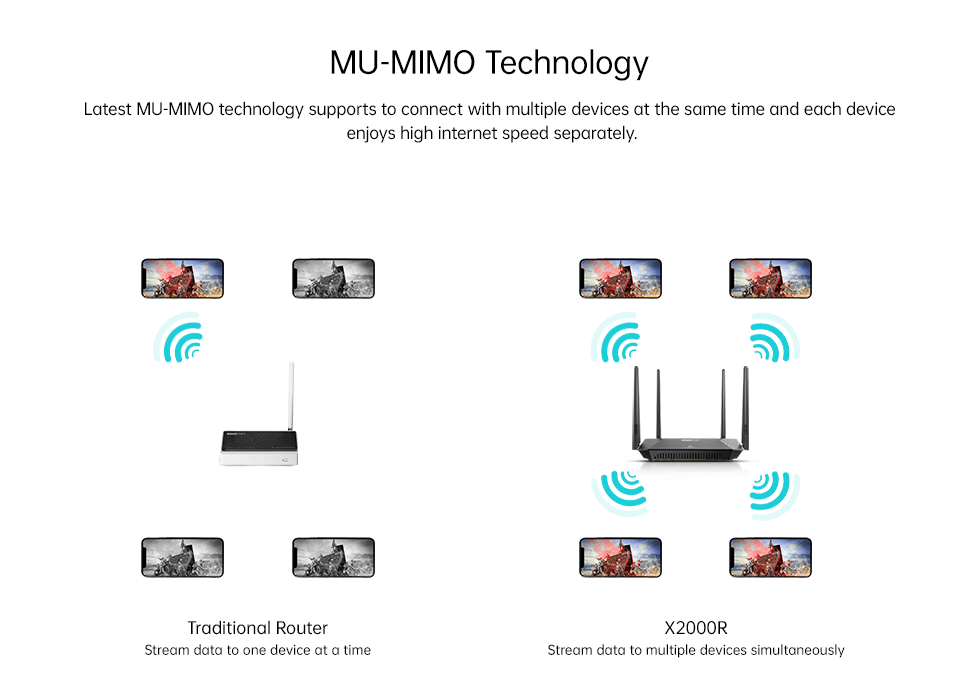

    - MU-MIMO technology allows to transfer data to multiple devices at the same time, each device enjoys high Internet speed separately.
    - Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.

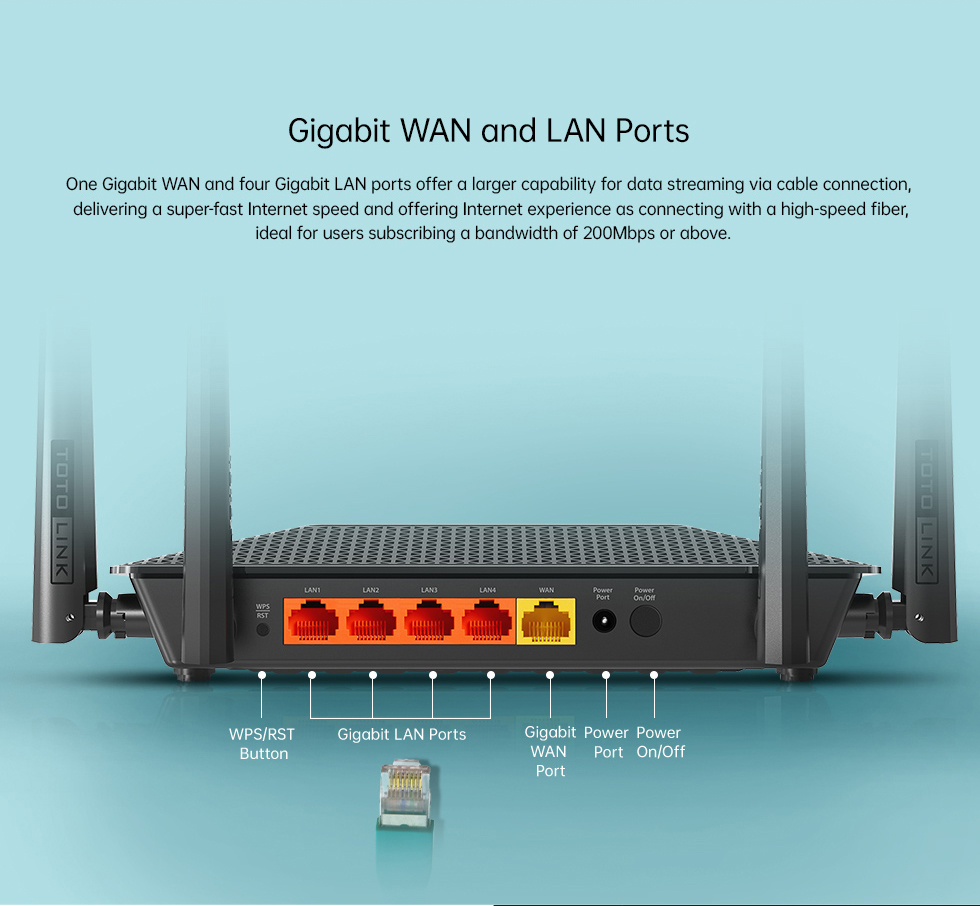

    - Full gigabit ports offers a larger capability for data streaming via cable connection.

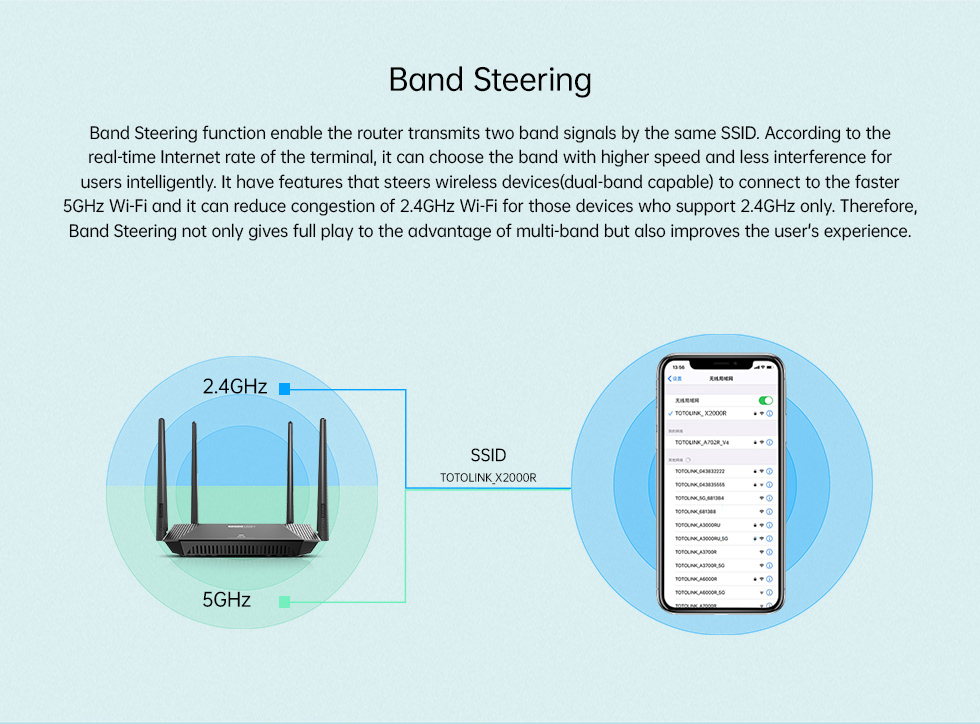

    - Band Steering for full playing to the advantage of multi-band and improving the user's experience.

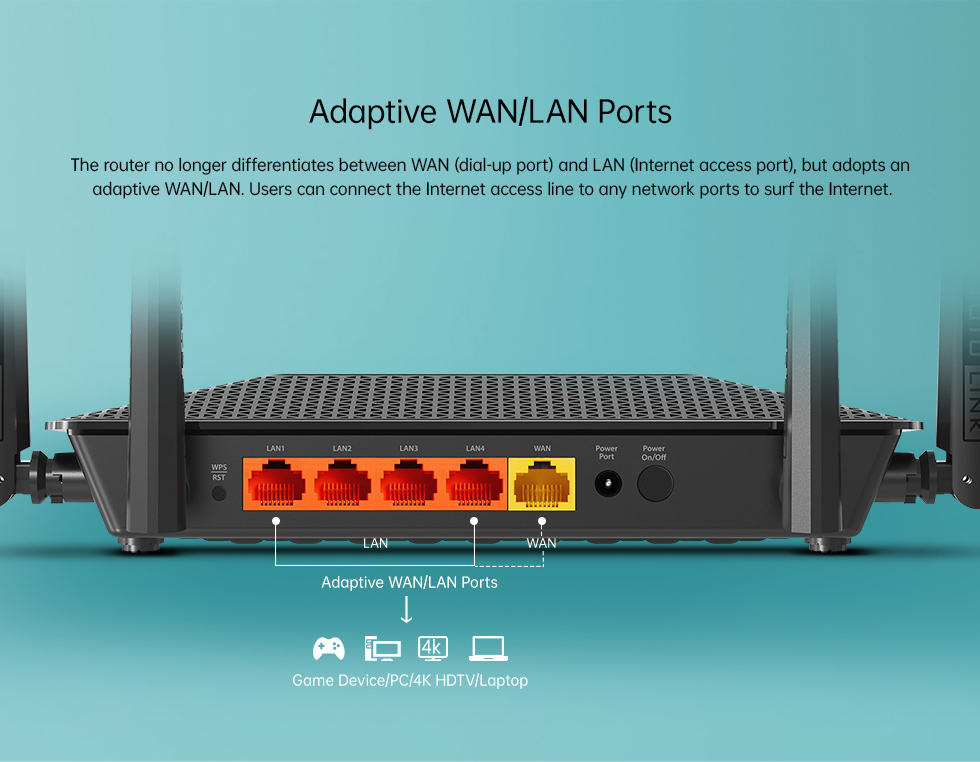

    - Adaptive WAN/LAN Ports for no need to differentiate between WAN and LAN port.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
    - Supports WPA3 wireless security protocols to ensure network security.
    - QoS function allows to change the bandwidth for different terminals via IP address.
    - Supports IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
    - Guest network allows to create different SSIDs for different groups, better for Internet access management.
    - Smart UI design is easy for the users to finish the basic configuration with their cellphones.
    Hardware

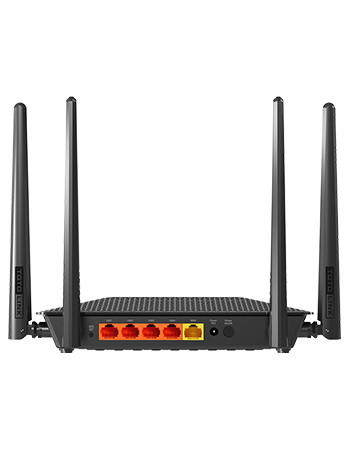

    Interface
    - 4 *10/100/1000Mbps LAN Ports
    - 1  *10/100/1000Mbps WAN Port
    Power Supply
    - 12VDC / 1 A
    Button
    		 - 1 * RST/WPS Button
    LED  Indicators
    		 - 1 * SYS,
    - 1 * WAN,
    - 4 * LAN
    Antenna
    		 - 2 * 2.4GHz fixed antennas(5dBi),
    - 2 * 5GHz fixed antennas(5dBi),
    Dimensions (L x W x H)
    		 - 206 x 121 x 41mm
    Wireless
    Standards
    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
    - IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps
    - 5GHz: Up to 1201Mbps
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
    - WPA3
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                      HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER
            11ax HE80 MCS11：-46dBm@10% PER
    Software
    Operation Mode
    - Gateway Mode
    - Repeater Mode
    - AP Mode
    - WISP Mode
    Status
    - WAN
    - Wireless
    - LAN
    - System Information
    Network
    - WAN Setting
    - LAN Setting
    - IPTV  Setting
    - DHCP&ARP Tables
    - Static Route
    - Routing Table
    Mesh setting
    - Optional master device and slave device
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    IPv6 Protocol
    		 - DHCP/Static IP/PPPoE
    Wireless
    - Basic Settings
    - Guest network
    - Advanced Settings
    - Access Control
    - Wireless Schedule
    QoS


    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    Security
    - IP/Port Filtering
    - MAC Filtering
    - URL Filtering
    NAT
     - Virtual Server(Port Forwarding)
    - DMZ
    - VPN Passthrough
    System
    - Upgrade Firmware
    - Save/Reload Settings
    - Time Zone Settings
    - DDNS
    - Denial-of-Service
    - TR-069 Config
    - Password Settings
    - Reboot Schedule
    - System Log
    - Statistics
    - Run Command
    - Logout

    Others
    Package Contents
    - X2000R Wireless Router * 1
    - Power Adapter * 1
    - Ethernet Cable * 1
    - Quick Installation Guide * 1
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
