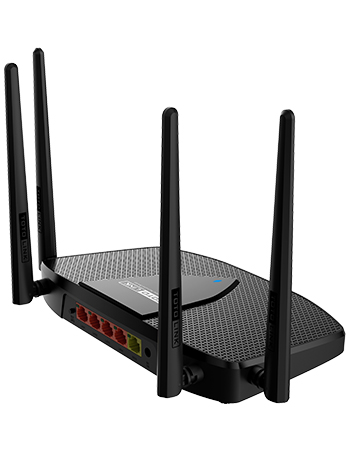

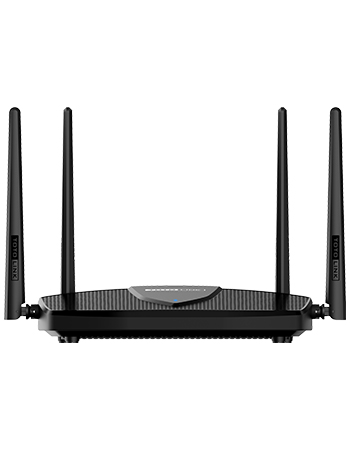

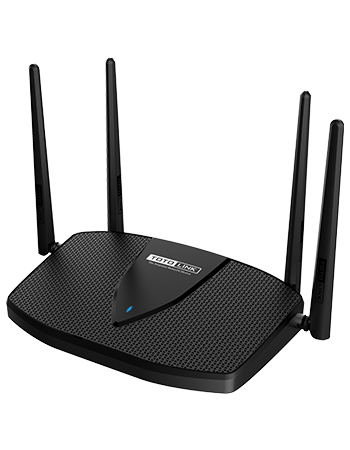

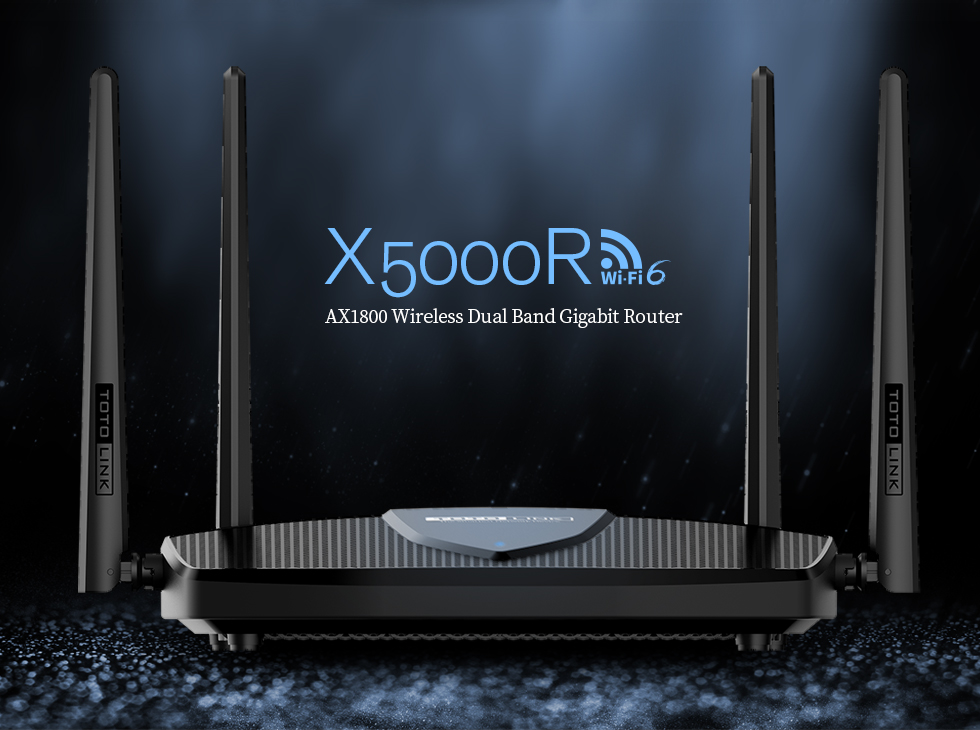

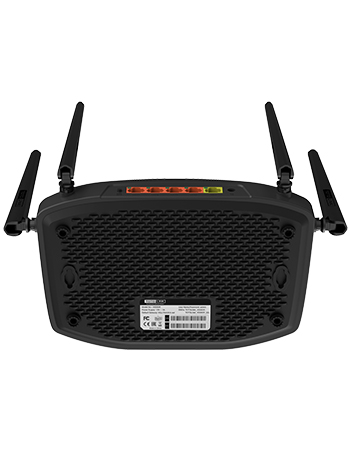

X5000R

AX1800 Wireless Dual Band Gigabit Wi-Fi 6 Router

  • - The Next Generation of Wi-Fi 6

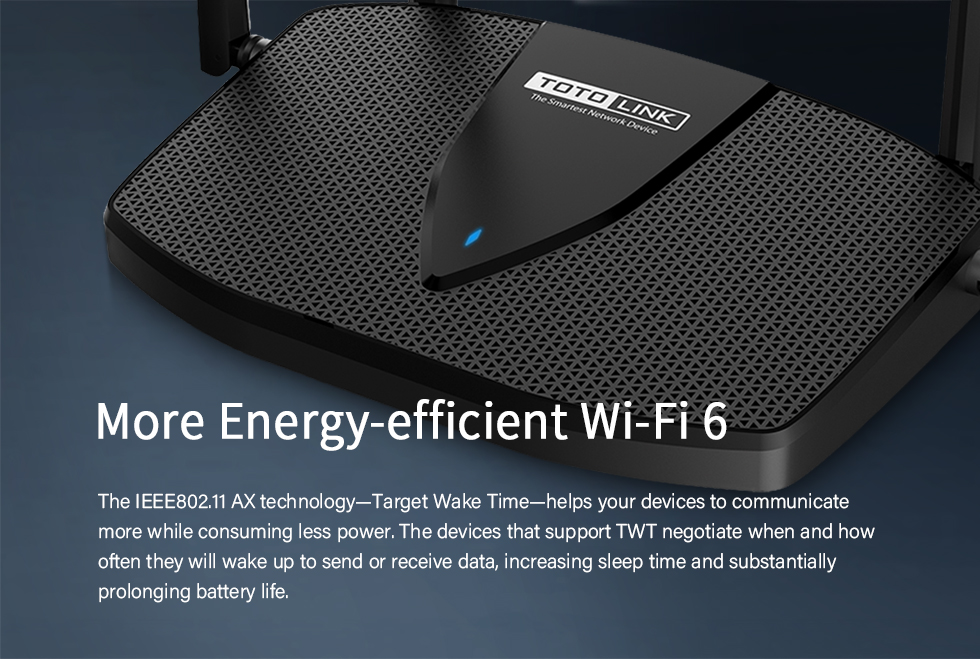

    - More Energy-efficient Wi-Fi 6
    - MU-MIMO for Smooth Wi-Fi on All Your Devices
    - 1774.5Mbps Ultra-Fast Wi-Fi Speed
    - OFDMA More Device, Less Congestion
    - 880MHz Dual-Core CPU for Powerful Processing

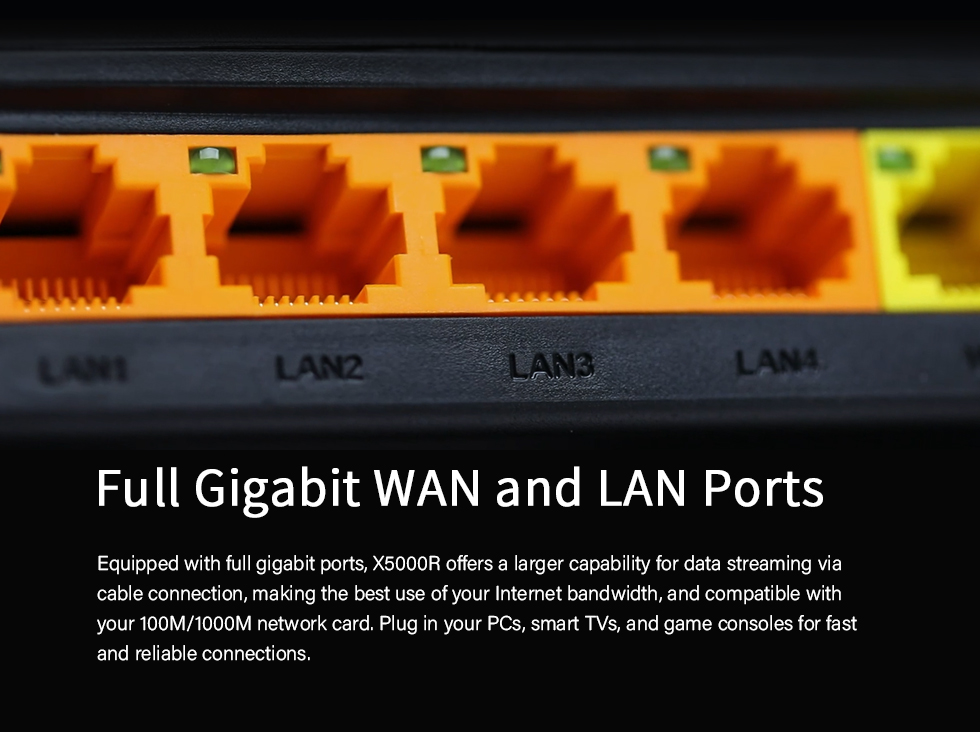

    - Full Gigabit WAN and LAN Ports
    - Quick Setup by Using Phone UI & APP
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the next generation Wi-Fi 6 (IEEE 802.11ax) standard.
    - Simultaneous 1201Mbps on 5GHz and 573.5Mbps on 2.4GHz for a total of 1774.5Mbps.

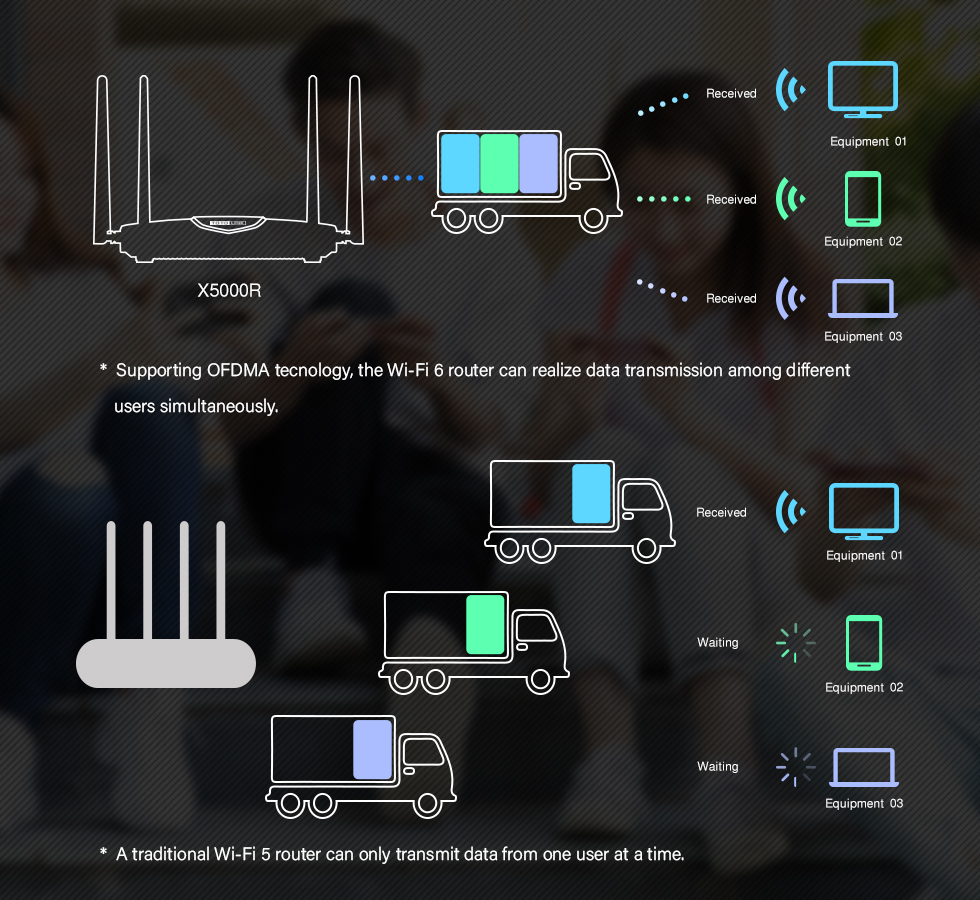

    - OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
    - TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
    - MU-MIMO technology allows to transfer data to multiple devices at the same time.

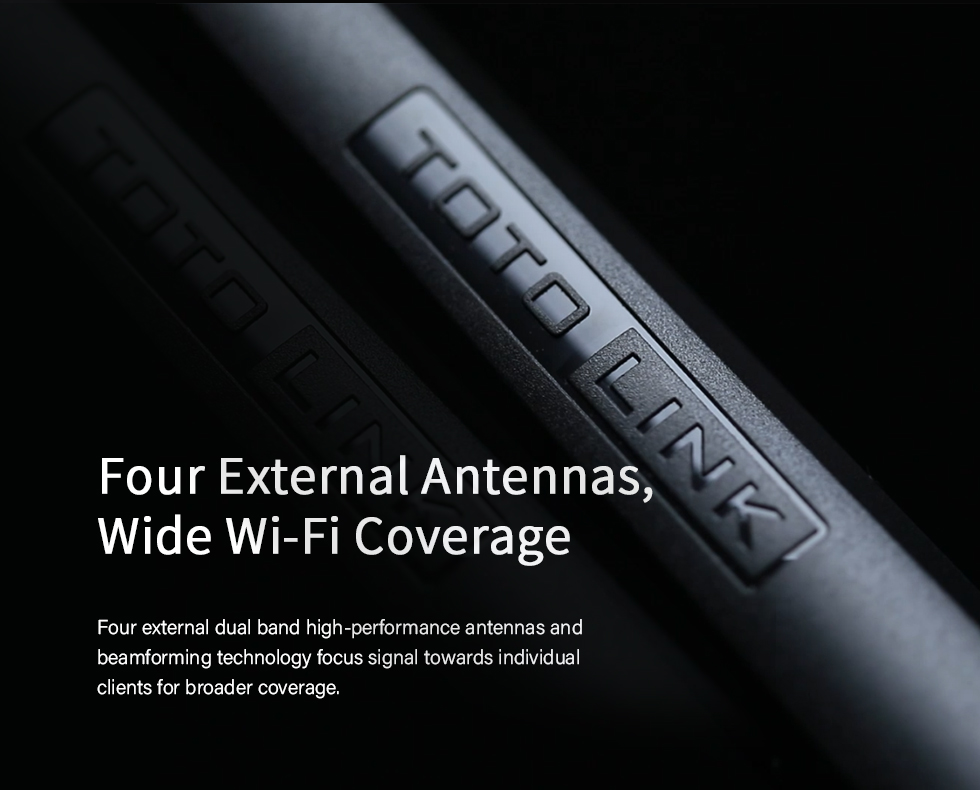

    - 4 External 5dBi fixed antennas is perfect for long-distance wireless transmission.

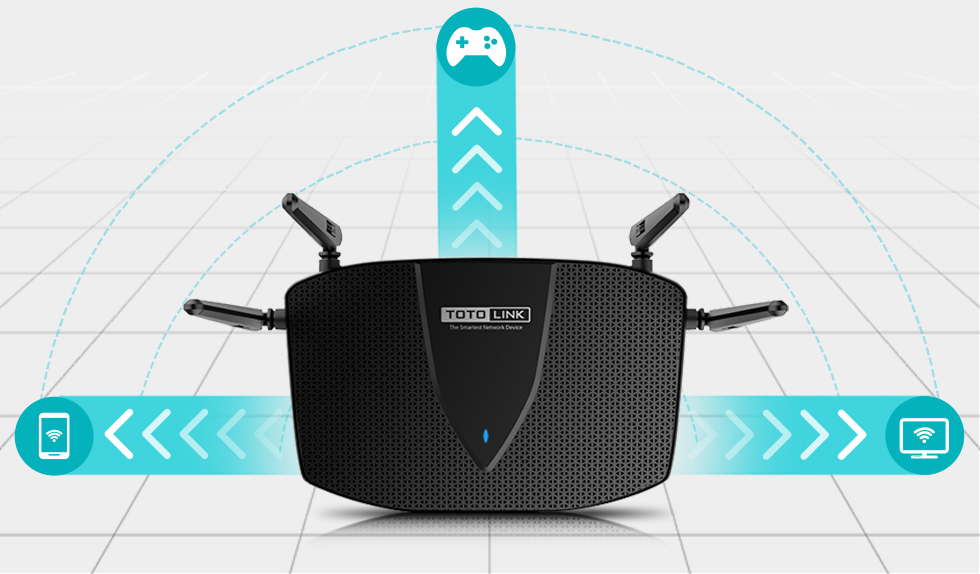

    - Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.
    - Full gigabit ports offer larger capability for data forwarding via cable connection.
    - Supports DHCP, Static IP, PPPoE PPTP and L2TP broadband functions.
    - Supports WPA3 wireless security protocols to ensure network security.
    - Support VPN server, Universal Repeater, Multiple SSIDs, WPS, Smart QoS, Wi-Fi Scheduler.
    - Parental Control on the router lets you easily manage content and time online on any connected device.
    - Easy setup and management with phone UI and TOTOLINK Router APP.
    Hardware
    Chipsets
    - MT7621A+MT7915DA+MT7975DN
    Flash/RAM
    - 16Mbyte/256Mbyte

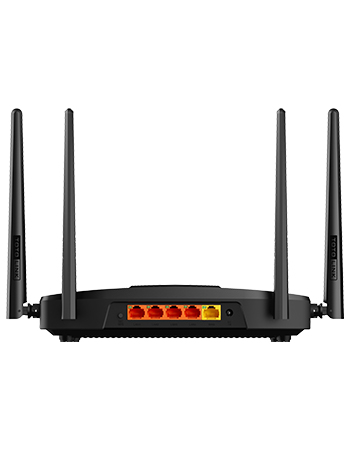

    Interface

    - 4*1000Mbps LAN Ports
    - 1*1000Mbps WAN Port
    Power Supply
    - 12V DC/1A
    Antenna
    -  4 * 5dBi fixed external antennas
    Button

    - 1*RST/WPS
    - 1*DC/IN
    LED  Indicators

    - 1 *SYS(Blue)
    - 4 *LAN(Green),
    - 1 *WAN(Green)
    Dimensions (L x W x H)
    - 241.0 x 147.0 x 48.5mm
    Wireless
    Standards
    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
    - IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4~2.4835GHz
    - 5.18~5.825GHz
    Data Rate
    - 2.4GHz: Up to 573.5Mbps (2*2 40MHz)
      - 5GHz: Up to 1201Mbps (2*2 80MHz)
    EIRP
    - 2.4GHz < 20dBm

    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2 and WPA-Mixed

    - WPA3
    Reception Sensitivity
    - 2.4G: 11b: <-85dbm;
               11g: <-72dbm;
               11n: HT20<-68dbm  HT40: <-65dbm
    - 5G: 11a:<-72dbm;
            11n: HT20<-68dbm  HT40: <-65dbm
            11ac: <-55dbm
            11ax VHT80 : <-46dbm

    Software
    Basic

    - Internet Settings
    - Wireless Settings
    - Parental Control
    - Guest Network Settings
    - Smart QoS
    Network

    - Internet Setup
    - LAN Setup
    - DDNS
    - IPTV
    - IPv6
    Wireless
    - Wireless Setup
    - Guest Network
    - Schedule
    - Access Control
    - Advanced
    - Parental Control
    - Smart QoS
    Device Management

    - Routing Table
    - Static Route
    - IP/MAC Binding
    Security

    - IP/Port Filtering
    - MAC Filtering
    - URL Filtering
    NAT

    - Virtual Server
    - DMZ
    - VPN Passthrough
    Remote network
    - L2TP Server
    - Shadow socks
    - Account Manage
    Service

    - Remote
    - UPnP
    - Schedule
    Tools

    - Change Password
    - Time Setup
    - System
    - Upgrade
    - Diagnosis
    - Route Tracking
    - Log
    Operation Mode

    - Gateway mode
    - Bridge mode
    - Repeater mode
    - WISP mode
    Other Function

    - Multi-language automatic adaptation
    - Domain Access
    - QR Code
    - LED Control
    - Reboot
    - Logout

    Others
    Package Contents

    - X5000R Wireless Router *1
    - Power Adapter *1
    - RJ45 Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
