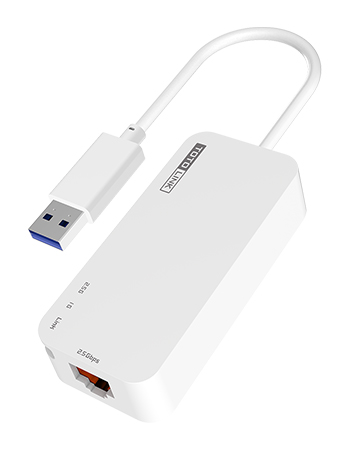

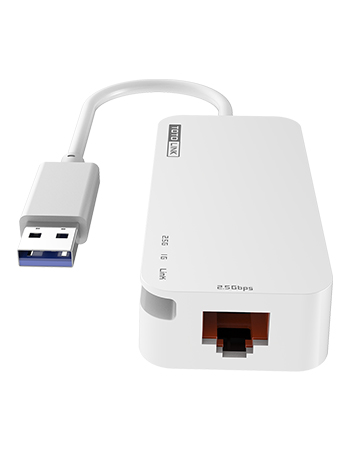

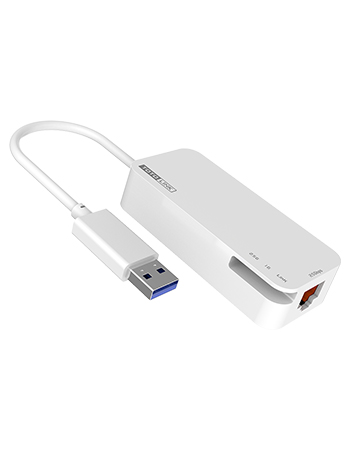

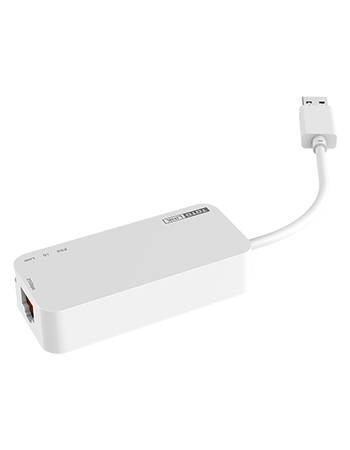

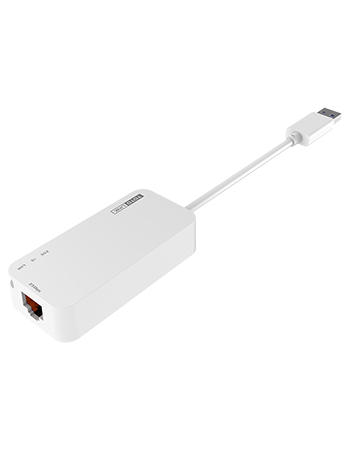

U2500

USB 3.0 with RJ45 2.5G Ethernet Adapter

  • 2.5G(10/100/1000/2500Mbps) Ethernet Port.
    USB 3.0 port, 10 times the transfer rate of USB 2.0.
    Plug & Play with Increased Compatibility.
    Lightweight & Super Portable.

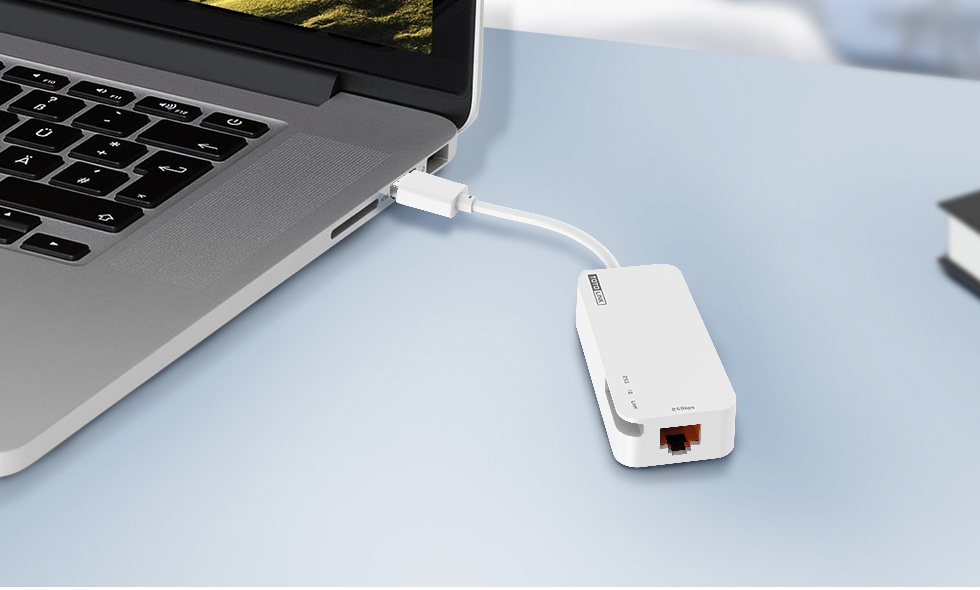

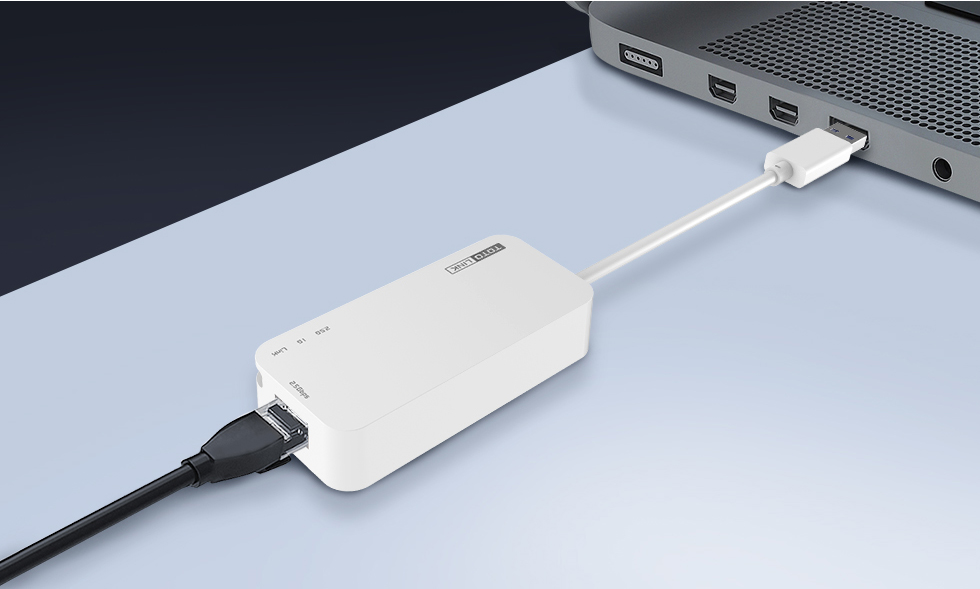

    Connects PC to Any Ethernet Network Through Any USB Port.
    Compatible with Windows XP/Vista/7/8/8.1/10/11, Mac OS 10.6~10.14 and Linux 4.XX.

  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - 2.5G(10/100/1000/2500Mbps) Ethernet Port.
    - USB 3.0 port, 10 times the transfer rate of USB 2.0.
    - Plug & Play with Increased Compatibility.
    - Lightweight & Super Portable.
    - Connects PC to Any Ethernet Network Through Any USB Port.
    - Replace the Bad Ethernet Port.
    - Compatible with Windows XP/Vista/7/8/8.1/10/11, Mac OS 10.6~10.14 and  Linux 4.XX.
      *Manual driver installation is required for Mac OS 10.6~10.14 and Linux 4.XX.

    General
    Chipset
    - RTL8156BG-CG
    Standards
    - IEEE 802.3/802.3u, 802.3ab, 802.3bz
    Port

    - RJ45 2.5G LAN Port
    - 10/100/1000/2500Mbps
    - USB-type-A 3.0 Port x 1
    Extended USB Cable
    - 20 cm (excluding cable gland)
    LED Indicator
    - Blue LED Link/Act x1, 1G x 1, 2.5G x 1
    Dimensions (L x W x H)
    - 98 x 30 x 17.5mm
    Others

    Package Contents

    - U2500 Ethernet Adapter *1
    - Quick Installation Guide *1
    System Requirement

    - Windows XP/Vista/7/8/8.1/10/11
    - Mac OS 10.6~10.14
    - Linux 4.XX
    Environment

    		 - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
