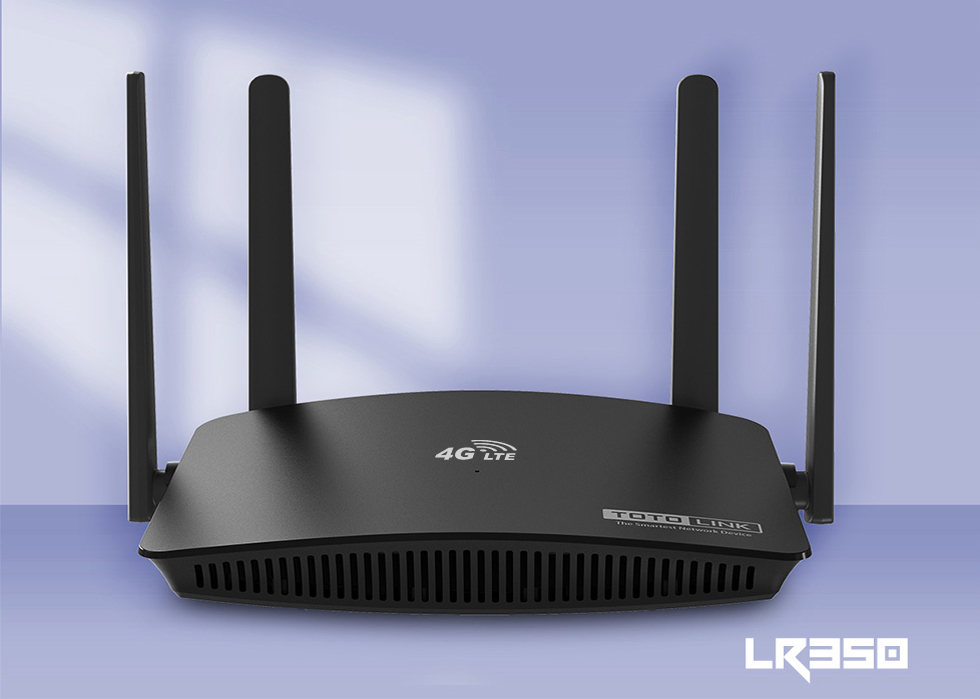

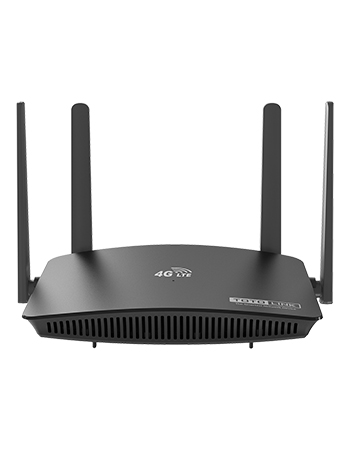

LR350

300Mbps Wireless 4G LTE Router

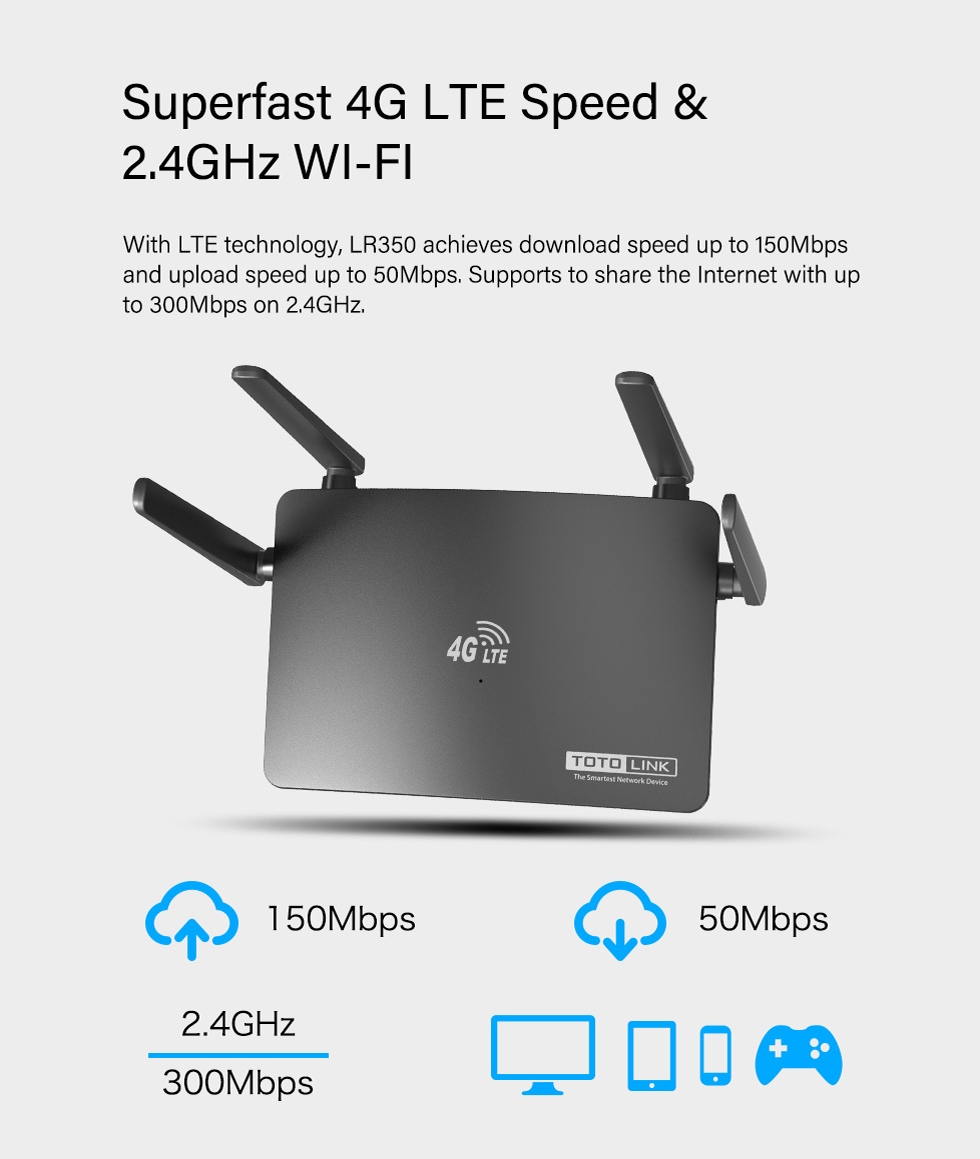

  • - Superfast 4G LTE Speed & 2.4GHz WI-FI
    - Plug and play, Easy access

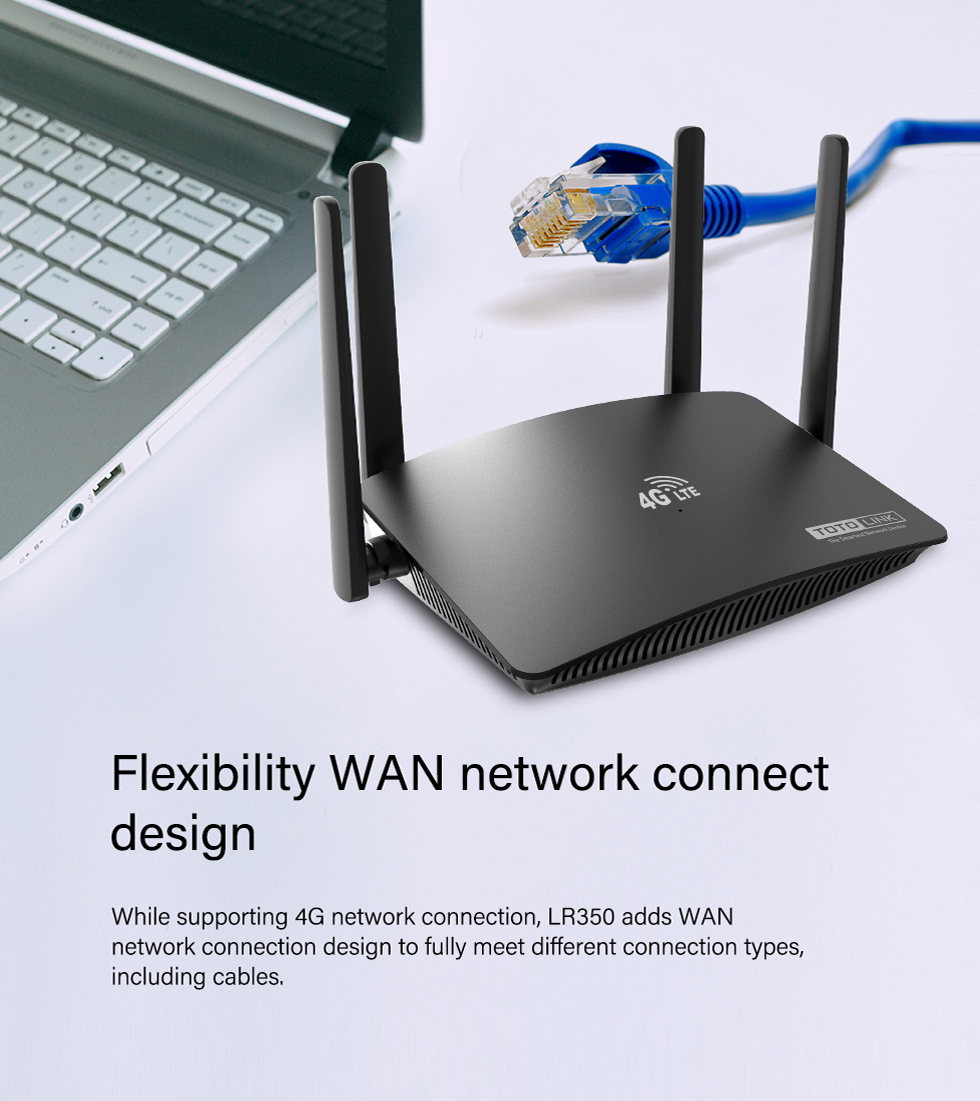

    - Flexibility WAN network connect design
    - 4 external high-gain antennas, WiFi signal is stronger, 4G signal is better

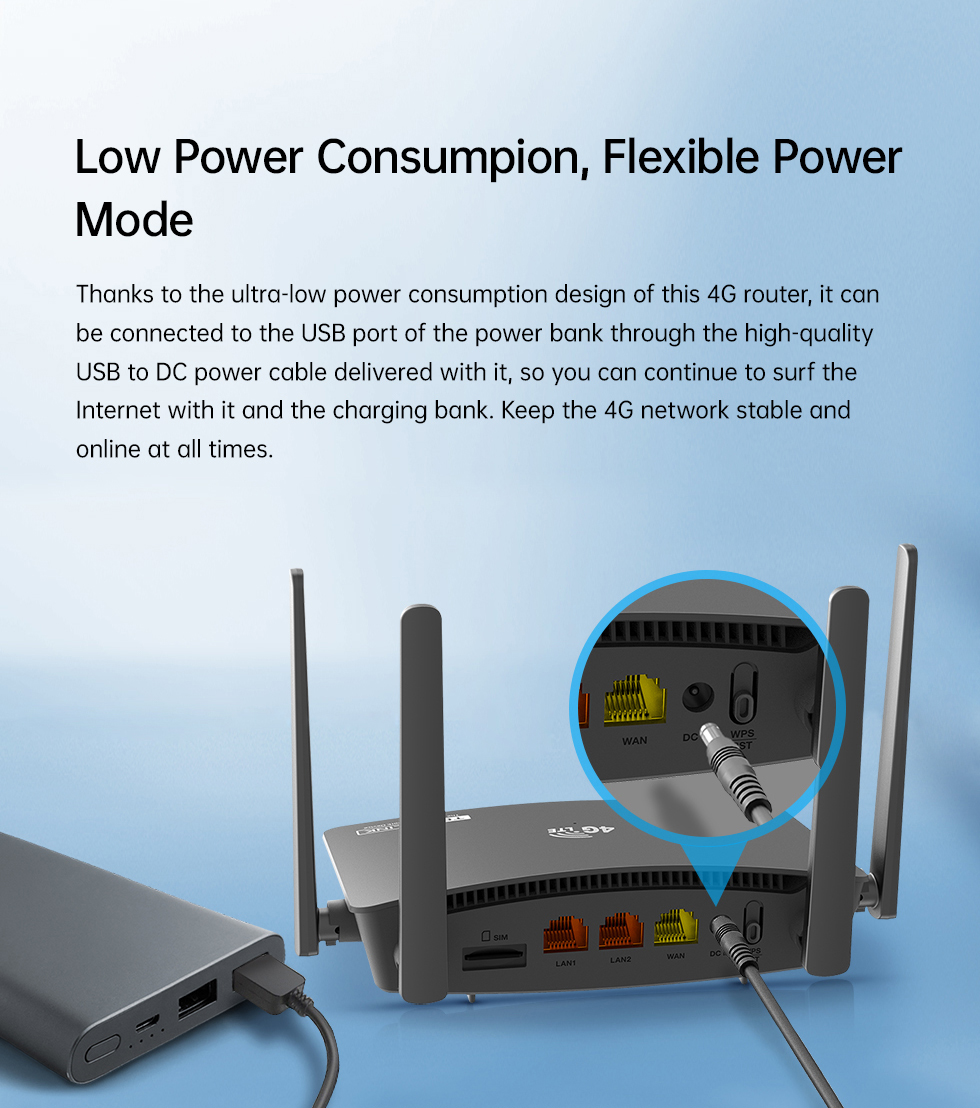

    - Low Power Consumpion, Flexible Power Mode


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies the IEEE 802.11b/g/n standards.
    - Convenient 4G network access, share your 4G LTE network with multiple Wi-Fi devices and achieves download speeds of up to150Mbps and upload speeds of up to 50Mbps.
    - 2.4GHz wireless speed up to 300Mbps.
    - Powerful , integrated antennas provide stable wireless connections and better coverage.
    - Supports the LTE-FDD,LTE-TDD,WCDMA,GSM network type.
    - Requires no configuration ,just  insert a SIM card and turn it on to enjoy a fast wireless connection.
    - Provides WPA/WPA2 mixed security.
    - Support router mode, 4G mode, one machine with multiple functions.
    - Supports IP, MAC, URL filtering and Port Forwarding.
    - Support  Power Supply through USB to dc power cable.
    - The maximum device capacity is 32 sets.
    Hardware

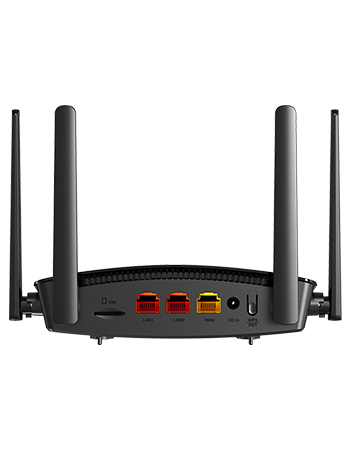

    Interface
    - 1 * 10/100M WAN Port
    - 2 *10/100M LAN Port
    - 1 * Standard SIM card slot

    Power Supply
    - 9 VDC / 0.8 A

    Button
    - 1 *WPS/RST

    LED Indicator
    - 1*SYS（Red/Green/Orange）

    Antenna

    - 2 * Fixed antennas (2.4G)
    - 2 * Fixed antennas (4G)

    Dimensions(L x W x H)

    - 143*95*37.25mm (not including antennas)
    Wireless
    Standards

    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency

    - 2.4GHz
    Data Rate

    - 2.4GHz: Up to 300Mbps

    EIRP

    - 2.4GHz < 20dBm
    Wireless Security

    - WPA/WPA2 Mixed
    Reception Sensitivity

    - 2.4G：
      11b 11M：-81dBm@8% PER
      11g 54M：-68dBm@10% PER
       11n HT20 MCS7：-65dBm@10% PER
              HT40 MCS7：-62dBm@10% PER
    LTE Mode

    LTE Network Type and Band (1)
    - FDD: B1//B3/B7/B8/B20/B28
    - TDD: B38/B40/B41
    - WCDMA: B1/B8
    - GSM: 900/1800

    LTE Network Type and Band (2)
    - FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
    - TDD: B40
    - WCDMA: B1/B2/B4/B5/B8
    - GSM: 850/900/1800/1900

    LTE Network Type and Band (3)
    - FDD: B1/B3/B5/B8
    - TDD: B34/B38/B39/B40/B41
    - WCDMA: B1/B5/B8
    - GSM: 900/1800
    Software

    Home State

    - WAN information,

    - LAN information,

    - System information

    WAN Type

    - Static IP,

    - DHCP,

    - PPPoE,

    - 4G

    Wireless Functions

    - Multiple SSIDs,

    - MAC Authentication,

    - WPS

    Firewall

    - MAC Filtering,

    - IP/Port Filtering,

    - URL Filtering,

    - DMZ

    Management

    - Password,

    - System Config,

    - Time Setup,

    - Firmware update,

    - System Log

    Device  capacity

    - Max 32 users
    Others

    Package Contents
    - LR350 Wireless Router * 1
    - Power Adapter * 1
    - USB to dc power cable * 1
    - SIM Adapter (Nona, Micro)
    - Quick Installation Guide * 1

    Environment

    - Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
