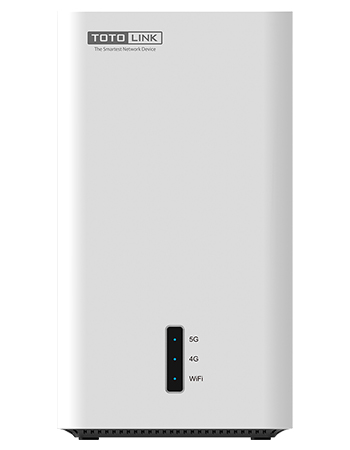

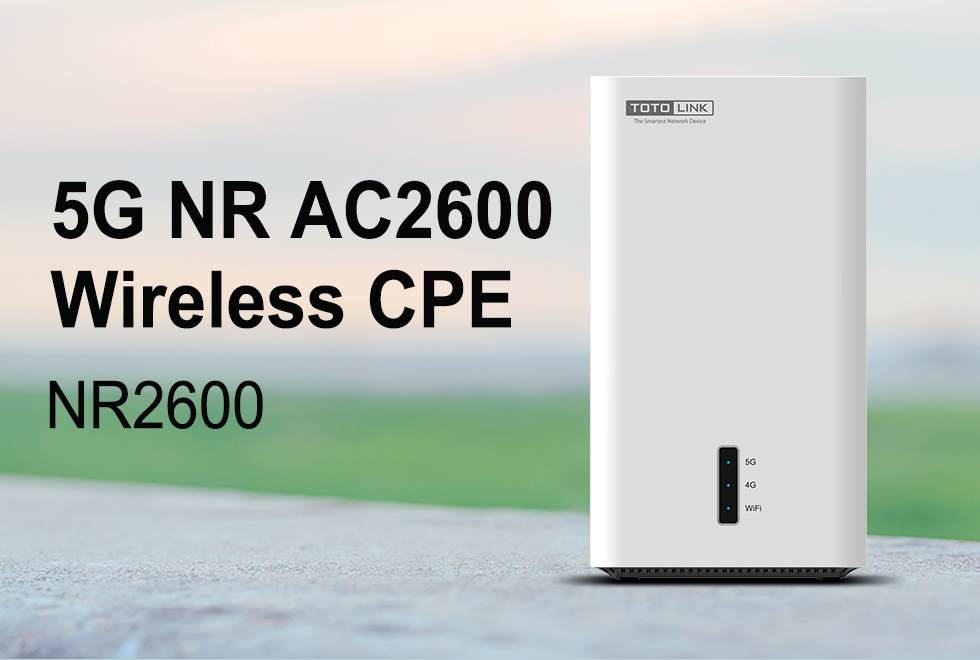

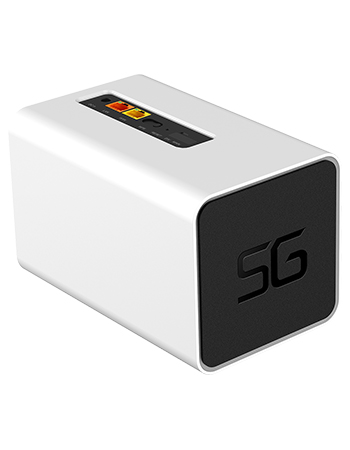

NR2600

5G NR AC2600 Wireless CPE

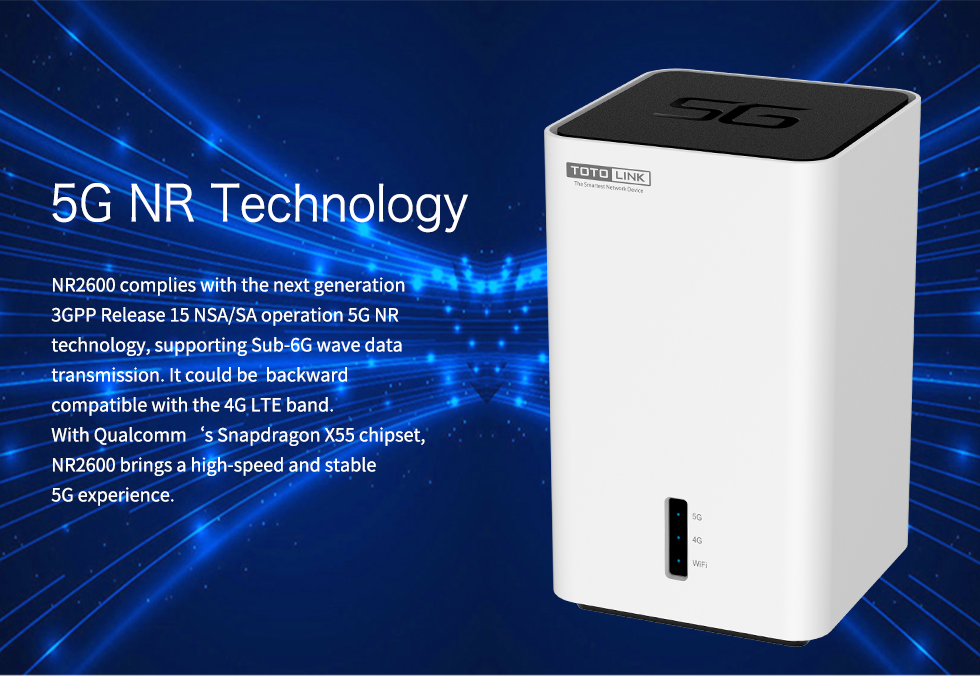

  • - 5G NR Technology
    - Dual-core 1.35GHz Powerful CPU

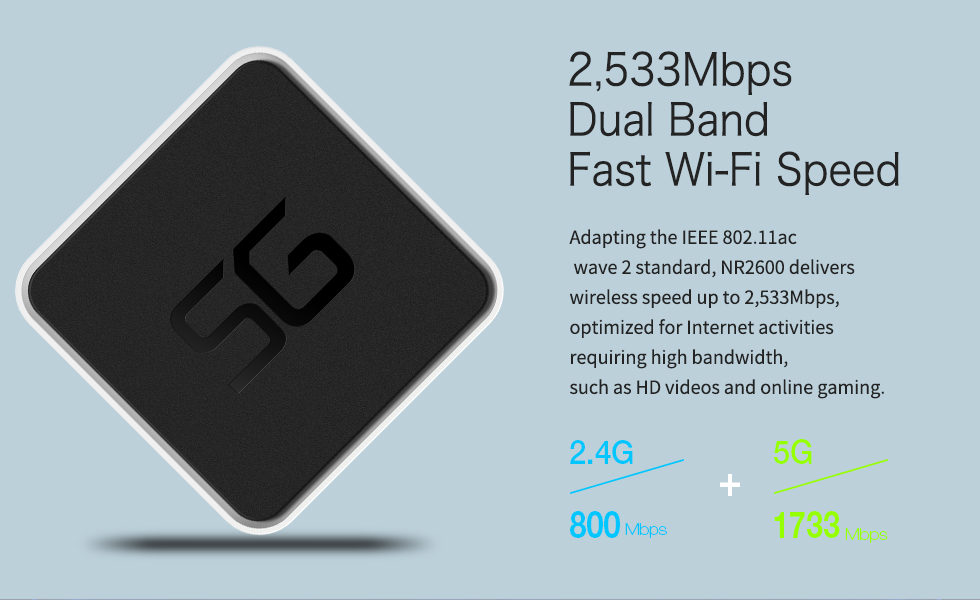

    - 2,533Mbps Dual Band Fast Wi-Fi Speed
    - Portable Wi-Fi Hotspot

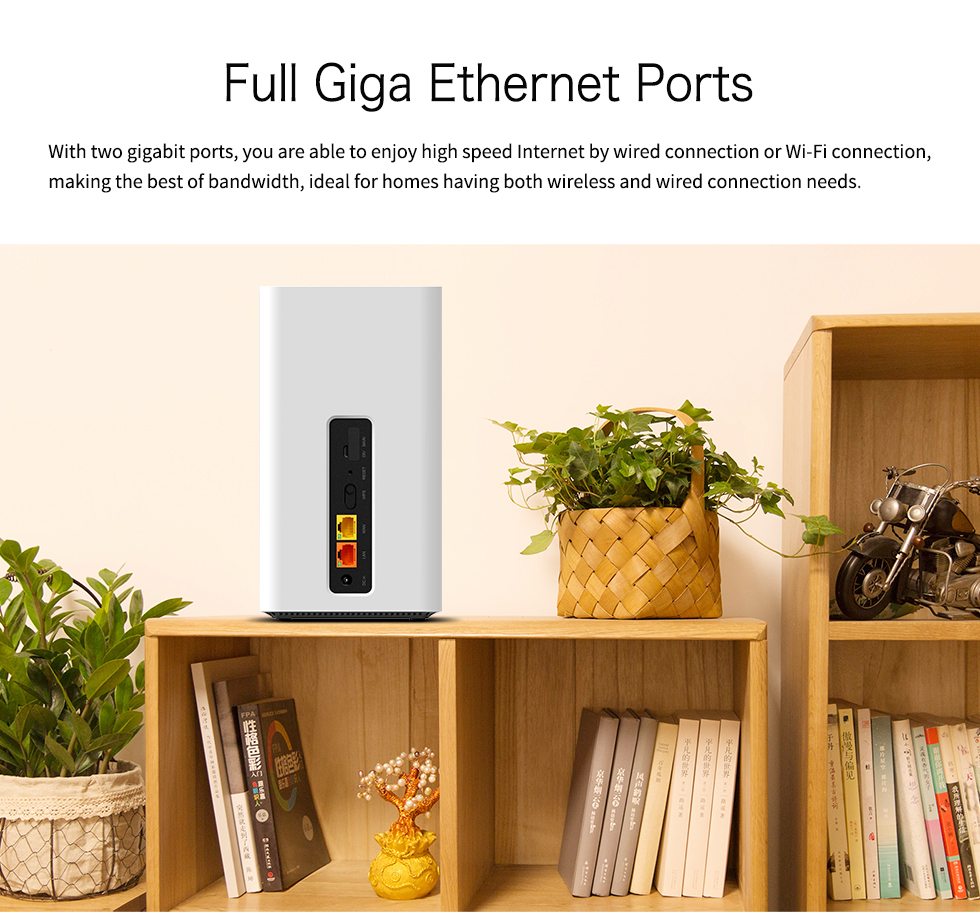

    - Full Giga Ethernet Ports
    - Wider Wi-Fi Coverage
    - Support Max. 128 Users Simultaneously
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the next generation 3GPP Release 15 NSA/SA operation 5G NR technology.
    - 5G NR 5G NR transmission rate is 10X faster than the 4G CAT4 rate.
    - 1,733Mbps on 5GHz and 800Mbps on 2.4GHz band provides total 2,533Mbps simultaneously.
    - Middle power design on both bands is perfect for long distance wireless transmission.
    - Portable 5G/4G Wi-Fi Hotspot brings great convenience to users.
    - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection.
    - MU-MIMO technology allows data transmission to multiple devices at the same time.
    - Three gigabit ports ensure high speed wired and wireless connection.
    - Intuitive Web UI and APP ensures quick and simple installation.
    - Support Max.128 devices simultaneously.
    Hardware

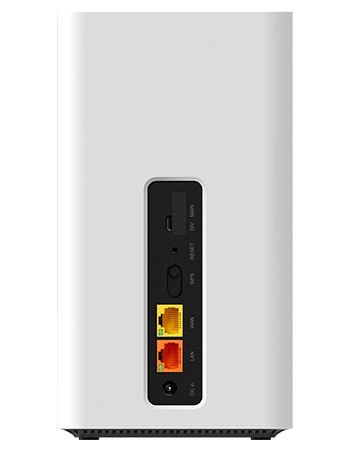

    Interface

    - 1* 10/100M/1000M WAN Port (With LED),

    - 1* 10/100M/1000 LAN Port(With LED),

    - 1* Nano-SIM Card slot,

    - 1* DC IN,

    - 2* 5G NR Diversity antenna port

    Flash/RAM

    - 128MByte / 512MByte
    Button

    - 1*RST/WPS,

    - 1*Power On/Off

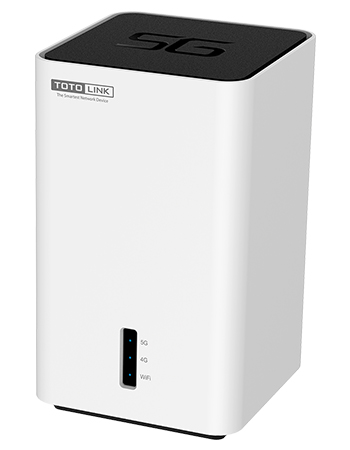

    LED Indicators

    - 1* Wi-Fi,

    - 1* 5G(NR),

    - 1* 4G(LTE),

    - 1* LAN，

    -1* WAN，

    Antenna

    - 8* internal 5G NR antennas,

    - 4* internal Wi-Fi dual band antennas,
    Device  Capacity

    - 2.4G: Max 64 users

    - 5G: Max 64users

    - total for 128 users



    Wireless
    Standards

    - IEEE802.11ac,

    - IEEE 802.11n,

    - IEEE 802.11g,

    - IEEE 802.11a,

    - IEEE 802.11b

    Frequency Band

    - 2.4GHz & 5GHz( Dual Band concurrent)

    Signal Rate

    - 2,533Mbps (2.4GHz: 800Mbp  5GHz: 1,733Mbps)
    EIRP

    - 2.4GHz < 20Bm

    - 5GHz < 20dBm

    Reception Sensitivity

    - 2.4G:

      11b 11M：-81dBm@8% PER

      11g 54M：-68dBm@10% PER

      11n HT20 MCS7：-65dBm@10% PER

             HT40 MCS7：-62dBm@10% PER



    - 5G:

      11a 54M：-68dBm@10% PER

      11n HT20 MCS7：-65dBm@10% PER

             HT40 MCS7：-62dBm@10% PER

      11ac VHT80 MCS9：-51dBm@10% PER

    5G NR Features

    5G NR  chip

    		 - Qualcomm X55

    LTE Network Type and Band

    - 5G NR: n41/n77/n78/n79

    - 4G: LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28

            LTE-TDD: B34/B38/B39/B40/B41/B42/B43
    Others

    Certification

    		 - CE, FCC, ROHS，CCC （coming soon）

    Package Contents

    -  AC2600 Wireless Dual Band 5G NR CPE

    -  Quick Installation Guide

    -  Power Adapter

    -  Ethernet Cable

    -  Micro/Nano to Standard SIM Card Adapter

    Environment

    - Operating Temperature: 0℃~50℃ (32 ℉~122℉)

    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

    - Operating Humidity: 10%~90% non-condensing

    - Storage Humidity: 5%~90% non-condensing
