- Complies with 802.11ac/a/b/g/n standards.

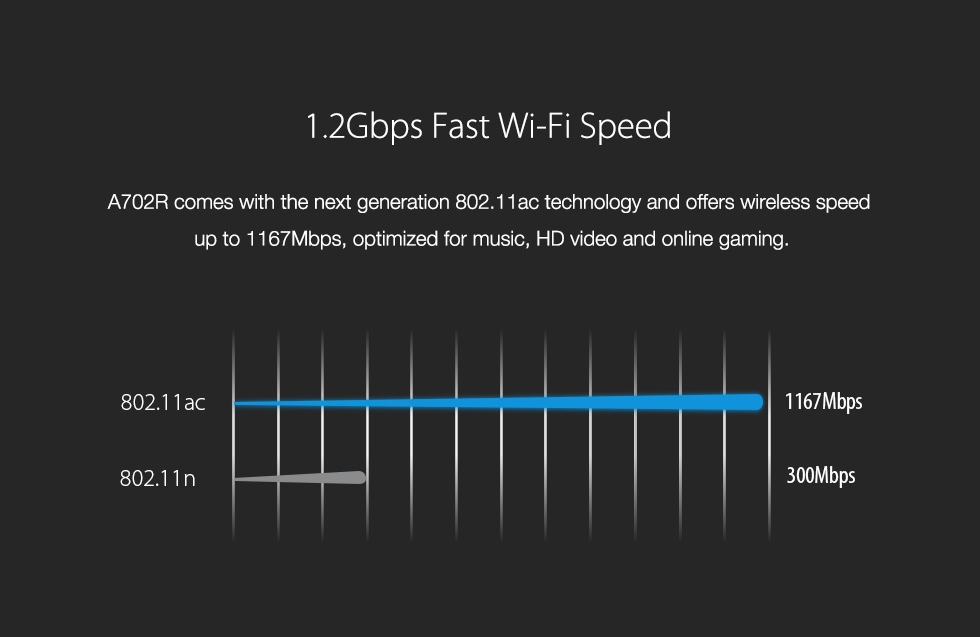

- 300Mbps on 2.4GHz and 867Mbps on 5GHz band simultaneously.

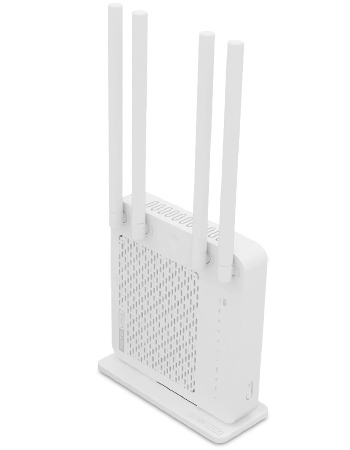

- Four fixed high gain antennas with advanced MIMO technology.
- Supports DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP/MAC.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal Repeater and WDS function for easy Wi-Fi extension.
- Multi-SSID allows users to create multiple Wi-Fi networks
- Supports easy and fast IPTV settings.
- Easy setup with auto popup window simplifies the basic settings.
| HARDWARE FEATURES | |
|---|---|
| Interface | - 4 *100Mbps LAN Ports |
| - 1 *100Mbps WAN Port | |
| Power Supply | - 9V DC/0.8A |
| Chipset | - Realtek8197DL+8192ER+8812AR |
| Flash/SDROM | - 8M/64M |
| Antenna | - 2 *5dBi fixed antennas (2.4G), 2 *5dBi fixed antennas (5G) |
| Button | - 1 *RST Button |
| - 1 *WPS Button | |
| LED Indicators | - 1 *Power, 1 *CPU, 1 *2.4G, 1 *5G, 1 *WAN, 4 *LAN |
| WIRELESS FEATURES | |
|---|---|
| Standards | - IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| RF Frequency | - 2.4GHz/5GHz |
| Data Rate | - 2.4GHz: Up to 300Mbps |
| - 5GHz: Up to 867Mbps | |
| EIRP | - 2.4GHz < 20dBm |
| - 5GHz < 23dBm | |
| Wireless Security | - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Reception Sensitivity | - 2.4GHz: 11b 11M: - 85 dBm |
| 11g 54M: - 72 dBm | |
| 11n HT20 MCS7: - 69 dBm | |
| HT40 MCS7: - 66 dBm | |
| - 5GHz: 11a 54M: - 70 dBm | |
| 11ac HT80 MCS7: - 53 dBm | |
| 11n HT20 MCS7: - 67 dBm | |
| HT40 MCS7: - 64 dBm | |
| SOFTWARE FEATURES | |
|---|---|
| Operation Mode | - Wireless ISP Client Router |
| - Wireless Client | |
| - Repeater(Range Extender) | |
| - Router | |
| - Bridge with AP | |
| - Client | |
| WAN Type | - DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP |
| IPv6 Network | - IPv6 WAN Setting |
| - IPv6 LAN Setting | |
| - RADVD for IPv6 | |
| - IPv6 tunnel to IPv4 | |
| Wireless Functions | - Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS, IPTV |
| Schedule | - Reboot Schedule, Wireless Schedule |
| Firewall | - MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ |
| Management | - QoS, TR-069 config, DDNS, DoS, WMM, Access Control, etc. |
| - | - |
| Others | - |
| Package Contents | - A702R Wireless Router *1 |
| - Power Adapter *1 | |
| - Ethernet Cable *1 | |
| - Quick Installation Guide *1 | |
| Environment | - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) |
| - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| - Operating Humidity: 10%~90% non-condensing | |
| - Storage Humidity: 5%~90% non-condensing | |
