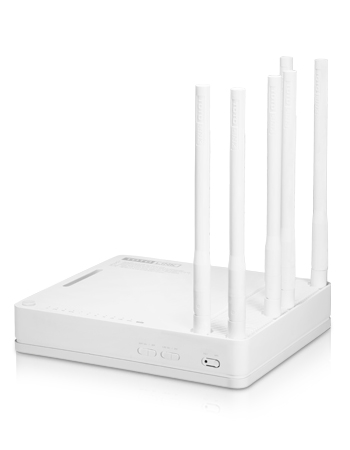

A6004NS

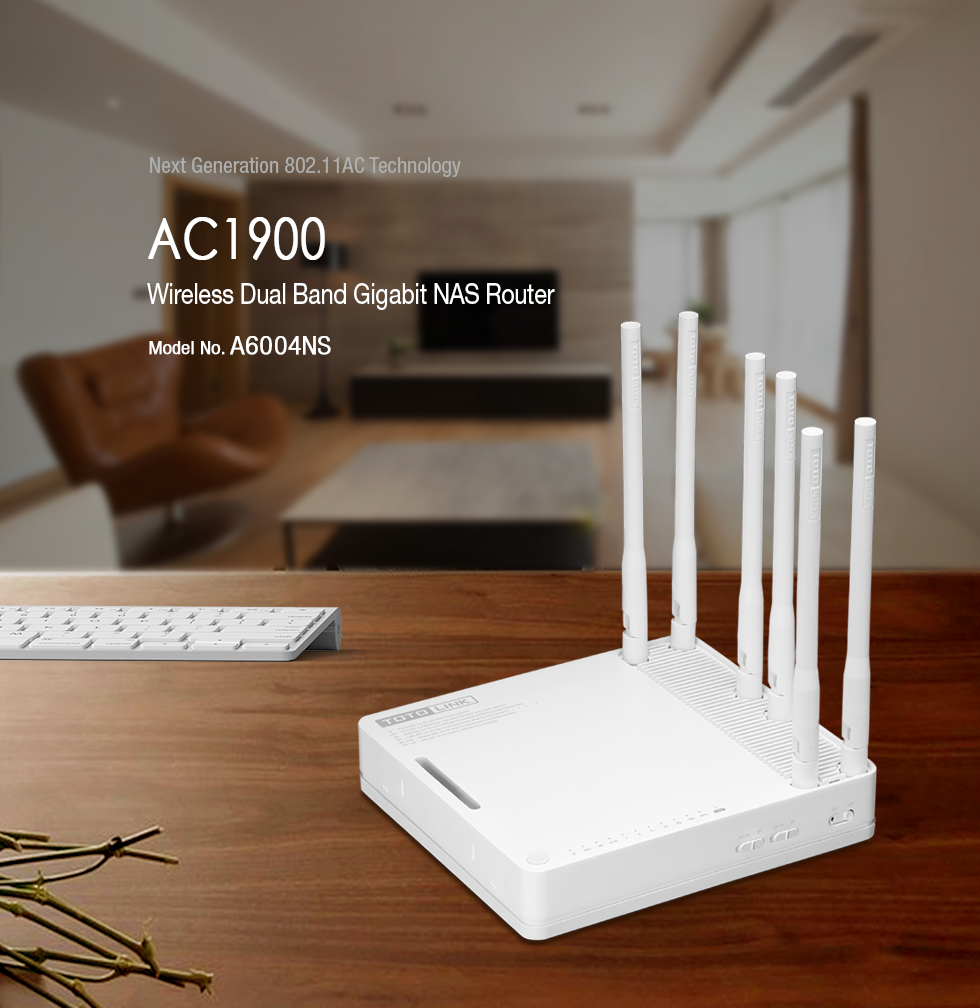

AC1900 Wireless Dual Band Gigabit NAS Router

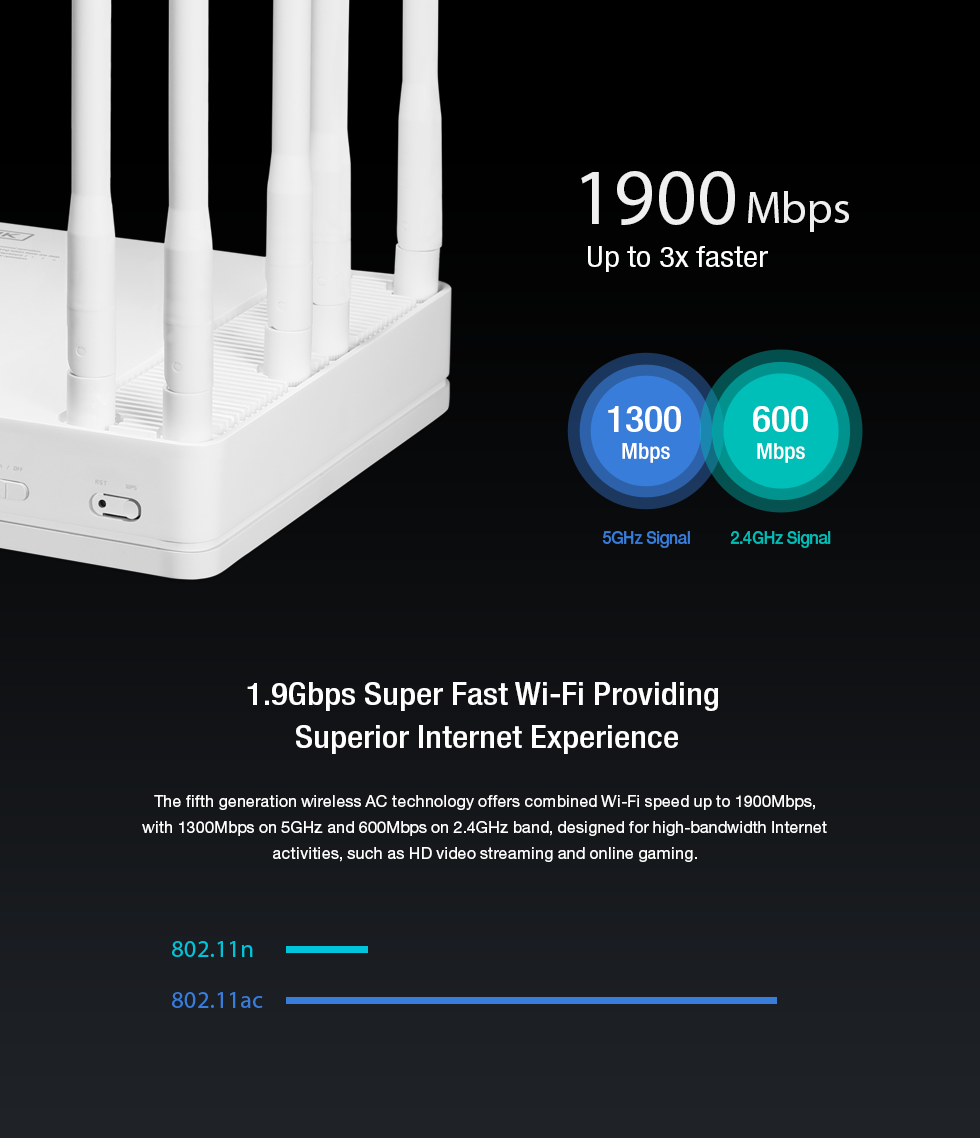

  • - 1.9Gbps Super Fast Wi-Fi Providing Superior Internet Experience

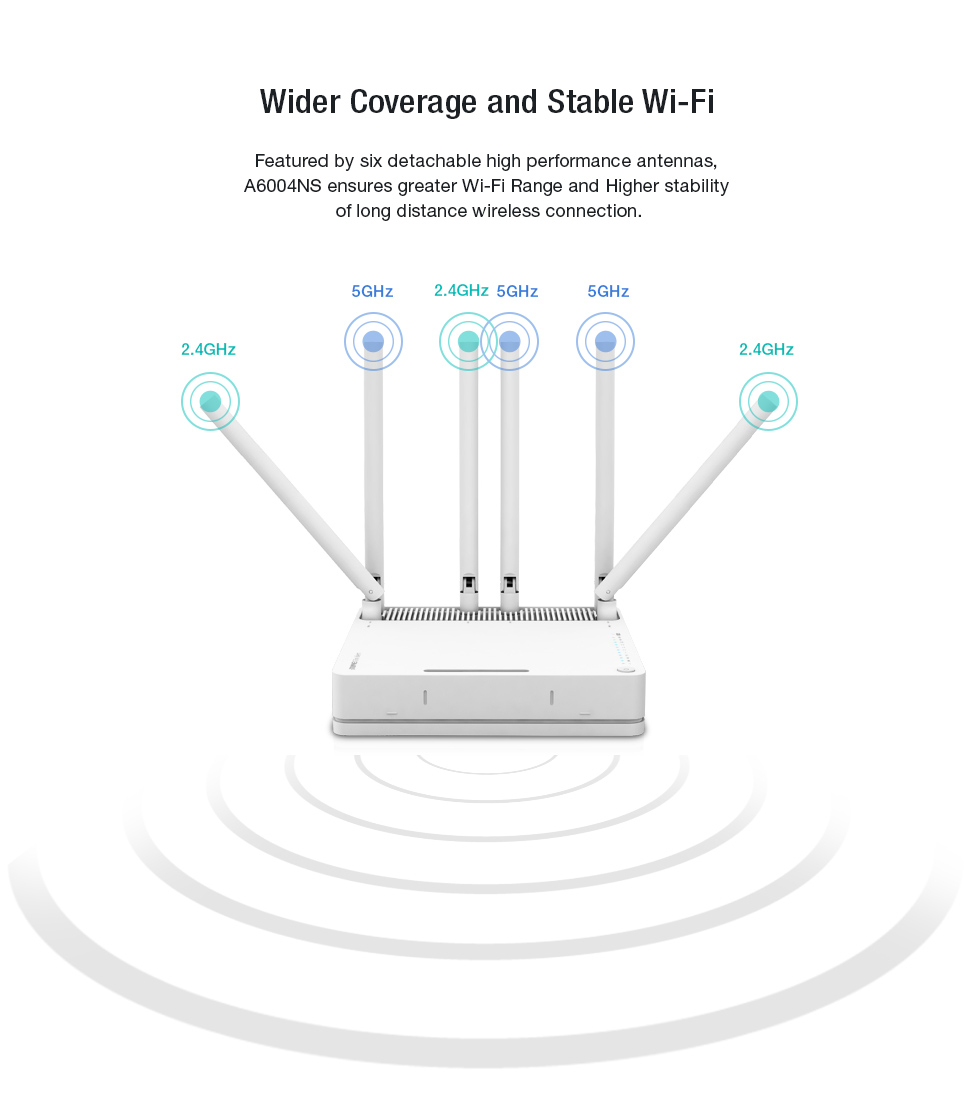

    - Wider Coverage and Stable Wi-Fi

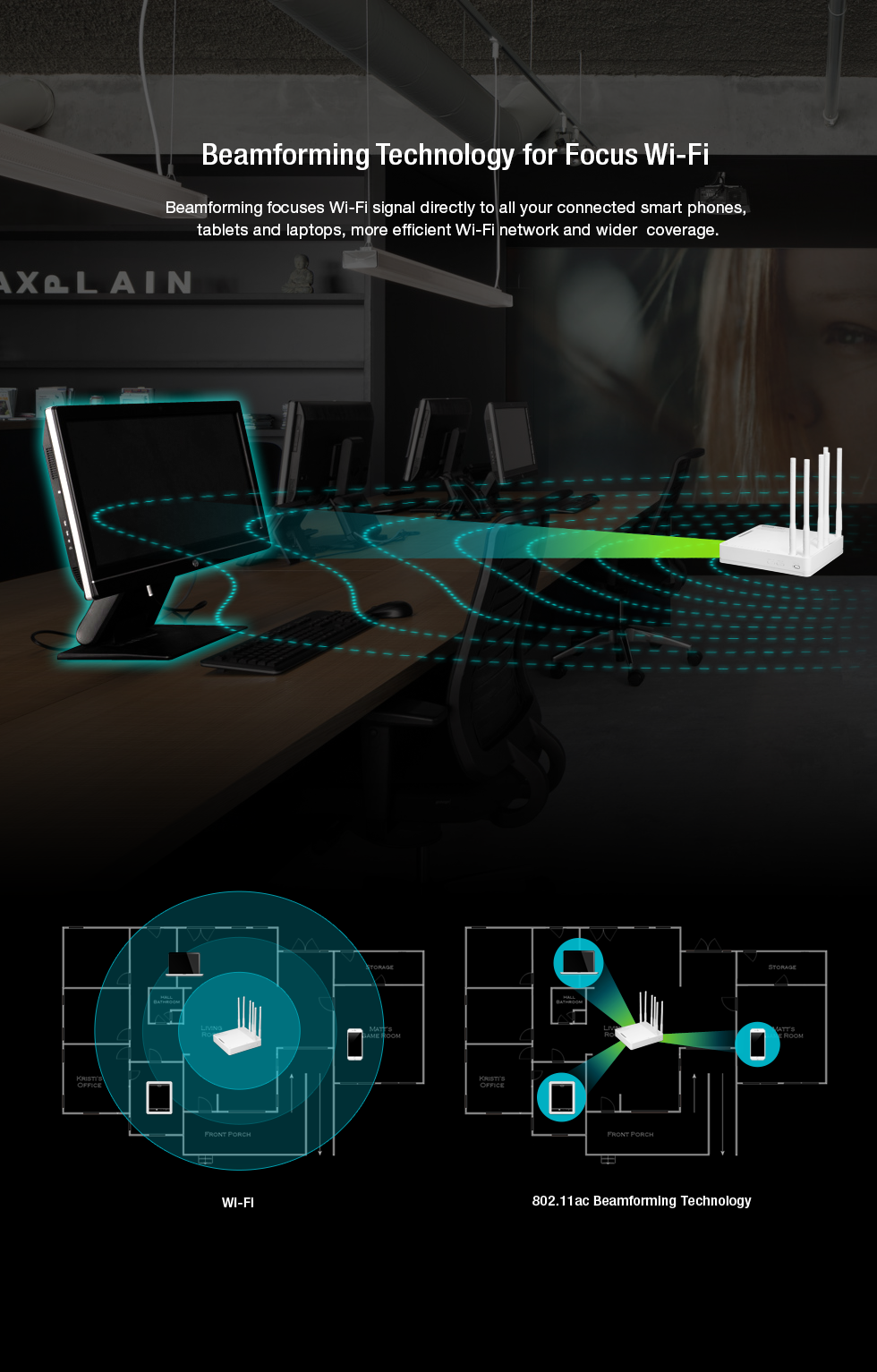

    - Beamforming Technology for Focus Wi-Fi

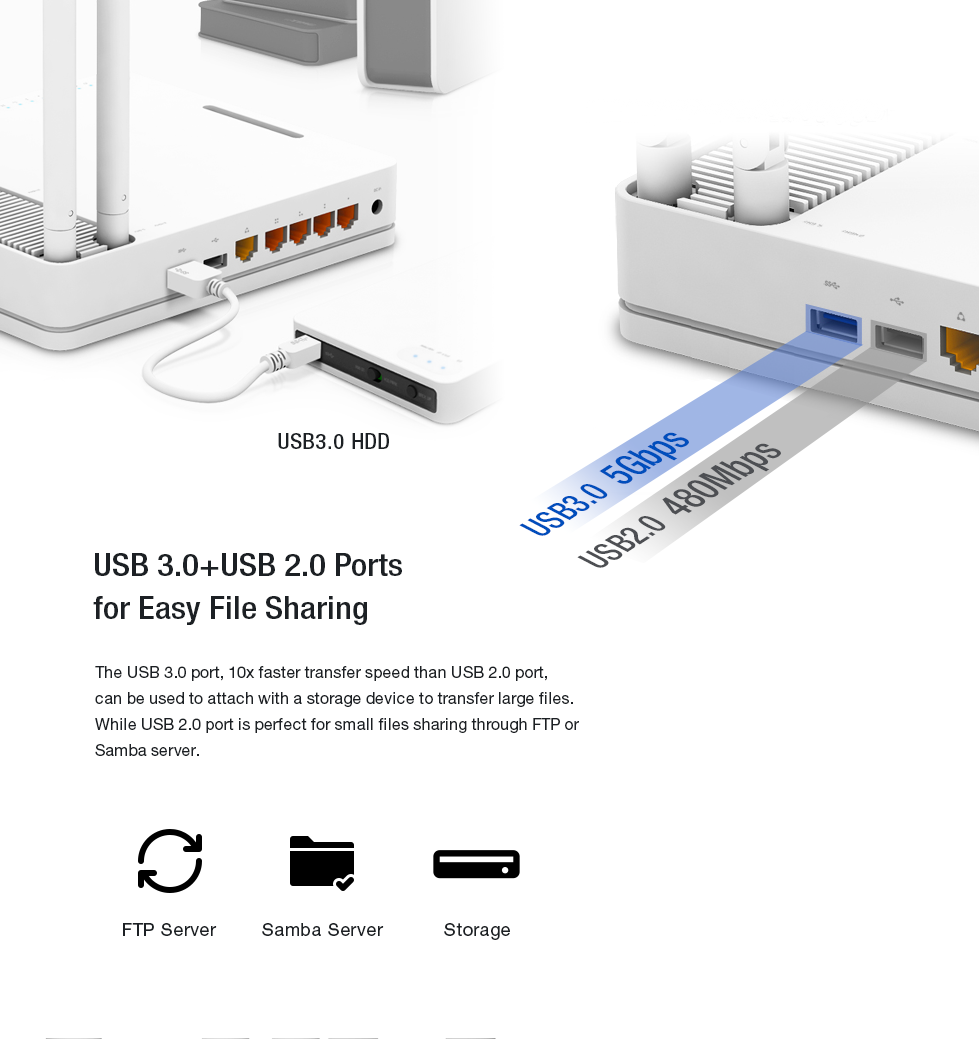

    - USB 3.0+USB 2.0 Ports for Easy File Sharing

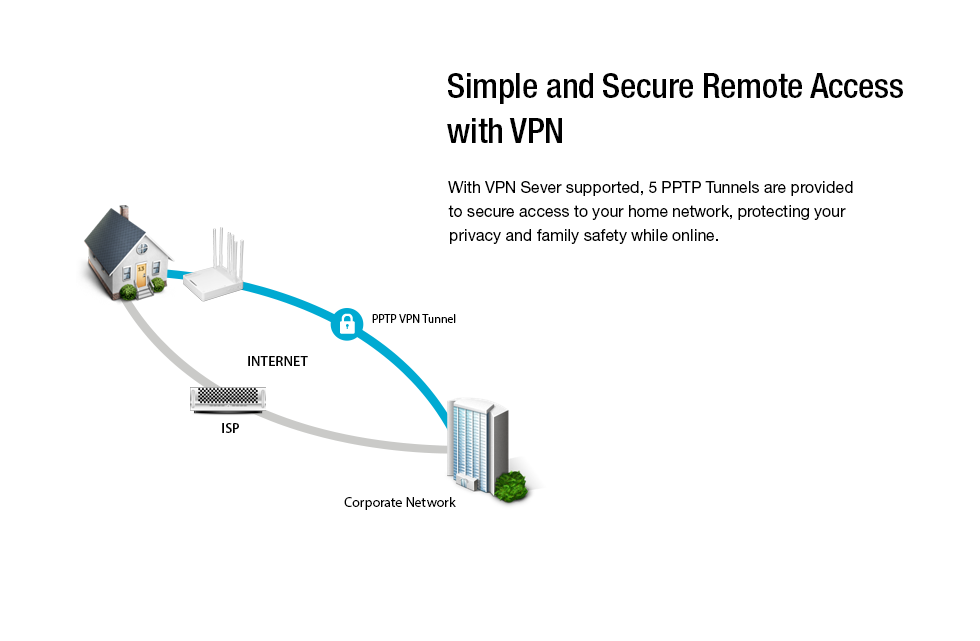

    - Simple and Secure Remote Access with VPN

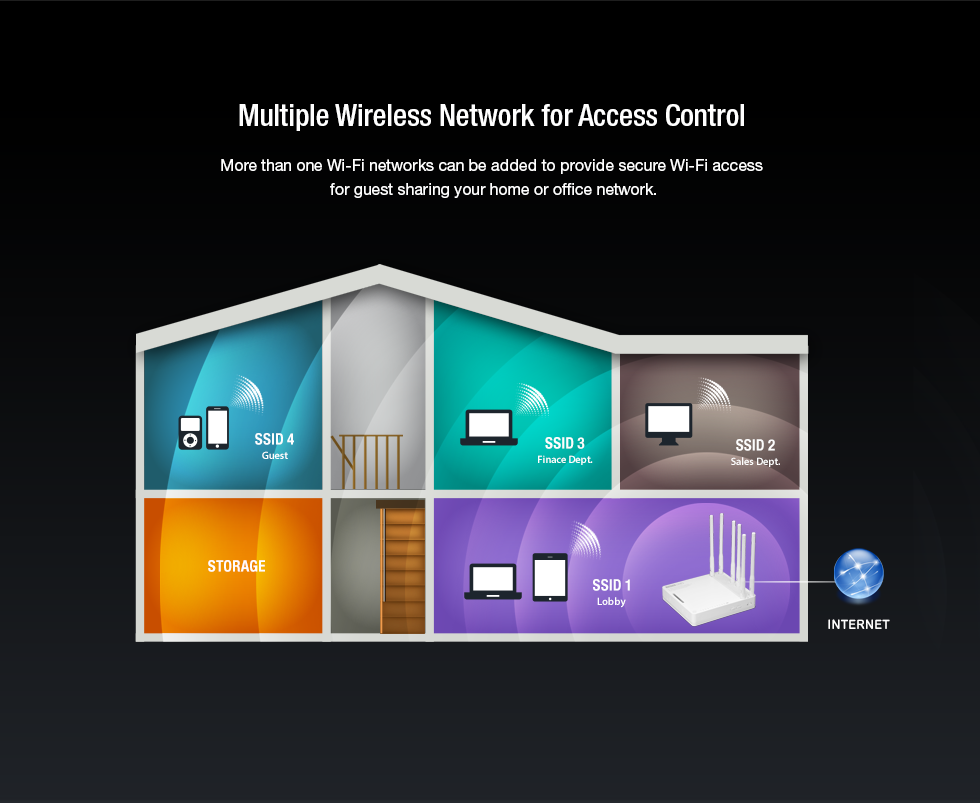

    - Multiple Wireless Network for Access Control
    - Parental Control

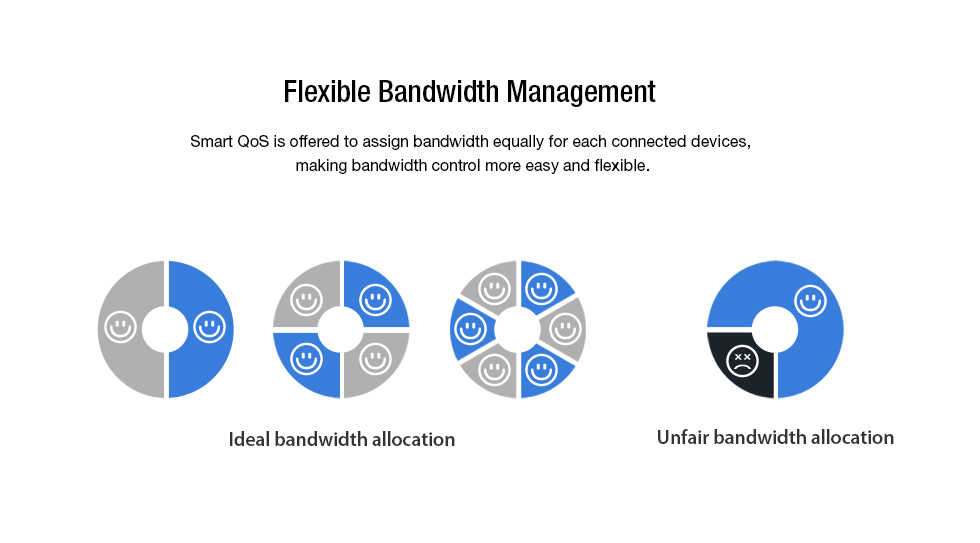

    - Flexible Bandwidth Management
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs


    • - Complies with next generation 11ac Wi-Fi standard.

    - 1.3Gbps on 5GHz and 600Mbps on 2.4GHz band for total 1.9Gbps simultaneously.

    - 1GHz dual core processor.

    - Six detachable high performance antennas.

    - Five gigabit Ethernet ports ensure ultrafast data transmission rate.

    - Beamforming technology concentrates Wi-Fi signal transmission.

    - Provides 64/128-bit WEP,  WPA / WPA2 and WPAPSK / WPA2PSK security.

    - One USB 3.0 port and one USB2.0 port supports FTP Service, Samba Service,Torrent, URL Service, Media Server and USB Tethering.

    - Supports VPN server, Universal Repeater, WDS, Multiple SSIDs, WPS, Smart QoS, Wi-Fi Scheduler

    HARDWARE FEATURES

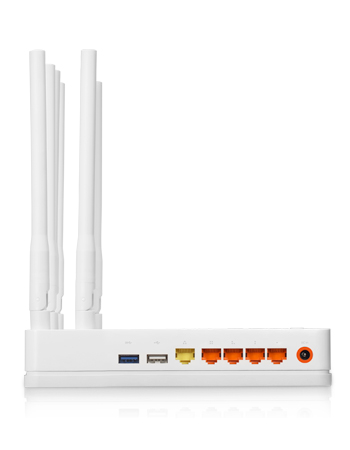

    Interface  4 *10/100/1000Mbps LAN Ports
      1 *10/100/1000Mbps WAN Port
      1 *USB 3.0 Port
      1 *USB 2.0 Port
    Antenna  3 *5dBi detachable antennas(2.4GHz)
      3 *5dBi detachable antennas(5GHz )
    Power Supply  12V DC/ 3.5A
    Buttons  1 *WPS Button
      1 *RST Button
      1 *Wi-Fi ON/OFF Button
      1 *LED ON/OFF Button
      1 *Power Button
    LED Indicator  1 *Power, 1 *CPU, 1 *5G Wi-Fi, 1 *2.4G Wi-Fi, 4 *LAN, 1 *WAN,1 *USB2.0, 1 *USB3.0
    Dimensions  7.8 x 7.1 x 1.4 in. ( 197.5 x 180.1 x 36 mm )
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4GHz & 5GHz
    Data Rate  5GHz: Up to 1.3Gbps
      2.4GHz: Up to 600Mbps
    EIRP  2.4GHz < 20dBm
      5GHz < 23dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Reception Sensitivity (2.4GHz)  11b 11M: - 85 dBm
      11g 54M: - 72 dBm
      11n HT20 MCS7: - 69 dBm / HT40 MCS7: - 66 dBm
    Reception Sensitivity (5GHz)  11a 54M: - 70 dBm
      11ac HT80 MCS7: - 53 dBm
      11n HT20 MCS7: - 67 dBm / HT40 MCS7: - 64 dBm
    SOFTWARE FEATURES
    WAN Type  PPPoE/DHCP/Static IP
    Wireless Functions  Multiple SSID, Wireless Bridge, MAC Authentication, WDS, WPS, Wireless Scheduler
    NAT / Routing  Port Forwarding, DMZ/Twin IP, Port Trigger
    Firewall  Internet Access Control: IP/MAC Address filtering
      Net Detector
    Utility  VPN, DDNS, WOL, Host Scan, IPTV
    Traffic  QoS, Connection Control
    System  System Log, Admin Setup, Firmware Upgrade, System Time, Config Backup and Restore
    USB Storage  FTP Service
      Windows File Sharing(Samba)
      Torrent
      Media Server
      URL Service, USB Tethering
    Others  -
    Package Contents  A6004NS Wireless Router *1
      3 *2.4GHz antennas, 3 *5GHz antennas
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0?~40 ? (32 ?~104?)
      Storage Temperature: -40?~70 ? (-40 ?~158?)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
