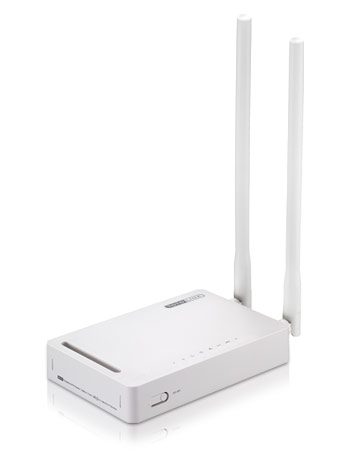

N300RB

300Mbps Wireless N Router

  • - 300Mbps Wireless N Speed
    - 2*8dBi Antennas
    - Multiple Wireless Network for Access Control
    - Simple Remote Access with VPN
    - Smart QoS for Intelligent Bandwidth Management
    - Advanced Security
    - Easy Quick Setup
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs


    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.

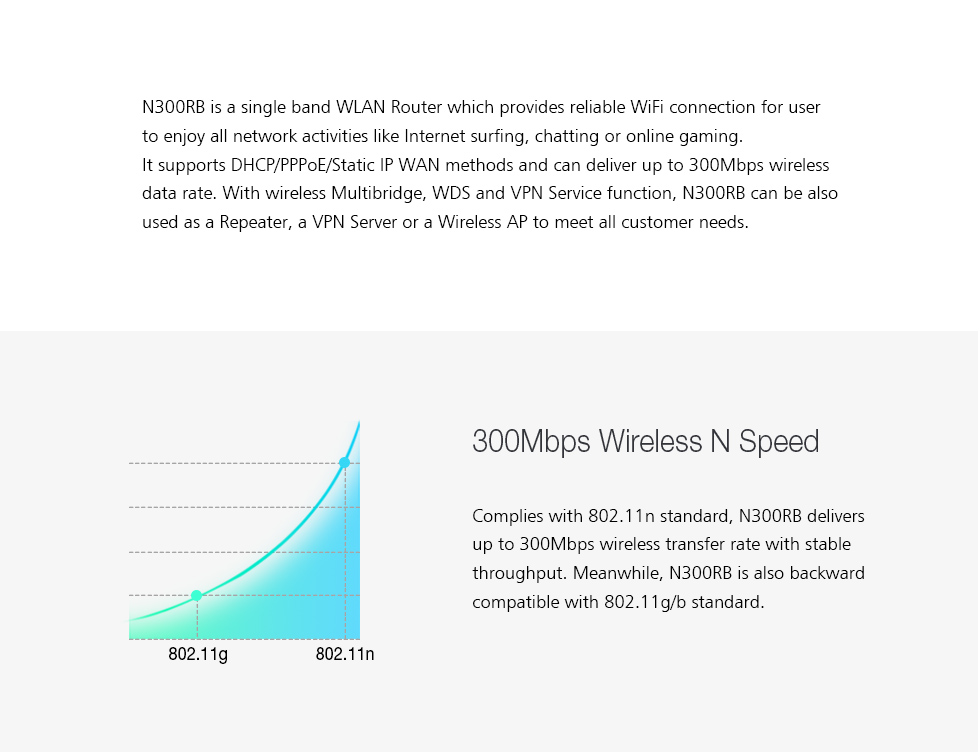

    - Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports PPPoE, DHCP and Static IP broadband functions.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    -  Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, MAC, URL filtering and Port Forwarding.
    - Universal repeater and WDS function for easy Wi-Fi extension.
    - Smart QoS function can assign bandwidth to PCs equally by one click.
    - The VPN server can not only protect the privacy of your information, but also simplify network management.
    HARDWARE FEATURES

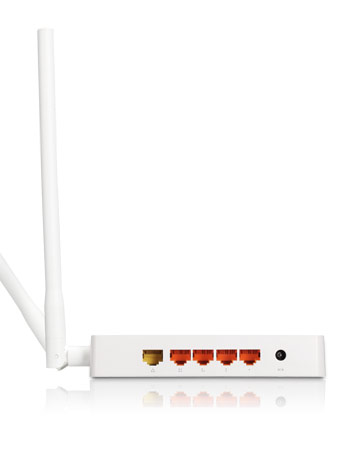

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.8A
    Button  RST/WPS Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Dimensions  5.6 x 3.7 x 1.0 In. (144 x 95.4 x 25.5mm)
    Antenna  2 *8dBi Detachable Antennas
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network  vInternet Setup: PPPoE/DHCP/Static IP
      LAN/DHCP Setup: DHCP Server/DHCP Static Lease
    Wireless  Multiple BSS
      Multibridge(Repeater): Wireless Bridge/Wireless WAN
      MAC Authentication
      WDS
      WPS
    NAT/Routing   Port Forwarding
      DMZ/Twin IP
      Port Trigger
      Routing Table
    Firewall  Internet Access Control: IP/MAC Address filtering
      Net Detector
      Remote/Internal access list
    Utility  VPN Server, DDNS, WOL, Host Scan
    Traffic   QoS Setup, Connection Control, Wired Port Setup
    Management  System Log
      Administrator Setup
      Firmware Upgrade
      System Time
      Configuration backup/restore
    Others  -
    Package Contents  N300RB Wireless Router *1
      2*8dBi antennas
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
