N200RE

300Mbps Wireless N Router

  • - 300Mbps Wireless N Speed
    - sharing on different devices.
    - Stable Performance
    - Easy Setup
    - Parental Control
    - Advanced Security
    - Multiple Networks Available

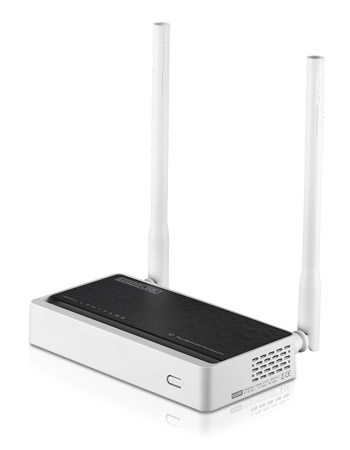

  • N200RE is a wireless router designed to allow you to access the Internet by secured Wi-Fi connection. It complies with 802.11n standard and delivers Wi-Fi speed up to 300Mbps. The most advanced WPA/WPA2 encryption method prevents your wirleess network from unauthorized access. Besides, it can be used as a repeater or a AP. Generally, N200RE is a high performance and cost-effective solution for home and small offices.


    300Mbps Wireless N Speed
    Complies with 802.11n standard, N200RE delivers up to 300Mbps wireless transfer rate and allows Wi-Fi network sharing on different devices.



    Stable Performance
    With two high performance antennas, N200RE ensures stable Wi-Fi connection and high speed Internet access.



    Easy Setup
    For Wi-Fi devices first connected to N200RE, the Log In page will show up automatically, configuration has never been so easier.



    Parental Control
    Wi-Fi Schedule helps parents to set up time schedule for Wi-Fi network access,  effectively preventing children caught in the Web, better for parental control.



    Advanced Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to secure Wi-Fi connection and avoid any unauthorized use.



    Multiple Networks Available
    More than one Wi-Fi networks can be added to provide secure Wi-Fi acess for guest sharing your home or office network.

    - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports DHCP/Static IP/PPPoE broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, Port, MAC, URL filtering and Port Forwarding.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Supports VLAN function for IPTV and other internet services.
    - Universal repeater and WDS function for easy Wi-Fi extension.

    HARDWARE FEATURES

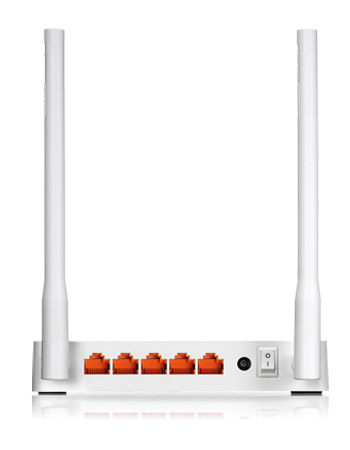

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.5A
    Antenna  2 *5dBi fixed antennas
    Button  RST·WPS Button, Power ON/OFF Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Dimensions(L x W x H)  5.8 x 3.0 x 1.0 in. ( 147.5 x 76 x 25 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2 Security (AES/TKIP)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Gateway
      Repeater Bridge
      Repeatr WISP
    WAN Type  DHCP/ Static IP/PPPoE
    Wireless Functions  Multiple SSID, Access Control, Wireless Repeater, WDS, WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
    Management  DDNS, Denail of Service, Upgrade Firmware
    Package Contents  N200RE Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Install Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
