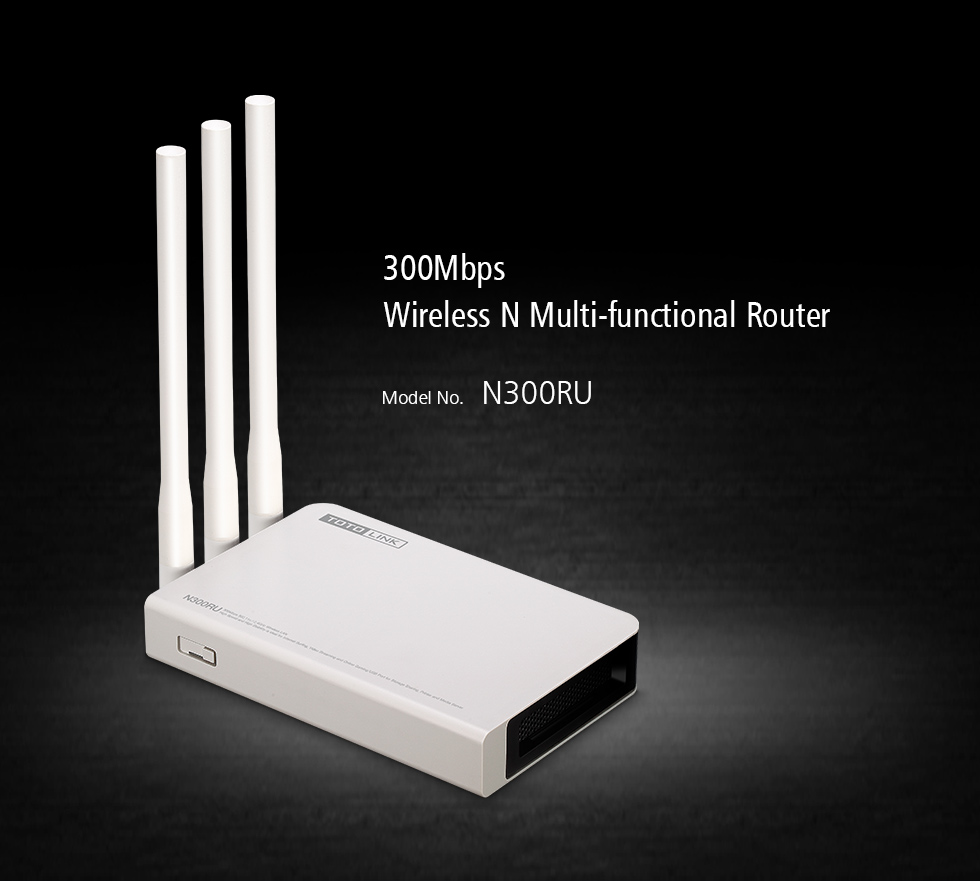

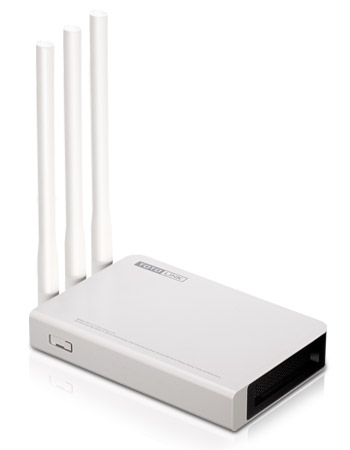

N300RU

300Mbps Wireless N Router with USB Port

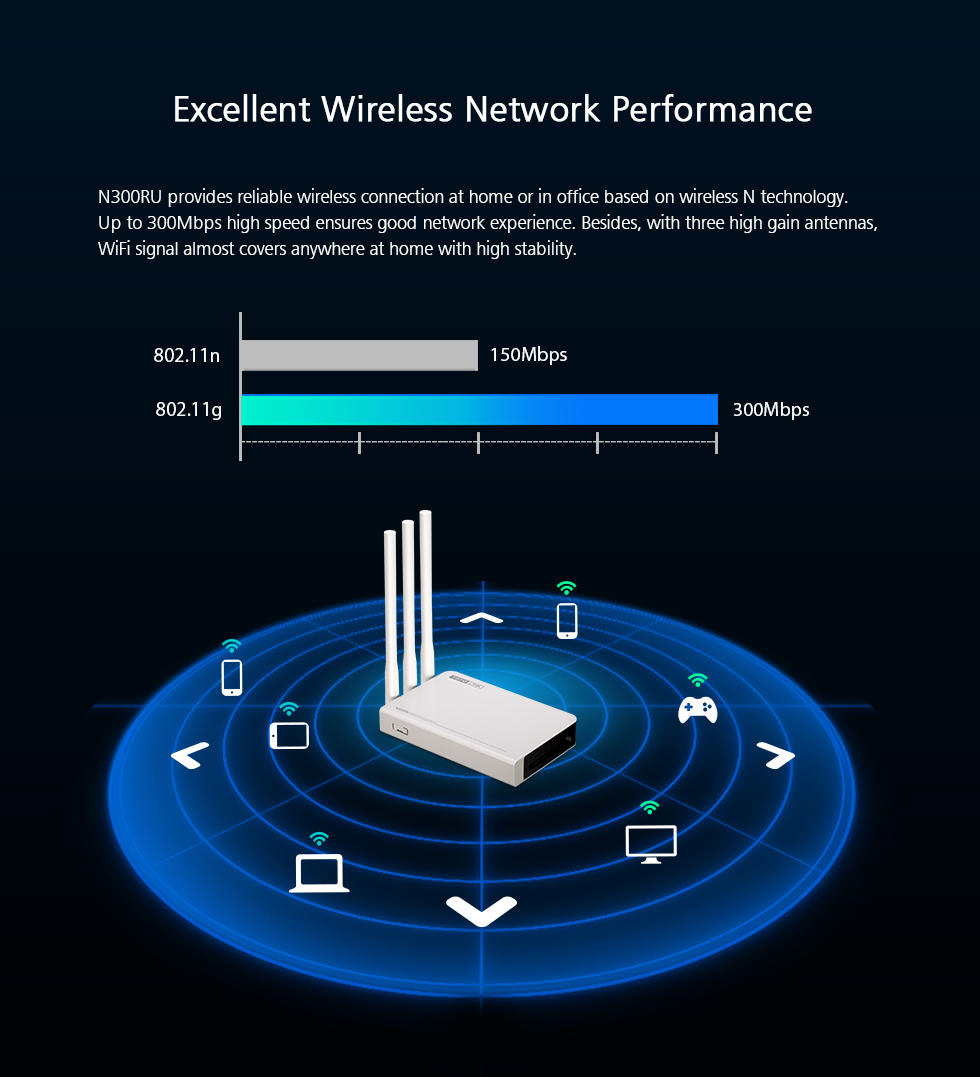

  • - Excellent Wireless Network Performance

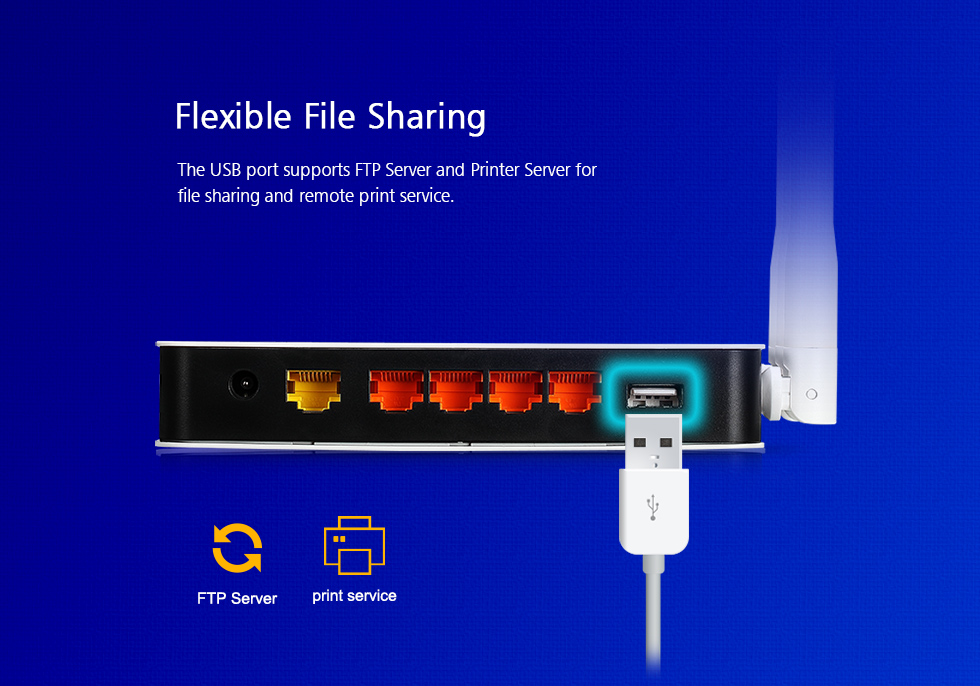

    - Flexible File Sharing
    - Free APP-Ready, manage in hand

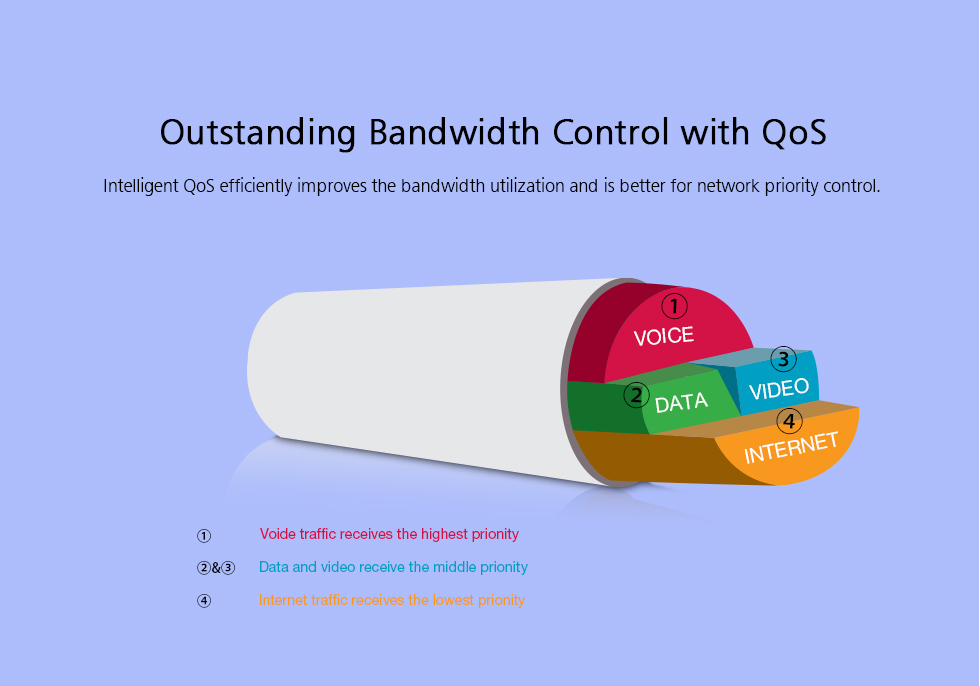

    - Outstanding Bandwidth Control with QoS
    - Effective Multiple APs function
    - Robust Security

  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP/Port, MAC, URL filtering and Port Forwarding.
    - Supports three bridge modes: AP Client, Repeater and WDS.
    - QoS can allocate bandwidth reasonably.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Supports IPsec, L2TP and PPTP VPN pass-through.
    - Provides a USB2.0 Port for Printer Server and FTP Server.
    - Easy setup simplifies the basic settings of the router.
    HARDWARE FEATURES

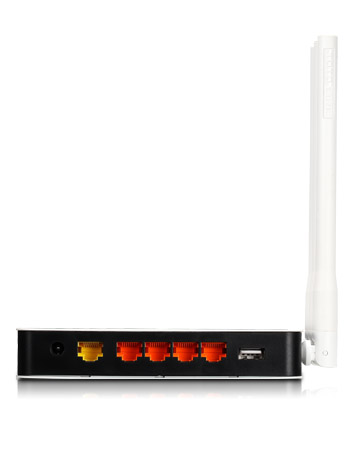

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
      1 *USB 2.0 port
    Power Supply  12V DC/1A
    Button  WPS/RST Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN, 1 *USB
    Antenna  3 *5dBi External Fixed Antennas
    Dimensions (L x W x H)  5.7 x 3.7 x 1.0 In. ( 145 x 94.8 x 24.6mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network  WAN Setup: DHCP/Static IP/PPPoE/PPTP/L2TP
      LAN Setup
      ARP Binding Setup
    Wireless  Basic Settings, Multiple APs, Bridge Settings,
      MAC Authentication, WPS Settings, Advanced Settings
    Quality of Service  Bandwidth Control
    Firewall  IP/Port Filtering, MAC Filtering, URL Filtering,
      Denial of Service, Advanced Settings
    NAT  Port Forwarding, DMZ Settings, UPnP Settings
    USB Storage  Printer Server, FTP Server
    Management  Statistics, DDNS Settings, Time Zone Setting,
      Remote Management Setup, System Log, Upgrade Firmware,
      Save/Reload Settings, Administrator Setup, Schedule
    Others  -
    Package Contents  N300RU Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
