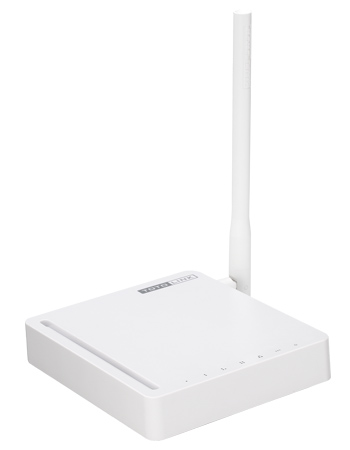

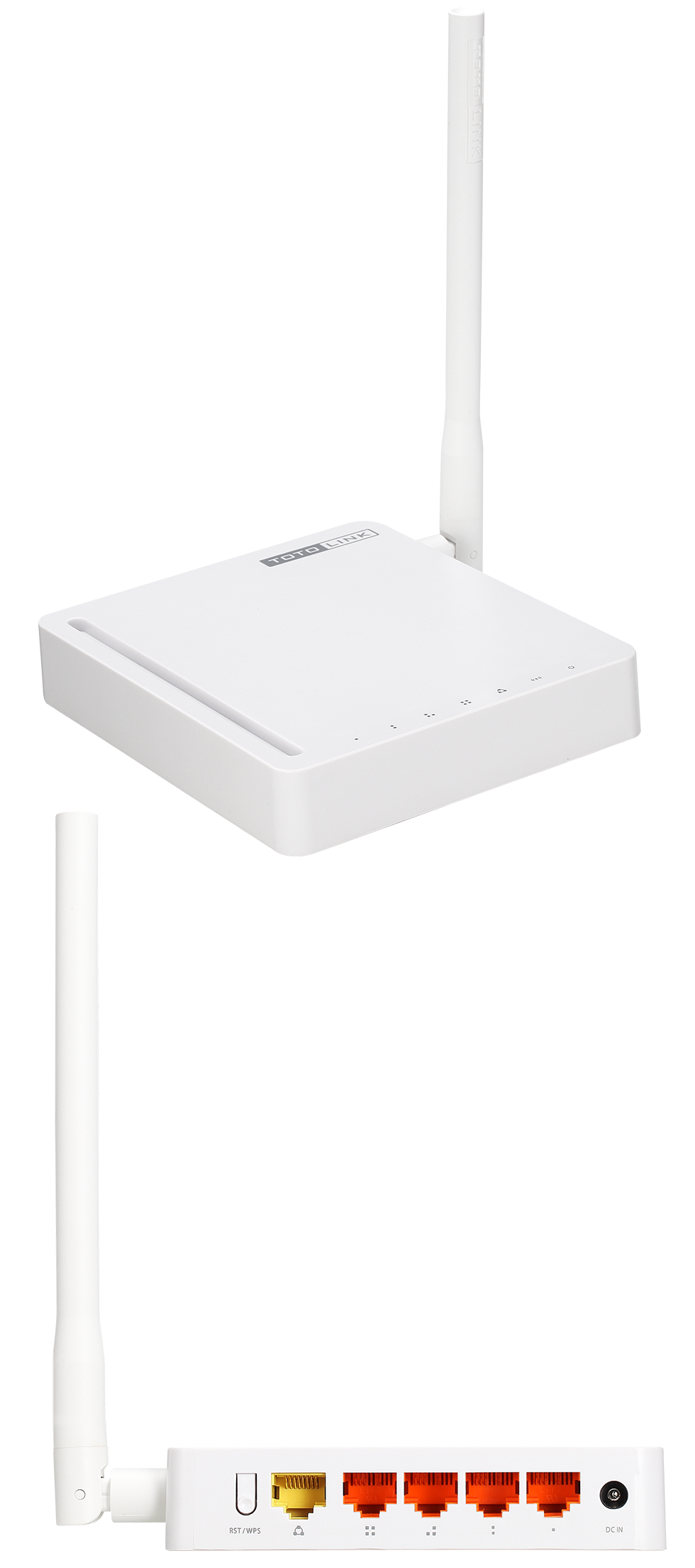

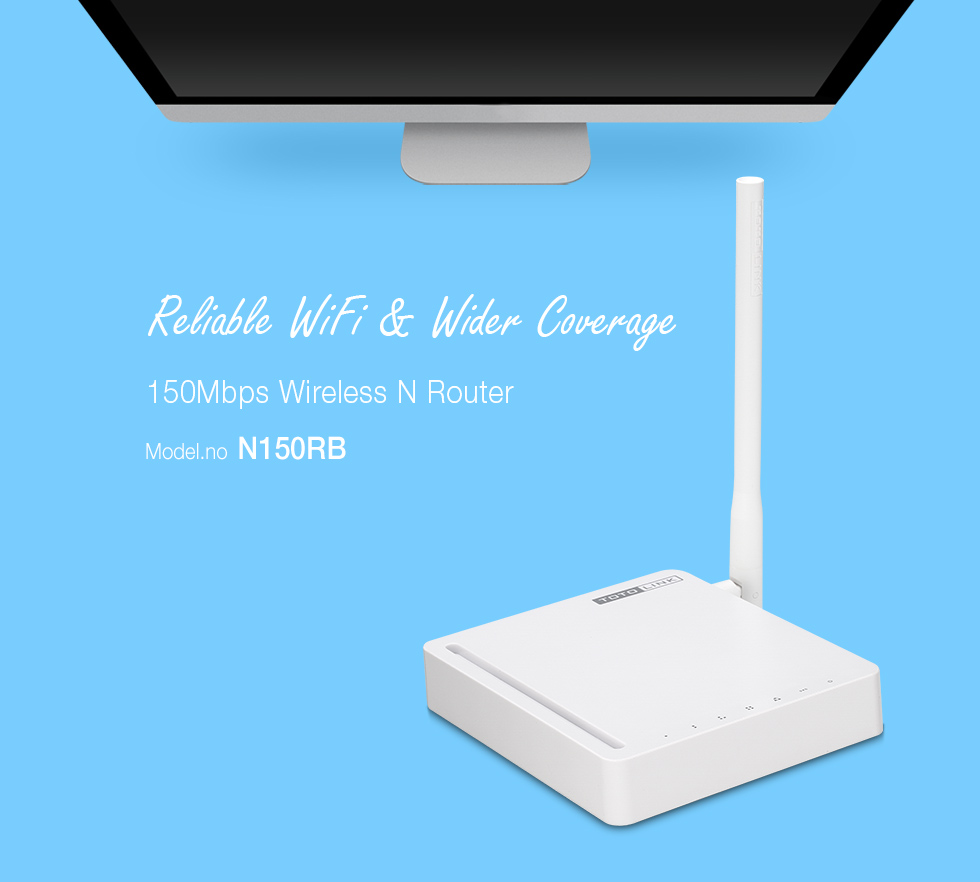

N150RB

150Mbps Wireless N Router

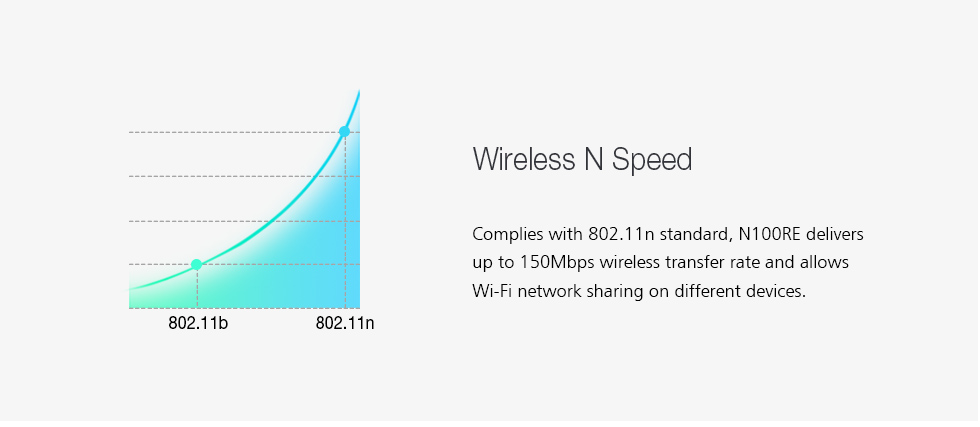

  • - Wireless N Speed

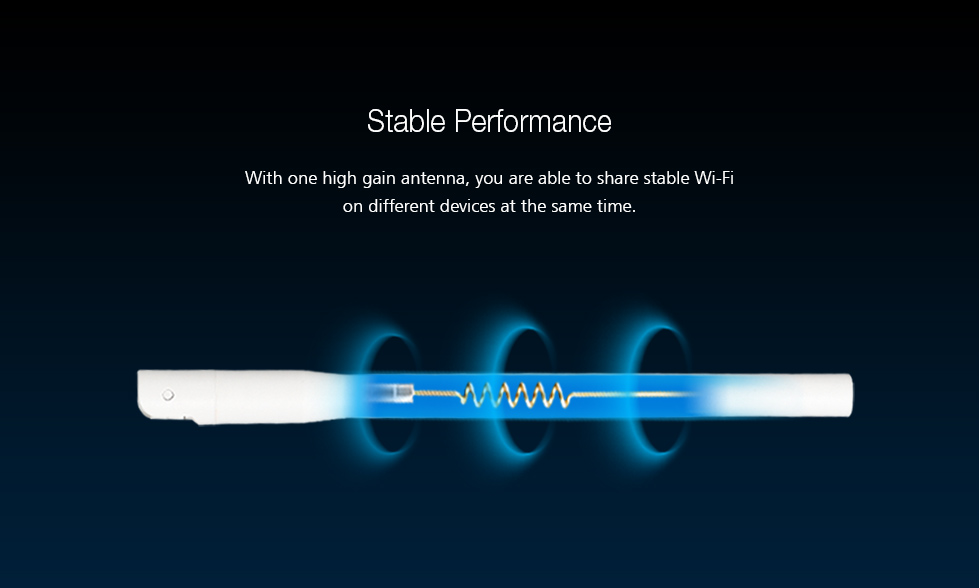

    - Stable Performance
    - Multiple Wireless Network for Access Control
    - Simple Remote Access with VPN

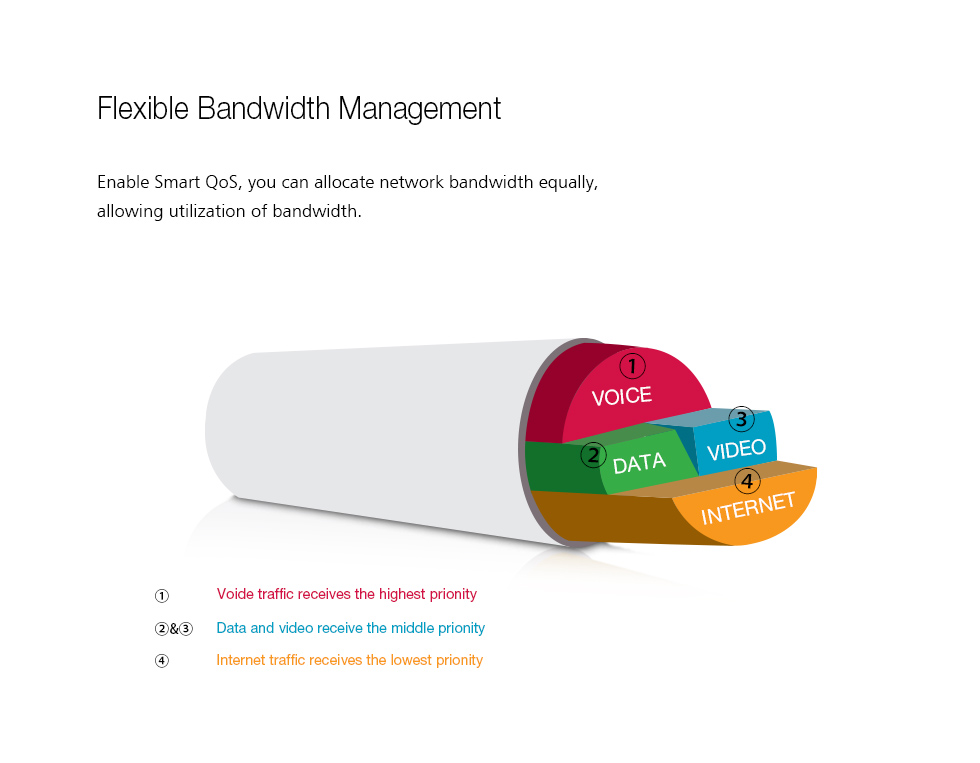

    - Flexible Bandwidth Management
    - Advanced Security
    - Easy Quick Setup
  • - Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - Supports PPPoE, DHCP and Static IP broadband functions.
    - Provides most advanced WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) encryption.
    - The VPN server can not only protect the privacy of your information, but also simplify network management.
    - Connects to secure network easily and fast using WPS.
    - Multi-SSID allows user to create multiple LANs according to their needs.
    - The IP, MAC and URL filtering makes access and time control more flexibly.
    - Repeater function allows more PCs to surf Internet.
    - Smart QoS function can assign bandwidth to PCs equally with just one click.
    HARDWARE FEATURES

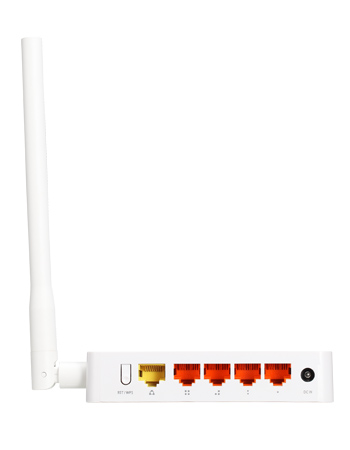

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.8A
    Button  RST/WPS Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Antenna  1 *8dBi Detachable Antenna
    Dimensions (L x W x H)  5.2 x 4.6 x 0.9 In. (132 x 116 x 24mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 150Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network  Internet Setup: PPPoE/DHCP/Static IP
      LAN/DHCP Setup: DHCP Server/DHCP Static Lease
    Wireless  Multiple BSS
      Multibridge(Repeater): Wireless Bridge/Wireless WAN
      MAC Authentication
      WDS
      WPS
    Port Forwarding  Port Forwarding
      DMZ/Twin IP
      Port Trigger
      Routing Table
    Firewall  Internet Access Control: IP/MAC Address filtering
      Net Detector
      Remote/Internal access list
    Utility  VPN Server, DDNS, WOL, Host Scan
    Traffic   QoS Setup, Connection Control, Wired Port Setup
    Management  System Log
      Administrator Setup
      Firmware Upgrade
      System Time
      Configuration backup/restore
    Others
    Package Contents  N150RB Wireless Router *1
      1*8dBi antenna
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
