150Mbps Wireless N Route

  • - Excellent Wireless Network Performance
    - VLAN for Amazing IPTV Experience
    - Outstanding Bandwidth Control with QoS
    - WDS for Optimal Coverage
    - Robust Security

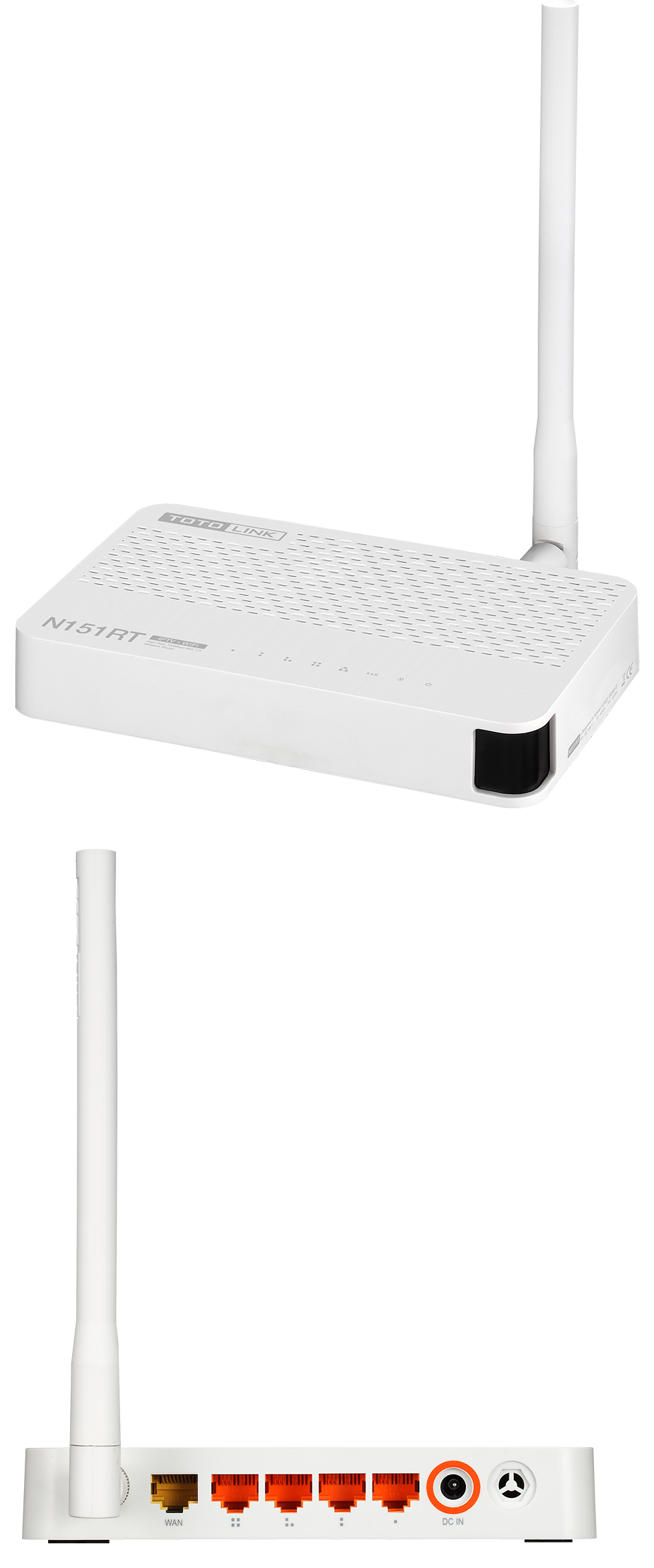

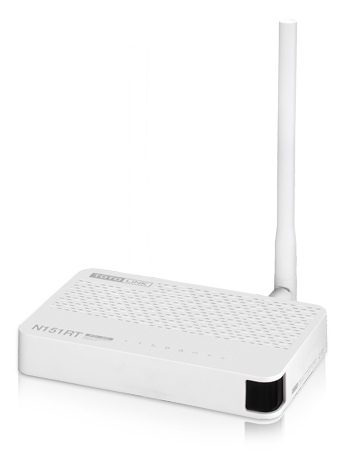

  • N151RT is a single band wireless N Router with a high gain detachable antenna. Complies with 802.11N and delivers up to 150Mbps data transmission rate. It allows users to access the internet by DHCP Client/Static IP/ RUSSIA PPTP / L2TP/ PPPoE dual link. Most advance WPA/WPA2 encryption was provided so that users needn’t worry about external unauthorized access. Meanwhile, it also supports SSH server and VLAN technology for IPTV. Above all, N151RT is quite cost-effective product for either offices or home needs.


    Excellent Wireless Network Performance

    Complying  with the 802.11n standard, it provides a faster speed, further transmission distance and most reliable connection for users to enjoy the best wireless connection in your entire home. Besides, broadband Internet connection sharing over a secure wireless network with numerous computers can be realized easily.


    VLAN for Amazing IPTV Experience

    A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. Hosts in the same VLAN communicate with each other. It can effectively satisfy user’s individual requirement that if one of your family members want to watch IPTV but others want to surf Internet. You can enjoy more amazing interactive entertainment experience by IPTV.


    Outstanding Bandwidth Control with QoS

    Unified bandwidth control based on IP/MAC allows optimum bandwidth utilization to discriminate every user. It is very effectively to solve bandwidth-tension while internal users enjoying high bandwidth-consuming application. Assigned specific bandwidth, internal users can be limited better to run applications, which lead to a perfect network performance.


    WDS for Optimal Coverage

    Features with WDS function, the device allows two or more wireless AP/Router connecting with each other to farther distance. It is very practical for users whose house has many rooms and even living in two different buildings (300m max.) in one residential area without obstacles between them.


    Robust Security

    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection. Only the users who known the SSID and encryption key can connect to the network, so that users needn’t worry about being occupied by others. What’s more, to keep the Internet browsing experience safe, it provides IP/MAC/URL filter to enhanced the security outside and inside the network.

    - Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.

    - Up to 150Mbps data rate for Wi-Fi network.

    - Supports DHCP Client, PPPoE, static IP, PPTP and L2TP broadband functions.

    - Supports dual access while WAN type is PPPoE, PPTP or L2TP.

    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.

    - Connects to secure network easily and fast using WPS.

    - Supports IP/Port, MAC, URL filtering and Port Forwarding.

    - Repeater function expands the wireless coverage and allows more terminals to access Internet.

    - QoS: Bandwidth Control based on IP/MAC.

    - Multiple APs allows users to add other two SSIDs for different needs.

    - Supports VLAN function for IPTV or other internet services.

    - SSH Server ensures the security of remote login.

    - Supports TR-069 protocol for remote centralized management.

    - Easy setup simplifies the basic settings of the router.

    Interface  4*10/100Mbps LAN Ports
      1*10/100Mbps WAN Port
    Power Supply  9V DC/0.5A
    Button  1 *RST·WPS Button, 1 *Power ON/OFF
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Antenna  1*5dBi detachable antenna
    Dimensions (L x W x H)  6.0 x 3.7 x 0.9 In (152 x 94 x 24mm)
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802. 11n: up to 150Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    EIRP  < 20dBm
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Bridge with AP
    WAN Type  DHCP/Static IP/PPPoE(Dual access)/PPTP(Dual access) /L2TP(Dual access)
    IPv6 Network  WAN Setting, LAN Setting, RADVD for IPv6, IPv6 Tunnel to IPv4
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS,
      WPS, IPTV
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  SPI Firewall, MAC Filtering, IP Filtering, Port Filtering,
      URL Filtering, Port Forwarding, DMZ, NAT Mapping
    Management  QoS, TR-069 config, DDNS, DoS, Access Control, etc.
    Package Contents  N151RT Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
