G150R

150Mbps 3G/4G Wireless N Router

  • - Excellent Wireless Network Performance (150Mbps)
    - Multiple SSID for Access Control
    - Outstanding Bandwidth Control with QoS
    - 3G/4G Network Connection Sharing
    - Robust Security


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • The G150R 150Mbps 3G/4G Wireless Router allows users to share 3G/4G mobile broadband connection wherever 3G/4G is available. It also supports DHCP Client/Static IP/ RUSSIA PPTP / L2TP/ PPPoE dual link WAN connection to access the internet. To protect your network from unauthorized access, G150R provides the most advanced WPA/WPA2 encryption for secured Wi-Fi connection. Meanwhile, it also supports VLAN for amazing IPTV experience.




    3G/4G Network Connection Sharing
    By connecting a 3G/4G USB modem to the Router, you can access and share 3G/4G network with multiple devices like smart phone, tablet PC, laptop via wired or wireless connection.


    150Mbps Wireless N Speed
    Complies with 802.11n standard, G150R delivers up to 150Mbps wireless transfer rate with stable throughput.

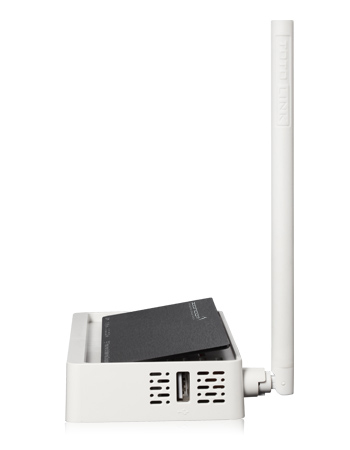

    Heat Release Design
    New cooling design supports for long-term operation with high reliability.


    Dual Access
    G150R supports multiple networking modes like PPPoE/PPTP/L2TP dual access that is applicable for more ISPs in different countries.


    VLAN for Amazing IPTV Experience
    VLAN supported can effectively satisfy user’s individual requirement in case one of the family members want to watch IPTV while others want to surf Internet.


    Multiple Wireless Network for Access Control
    Multiple APs function can isolate one wireless network to several different Wi-Fi spots for security and good access management.


    Outstanding Bandwidth Control with QoS
    Intelligent QoS efficiently improves the bandwidth utilization and is better for network priority control.


    Robust Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection without having to worry about unauthorized use.


    One-page Easy Setup
    G150R supports one-page easy setup for you to configure the device easily and fast.

    - Complies with IEEE 802.11n /g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - Supports DHCP Client, PPPoE, Static IP, PPTP and L2TP broadband functions.
    - Allows dual access while WAN type is PPPoE, PPTP or L2TP.
    - Both 3G/4G Mobile connection and WAN connection are supported.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP/Port, MAC, URL filtering and Port Forwarding.
    - Repeater function expands the wireless coverage and allows more terminals to access Internet.
    - QoS: Bandwidth Control based on IP/MAC.
    - Multiple APs allows users to add other two SSIDs for different needs.
    - VLAN function for IPTV or other Internet services.
    - SSH Server ensures the security of remote login.
    - Supports TR-069 protocol for remote centralized management.
    - Easy setup simplifies the basic settings of the router.
    HARDWARE FEATURES
    Interface  4*10/100Mbps LAN Ports
      1*10/100Mbps WAN Port
      1*USB
    Power Supply  9V DC/0.8A
    Button  RST/WPS Button, 1*Power ON/OFF
    LED Indicators  1*Power, 1*Internet, 1* Wireless, 1*WAN, 4*LAN , 1*USB
    Antenna  1*5dBi fixed antenna
    Dimensions (L x W x H)  5.8 x 3.0 x 1.0 in. ( 147.5 x 76 x 25 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802. 11n: up to 150Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Output Power  < 20dBm
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Router
      Bridge with AP
      Client
    WAN Type  USB3G/DHCP/Static IP/PPPoE(dual access)/PPTP(dual access)/L2TP(dual access)
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater,
      WDS, WPS, IPTV
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering,
      URL Filtering Port Forwarding, DMZ
    Management  QoS, DDNS, WMM, Access Control, etc.
    Others  -
    Package Contents  G150R Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
