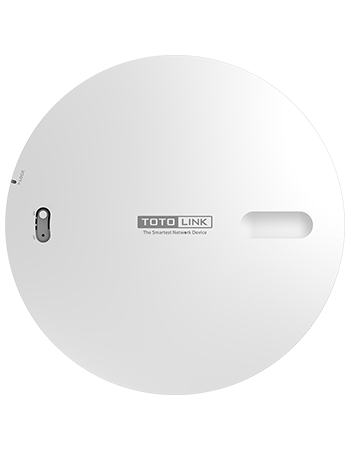

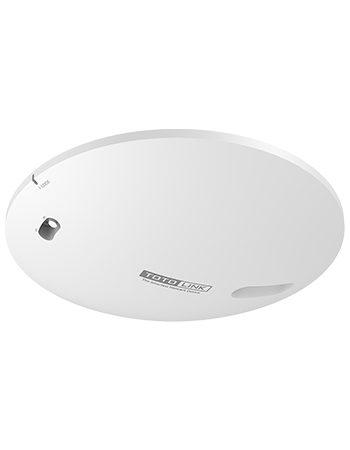

CA3000X-PoE

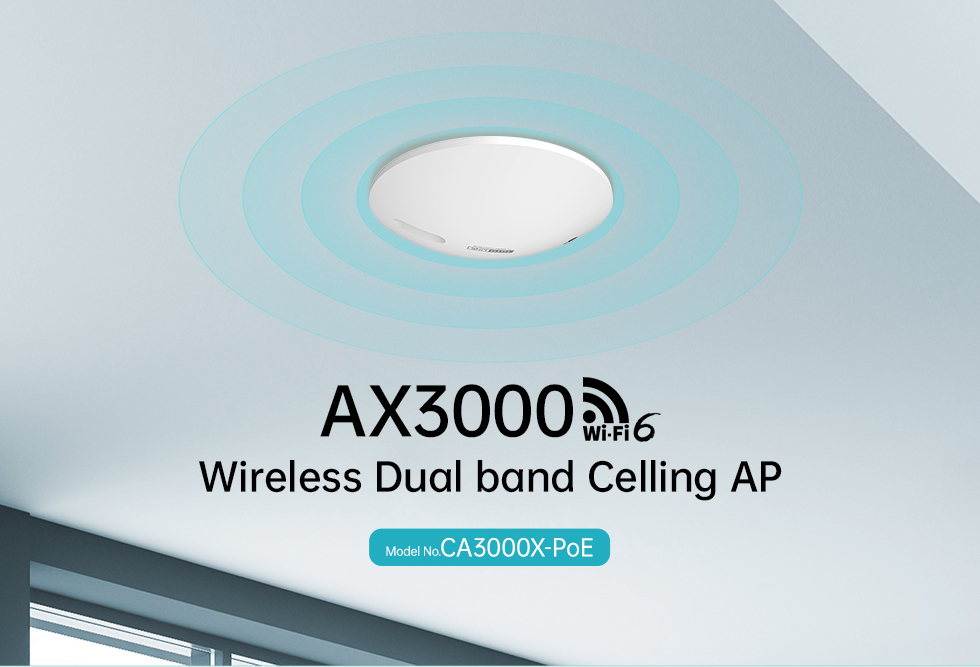

AX3000 Wireless Dual band Celling AP

  • - High-Speed Dual Band Wi-Fi 6
    - 3000Mbps Ultra-Fast Wi-Fi Speed
    - 1.3GHz Dual-Core CPU for Powerful Processing
    - OFDMA More Device, Less Congestion
    - Standard 802.3 at/af standard POE power supply
    - Easy to install design
    - More Energy-efficient Wi-Fi 6
    - 4 high specification built-in antennas, larger Wi-Fi coverage
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

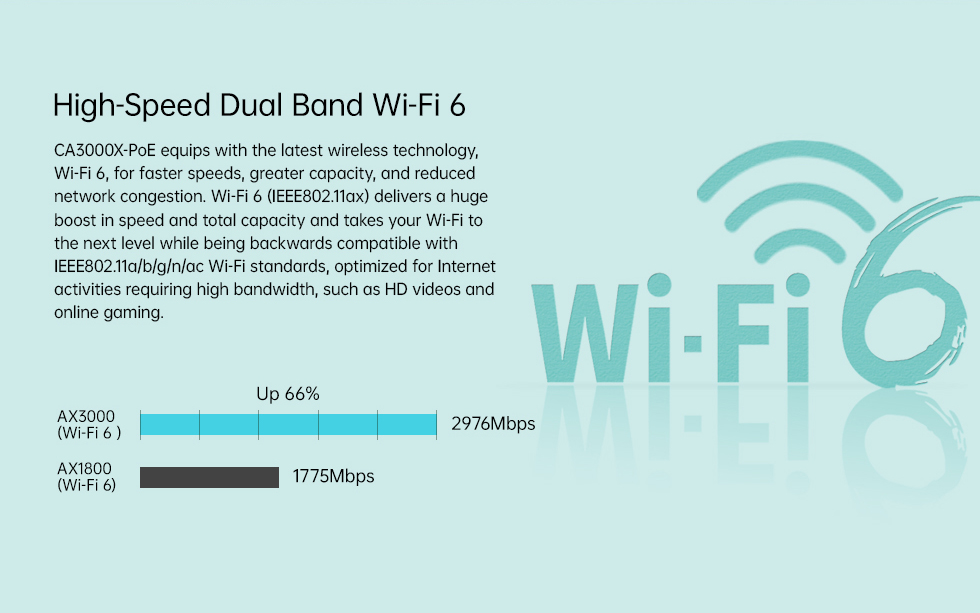

    • - Compliant with the latest Wi-Fi 6 (IEEE 802.11ax) standard, and backward compatible with IEEE802.11a/b/g/n/ac Wi-Fi standard.
    - Up to 2402Mbps in the 5GHz frequency band, up to 574bps in the 2.4GHz frequency band, and dual-band concurrent up to 3000Mbps.

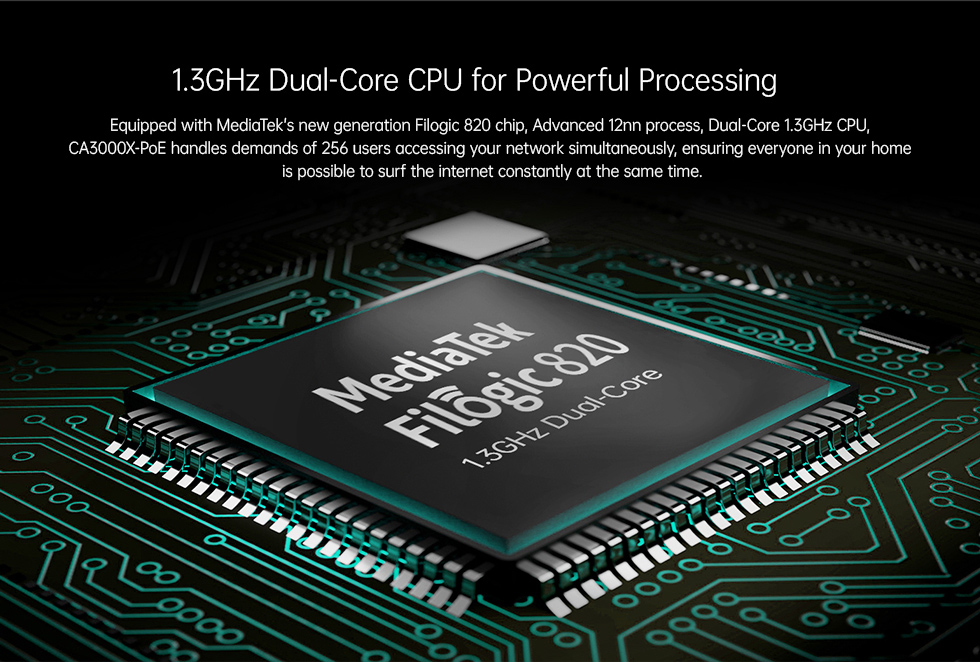

    - 1.3GHz Dual-Core CPU perform outstanding ability in data-processing without any delay.

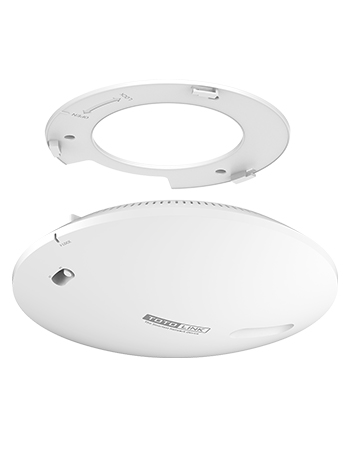

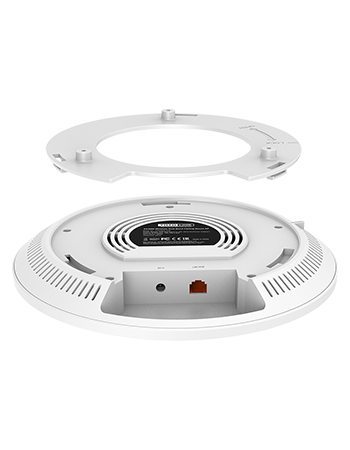

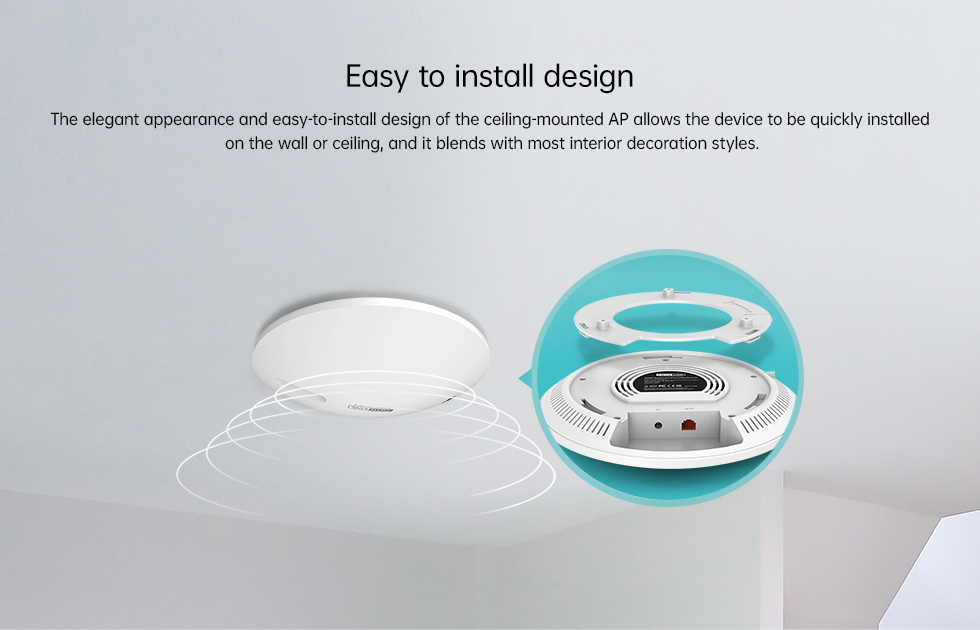

    - Ceiling design, easy to install, so that the device can be quickly installed on the wall or ceiling.
    - Support Gigabit wired network port, provide fast and stable wired connection.

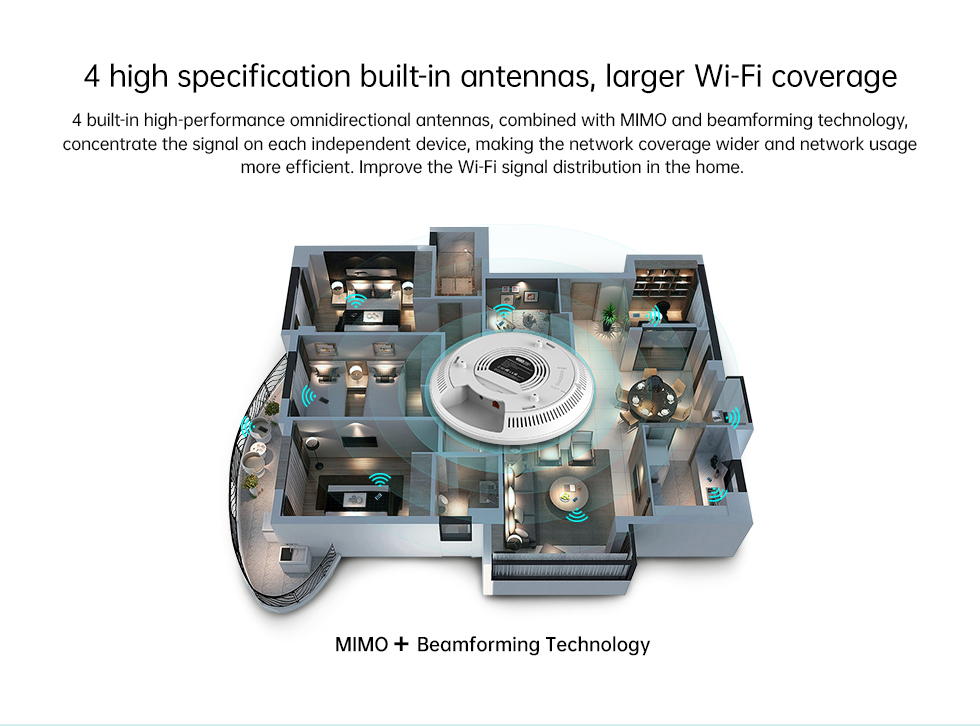

    - 4 built-in high specification omnidirectional antennas to better expand Wi-Fi coverage and better network experience.

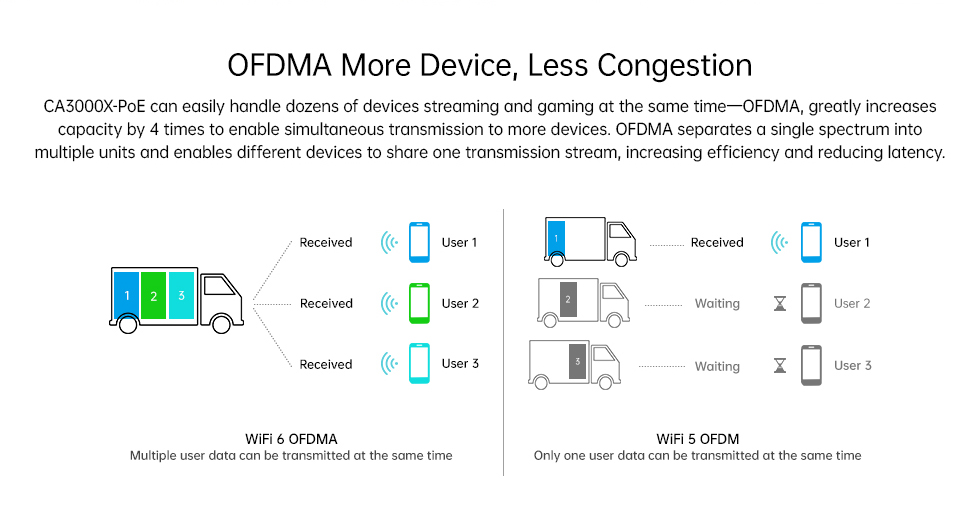

    - OFDMA (Orthogonal Frequency Division Multiple Access) improves network capacity and efficiency, and connects more devices without reducing Wi-Fi speed.

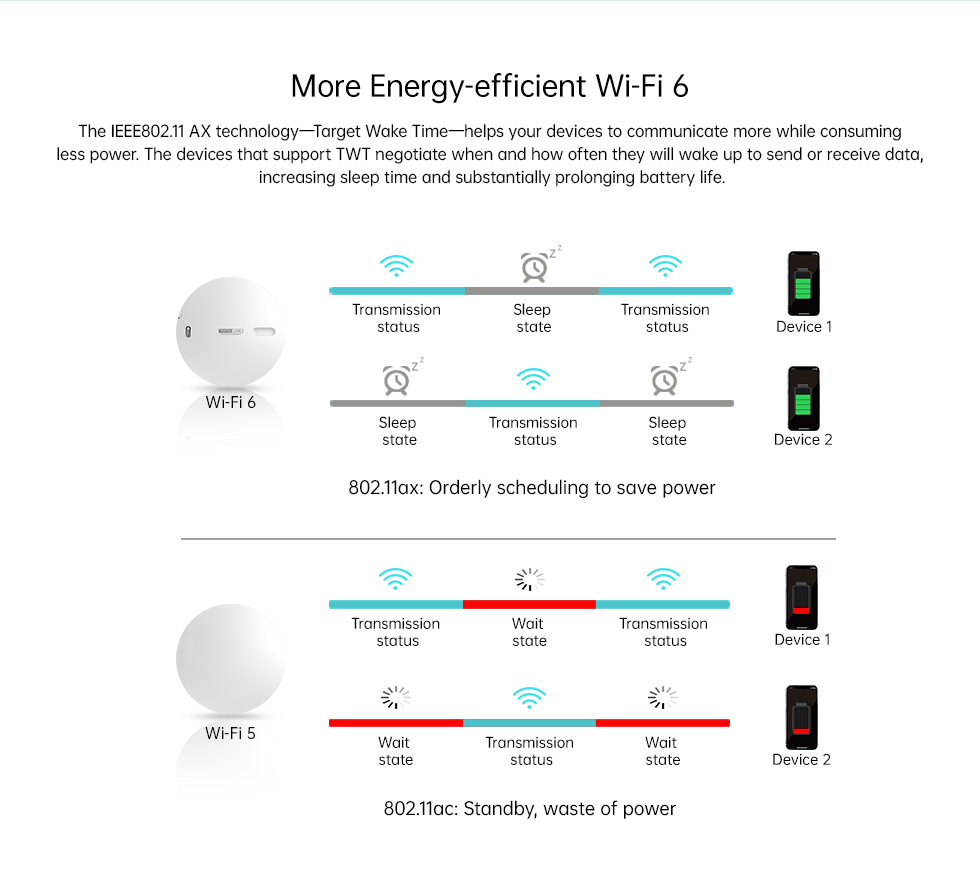

    - TWT (Target Wake Time) reduces the power consumption of your device, thereby extending battery life.
    - MU-MIMO technology enables data to be transmitted to multiple devices at the same time.

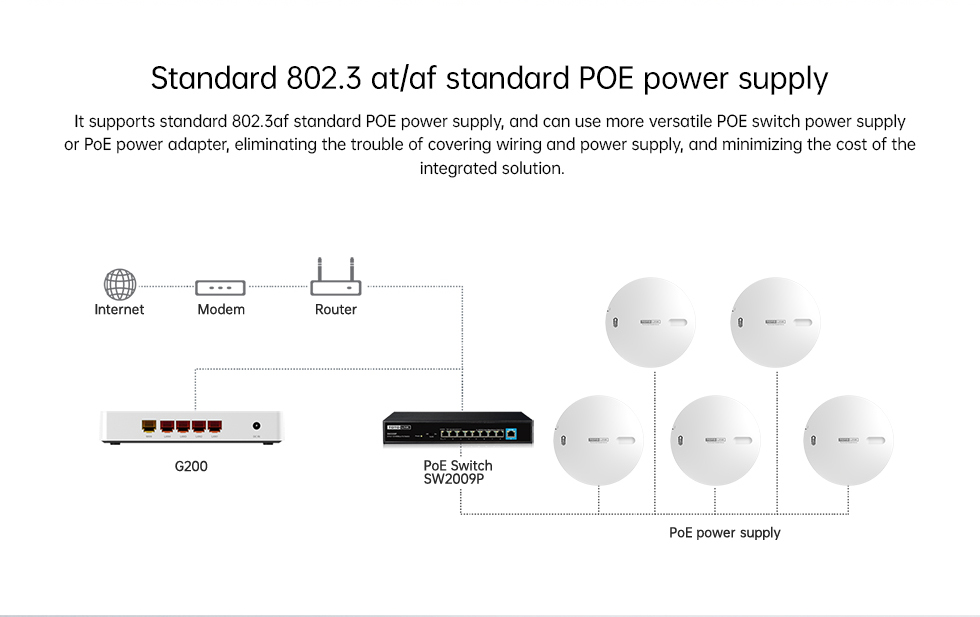

    - Standard 802.3 at/af standard POE power supply, wiring is more convenient.
    - Support WPS (Wi-Fi Protected Setup) one-key connection.

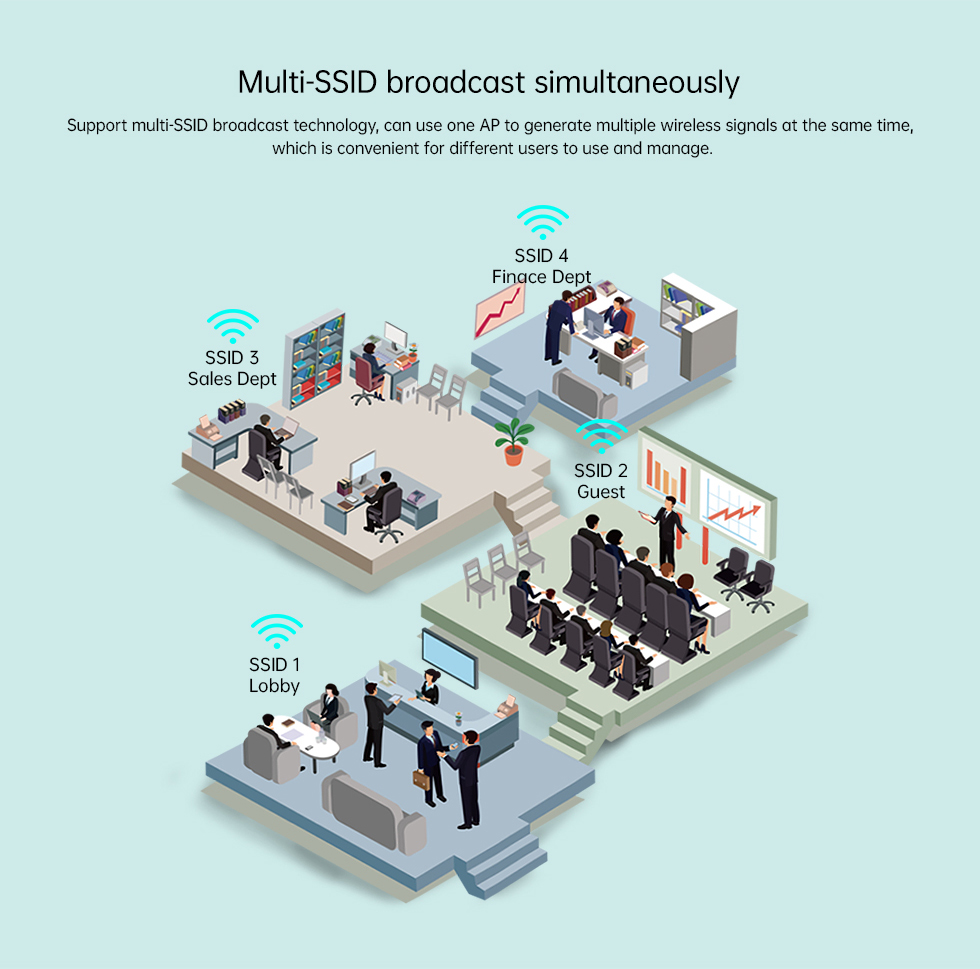

    - Multi-SSID broadcast technology, can use one AP to generate multiple wireless signals at the same time, which is convenient for different users to use and manage.

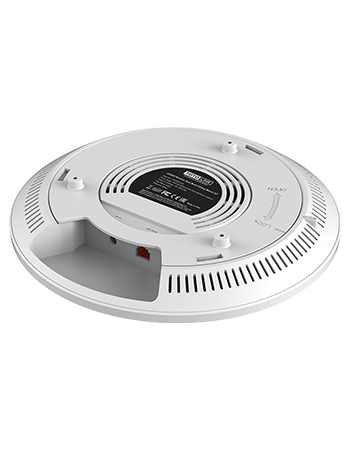

    Hardware
    Interface
    		 - 1 *1000Mbps LAN/PoE port (Auto MDI/MDIX)
    - 1 * DC JACK
    Power Supply
    		 - IEEE 802.3af/at compliant PoE
    - DC 48V/0.5A
    Button
    - 1 * RST button
    - 1 * WPS button
    LED
    - 1 *Status LED
    Antenna - 4 *built-in high specification omnidirectional antennas
    Dimensions (W x D x H)
    - 25cm*25cm*6cm
    Wireless
    Standards
    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 574bps (2*2 40MHz)
    - 5GHz: Up to 2402Mbps (2*2 160MHz)
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Reception Sensitivity
    - 2.4GHz：
        11b 11M：-81dBm @ 8％PER
        11g 54M：-68dBm @ 10％PER
        11n HT20 MCS7：-65dBm @ 10％PER
        11n HT40 MCS7：-62dBm @ 10％PER
    - 5GHz：
        11a 54M：-68dBm @ 10％PER
        11n HT20 MCS7：-65dBm @ 10％PER
        11n HT40 MCS7：-62dBm @ 10％PER
        11ac VHT80 MCS9：-51dBm @ 10％PER
    Software
    Status
    - System Status
    Network
    - LAN Setting
    Operation Mode
    - Bridge Mode
    Wireless

    - Basic Settings
    - Multi-SSID
    Management
    - Administrator Setting
    - Time Setting
    - Upgrade Firmware
    - System Configuration
    - System Log
    - Reboot Schedule
    - Logout

    Others
    Package Contents
    - AX3000 Wireless Dual band Celling AP * 1
    - Quick Installation Guide * 1
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
