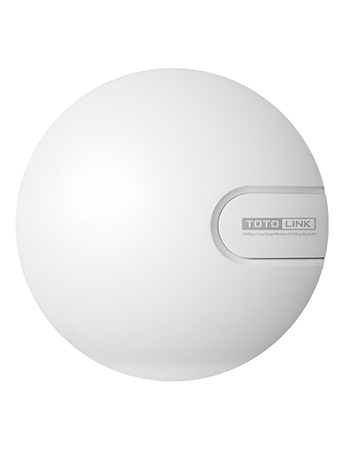

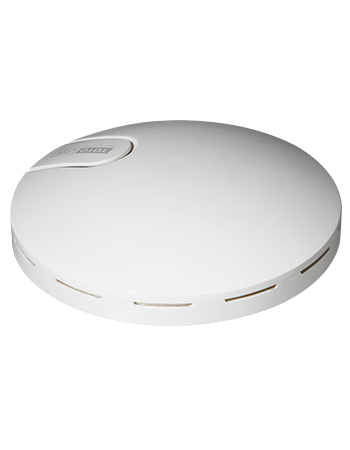

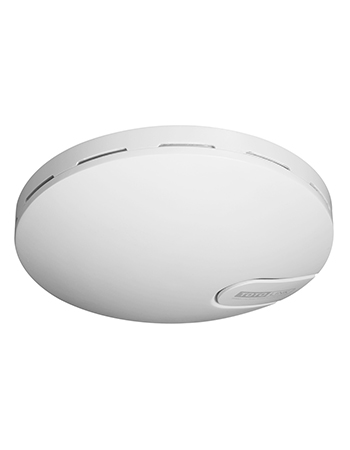

CA300-PoE

300Mbps Long Range Wireless N Ceiling Mount AP

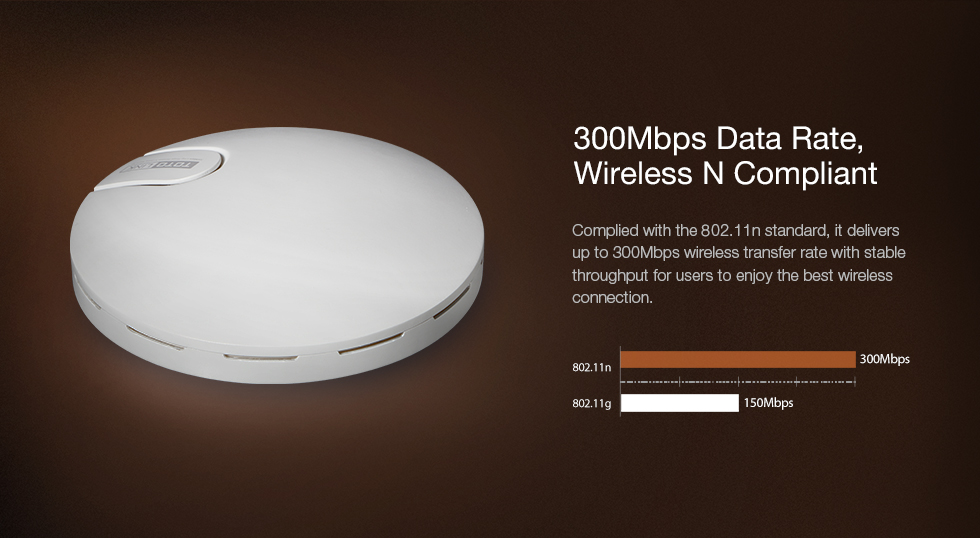

  • - 300Mbps Data Rate, Wireless N Compliant

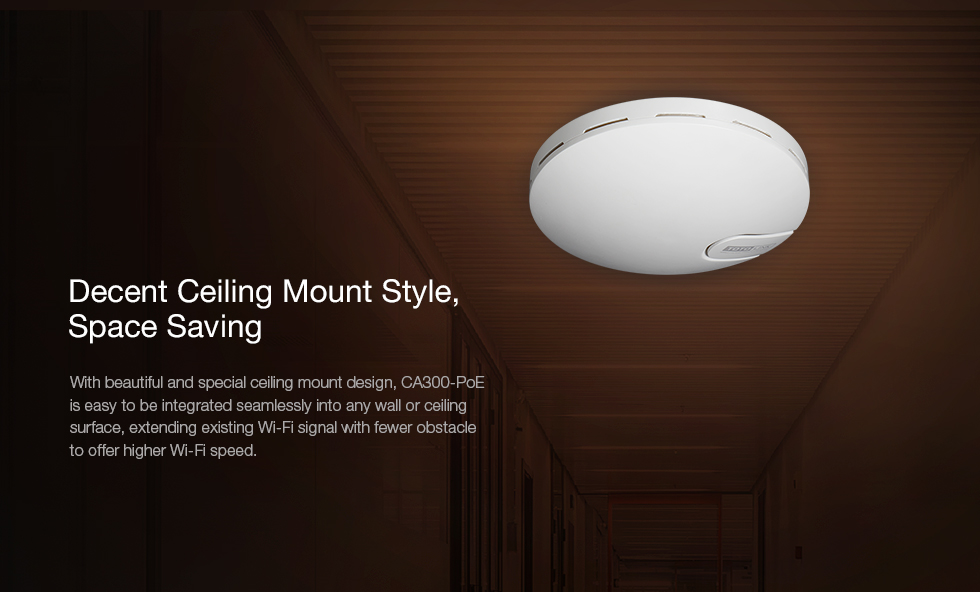

    - Decent Ceiling Mount Style, Space Saving

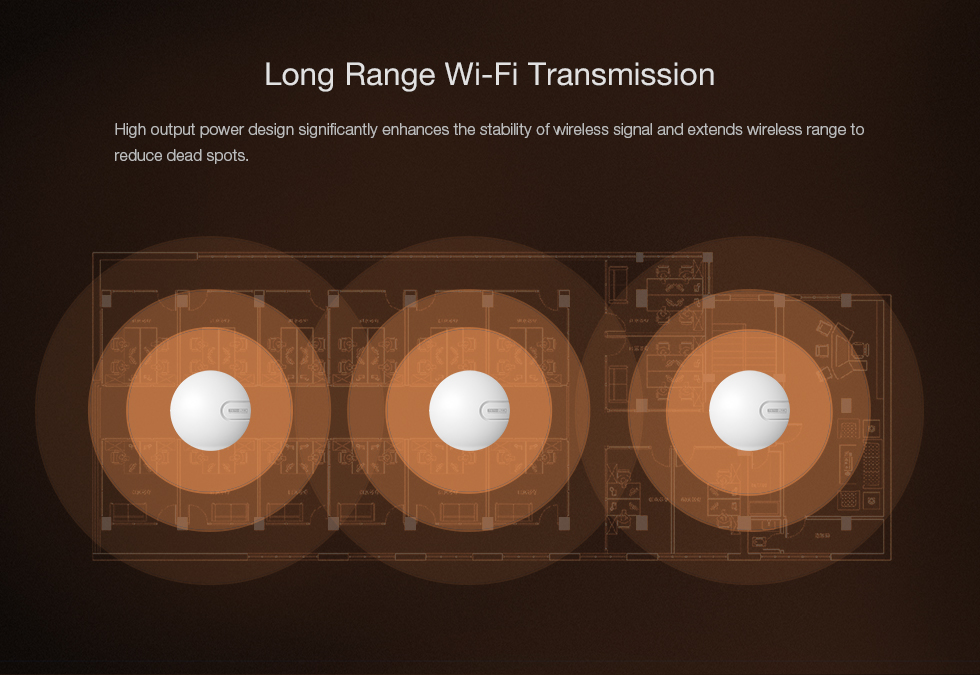

    - Wide Coverage

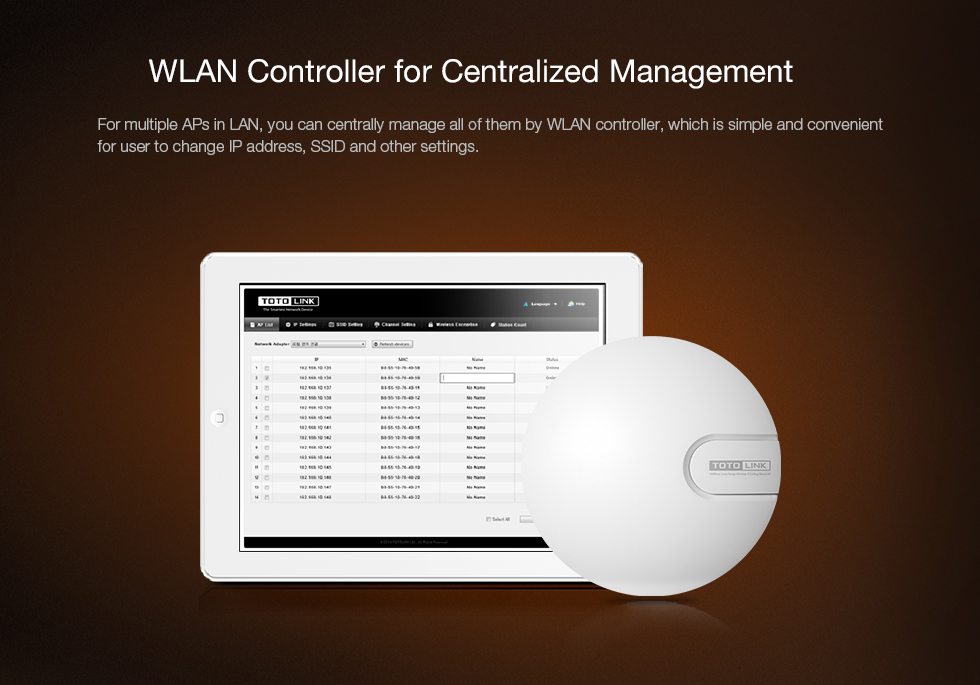

    - Soft AC Controller for Centralized Management

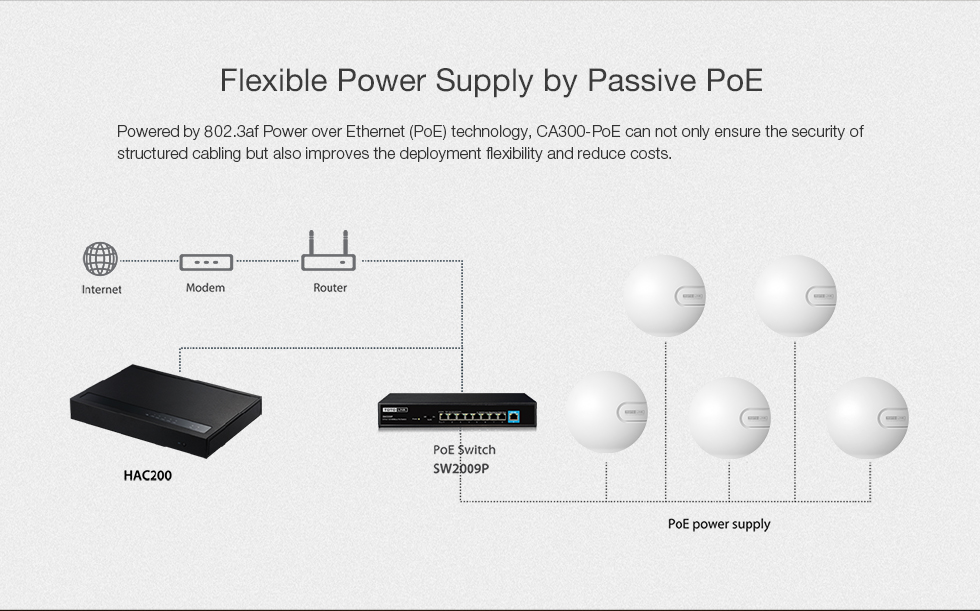

    - Flexible Power Supply by Passive PoE
    - Multiple Wireless Network for Access Control
    - Robust Security
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.

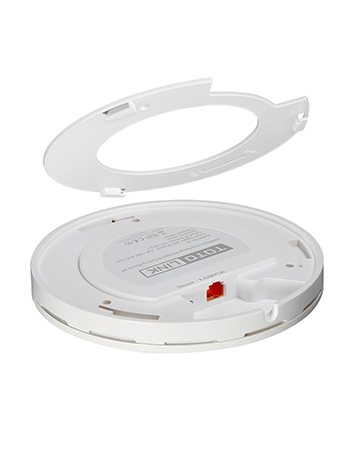

    - Practical and elegant ceiling mount design.
    - Supports AP central management via SoftAC.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Multiple BSS allows user to add other SSIDs for access management.
    - AP/WDS/Repeater mode selectable for different requirements.
    - PoE power supply supported simplify the deployment.



    HARDWARE FEATURES
    Interface
    - 1 *100BaseTX (Auto MDI/MDIX) LAN Port
    Button
    - 1 *Reset/WPS Button
    Power Supply
    - 48V DC/0.6A
      - IEEE 802.11af  PoE
    LED Indicator
    - 1 *System
    Antenna
    - 2 *Internal Antennas
    Environment
    - Operating Temperature: 0℃~55℃ (32℉~131℉)

    - Storage Temperature: -20~65℃ (-4℉~149℉)
      - Operating Humidity: 10%~90% non-condensing

    - Storage Humidity: 5%~95% non-condensing
    WIRELESS FEATURES
    Standards
    - IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3af
    RF Frequency
    - 2.4~2.4835GHz
    Data Rate
    - 802. 11n: up to 300Mbps
      - 802.11g: up to 54Mbps (dynamic)

    - 802.11b: up to11Mbps (dynamic)
    Wireless Security
    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Channels
    - 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
    Modulation Type
    - DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
    Reception Sensitivity  - 270M: -61 dBm@10% PER
      - 135M: -65 dBm@10% PER
      - 54M: -68 dBm@10% PER
      - 11M: -85 dBm@8% PER
      - 6M: -88 dBm@10% PER

    - 1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network
    		 - LAN Status
      - LAN/DHCP Setup
    Wireless
    - Wireless Status
      - Wireless Setup
      - Multiple BSS
      - Wireless Multibridge

    - MAC Authenticatio
      - WDS
      - WPS

    - Advanced Setup
    System - System Log
      - Administrator Setup
      - Firmware Upgrade
      - System Time

    - Configuration backup/restore
      -  Misc Setup
