X20

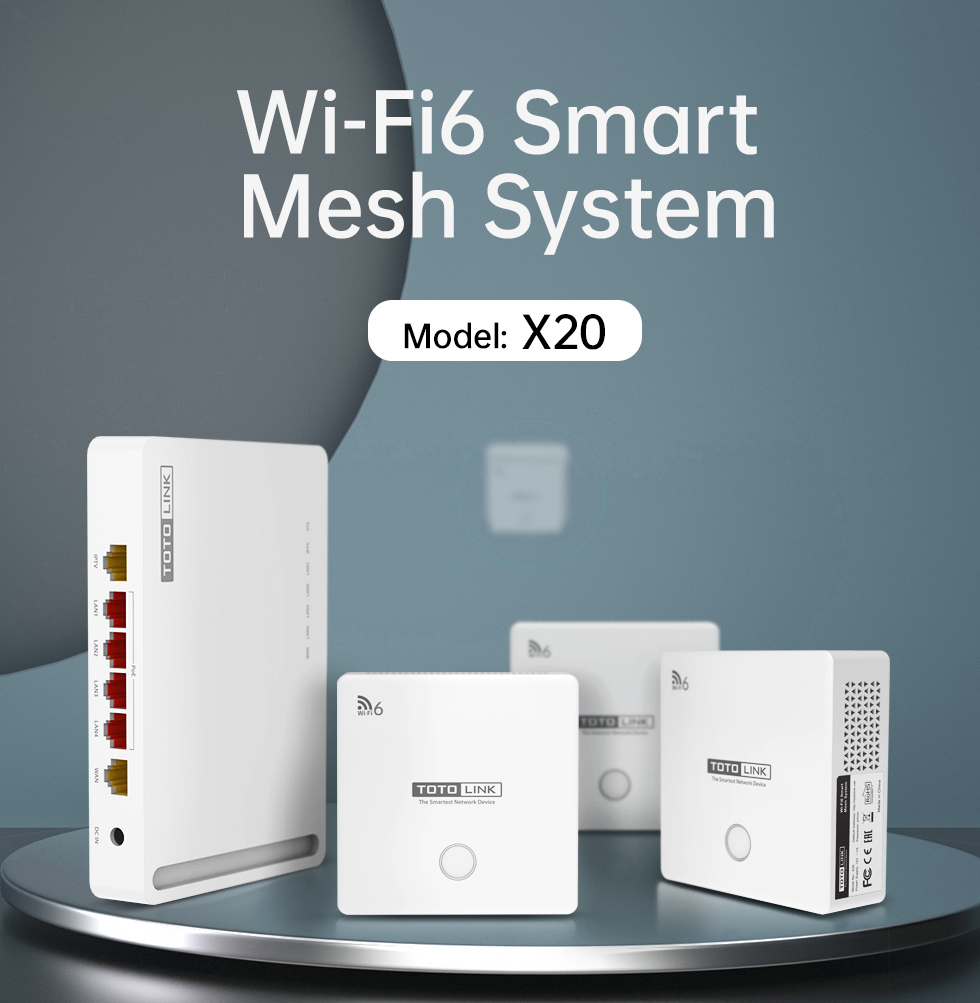

Wi-Fi6 Smart Mesh System

  • - 1.8 Gbps ultra-fast Wi-Fi speed

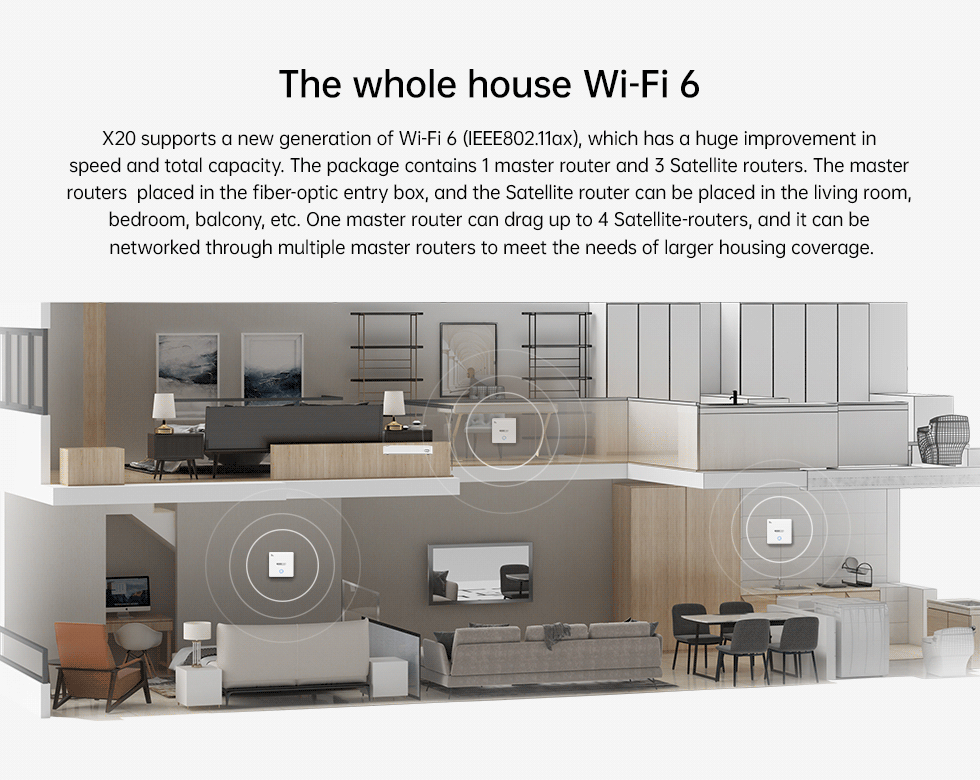

    - The whole house Wi-Fi 6

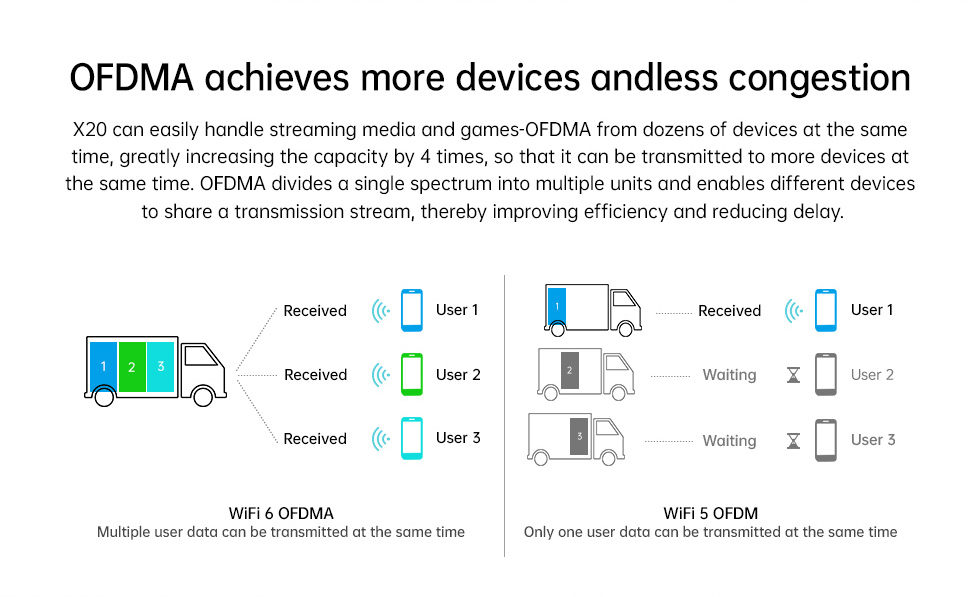

    - OFDMA achieves more devices and less congestion

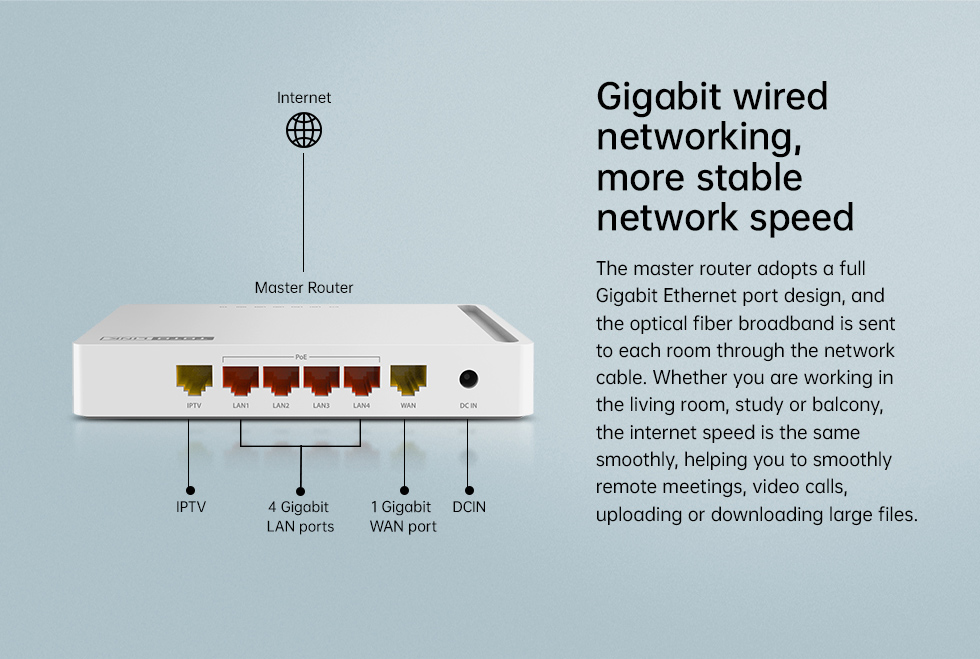

    - Gigabit wired networking, more stable network speed
    - Plug and play, convenient and fast

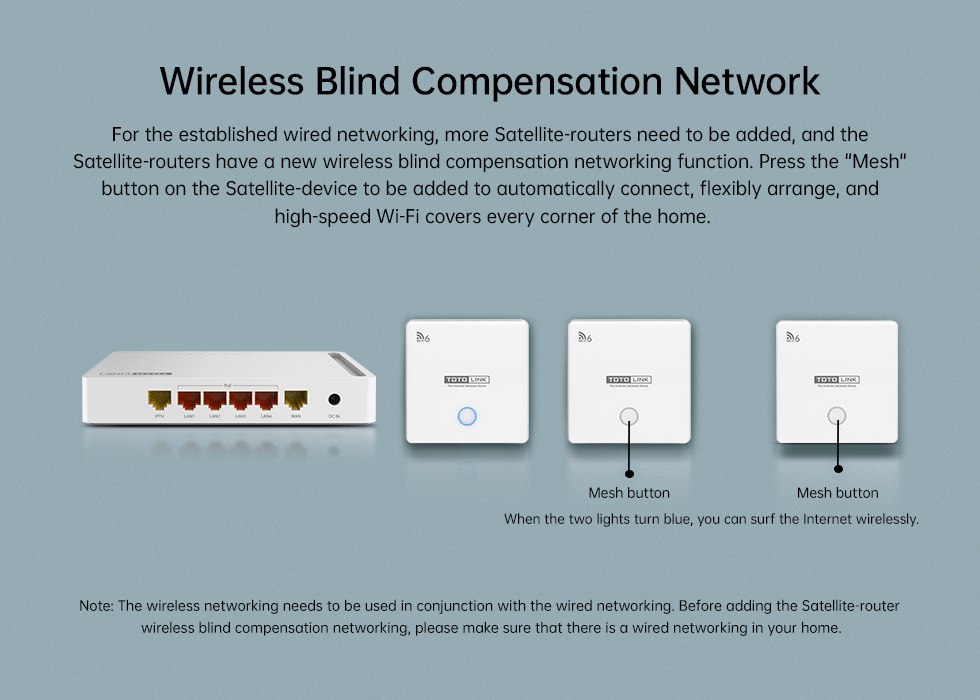

    - Wireless Blind Compensation Network

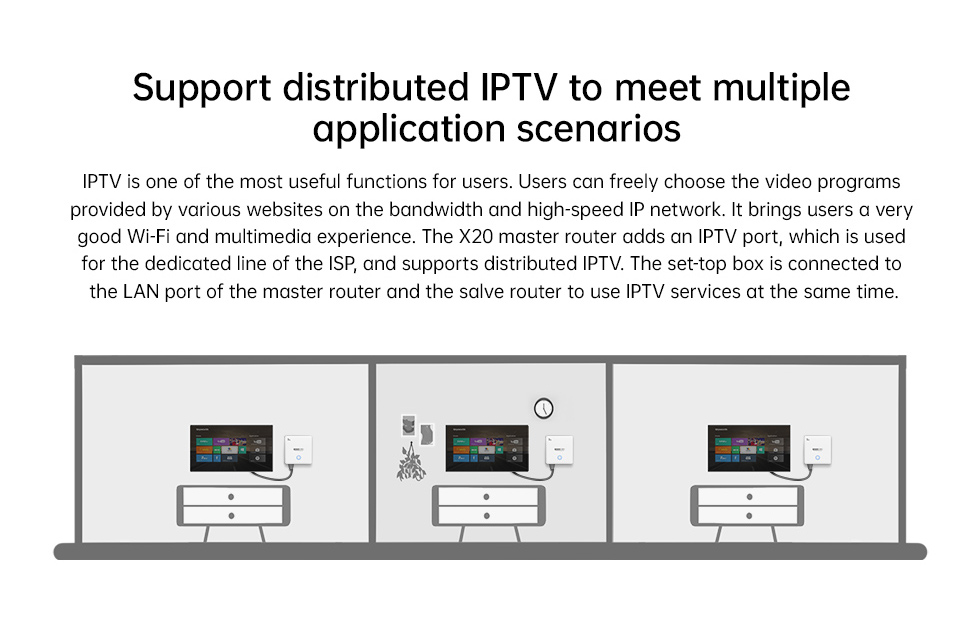

    - Support distributed IPTV to meet multiple application scenarios
    - MU-MIMO provides smooth Wi-Fi on all devices
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Compliant with the next generation Wi-Fi 6 (IEEE 802.11ax) standard
    - The maximum rate of 1201Mbps on 5GHz, and the maximum rate of 574Mbps on 2.4GHz, for a total of 1775Mbps
    - Supports gigabit wired networking + wireless blind compensation networking to achieve wide Wi-Fi coverage

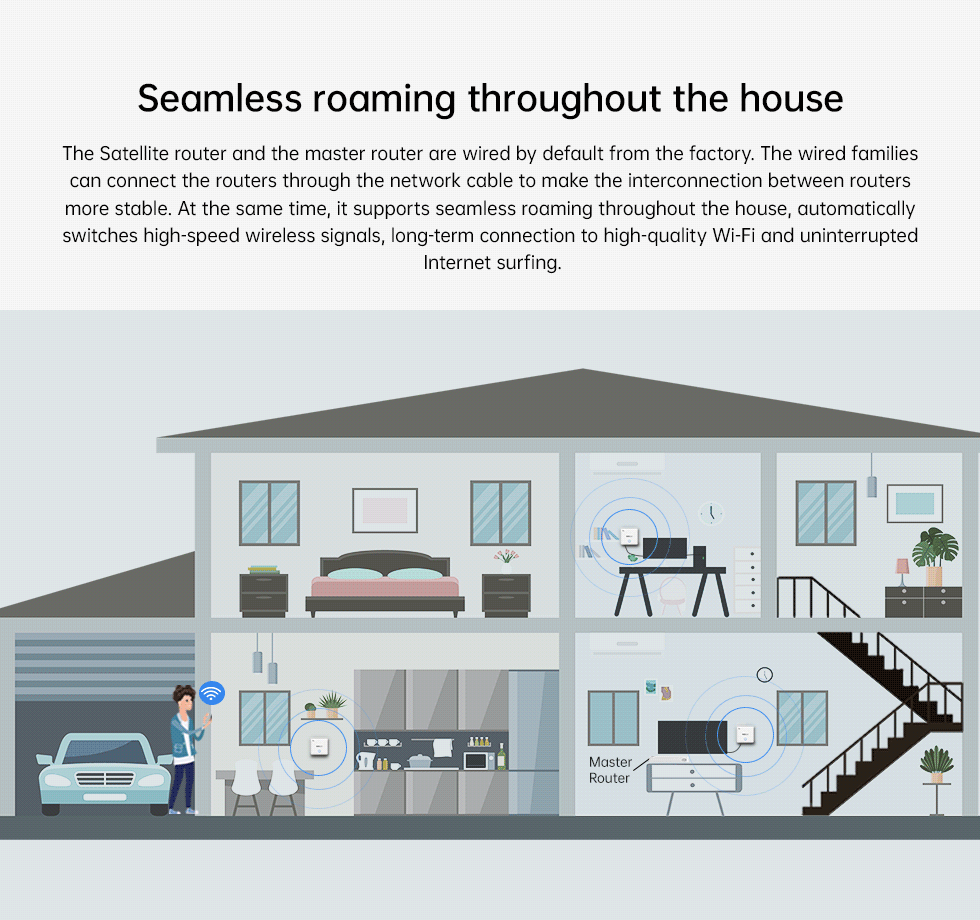

    - Whole house Wi-Fi 6, super seamless roaming automatically switches to a stronger signal source

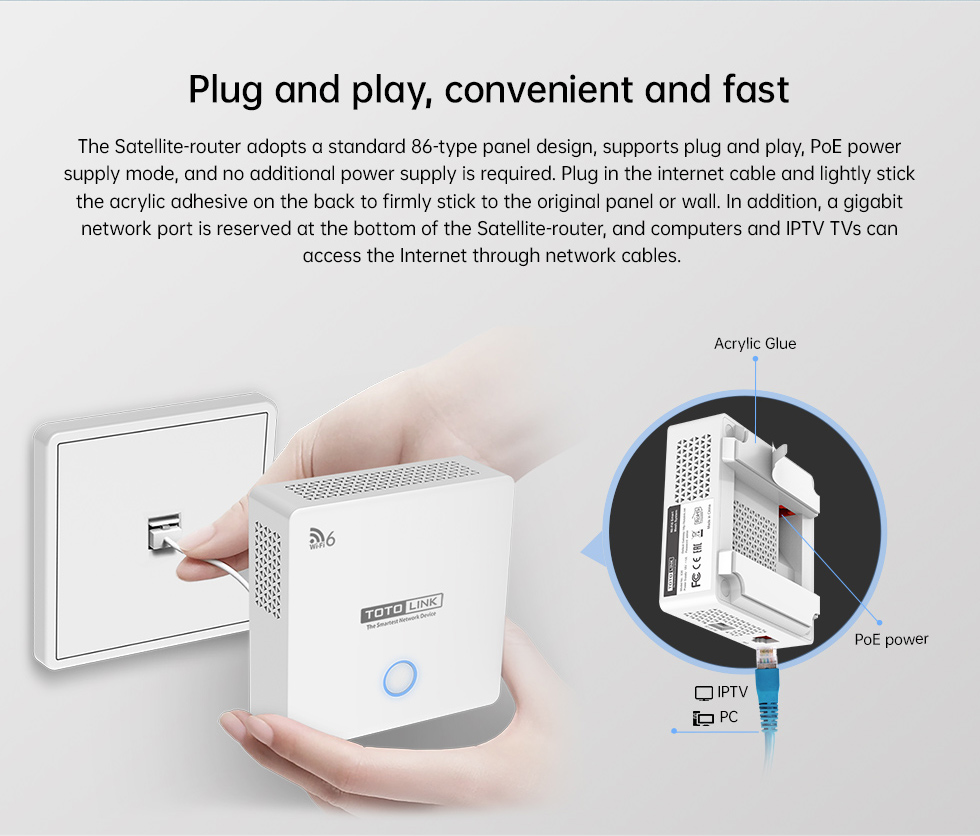

    - Satellite-router plug and play, convenient and fast

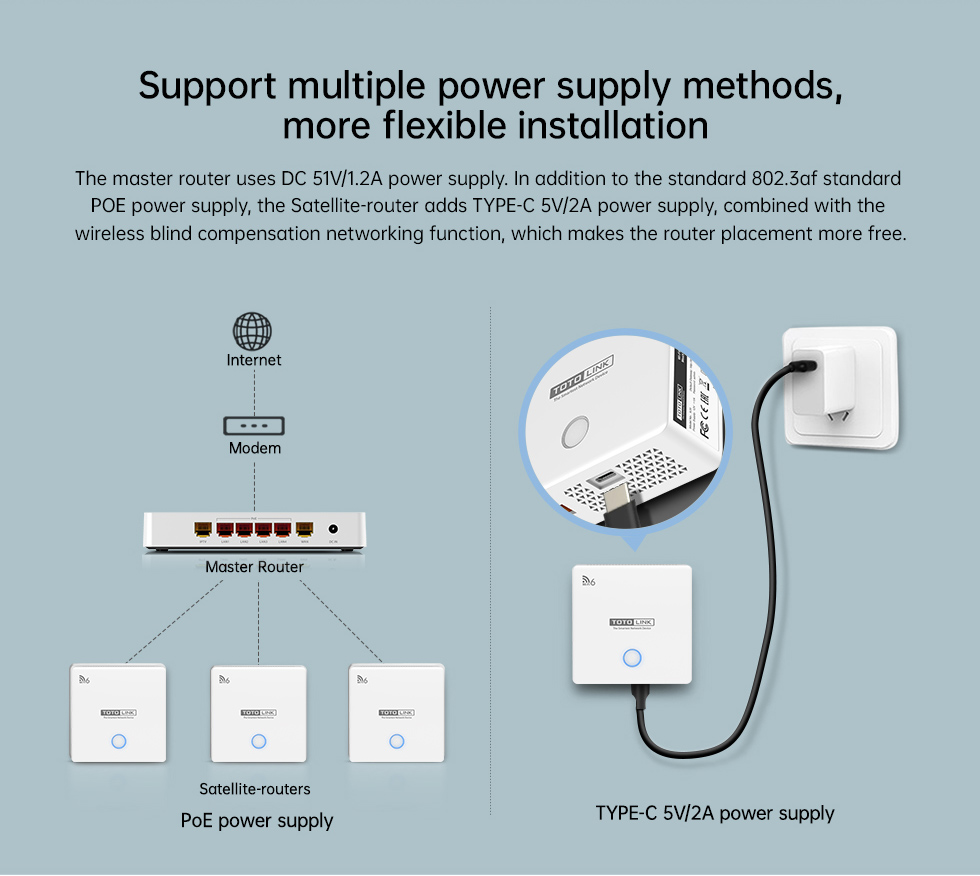

    - Satellite-router supports standard 802.3af standard POE power supply and TYPE-C 5V/2A power supply
    - OFDMA can increase the capacity and efficiency of the network, so you can connect more devices without reducing the Wi-Fi speed
    - TWT (Target Wake Time) technology reduces the power consumption of the device, thereby extending its battery life
    - MU-MIMO technology allows simultaneous transmission of data to multiple devices
    - Beamforming technology improves directional signal transmission and increases bandwidth efficiency
    - The full gigabit port provides greater functions for data forwarding connected by cable
    - Support DHCP, static IP, PPPoE PPTP and L2TP broadband functions
    - Support WPA3 wireless security protocol to ensure network security
    - Support guest network, smart QoS, Wi-Fi scheduler
    - The parental control function on the router allows you to easily manage content and time online on any connected device
    - Easy setup and management through mobile UI and TOTOLINK APP

    Hardware
    Interface

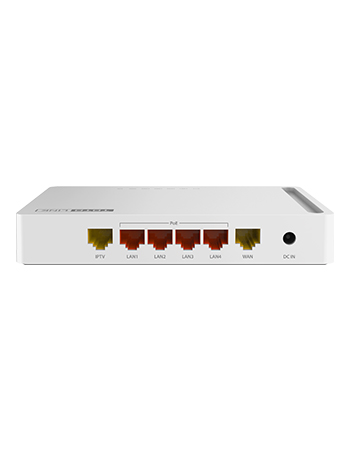

    - Master router：4*1000Mbps LAN ports，1*1000Mbps WAN port，1*1000Mbps IPTV port（master router）

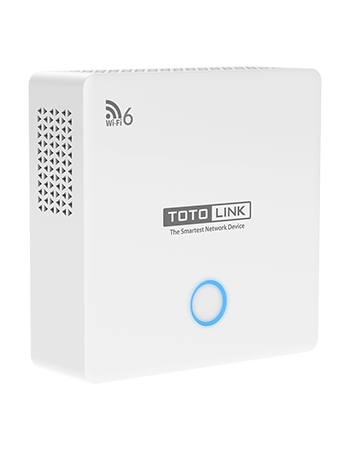

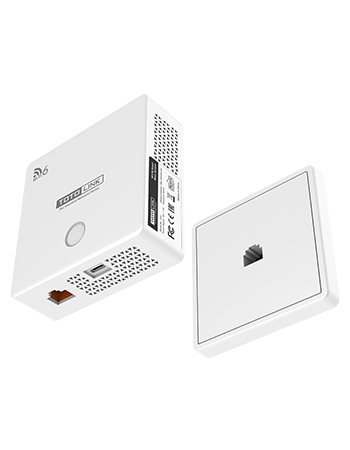

    - Satellite router：1*1000Mbps LAN port，1*1000Mbps POE/LAN port
    Power Supply
    - Master router：51V/1.2A DC/Input：100-240V AC
    - Satellite router： IEEE 802.3af standard PoE and TYPE-C 5V/2A
    Antenna
    - 2*internal dual band antenna
    Button
    - Master router： RST button
    - Satellite router： Mesh / RST button
    LED indicator light
    - Master router：1*SYS、1*WAN、1*LAN4、1*LAN3、1*LAN2、1*LAN1、1*IPTV(orange)
    - Satellite router：1*SYS(orange and blue)

    Wireless
    Standards
    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n
    - IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    Frequency
    - 2.4~2.4835GHz
    - 5.150-5.250GHz, 5.725~5.850GHz
    Data Rate
    - 2.4GHz: Up to 574Mbps (2*2 40MHz)
    - 5GHz: Up to 1201Mbps (2*2 80MHz)
    output power
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
    - WPA3
    Reception Sensitivity
    - 2.4G: 11b: <-81dbm;
                11g: <-68dbm;
                11n HT20: <-65dbm  HT40: <-62dbm
                11ax HE40: -48dB
    -  5G: 11a:<-68dbm;
             11n: HT20<-65dbm  HT40: <-62dbm
             11ac VHT80: <-51dbm
             11ax HE40: <-48dbm      11ax HE80: <-46dbm
    Software
    Home page
    - Quick settings   - Basic settings   - Advanced settings
    - Exit   -Restart    - Multi-language automatic adaptation
    Basic
    - Internet settings
    - Wireless settings
    - Device management
    - Parental control
    - Guest network
    - Intelligent QoS
    Mesh networking
    - Mesh networking
    - Roaming


    Network settings


    - External network settings
    - LAN settings
    - DDNS
    - IPTV
    - IPv6
    Wireless settings
    - Wireless settings
    - Guest network
    Parental control
    - Parental control based on MAC address
    QoS
    		 - WAN up/down speed control, bandwidth control based on IP address
    Security Settings

    - Router
    - Static routing
    - IP/MAC address binding
    NAT forwarding
    - Virtual server
    - DMZ
    - VPN penetration
    system service
    - Remote control
    - UPnP
    - Restart regularly
    Tools
    - Change password
    - Time zone setting
    - System setting
    - Local firmware upgrade and online upgrade
    - Diagnosis
    - Trace Route
    - System Log

    Others
    Package Contents
    - X20 Master router* 1
    - X20 Satellite router* 3
    - Power adapter* 1
    - AC power cable* 1
    - Double-sided tape* 2
    - Ethernet cable* 1
    - Satellite router Install the network cable* 3
    - Mounting bracket*1
    - QIG* 1
    Environment
    - Operating temperature：0℃~40℃ (32℉ ~104℉)
    - Storage temperature：-40℃~70℃（-40 ℉~158℉）
    - Operating humidity：10%~90% Non-condensing
    - Storage humidity：5%~90% Non-condensing
