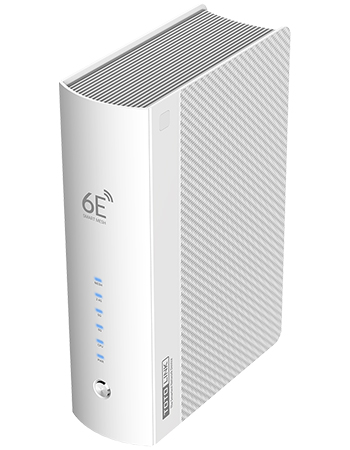

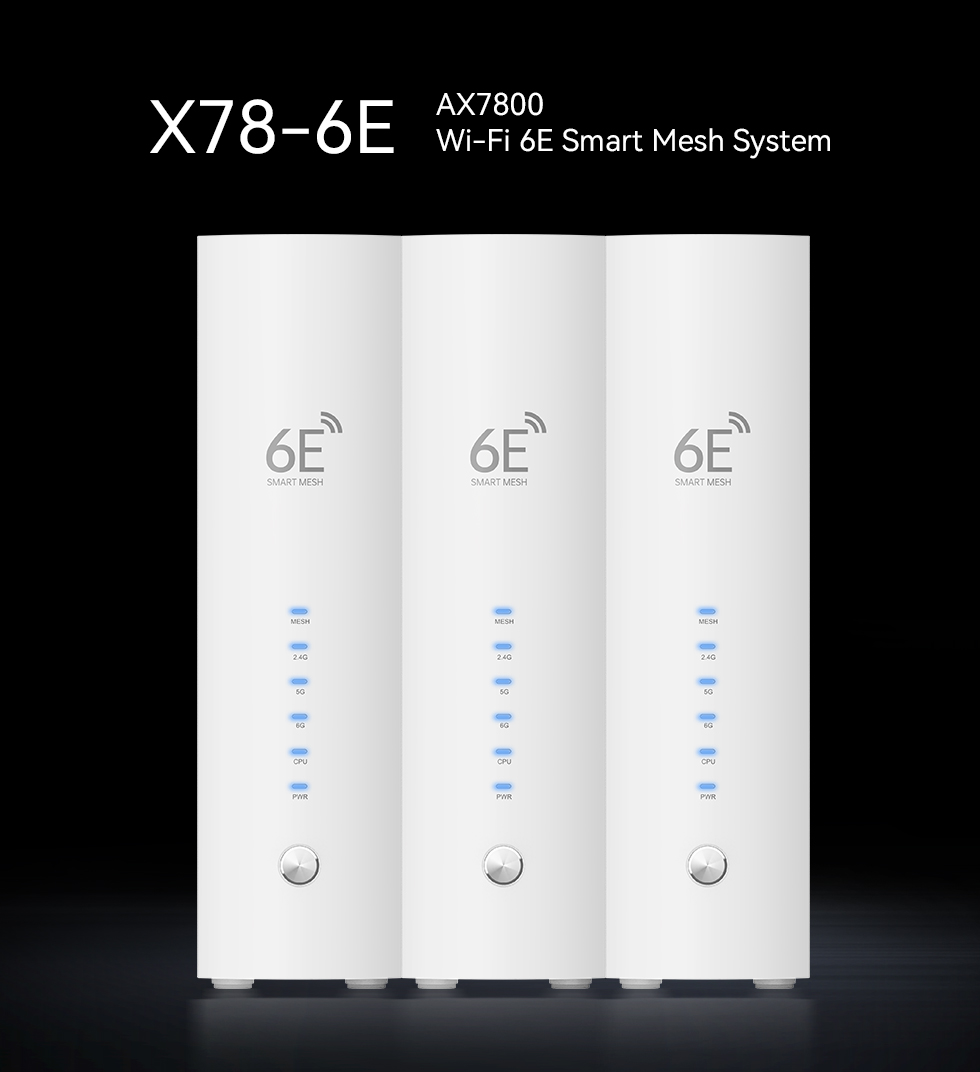

X78-6E

AX7800 Wi-Fi 6E Smart Mesh System

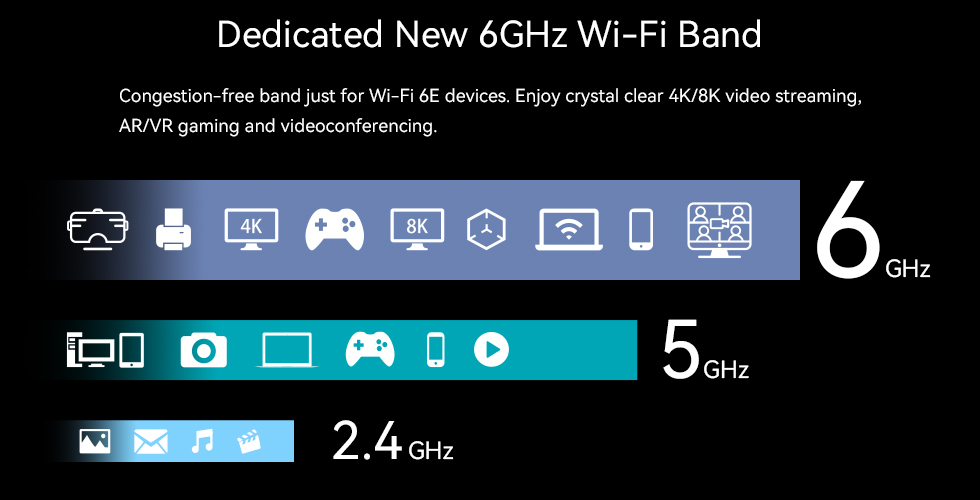

  • - Dedicated New 6GHz Wi-Fi Band
    - 7800Mbps Ultra-Fast Wi-Fi Speed
    - 2GHz Quad-Core CPU for Powerful Processing
    - OFDMA More Device, Less Congestion

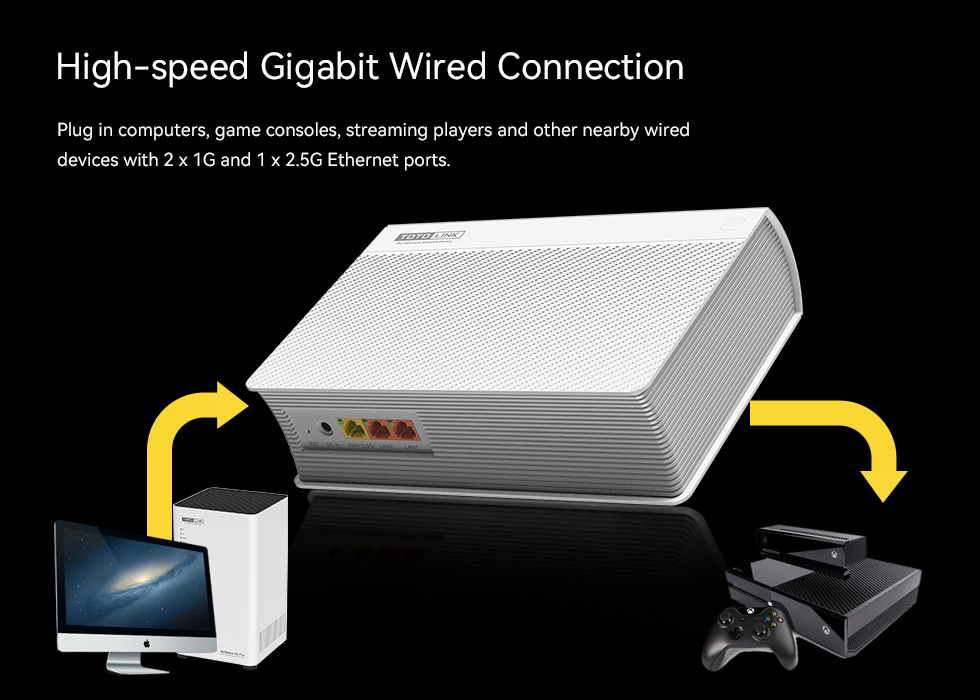

    - High-speed Gigabit Wired Connection

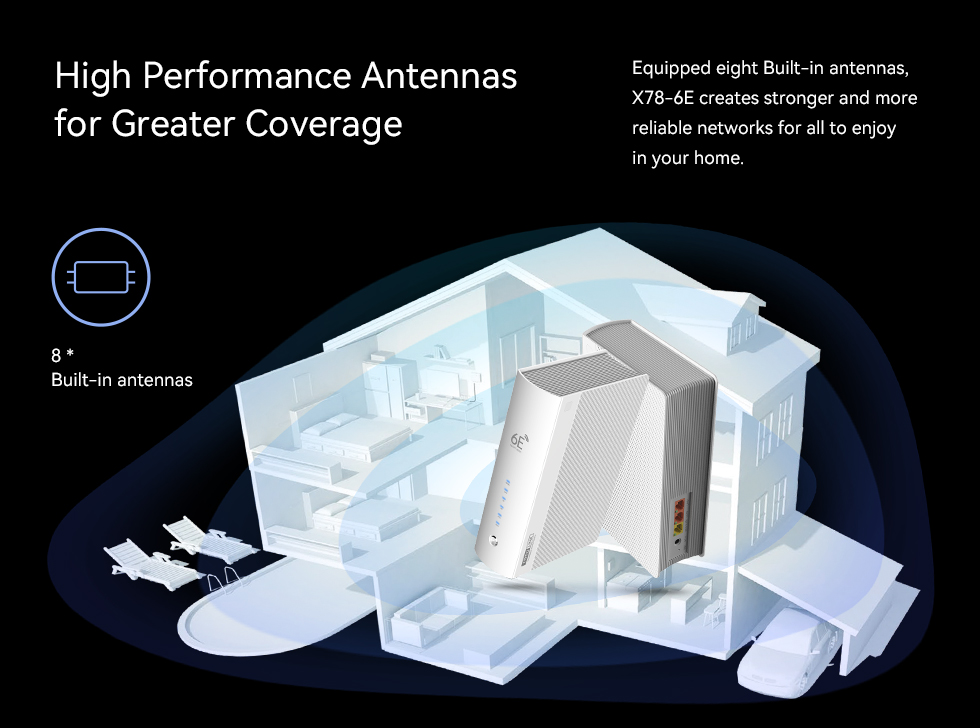

    - High Performance Antennas for Greater Coverage
    - 2500M ultra-fast network port
    - Easy Mesh, Wider Coverage and Seamless Roaming
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

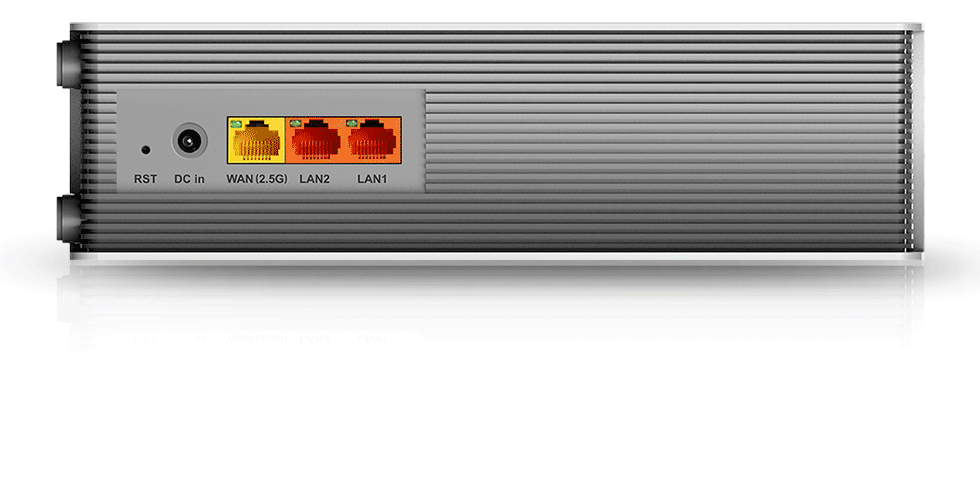

    • 2500M ultra-fast network port

    Equipped with a 2500M ultra-fast network port, it can easily handle bandwidths above Gigabit. It can also be used with home storage to build a high-speed home data center with faster transmission rates.

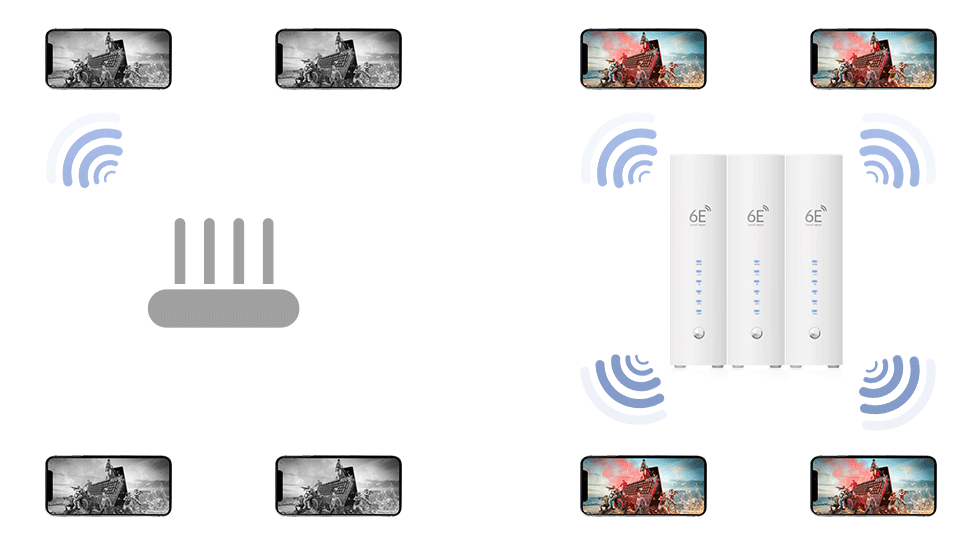

    MU-MIMO

    With MIMO, data would be divided into small packets, transmitted in multiple ways and finally assembled in the receiving antenna. Moreover , transmission can be easier and more flexible. The total data capacity also increases while decreasing the transmission pressure.


    Single-user MIMO Multi-user MIMO




    OFDMA More Device, Less Congestion

    X78-6E white can easily handle dozens of devices streaming and gaming at the same time—OFDMA, greatly increases capacity by 4 times to enable simultaneous transmission to more devices. OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.





    - Complies with 802.11ax/ac/a/b/g/n standards.
    - Dedicated New 6GHz Wi-Fi Band
    - Delivers up to 574Mbps on 2.4G band / 4804Mbps on 5G band /  2402Mbps on 6G band.
     -Eight built-in antennas can enhance the stability of throughput.
    - Beamforming technology for stronger connection.
    - OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
    - TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
    - Supports easy and quick setup by smart phones.
    -Support 2.5Gbps Ethernet interface.
    - Supports 64-bit WEP, WPA/WPA2/WPA3 and WPA-PSK/WPA2-PSK encryption.
    - Support VPN server, Universal Repeater, Guest network, Smart QoS, Wi-Fi Scheduler.
    - Parental Control on the router lets you easily manage content and time online on any connected device.
    - Supports Multi User MIMO (WAVE2)
    - Supports Easy Mesh
    Hardware

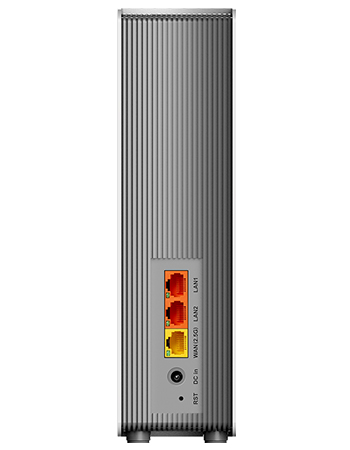

    Ethernet Port
    - 2*10/100/1000Mbps LAN Ports
    - 1*10/100/1000/2500Mbps WAN Port
    Power Supply
    - 12V DC/1A
    Antenna
    		 - 2 *  Built-in  2.4G band antennas
    - 4 *  Built-in  5G band antennas
    - 2 *  Built-in  6G band antennas
    Button
    - DC/IN*1、MESH*1、RST*1

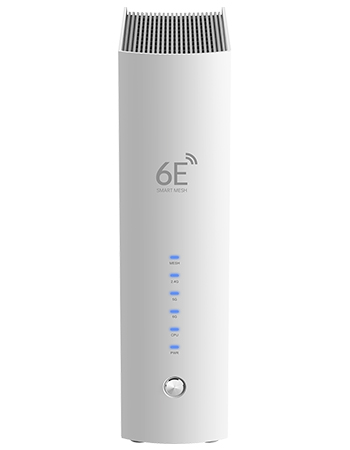

    LED  Indicators
    - 1* CPU，1* 6G/WIFI，5G/WIFI*1、2.4G/WIFI*1、MESH*1
    Dimensions (L x W x H)
    - 235*160*65mm
    Wireless
    Standards  - IEEE802.11n/g/b/a/ac/ax
    - IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3bz
    RF Frequency
    - 2.4GHz/5GHz/6GHz
    Data Rate
    - 2.4G 2*2：574Mbps
    - 5G 4*4：4804Mbps ((dedicated band for back hauling)
    - 6G 2*2：2402Mbps
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 23dBm
    - 6 GHz < 23dBm
    Wireless Security
    		 - 64/128-bit WEP, WPA, WPA2,WPA3 and WPA-PSK/WPA2-PSK
    Reception Sensitivity  - 2.4G RX：
    11B_11M：-85 dBm，11G_54M：-72 dBm，HT20_MCS7：-68 dBm，HT40_MCS7：-65 dBm, HE-SU40 MCS11：-53dBm；
    - 5G RX：
    11A_54M：-68 dBm，HT20_MCS7：-65 dBm，HT40_MCS7：-62 dBm，VHT80_MCS9：-51 dBm，HE-SU40 MCS11：-47dbm，HE-SU80 MCS11：-46dbm，HE-SU160 MCS11：-43dBm；
    - 6G RX：
    11A_54M：-68 dBm，HE-SU20 MCS11：-49 dBm，HE-SU40 MCS11：-47 dBm，HE-SU80 MCS11：-46 dBm，HE-SU160 MCS11：-43 dBm；


    Others
    Package Contents

    		 -  AX7800 Wi-Fi 6E Smart Mesh System *1
    - Power Adapter *1
    - Ethernet Cable *1
    Environment

    		 - Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
