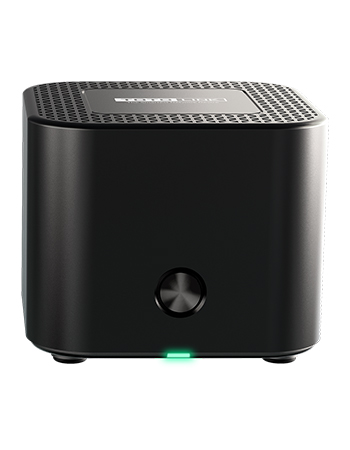

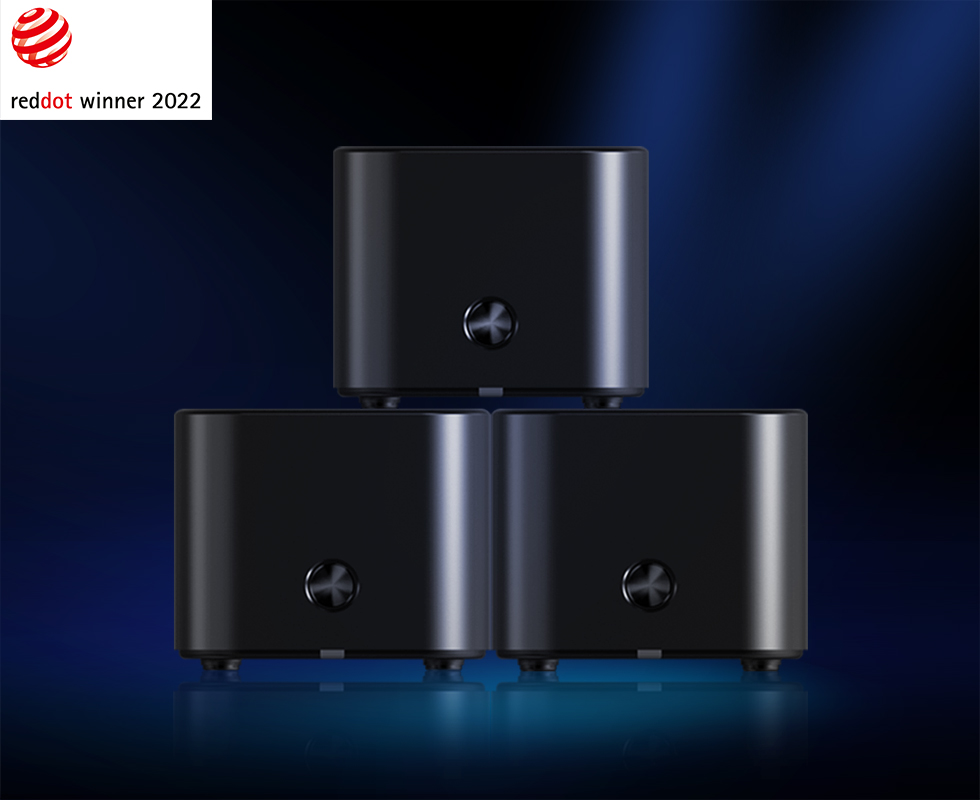

X18

Wi-Fi6 Smart Mesh System

  • - 1.8Gbps Ultra-Fast Wi-Fi Speed

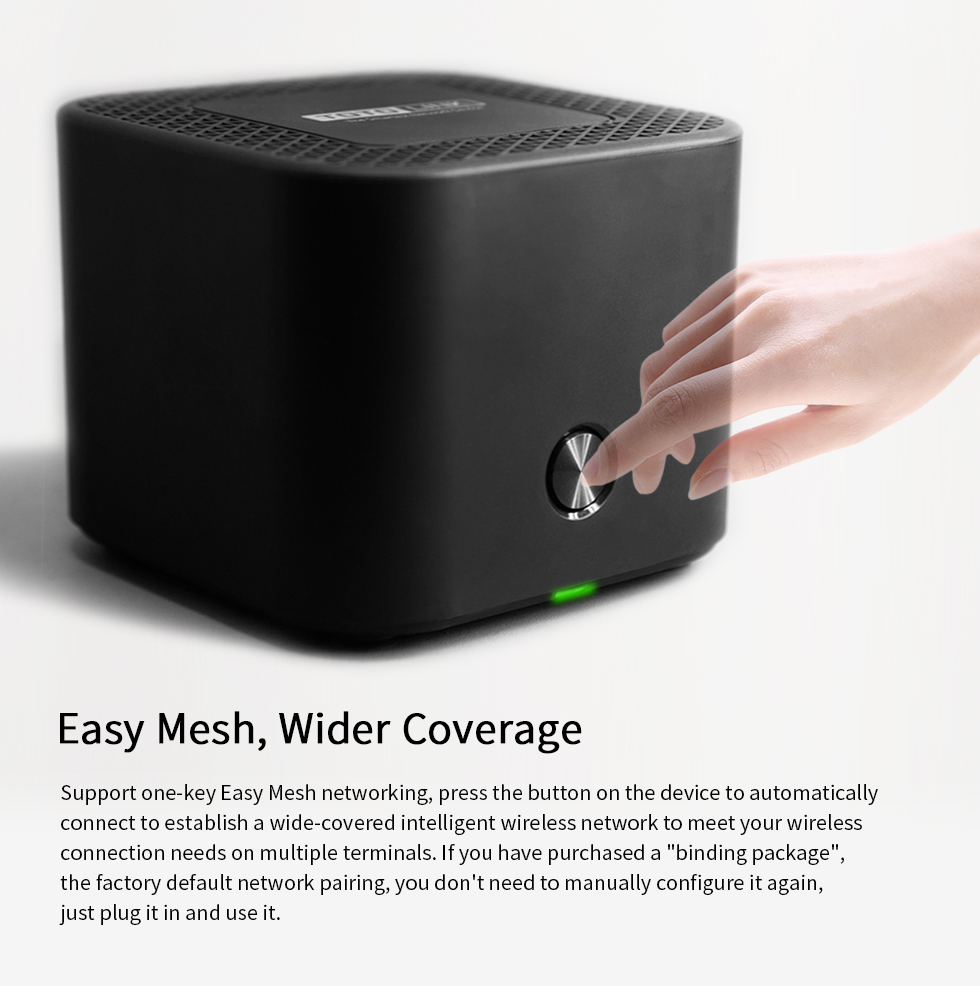

    - Easy Mesh, Wider Coverage

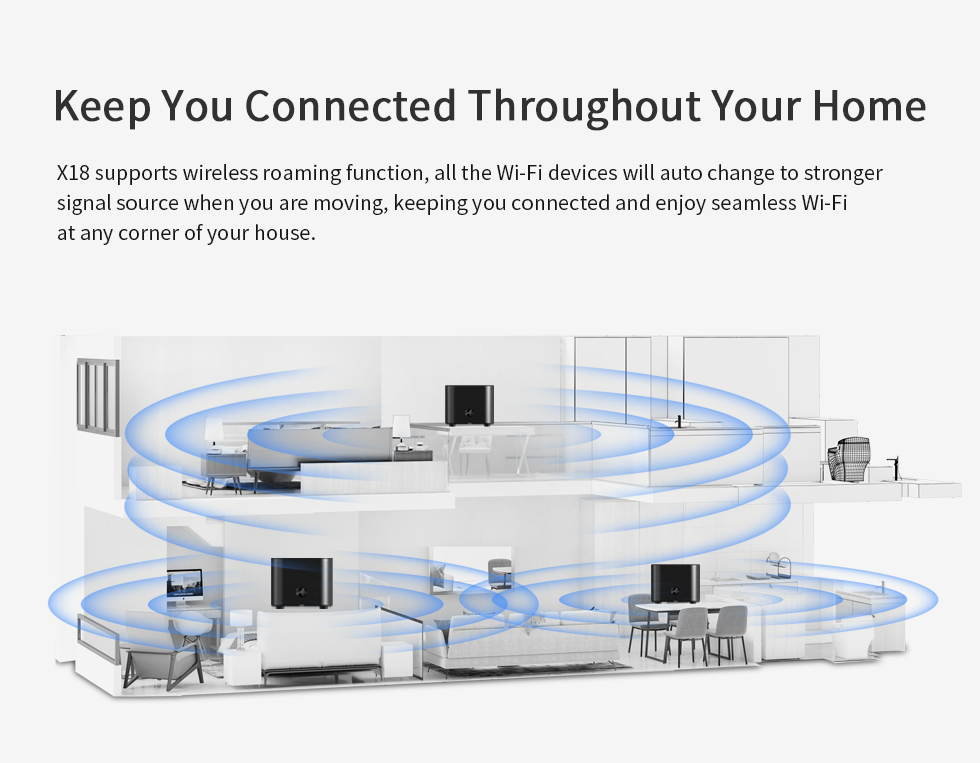

    - Keep You Connected Throughout Your Home

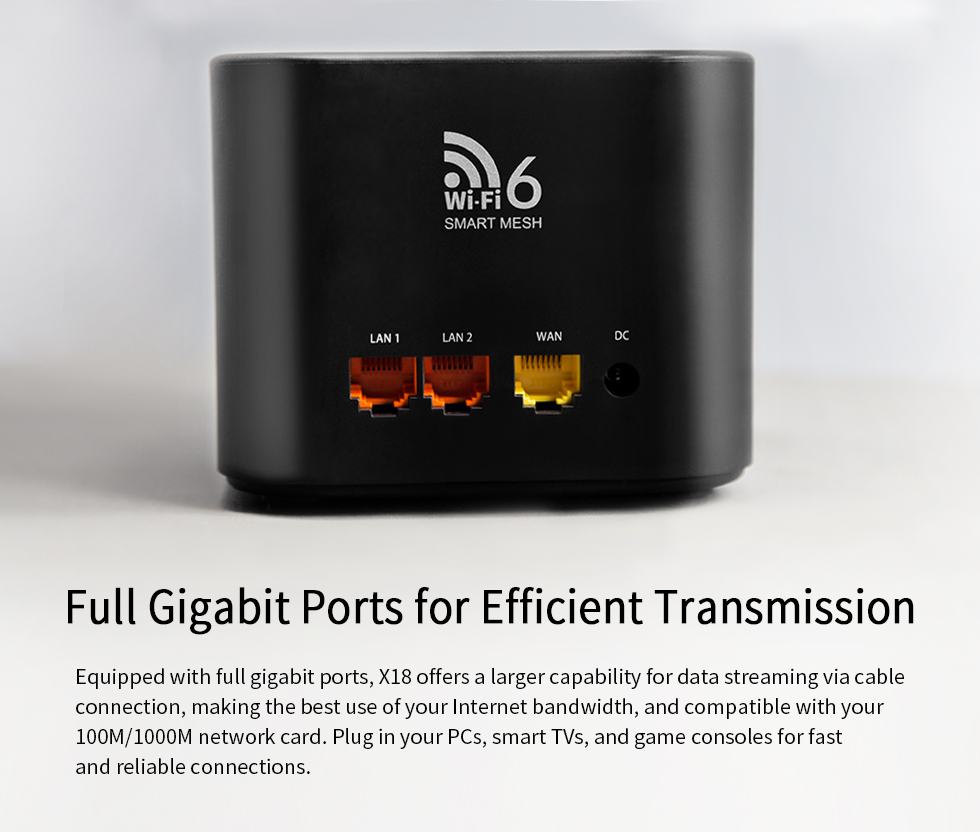

    - Full Gigabit Ports for Efficient Transmission
    - IPTV Helps to Catch the Latest Teleplay

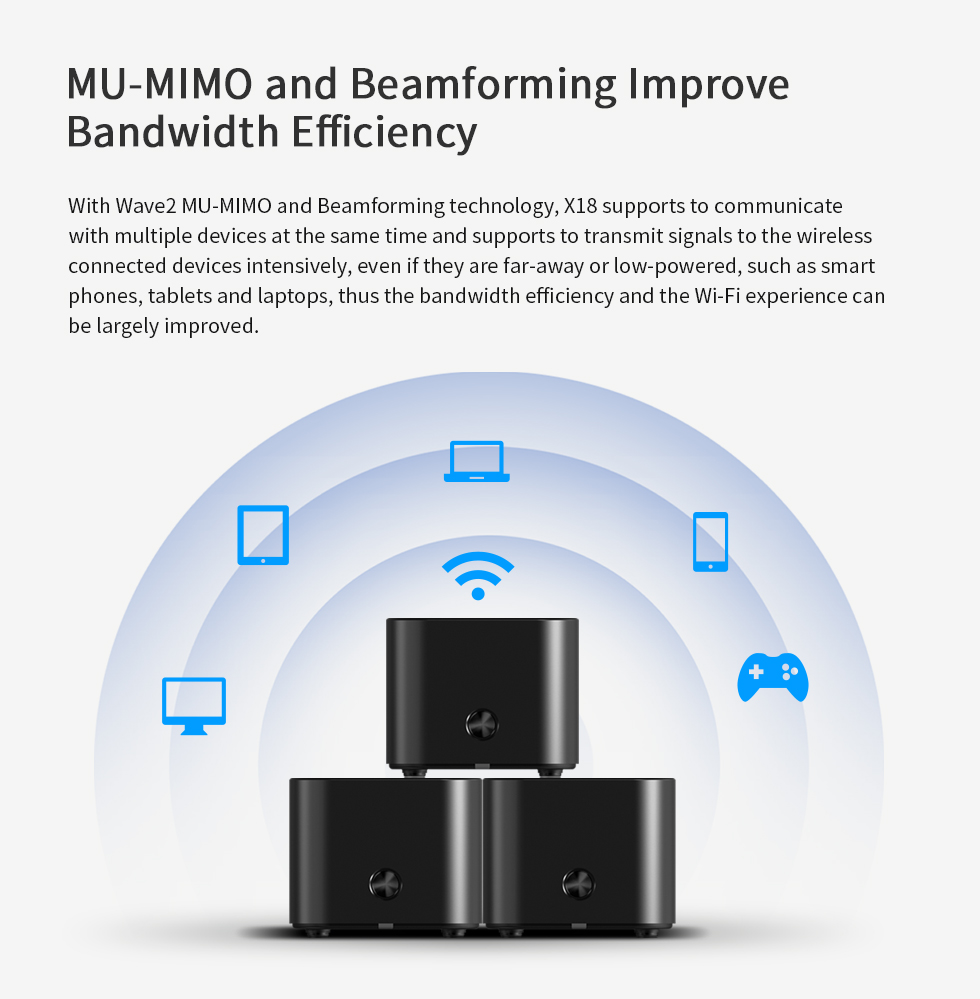

    - MU-MIMO and Beamforming Improve Bandwidth Efficiency
    - Support the Latest Internet Protocol IPv6

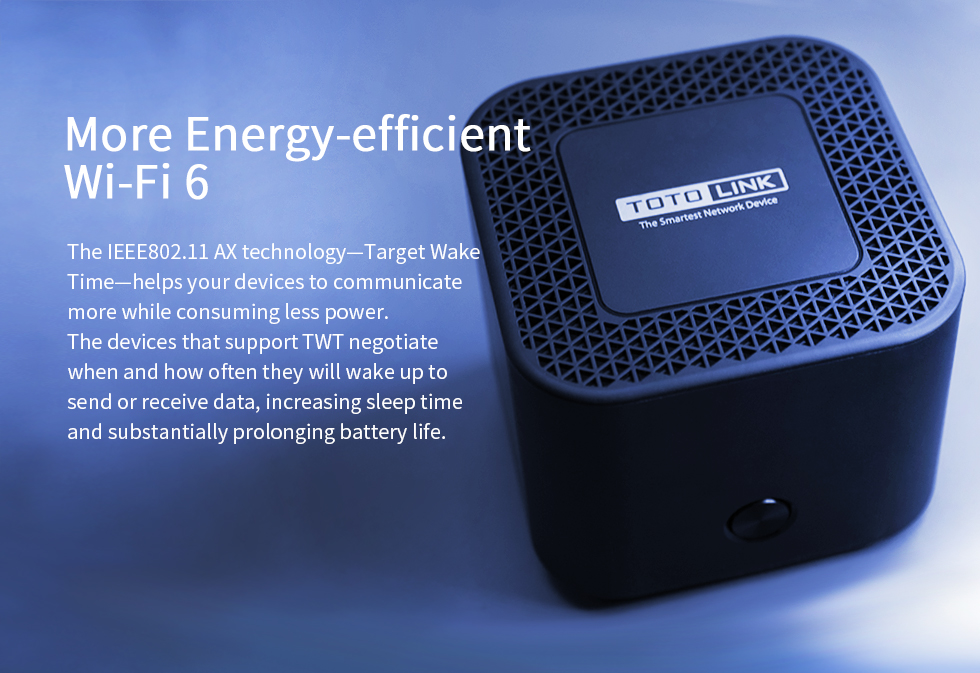

    - More Energy-efficient Wi-Fi 6
  • Overviews
  • Features

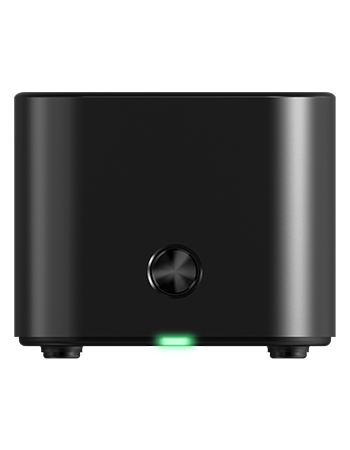

  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the next generation Wi-Fi 6 (IEEE 802.11ax) standard.
    - Simultaneous 1201Mbps on 5GHz and 574Mbps on 2.4GHz for a total of 1775Mbps.
    - OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
    - TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
    - MU-MIMO technology allows to transfer data to multiple devices at the same time.
    - Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.
    - Easy Mesh function for easy Wi-Fi extension and seamless roaming.
    - Full Gigabit WAN and LAN Ports for efficient data transmission.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
    - Supports WPA3 wireless security protocols to ensure network security.
    - QoS: Bandwidth Control based on IP address.
    - IPTV function allows to enjoy online movies at home.

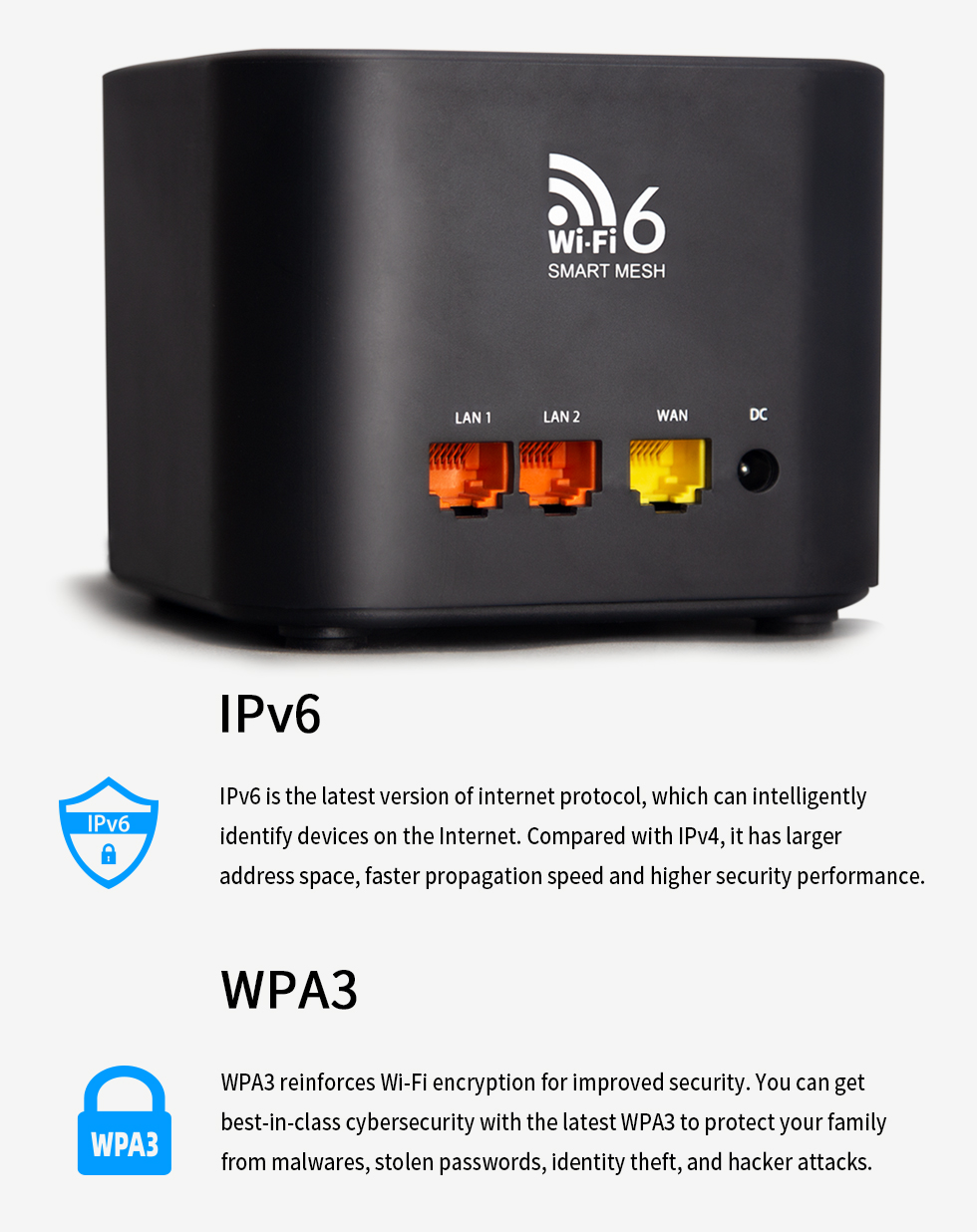

    - IPv6 provides larger address space, faster propagation speed and higher security performance.
    - Parental control enables to create a safe & healthy Internet environment for your children.
    - Easy setup and management with phone UI and TOTOLINK Router APP.
    Hardware

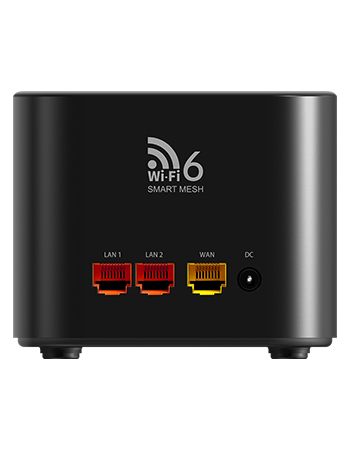

    Interface
    - 2 *1000Mbps LAN Ports
    - 1 *1000Mbps WAN Port
    Power Supply
    - 12VDC / 1 A
    Button
    		 - 1 *Mesh/RST Button
    - 1* Power Button
    LED  Indicators
    		 - 1 *System (Red/Green)
    Antenna
    - 2 *Internal Dual Band Antennas
    Dimensions (L x W x H)
    - 105 x 105 x 87mm
    Wireless
    Standards
    -IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n, IEEE 802.11s
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 574Mbps (2*2 40MHz)
    - 5GHz: Up to 1201Mbps (2*2 80MHz)
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - WPA2/WPA Mixed
    - WPA3
    Reception Sensitivity
    - 2.4G: 11b: <-81dbm;
               11g: <-68dbm;
               11n HT20: <-65dbm  HT40: <-62dbm
               11ax HE40: -48dB
    - 5G: 11a:<-68dbm;
             11n: HT20<-65dbm  HT40: <-62dbm
             11ac VHT80: <-51dbm
             11ax HE40: <-48dbm      11ax HE80: <-46dbm
    Software
    Operation Mode
    - Mesh Mode
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - QR Code
    - Logout
    - Reboot
    Mesh setting
    - Mesh Networking
    - Mesh Topology
    - Roaming
    - Clear default pairing
    Network


    - WAN Setting
    - LAN Setting
    - IP/MAC Binding
    - DDNS Setting
    - IPTV Setting
    - IPv6
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Wireless
    - Basic setup
    - Parental Control
    QoS

    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    Security

    - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT

    - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    Tools


    - Upgrade Firmware
    - Time Setup
    - Remote management
    - Password Settings
    - Reboot Schedule  - System Log and so on

    Others
    Package Contents
    - X18 Wireless Router *1
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1

    Remark：
    Take Unit pack as an example.(This product also has 2 in 1 and 3 in 1 package, the above list is only for reference.)
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 5%~95% non-condensing
    - Storage Humidity: 5%~95% non-condensing
