Hardware
|
|
---|---|

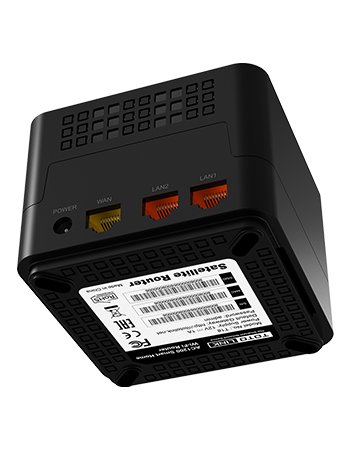

Interface
|

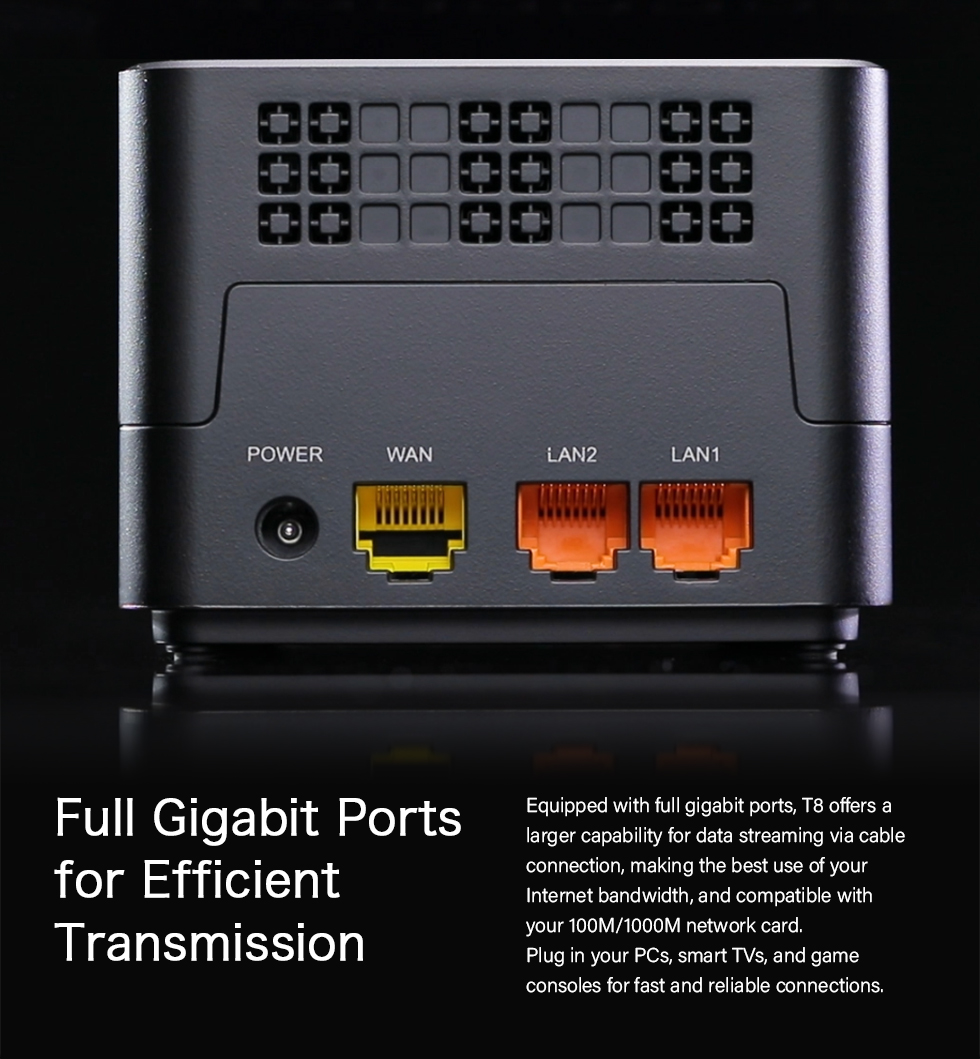

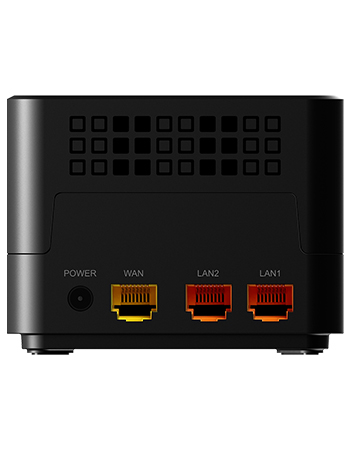

- 2 *1000Mbps LAN Ports
- 1 *1000Mbps WAN Port
|
Power Supply
|
- 12VDC / 1 A
|
Button
|
- 1 *Mesh/RST Button
- 1* Power Button
|
LED Indicators
|
- 1 *System (Red/Green) |
Antenna
|
- 2 *Internal Dual Band Antennas
|
Dimensions (L x W x H)
|
- 89 x 89 x 68.5mm
|
Wireless
|
|
---|---|
Standards |
- IEEE 802.11ac,
- IEEE 802.11a, - IEEE 802.11b, - IEEE 802.11g , - IEEE 802.11n, - IEEE 802.11s |
RF Frequency |
- 2.4GHz/5GHz
|
Data Rate |
- 2.4GHz: Up to 300Mbps
|
- 5GHz: Up to 867Mbps
|
|
EIRP
|
- 2.4GHz < 20dBm
|
- 5GHz < 20dBm
|
|
Wireless Security
|
- 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
|
Reception Sensitivity |
- 2.4G: 11b: <-81dbm;
11g: <-68dbm;
11n: HT20<-65dbm HT40: <-62dbm
- 5G: 11a:<-68dbm;
11n: HT20<-65dbm HT40: <-62dbm
11ac: <-51dbm
|
Software
|
|
---|---|
Operation Mode
|
- Mesh Mode
|
Home
|
- Quick Setup
- Basic setup - Advanced setup
- QR Code
- Logout - Reboot |
Mesh setting
|
- Mesh Networking

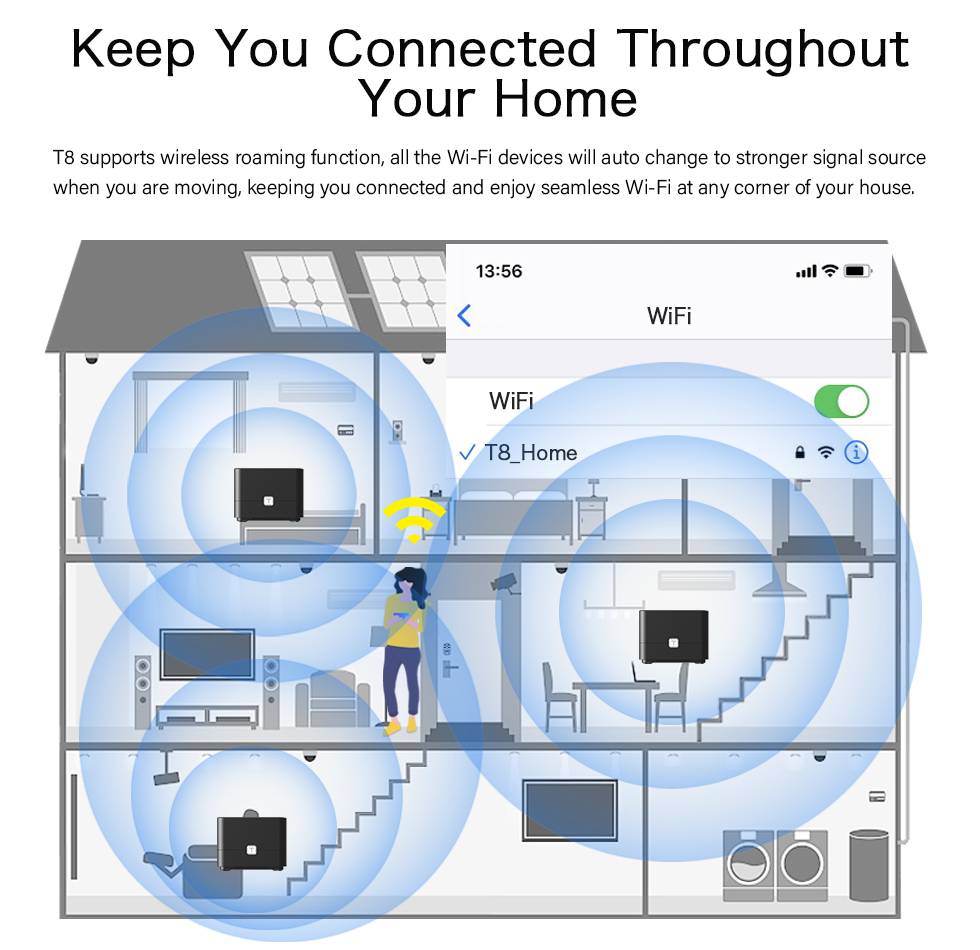

- Mesh Topology - Roaming
- Clear default pairing
|
Network
|
- WAN Setting
- LAN Setting - IP/MAC Binding
- DDNS Setting
- IPTV Setting - IPv6 |
WAN Type
|
- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
|
Wireless
|
- Basic setup
- Parental Control |
QoS
|
- Up/Down speed control on WAN,
- Bandwidth control based on IP address |
Security
|
- MAC Filtering
- IP/Port Filtering - URL Filtering |
NAT
|
- Virtual Server(Port Forwarding)
- DMZ - VPN passthrough |
Tools
|
- Upgrade Firmware
- Time Setup - Remote management
- Password Settings
- Reboot Schedule - System Log and so on |
Others | |
---|---|
Package Contents
|
- T8 Wireless Router *1
- Power Adapter *1
- Ethernet Cable *1
- Quick Installation Guide *1
Remark:
Take Unit pack as an example. (This product also has 2 in 1 and 3 in 1 package, the above list is only for reference.) |
Environment
|
- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
|
