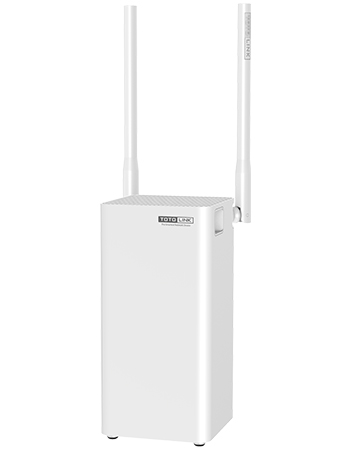

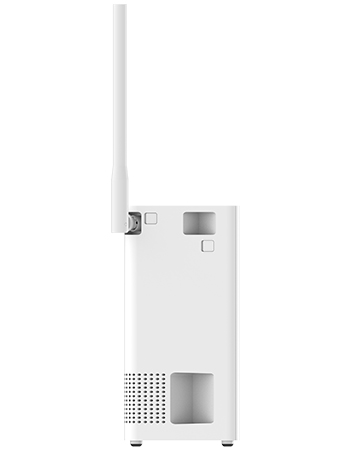

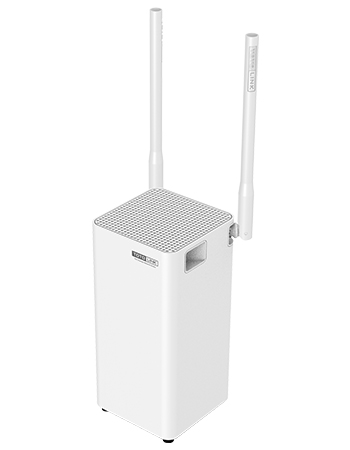

T15

AC1300 Wireless Dual Band Gigabit Mesh Router

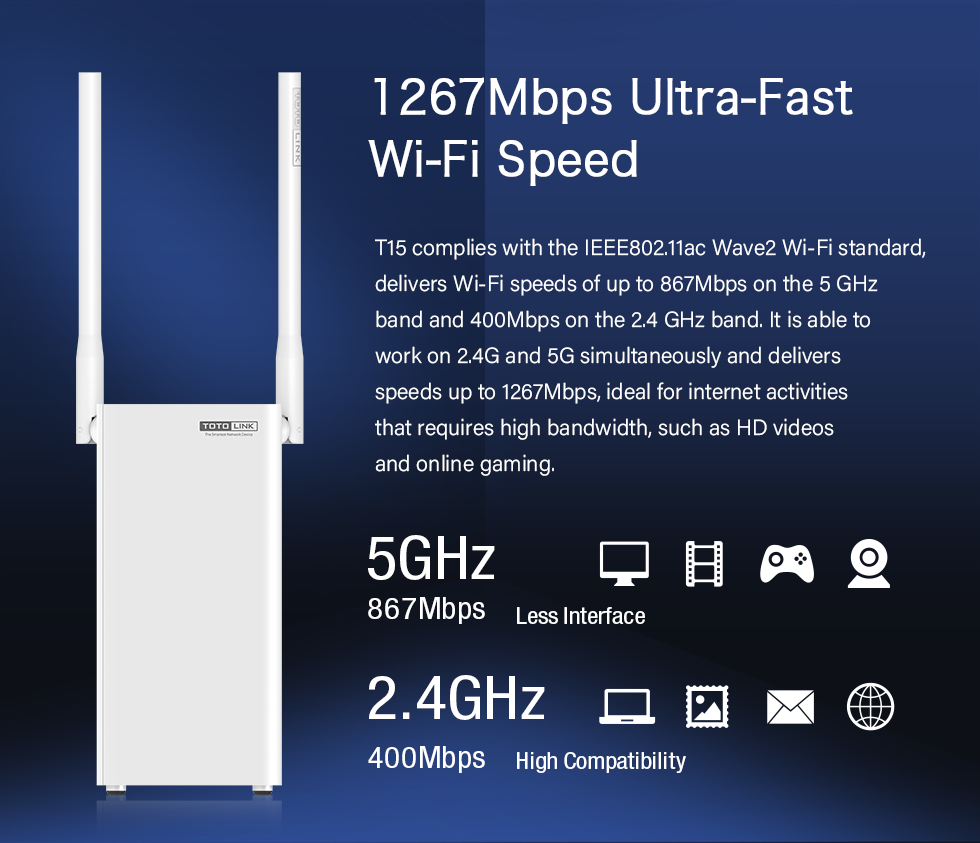

  • - 1267Mbps Ultra-Fast Wi-Fi Speed

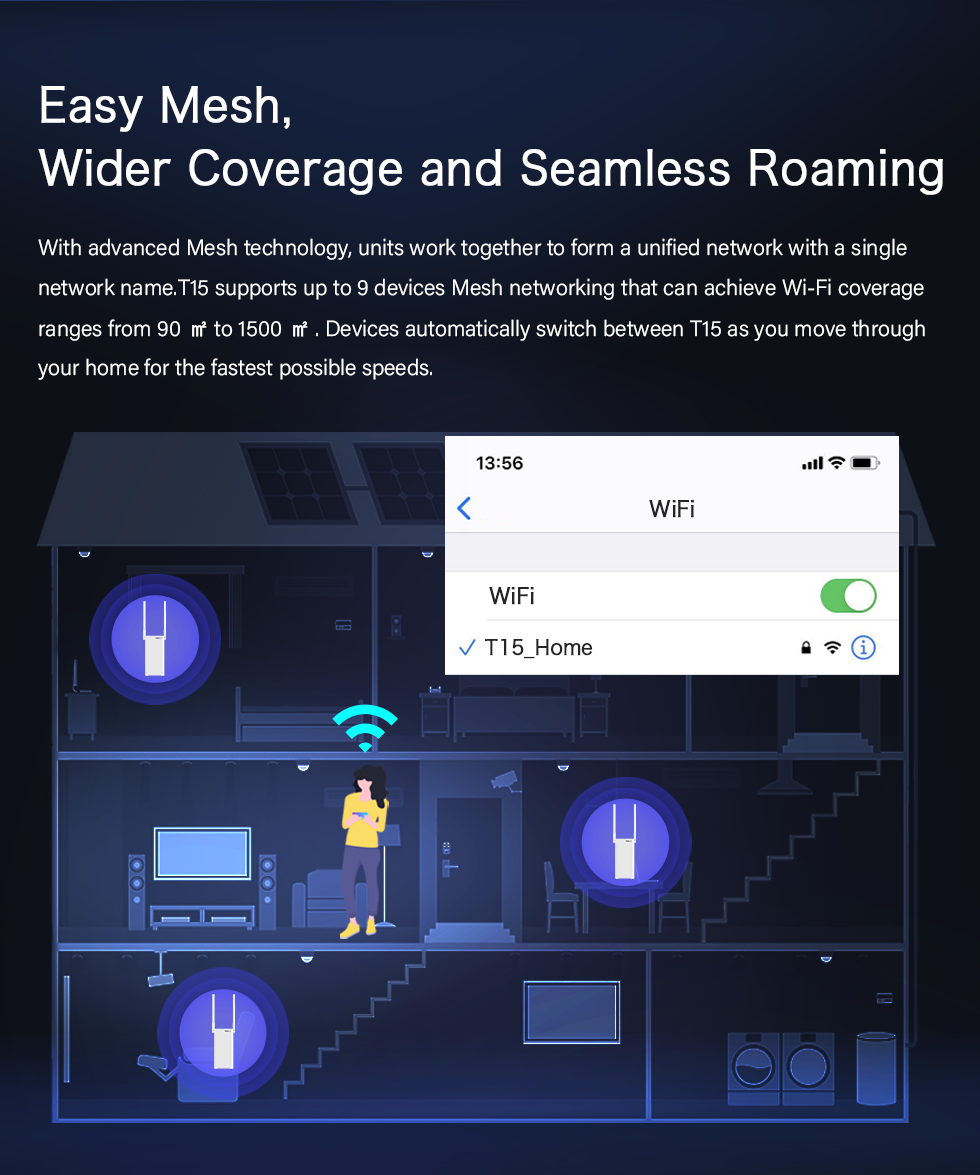

    - Easy Mesh, Wider Coverage and Seamless Roaming

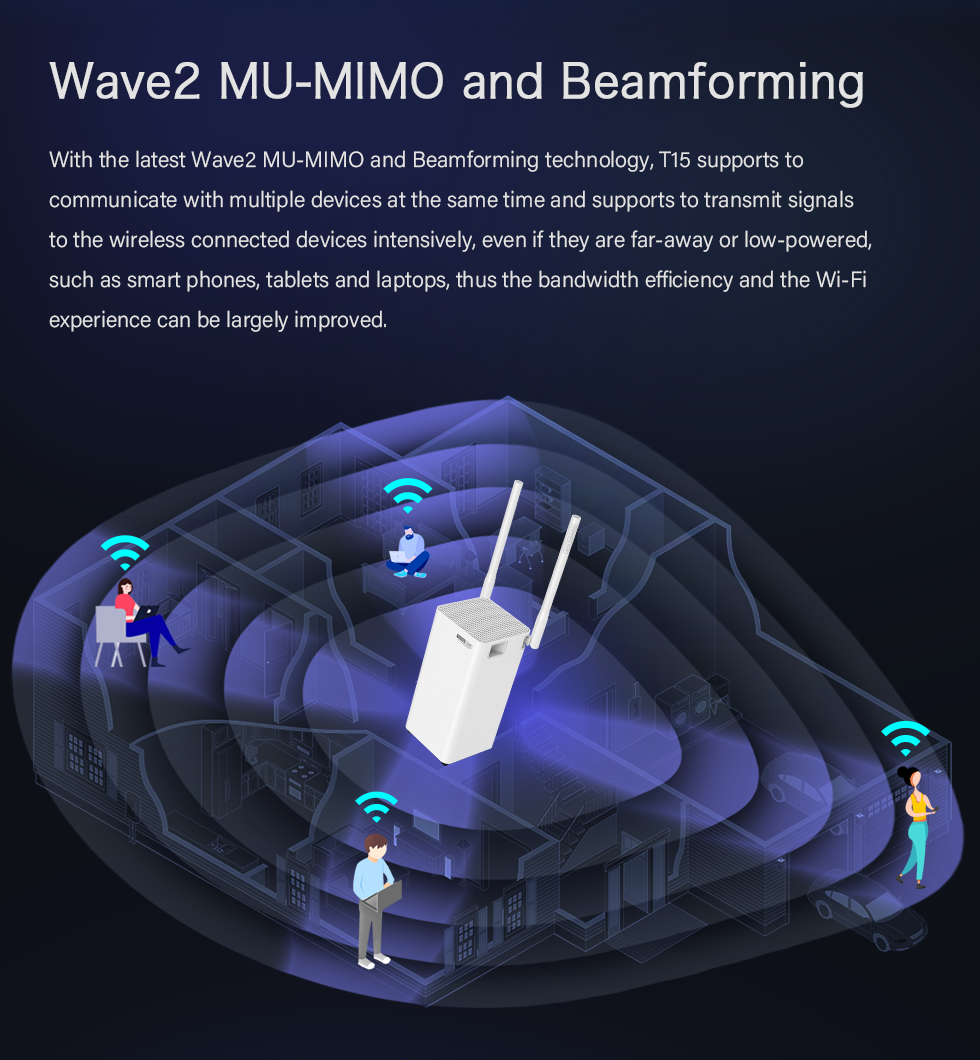

    - Wave2 MU-MIMO and Beamforming
    - Full Gigabit WAN and LAN Ports
    - VPN Support
    - IPTV
    - Phone UI
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the IEEE 802.11ac Wave2 Wi-Fi standard.
    - Simultaneous 867Mbps on 5GHz and 400Mbps on 2.4GHz for a total of 1267Mbps.
    - Easy Mesh function for easy Wi-Fi extension and seamless roaming.
    - MU-MIMO technology allows to transfer data to multiple devices at the same time.
    - External 5dBi fixed antennas is perfect for long-distance wireless transmission.
    - Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.
    - Full gigabit ports offer larger capability for data forwarding via cable connection
    - Supports DHCP, Static IP, PPPoE broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-PSK/WPA2-PSK security.
    - Connects to a secure network easily by using WPS.
    - QoS: Bandwidth Control based on IP address.
    - Easy setup with phone UI.

    HARDWARE FEATURES

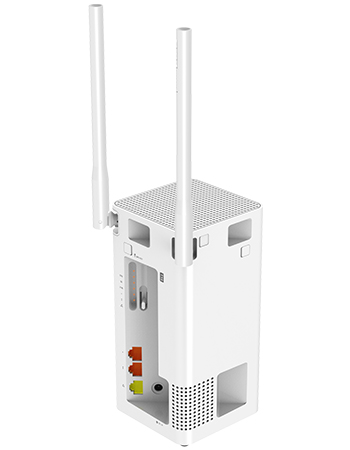

    Interface
    - 2 *1000Mbps LAN Ports
    - 1 *1000Mbps WAN Port
    - 1 *DC Power Port
    Power Supply
    - 12V DC / 1A
    Button
    - 1 *RST/WPS
    LED Indicators
    - 1 *CPU, 1 *2.4GWireless, 1 *5GWireless, 2 *LAN, 1 *WAN
    Antenna
    - 2 * 5dBi fixed external dual band antennas
    Dimensions (W x H x D)
    - 86 x 86 x 179.5 mm
    WIRELESS FEATURES
    Standards
    - IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
    RF Frequency
    - 2.4~2.4835GHz
      - 5.18~5.825GHz
    Data Rate  - 2.4GHz: 400Mbps
      - 5GHz: 867Mbps
    EIRP  - 2.4GHz < 20dBm
      - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Reception Sensitivity

    		 - 2.4G:11b 11M：-85dBm@8% PER
              11g 54M：-72dBm@10% PER
              11n HT20 MCS7：-68dBm@10% PER
                    HT40 MCS7：-65dBm@10% PER
    - 5G: 11a 54M：-72dBm@10% PER
            11n HT20 MCS7：-68dBm@10% PER
                  HT40 MCS7：-65dBm@10% PER
           11ac VHT80 MCS9：-55dBm@10% PER
    SOFTWARE FEATURES
    Basic Setting

    - Status Summary
    - Internet Setup
    - Wireless Setup
    - Firmware Upgrade
    - Easy Mesh
    Network
    - Internet Setup
    - LAN Setup
    - DHCP Server Setup
    Wireless

    - Wireless Setup
    - Wireless Multi-bridge
    - MAC Authentication
    - Easy Mesh
    NAT/Routing

    - Port Forwarding
    - Advanced NAT Setup
    - Routing Table
    Firewall

    - Firewall
    - Net Detector
    - Manage Access List
    Utility
    - VPN Setup
    - DDNS
    - WOL
    - Host Scan
    - Notice
    - IPTV
    - GAMING VPN
    Traffic
    - QoS Setup
    - Connection Info
    - Connection Control
    - Wired Port Setup
    - Switch Setup
    System

    - System Log
    - Admin Setup
    - Firmware Upgrade
    - Misc Setup
    Others
    Package Contents

    - T15 Wireless Router *1
    - Power Adapter *2
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~50℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 5%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
