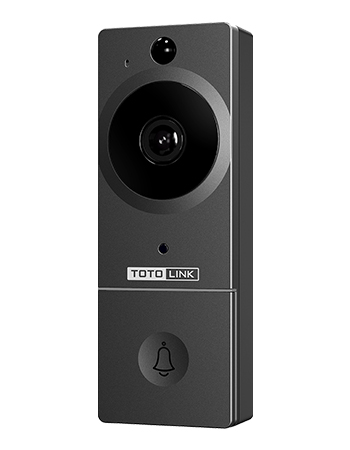

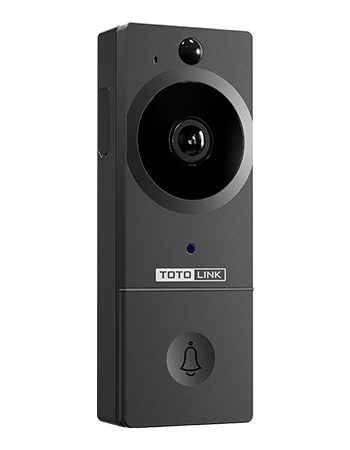

D1 Specification
|
|
|---|---|
|
Product name
|
- D1
|
|
Image Sensor
|
- F37 1/3’ CMOS
|
|
Maximum Pixels
|
- 1080P (1920×1080)
|
|
Lens
|
- f: 2.52 mm, F:2.4 (IR Lens)
|
|
IR LED
|
- 850nm/6pcs，distance up to 5 meters
|
|
Night vision
|
- IR night vision
|
|
PIR
|
- 3-7m |
|

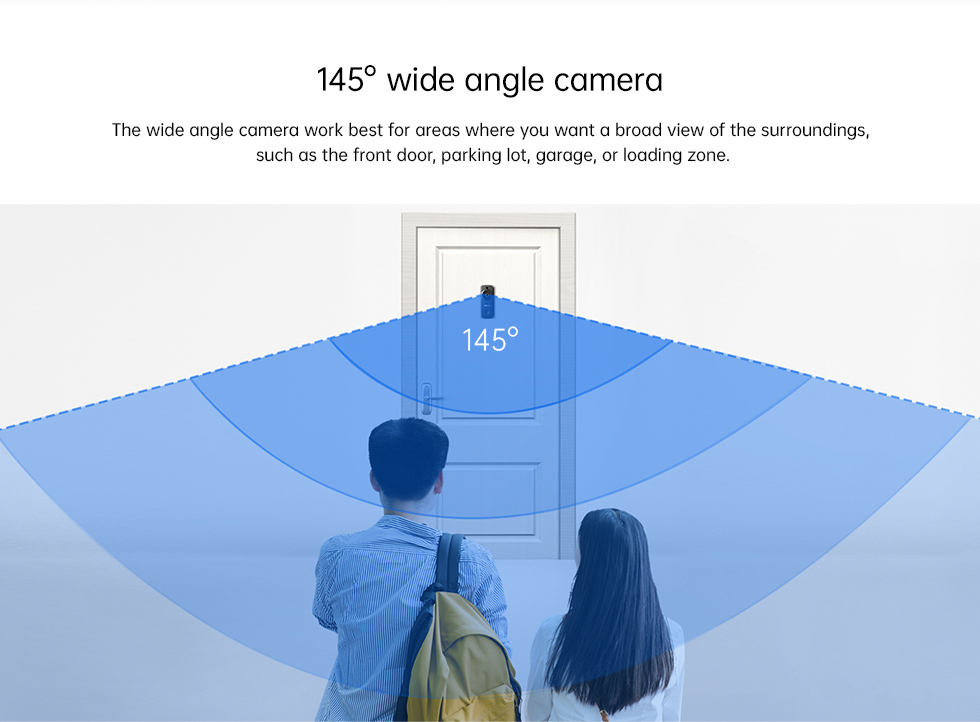

View angle
|
- 145° |
|
Compression standard
|
- H.264 |
|
Video coding
|
- Main stream：1080P/24fps+VGA/30fps+QVFA/30fps+1080P @1fsJPEG snap |
|
Video resolution
|
- 1920*1080P@20fps |
|
Audio input/output
|
- Mic, Speaker |
|
Audio
|
- 2way intercom |
|

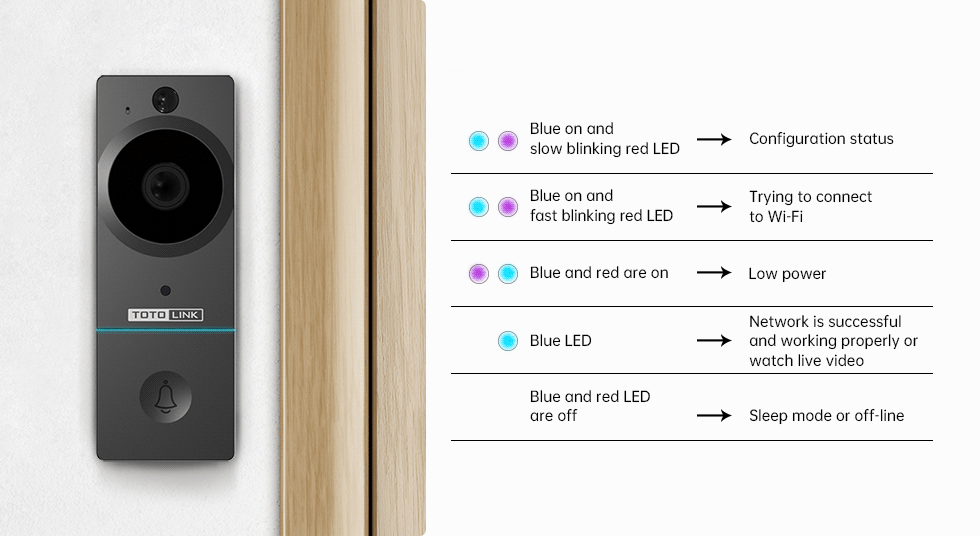

Indicator
|
- System: Red/Blue
- Charging: Red LED: Charging; Blue LED: Finished charging
|
|

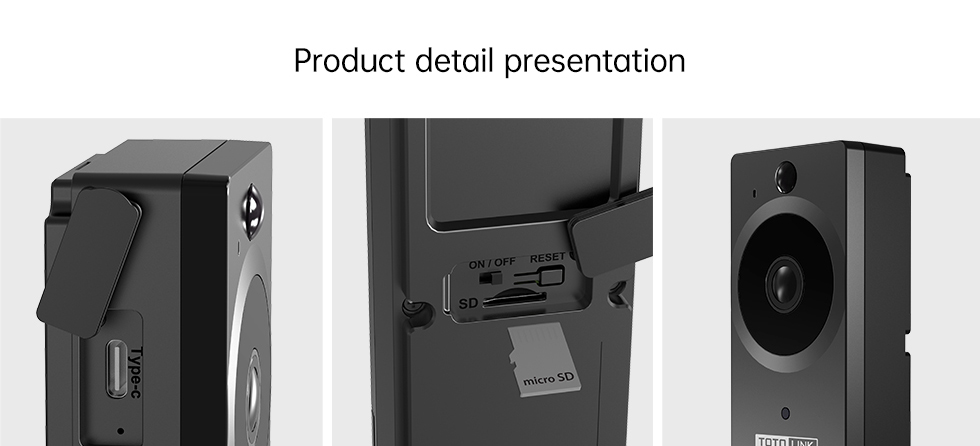

External storage
|
- Max.128GB Micro SD |
|
General Features
|
- Support IR night vision, customize volume, PIR switch, cloud storage, Siren alarm |
|
Wi-Fi connection
|
- Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
|
Wi-Fi security
|
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Power
|
- 8650 Lithium battery 2500mAh *2 |
|
Charging
|
- Type-C，5V 2A |
|
Size
|

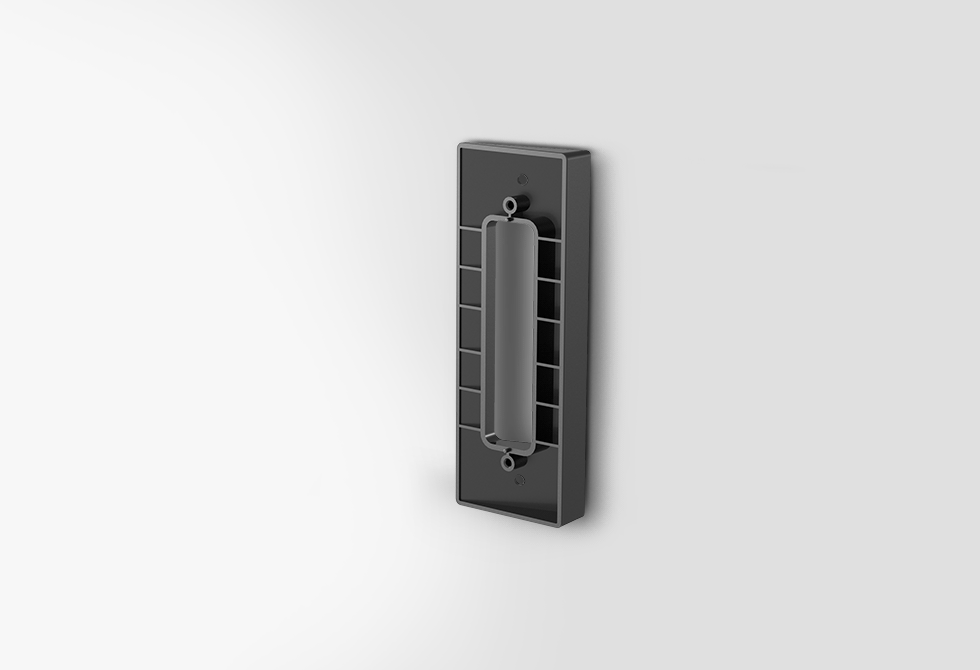

- 133×48.2×28.5mm(Without Bracket)
- 133×48.2×30.5(With Bracket)
|
|
Operating temperature
|
- -10℃ ~ +50℃
|
|
Operating humidity
|
- ≤95%
|
|

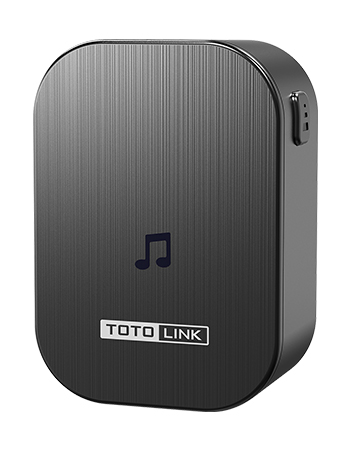

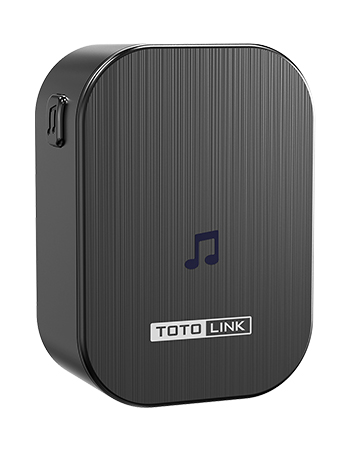

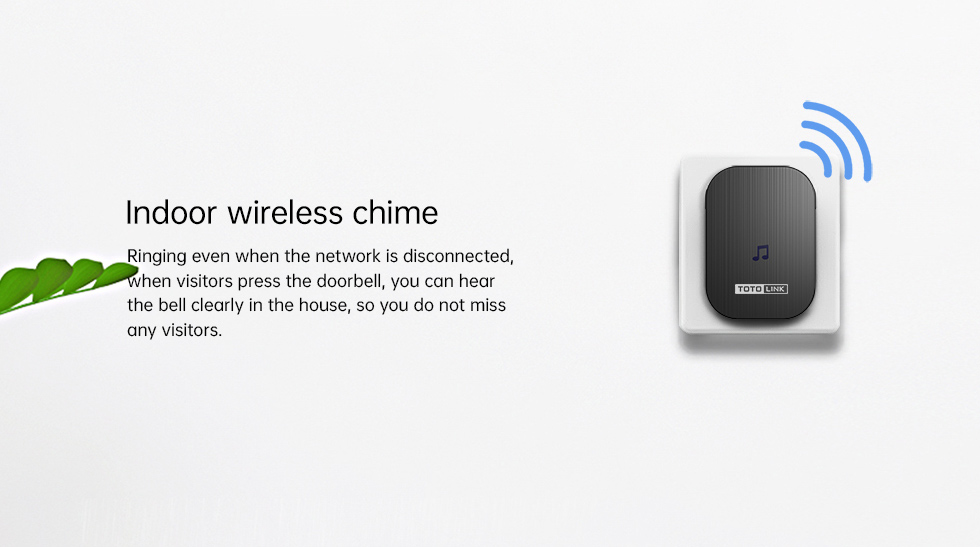

D1 Chime Specification
|
|
|---|---|
|
Product No.
|
- D1 Chime
|
|
Frequency
|
- 433MHz
|
|
Receive sensitivity
|
- -109dBm
|
|
Melody
|
- 50 pcs melodies for choice
|
|
Ringing volume
|
- 0-100db, 5-level adjustable
|
|
Button
|
- Melody button: cycle play the melody;
- Volume button: short press and adjust the volume (Long press to enter the code pairing status)
|
|
Power
|
- AC 100-240V |
|
Size
|
- 70 x 50 x 34mm |
|
Operating temperature
|
- -10℃ ~ +50℃ |
|
Operating humidity
|
- ≤95% |
